INSTALLATION GUIDE

for the

SB-LR-4/10TW3

SKU# 94600

2009 & Up Land Rover LR4

Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.

With proper installation, your new vehicle-specific enclosed subwoofer system

will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your

authorized JL Audio dealer. The installation professionals employed by your

dealer have the necessary tools and experience to disassemble and reassemble

your vehicle properly. If you prefer to perform your own installation, please read

this installation guide completely before beginning the process.

If you choose to perform the installation yourself, it is absolutely vital

that the Stealthbox®be properly mounted to the vehicle according to

these instructions. Failure to mount the enclosure properly presents two

problems:

1) The sub-bass performance will suffer due to the movement of the

enclosure caused by the force exerted by the woofer(s).

2) A loose enclosure presents a serious safety hazard in the event of a

collision or sudden deceleration.

INSTALLATION

D IFF I CU LT Y:

ESTIMATED TIME:

1 HOUR

Enclosure Type: Sealed

Driver Type: 10TW3-D4

Nominal Impedance: 2 ohms

Continuous Power Handling: 400 watts (RMS method)

Continued on Next Page

OUT

SB-LR-4/10TW3 INSTR_SKU# 011375

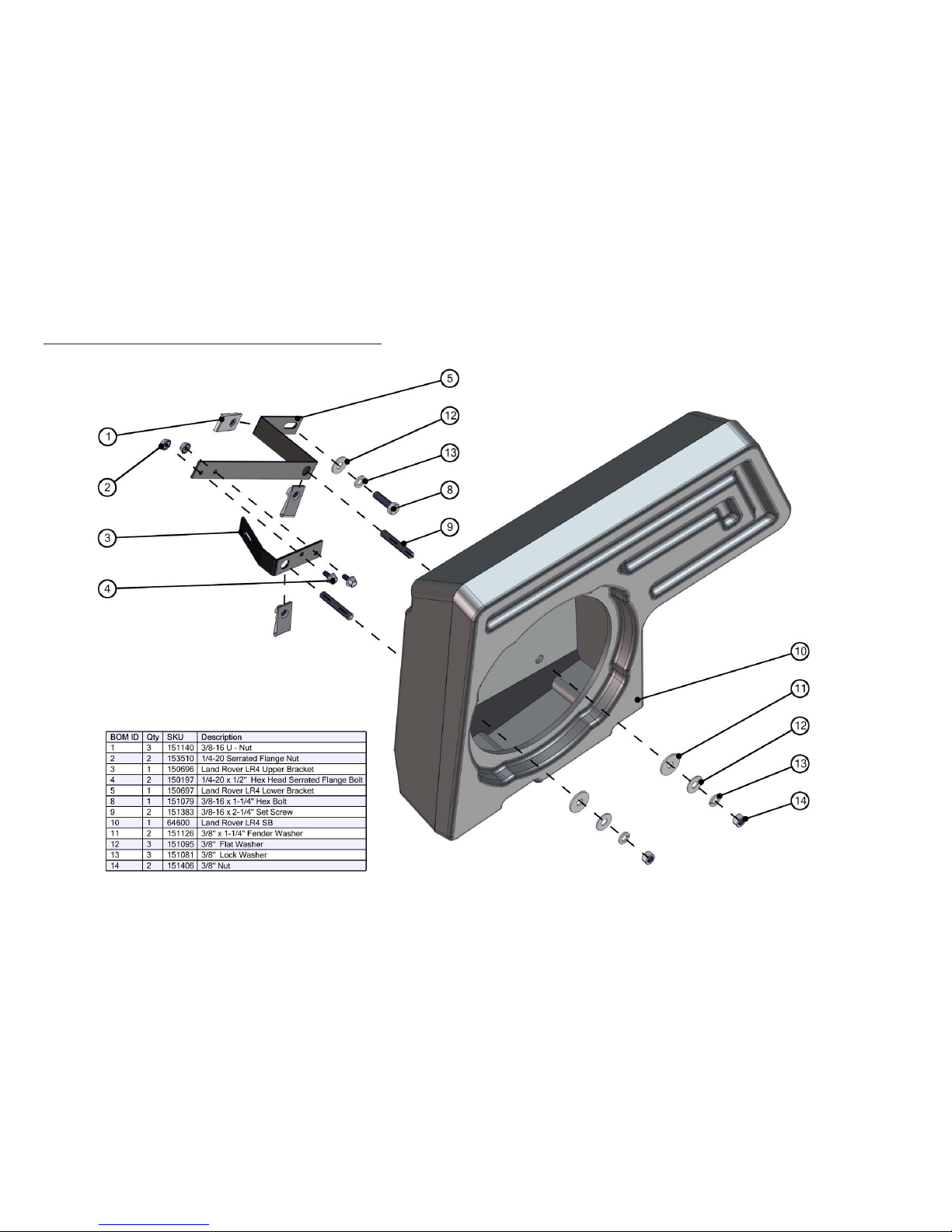

INCLUDED HARDWARE

Continued on Next Page

Page 2 • JL Audio, Inc., 2014

SB-LR-4/10TW3 INSTR_SKU# 011375

POWER RECOMMENDATION

JL Audio recommends high quality ampliers such as the JL Audio XD300/1. The diagram below shows the recommended crossover settings for the XD300/1. For a detailed description of the

amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.

CONNECTIONS

Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealth-

box® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both

channels of the amplier. JL Audio reccomends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.

Continued on Next Page

Page 3 • JL Audio, Inc., 2014

SB-LR-4/10TW3 INSTR_SKU# 011375

Page 4 • JL Audio, Inc., 2014 Continued on Next Page

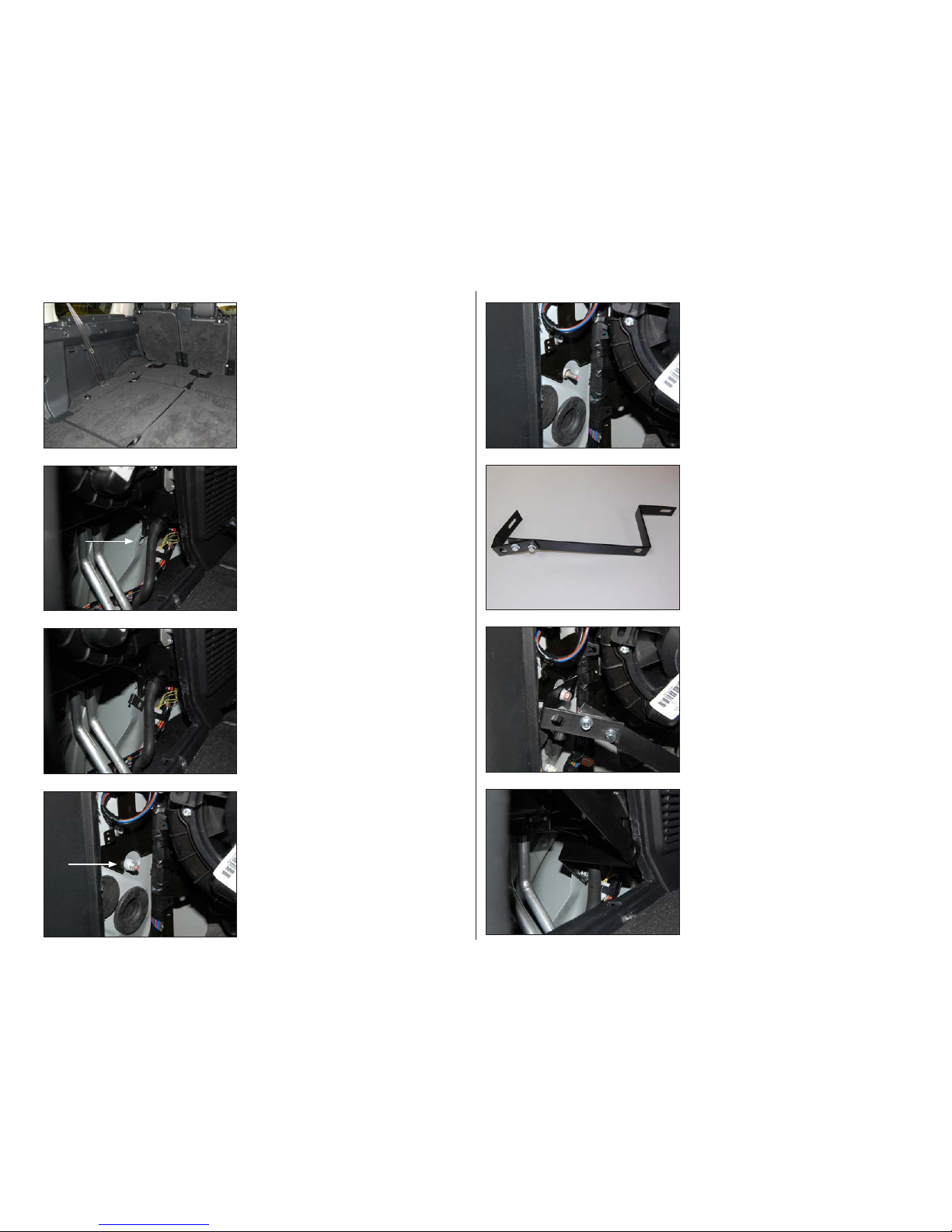

STEP 8

Slide a 3/8” Lock Washer and a 3/8” Flat Washer

over the 3/8 - 16 x 1-1/4” Hex Bolt, and thread

the assembly through the hole in the Lower

Bracket and into the 3/8 - 16 U-Nut as shown,

and firmly tighten.

STEP 7

Slide the Upper Bracket over the factory stud

and secure with the factory nut as shown.

STEP 6

Secure the Upper Bracket to the Lower Bracket

using a pair of 1/4 - 20 Flange Bolts and 1/4 - 20

Flange Nuts as shown.

STEP 5

Remove the factory nut from the stud.

STEP 4

Locate the factory stud indicated.

STEP 3

Slide a 3/8 - 16 U-Nut over the factory hole as

shown.

STEP 2

Remove the A/C service door at the rear of the

driver’s side panel. Locate the factory hole

indicated.

STEP 1

Empty out the cargo area of the vehicle.

SB-LR-4/10TW3 INSTR_SKU# 011375

Page 5 • JL Audio, Inc., 2014 Continued on Next Page

STEP 14

Reinstall the subwoofer and the cargo liner.

STEP 13

Connect speaker cable to the terminal cup on

the back of the enclosure, and reinstall the

Stealthbox®. Slide a 3/8” Flat Washer, a 3/8”

Lock Washer, and a 3/8 - 16 Hex Nut over each

of the 3/8 - 16 x 2-1/4” Set Screws, and firmly

tighten. Route speaker cable as necessary.

STEP 12

If the vehicle is equipped with the rubber

cargo liner, it will need to be cut for proper

fitment and easy removal. Use the enclosure

as a guide to mark the cargo liner. Remove

the enclosure and the cargo liner, and cut the

cargo liner on the mark.

Pictured is the rubber cargo liner after cutting.

S T E P 11

Remove the subwoofer from the Stealthbox®,

and place the enclosure into position in the

vehicle, allowing the two 3/8 - 16 x 2-1/4” Set

Screws to pass through the two openings in

the back of the enclosure.

STEP 10

Slide a 3/8 - 16 U-Nut over the large hole in the

Upper and Lower Brackets. Thread a 3/8 - 16

x 2-1/4” Set Screw into each 3/8 - 16 U-Nut as

shown.

STEP 9

Pictured are the Upper and Lower Brackets

installed.

SB-LR-4/10TW3 INSTR_SKU# 011375

Page 6 • JL Audio, Inc., 2014

MID/HIGH FREQUENCY DRIVER FITMENT

A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle.

Front Speaker Size / Location: 6-1/2”- Front Doors

Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,

C3-650, C5-650x, C5-650, & ZR650-CSi

Rear Speaker Size / Location: 6-1/2”- Rear Door

Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,

C3-650, C5-650x, C5-650, & ZR650-CSi

All specifications are subject to change without notice. “JL Audio®”and the JL Audio logo, and “Stealthbox” and the Stealthbox logo are registered trademarks of JL Audio, Inc.,. “Ahead of the
