Jimmy JV83 Manuel utilisateur

Jimmy JV83 Cleaning & Replacing Parts

Assemble the battery pack

Assemble electric ﬂoor head with

metal tube

Accessories Assembly

Battery pack assembly: use one hand to

hold handheld vacuum cleaner, one hand to

hold battery pack, align with the guide-track

groove, then install the battery pack until the

“click” sound is heard.Pull hard the battery

pack downwards, if the batter pack remain

tight, which means battery pack assembly

complete.(Picture3)

Hold the ﬂoor head with left hand, use right

hand to insert the metal tube vertically into

ﬂoor head, align with the conductive needle,

press the tube until a “click” sound is heard.

Attention: Keep the handle and ﬂoor head in

the same direction, conductive needle shall

align with the socket.

For ease of use, this product is

specially equipped with accessories

for the hand-held vacuum cleaner.

The handheld can connect to

dierent tools for dierent cleaning

purpose.

This is an important document for Jimmy JV83, keep well. Clients are also required to read their Main Instruction Manual

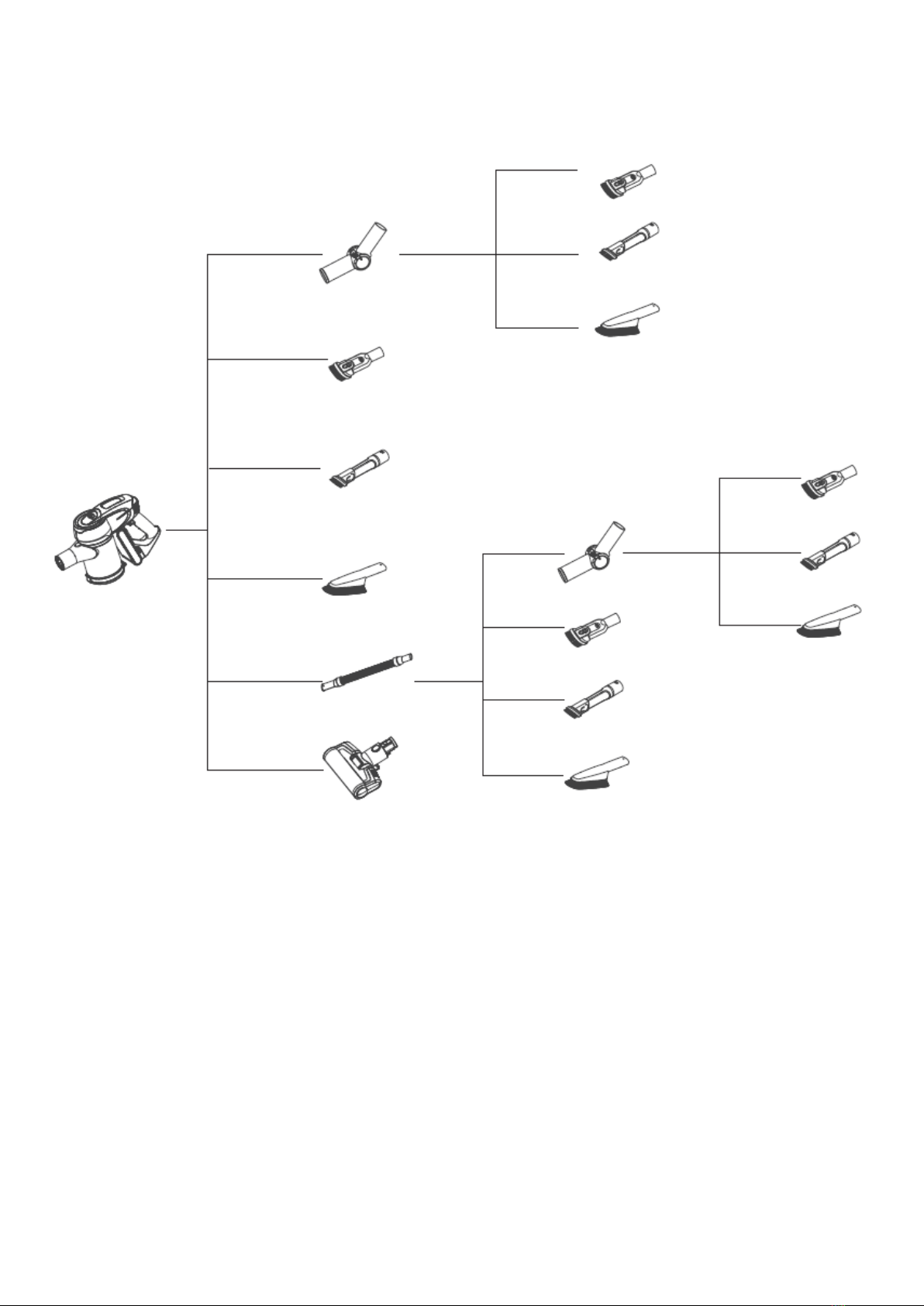

Accessories Connection List

Cleaning and Replacing Parts

Attention:

1. HEPA ﬁlter is available for sale from Jimmy Mauritius.

2. It is recommended to clean the dust cup after each use; When the dust cup is full or the HEPA

ﬁlter is

clogged, it needs to be cleaned and replaced if necessary.

3. Electric ﬂoor head brushroll might be entangled with hair after long time use. It needs to be

cleaned

in time to keep the vacuum working more eciently

This is an important document for Jimmy JV83, keep well. Clients are also required to read their Main Instruction Manual

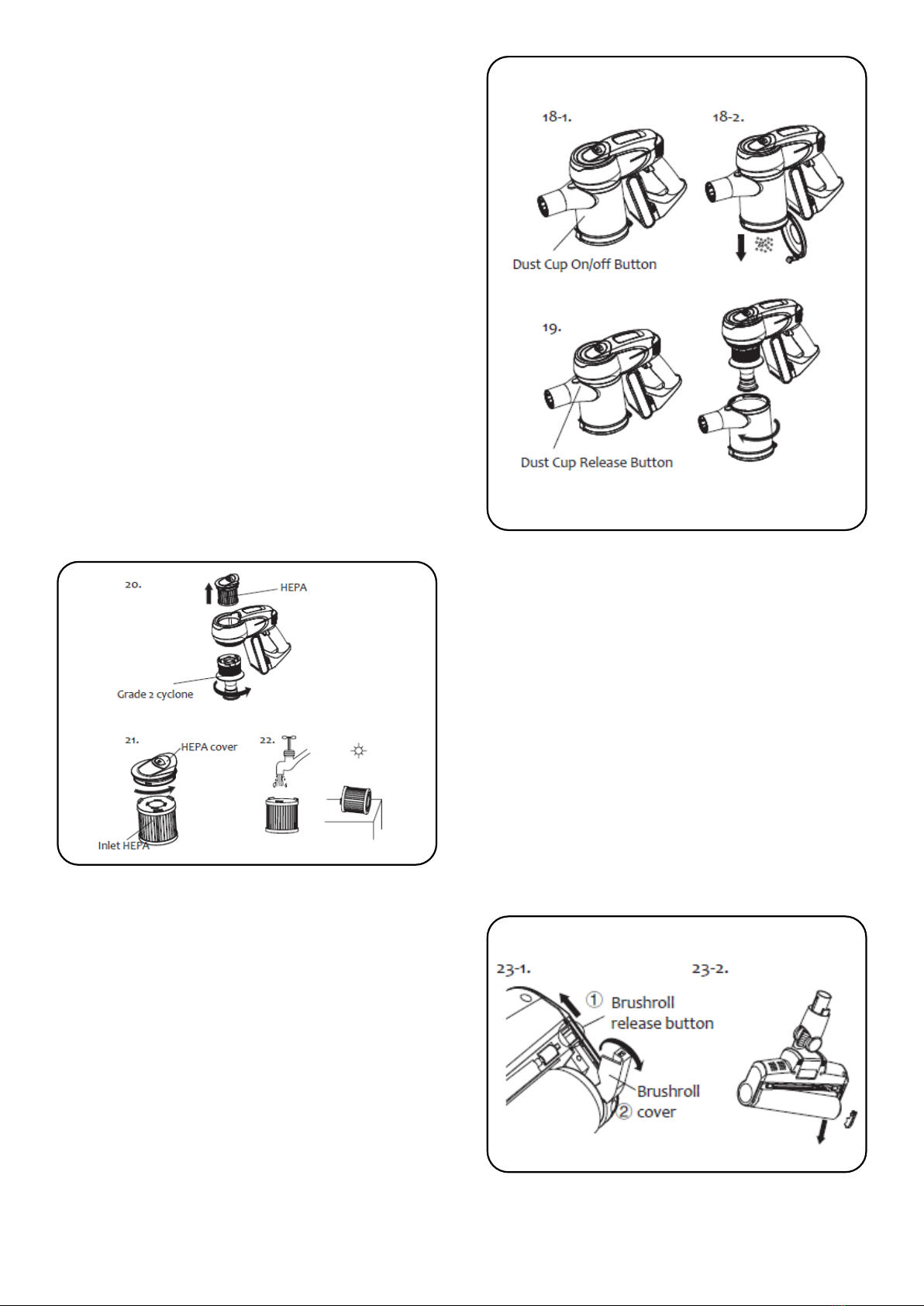

Clean dust cup and ﬁltration system

Clean dust cup

Pull out downwards the dust cup On/ o button

to dump dust in dust cup.(Picture 18)

Press hard the dust cup release button, hold

steady the main body with right hand, rotate

the dust cup in the direction shown on the

picture, remove the dust cup from main body to

further clean the dust cup.(Picture19)

1. Use your ﬁnger to release the cup button,

take out the side cover of the cup.

2. After cleaning and replacing, reassemble it.

Clean ﬁlter system

Hold the mainbody, take the HEPA upwards as

shown on the picture, take out the HEPA, then

take out Grade 2 cyclone system, clean them.

(Picture20)

Fix inlet HEPA, rotate the HEPA cover in the same

direction shown on the picture, separate the

HEPA cover from inlet HEPA, which will be easily

cleaned. After cleaning and drying, assemble

again.

Cleaning Electric Brushroll

1.Use your ﬁnger to release the brushroll button,

take out the side cover of the brushroll.

2.Take out one side of the brushroll in the same

direction as shown on the picture, then brushroll

can be taken out to clean.

3.After cleaning and replacing, reassemble

it.(Picture22&23)

This is an important document for Jimmy JV83, keep well. Clients are also required to read their Main Instruction Manual
