Jiffy Steamer J-2000 Guide de démarrage rapide
16
23
5
17
19
21
22
20
18
15
13
14
27
25
26
24
8
7
6
1
11
8.2
10
4
3
2
8.1
12
11
9

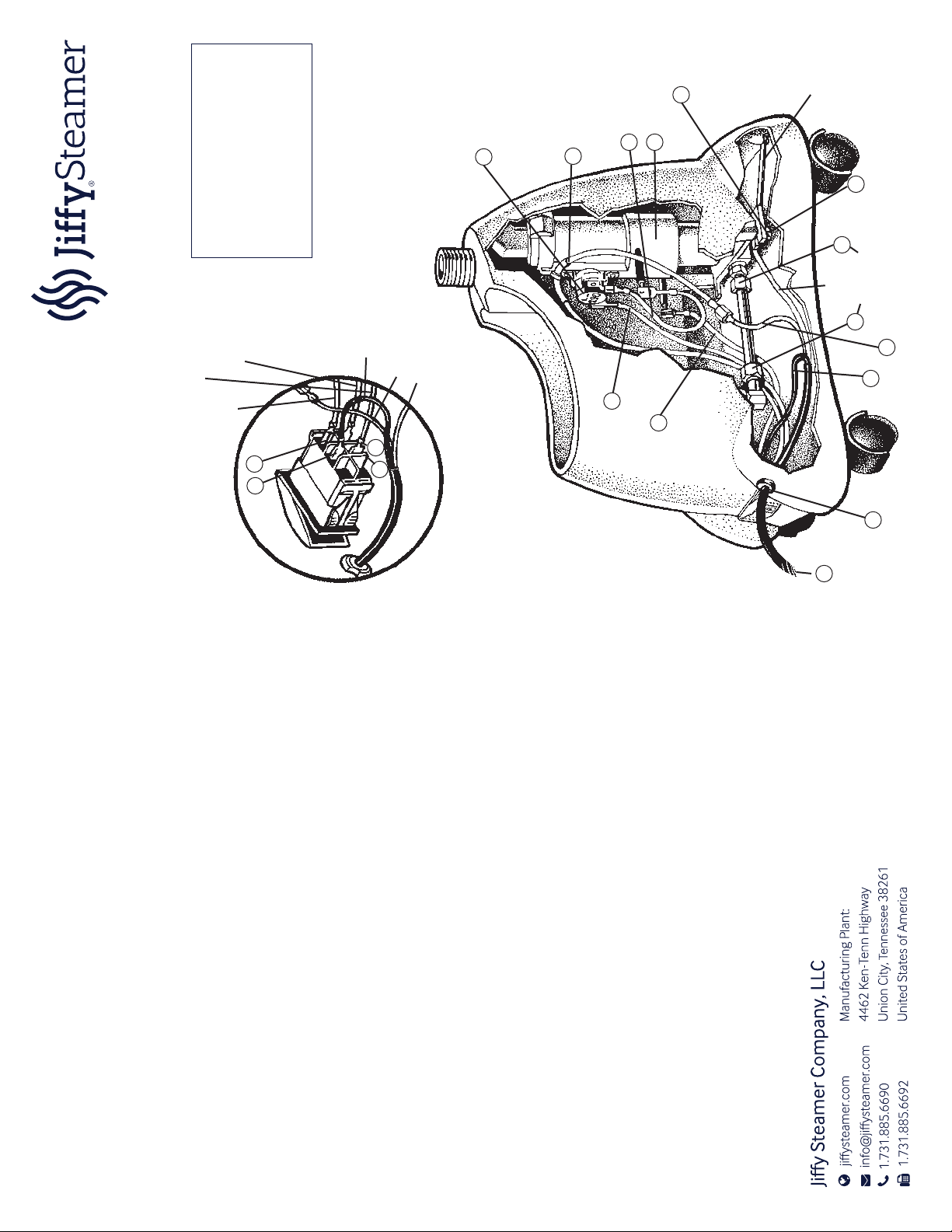

J-2000 Parts Diagram
Should you ever need replacement parts for your Jiffy Steamer, you may
purchase them separately. Use this convenient diagram and parts list to
identify any part you may need. Please reference the Jiffy Steamer part
number, model number and serial number when ordering.
Worldwide Leader in Steaming
Equipment Since 1940
Jiffy Steamer Company, LLC
jiffysteamer.com
info@jiffysteamer.com
1.731.885.6690
1.731.885.6692
Manufacturing Plant:
4462 Ken-Tenn Highway
Union City, Tennessee 38261
United States of America
Key #
1
2
3
4
5
6
7
8
8.1
8.2
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Part # Part Description
1030 Rod Set and Nut Complete with Metal Studs
0035 Hook Section of Rod Set
0036 Middle Section of Rod Set (with barrel stud and cap screw)
0037 Bottom Section of Rod Set (without Nut)
0043 Metal Threaded Cap Screw for Rod Set
0039 Metal Threaded Stud for Rod Sections
1102 Grounding Strap for Heating Element
0253 Plastic Steam Head/Handle Replacement Kit
0251 Plastic Head/Handle Hose Attachment Complete
0280 Hose Per Foot (Black in Color)
1107 J-2000 Beige Housing Kit with Water Cup
1108 J-2000 Beige Housing Kit without Water Cup
1107P J-2000 Pink Housing Kit with Water Cup
1108P J-2000 Pink Housing Kit without Water Cup
1110 O-Ring for J-2000 Water Cup
1111 J-2000 Water Cup with 90 Degree Brass Fitting and O-Ring
1140 J-2000 Water Caddy Complete with Check Valve Cap
1141 J-2000 Water Caddy Complete without Check Valve Cap
0027A Replacement Check Valve Cap
0027B Replacement Check Valve Cap Baffle Only
1125 Green Lighted Contura Rocker Switch - 120 Volt
1126 Green Lighted Contura Rocker Switch - 230 Volt
0132 Cord Set (16/3 gauge) with Strain Relief
0132B Cord Strain Relief
0148 Internal Wire Set
0597 Heating Unit Kit (wiring included) for Models with Green
Lighted Contura Rocker Switch - 120 Volt Cord Set and 4”
Water Line
0597A Heating Unit Kit (wiring included) for Models with Green
Lighted Contura Rocker Switch - 230 Volt Cord Set and
4” Water Line
0161A Heating Unit Assembly (no wiring included) for Models with
Green Lighted Rocker Switch - 120 Volt Cord Set and 4”
Water Line
0162A Heating Unit Assembly (no wiring included) for Models with
Green Lighted Rocker Switch - 230 Volt Cord Set and 4”
Water Line
1131 Brass 90 Degree Elbow Joint - Extended Version
1130 3/8” x 1/4” Straight Brass Fitting for Heating Element Housing
0591 Copper Tube(4” length) with Nuts and Compression Rings
0160 L-290 Thermostat
0195 Fusible Link Clamp
0151 Fusible Link Wire with Insulated Lug and Clamp
1120 Bottom Plate with Casters
0011 Bottom Plate Casters (Set of 4)
1114 Screws for Bottom Plate (4 Screws Total)
1026 “I” Kit - 5.5’ Hose with Four Attachments
1050 Jiffy Steamer Assembly Wrench
0274 Brass Hat Nozzle Attachment
0254 Metal Head/Wood Handle Hose Attachment Complete
0256 Metal Head / Wood Handle Only
0262 Wig Hose Attachment
1062 Steam Cleaning “B” Brush Hose Attachment
1063 Brush Only for the B” Hose Attachment
0899 Liquid Cleaner - 3 Ten Ounce Bottles per Package*
*Not Available for Export
30.00
7.50
8.50
8.50
1.75
1.75
1.75
25.00
58.00
3.50
87.00
50.00
68.00
50.00
3.50
21.00
32.00
28.25
4.50
0.35
10.50
10.50
11.00
1.75
10.50
95.00
95.00
72.50
72.50
3.50
3.00
5.00
10.00
1.75
3.50
21.00
7.50
1.00
105.00
5.00
15.00
81.00
43.50
68.00
70.00
10.00
18.00
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
$
Price
Accessories
J-2000 Wiring Diagram
Before attempting any repair on a Jiffy Steamer product, make sure that it is unplugged from
the outlet. If you have any questions, please contact our repair department at
1-800-525-4339 between 7:30 AM - 4:00 PM Central Time.
Please note switch terminal 2, 3, 5 and 6 indicated on the enlarged switch diagram are
marked on the actual switch. Jiffy® Steamers manufactured before May 2000 are not
marked with the terminal switch numbers. Numbers in parenthesis refer to
the drawing on on the right.
Insert cord set (1) into housing and connect black positive wire (2) from cord set to terminal
number 5 on the switch.
Connect blue wire (4) from the right side of brass heating element (5) to right side of the
L-290 thermostat (6).
Insert brass heating element unit into housing. Hand tighten the brass nuts (7) on the
water line to the element and to the 90 degree fitting from the cup. Tighten 2 mounting
screws (8) at the base of heating element. Now, use a 5/8” wrench to securely tighten the
brass nuts on the water line to the element and to the 90 degree fitting from the cup.
Heating unit may be loosened and adjusted for a better fit if necessary.
Place the 4 inch copper grounding strap as shown in drawing. Secure grounding strap and
the green ground wire with the grounding screw by attaching to the heating element
ground location (3).
Connect white wire (9) from the le side of the heater unit to terminal number 6 on switch.
Connect yellow wire (10) from the le side of the thermostat to terminal number 3 on the
switch.
Connect white neutral wire (11) from cord set bundle to orange fusible link with plastic
connector (12).
Connect other end of orange fusible link to terminal number 2 on the switch.
Set steamer upright and place black plastic strain relief (13) approximately 4 1/2” from end
of cord set and insert into housing using pliers.
Secure bottom plate with four screws.
To avoid leakage, be sure to tighten hose (or hat nozzle) with wrench before using steamer.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Worldwide Leader in Steaming
Equipment Since 1940
2
Black
from
Cordset
11
White from Cordset
7
7
Brass Nuts 3
Ground Location
1
Cordset
13
Strain Relief
Green
White
Black from Cordset
White
Orange
Yellow
56
23
8
Element
Mounting
Screws
9
White Wire
4Blue Wire
Orange
Fusible Link
Brass
Heating Unit
12
5
10
Yellow Wire
6
L-290
Thermostat
Grounding
Strap
Green
Ground Wire
Caution:
Insure that the power cord is
unplugged from the electrical
outlet before attempting to
repair your Jiffy Steamer.
