JETWAY HPC-185SC-HD1900B Series Manuel utilisateur

Heavy Duty Panel PC Series User Manual

NO. G03-PPCQIG02-F

Revision: 2.0

Release date: October 1, 2019

Trademark:

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

Environmental Protection Announcement

Do not dispose this electronic device into the trash while discarding. To minimize

pollution and ensure environment protection of mother earth, please recycle.

Safety Instruction

Operate the product according to the correct installation steps and with great care to make sure

safety and comfort using experience. Please refer to the following safety instruction guide to avoid

danger of electric shock or fire. Abide by the previous safety instruction guide to use and maintain

the product and the hard disk to make sure of safe operating environment.

Please follow the instruction manual for operation guide.

The appropriate operating temperature ranges from 0 °C–50 °C.

The operation humidity for this product is 5% to 80% RH.

To avoid high temperature, please DO NOT overload the maximum power of the external power

supply while the system is consuming high voltage. Be aware of the maximum temperature

allowance of the power supply.

See to it that the product is not working near the water.

Always unplug power cable and other hardware cables from the system before cleaning.

Apply only dry cloth for cleansing the product.

Make sure that there is no heat source nearby when the product is working.

Make sure that the thermal louver of the product is not blocked.

Make sure to remove the power plug from the product when there is a thunder storm.

Please remove the power plug from the product when you are not going to use the product for a

long time.

Make sure to set up or use the product on a stable surface.

Make sure not to drop the product or strike it by any means.

Make sure not to move the product when the power is on.

Make sure not to step on the power cables and other cables or rest anything in them..

Please contact qualified technician for maintenance or repair.

Use only accessories and parts that are made by the qualified manufacturer.

iii

USER’S NOTICE

INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED

OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN

PERMISSION OF THE MANUFACTURER.

THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE

DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME

WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY

KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL

DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,

INTERRUPTION OF BUSINESS AND THE LIKE).

PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE

REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE

USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT

INTENT TO INFRINGE.

Manual Revision Information

Reversion Revision History Date

2.0 Second Edition October 1, 2019

Item Checklist

Panel PC

Cable(s)

Power Adapter

Wifi Antenna

ENVIRONMENTAL PROTECTION ANNOUNCEMENT ...........................................................i

SAFETY INSTRUCTION ...........................................................................................................ii

USER’S NOTICE .......................................................................................................................iii

MANUAL REVISION INFORMATION.......................................................................................iii

ITEM CHECKLIST.....................................................................................................................iii

CHAPTER 1 INTRODUCTION

1-1 PRODUCT FEATURES ..............................................................................................2

1-2 SPECIFICATION.........................................................................................................4

CHAPTER 2 PRODUCT DIAGRAM .......................................................................................5

CHAPTER 3 MAIN DIFFERNECES OF THE MODELS.........................................................9

APPENDIX.................................................................................................................................10

TABLE OF CONTENT

Chapter 1: Introduction

1-1 Product Features

Onboard Intel® Bay Trail series SoC processor, with low power consumption

never denies high performance

Onboard 4GB DDR3L 1333Mhz SO-DIMM

Support 1 * 2.5" SATA HDD Device, 1* Mini PCIe, 1* M.2 connector

Support dual Gigabit LAN

Support 4G SIM card socket

Support VGA output

Support 802.11 b/g/n WiFi communication

Support multiple COM ports

IP65-rated front bezel

Aluminum front panel structure; SECC steel foundation chassis

Support 9~28V wide voltage range DC power-in

Compliance with EuP Standard

The system has the following features besides other basic functions:

WiFi: the Mini PCI-E onboard socket in the board is integrated a with a WiFi

card(802.11 b/g/n) that can act as a mini wireless modem when external antennas

are connected. Different computers in the house can build wireless connections

through the Mini TOP system and take necessary data from it, thus reducing the

complexity in network establishment.

Giga LAN: The system is integrated with Gigabit LAN network controller with ACPI

management realizing efficient power management for the operating system.

USB2.0: The system supports USB 2.0 function compatible for both USB 2.0

devices and USB 1.1 interface devices. Users can enjoy high speed data

transmission rate up to 480Mb/s. Users can also connect USB 2.0 storage device

to the system to create a data bank for storage of download movies.

USB3.0: Experience Fastest data transfers at 5Gb/s with USB3.0 the new latest

connectivity standard. Built connect easily with nextgeneration components and

peripherals, USB3.0 transfers data 10x faster and backward compatible with

previous USB2.0 components.

CPU Usage: The CPU Usage diagram shows a beautiful data curve that indicates

a pretty low CPU usage percentage for video playback of different formats. GPU

performances are excellent as well.

dB Value: The design of the system takes into consideration the needed quiet

operating environment in the living room and the average dB value is below 26

under normal operation to ensure the tranquility when you are absorbed in film

watching.

1-2 Specification

Spec

Description

CPU

Intel®Bay Trail series SoC processor

Memory

Onboard 4GB DDR3L 1333MHz SO-DIMM

Expansion Slot

1 * PCI-E mini card for WIFI or 4G/3G

Storage

1 * 2.5” SATA HDD

1 * M.2 connector (2242/2260/2280)

LAN

2* Intel® i211AT GbE

Support Fast Ethernet LAN function of providing

10/100/1000Mbps Ethernet data transfer rate

HD Audio

Realtek ALC662 HD Audio Codec integrated

Bottom I/O

2 * USB3.0

4 * USB2.0

2 * RS232/422/485 ( Support 5V/12V Output)

2 * RS232（Support 5V/12V Output）

1 * CRT

2 * LAN (Intel® I211AT Gigabit LAN)

1 * Locking Jack 9~28V DC input

1 * Power button

Top I/O

2* WIFI antenna

2 * Speaker

Chapter 2

Product Diagram

Notice: The following diagrams and photos in the manual serves as instruction purpose only and

may differ from actual product. Please refer to the product you purchase for actual specification.

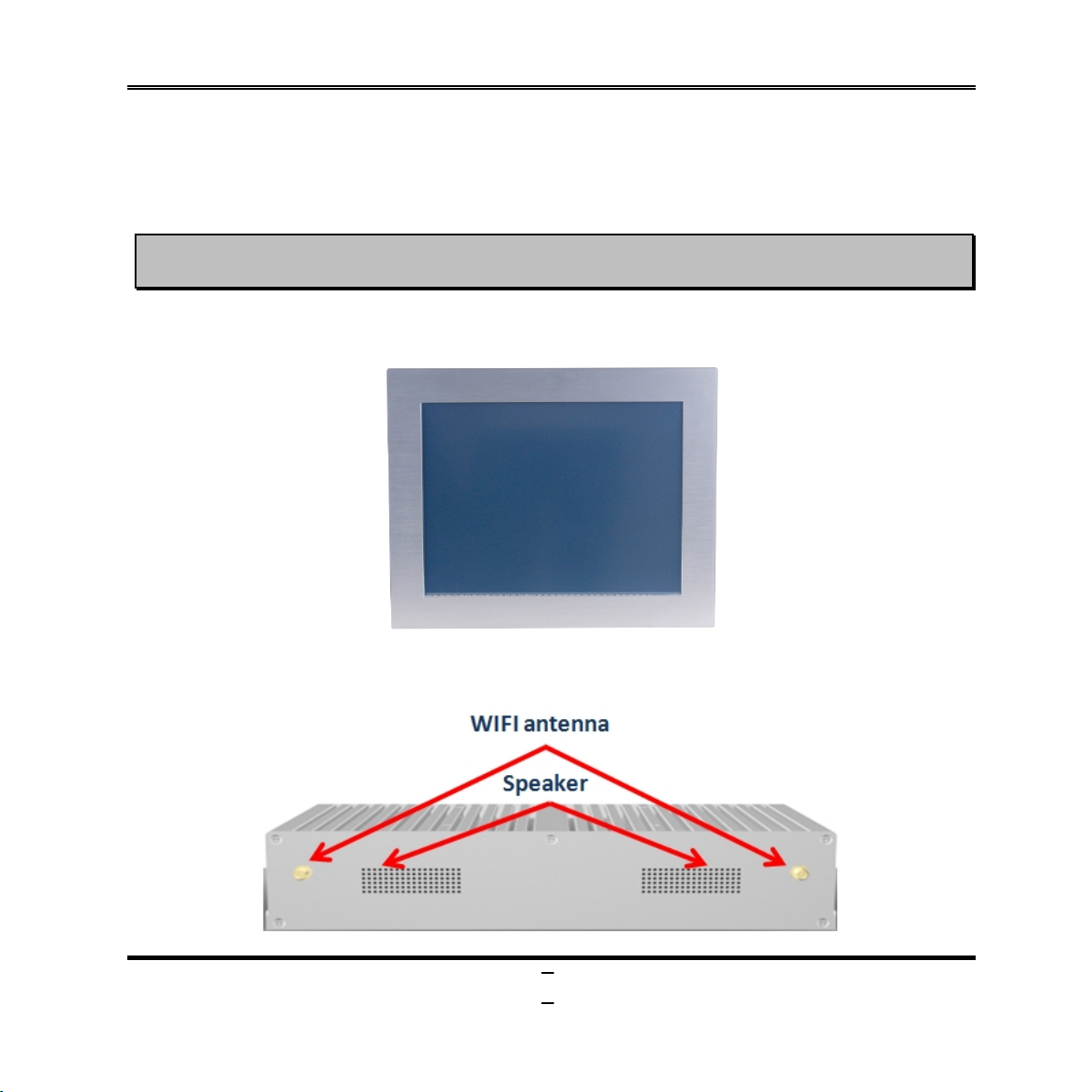

Front View Appearance

Top View

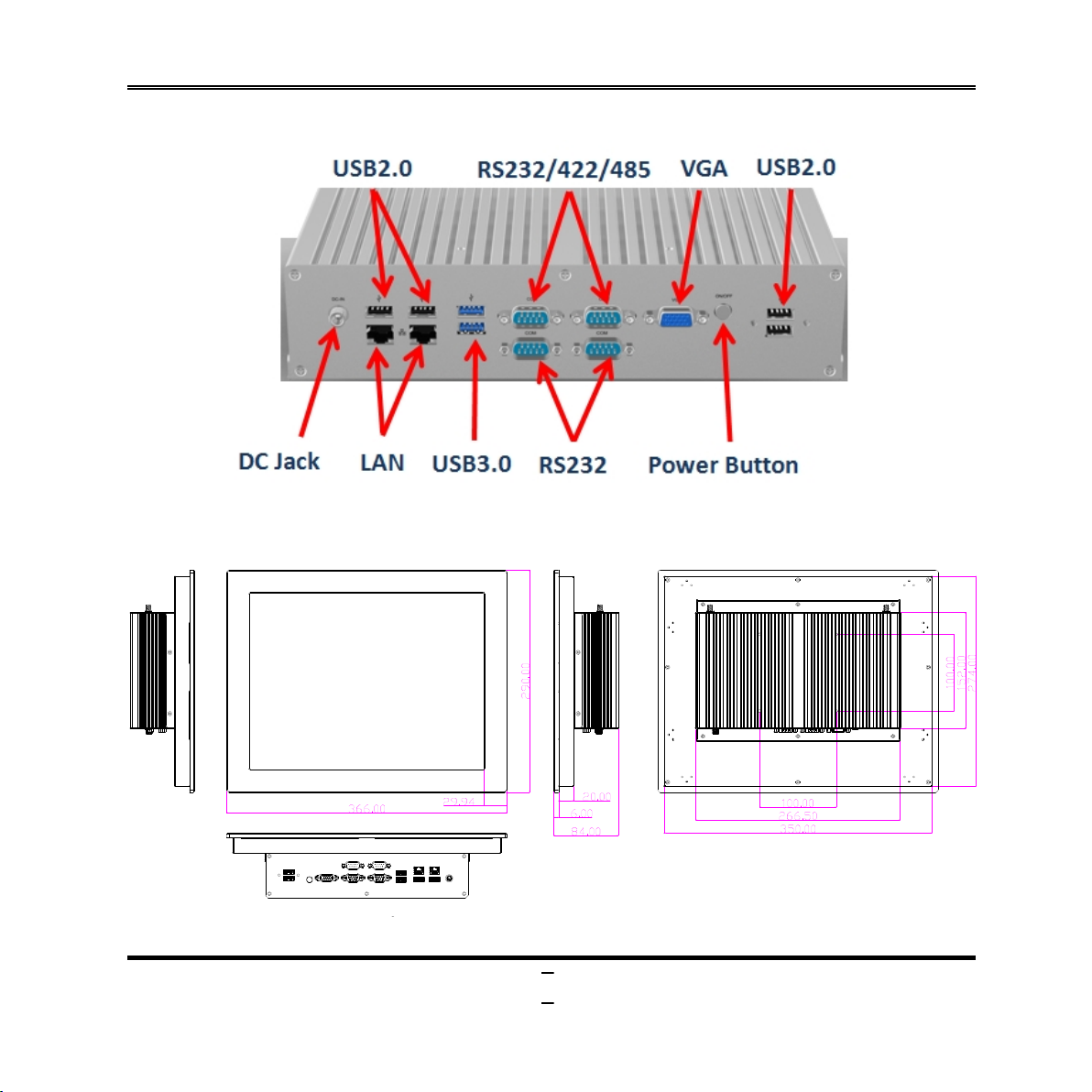

Bottom View

Product Dimension for HPC-150SR-HD1900B Series:

* Measure Unit: mm.
