The JET DC-500 Dust Collector brings

the power you need in a durable and

compact package.

JET DC-500 Dust Collector

Effective dust collection is important in the confined

environment of small to mid-sized woodworking shops.

Benchtop and mid-sized floor model woodworking

machines require effective dust and chip evacuation to

maintain their effectiveness. The JET DC-500 Dust

Collector, though compact in physical size has been

designed to keep your machines clear and your shop

cleaner. Even the initial assembly is simple and

completely tool free!

Power and Flow

Despite its space-saving 58-3/4”

(H) X 17-1/4” (W) X 28-1/2” (D)

size, the JET DC-500 Dust

Collector develops 500 CFM

(cubic feet per minute) of airflow

to keep even the big chip-makers

in your shop working freely. The

1/2HP, 115V (only) TEFC (totally

enclosed fan cooled) motor drives

the 9-1/2”-diameter impeller

within the specially designed

housing that maximizes the effectiveness of the air flow. The contours within the housing

create the cyclonic flow pattern that sends the chips and dust down to the catch bag and

the air up and out through the filter bag.

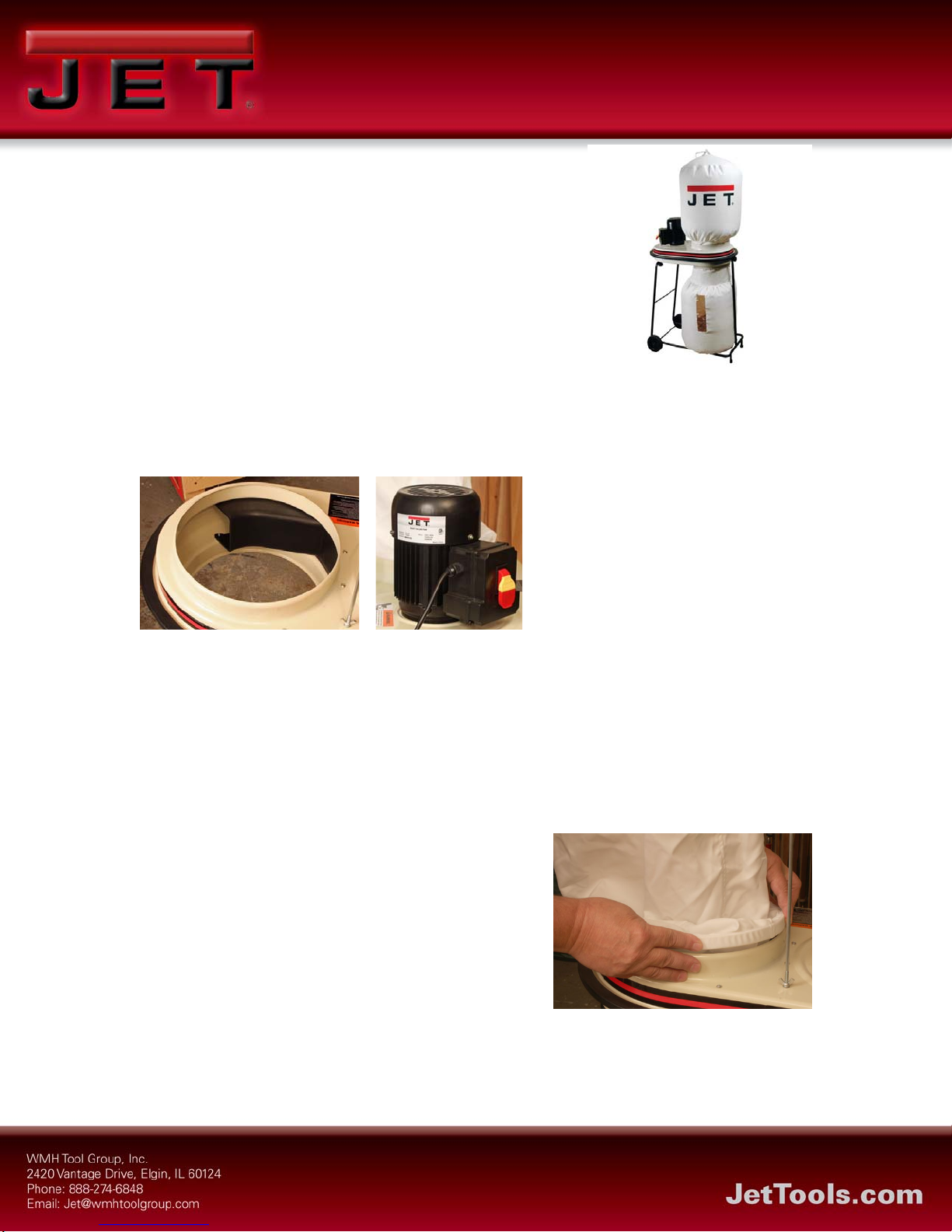

The DC-500 housing (left) has been carefully designed and

manufactured to maximize the airflow for peak efficiency. The

motor switch (right) is mounted up top where it is easily accessible.

The JET DC-500 Dust Collector is turned on and off with a simple flip switch mounted

on the motor where it is easy to reach. The switch

has a safety key that can be removed to disable the

JET DC-500 Dust Collector when you are not going

to be present.

In the Bags

The JET DC-500 Dust Collector comes with a

fabric catch bag with a 1.9 cubic foot capacity. The

catch bag has a clear “window” that lets you see

when it is time to empty it. The upper filter bag

retains particles down to 30 microns in diameter.

Both bags are retained in the main housing by

Both the upper filter and lower catch bags are

retained with a sewn-in, spring steel ring that

makes their removal or installation quick and

tool free.

spring steel rings that are sewn into their openings. These rings snap into specially shaped

flanges in the main housing where they remain secure and leak-free. The snap ring

retention means that the bags can be quickly removed or installed for emptying. The filter

and catch bags can be cleaned repeatedly to maintain their performance.

On the Move

Being able to move your equipment around the shop can

be important. The JET DC-500 Dust Collector has a rigid,

integral wheeled cart that makes taking this 65-lb

machine where needed easy. We also include a 4”-

diameter flex hose for connecting the JET DC-500 Dust

Collector so you can begin working right out of the box!

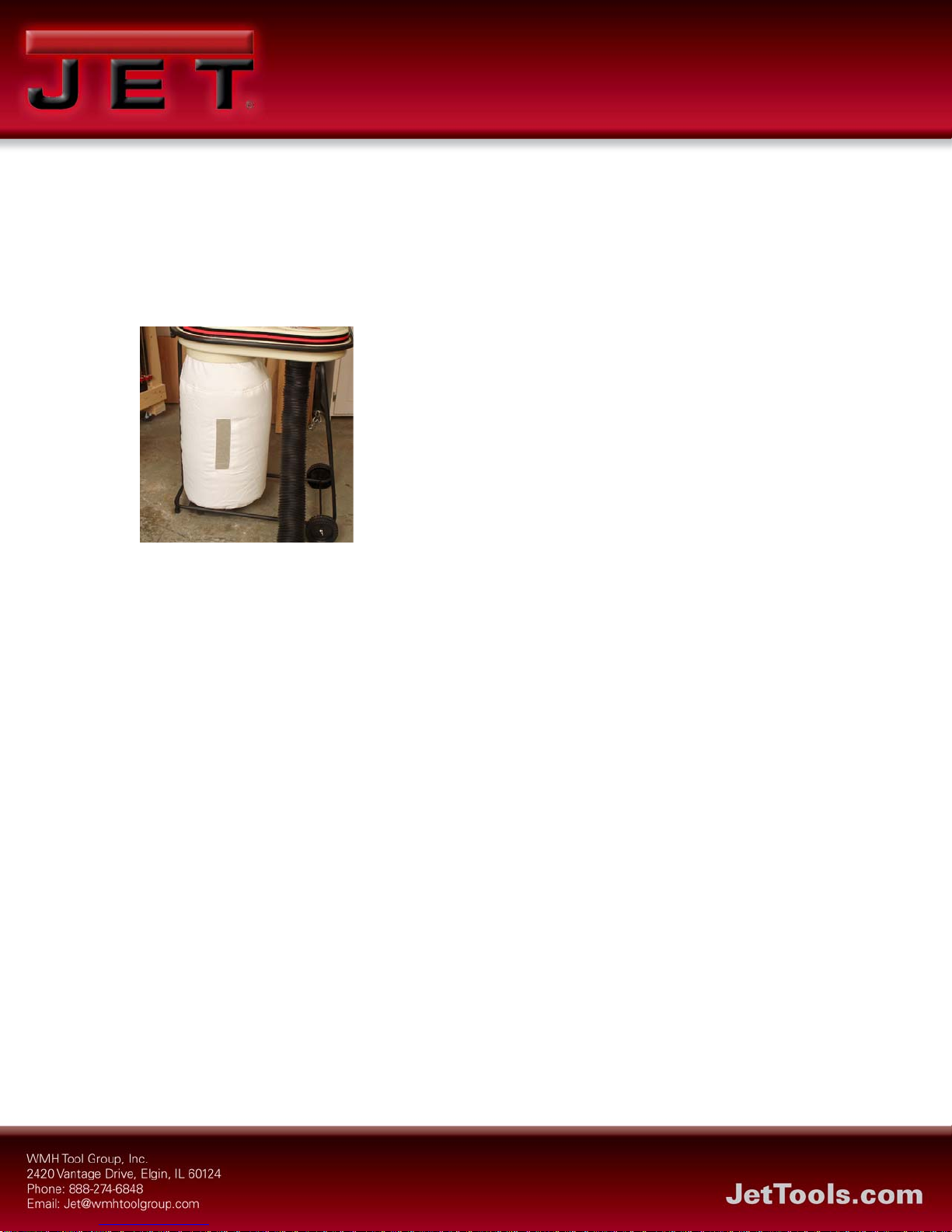

The DC-500 features a built-in

stand/cart that makes it easy to move

it from job to job. Note the window in

the catch bag that lets you know

when it needs to be emptied.

The JET DC-500 Dust Collector will help keep your

woodworking machines performing at their best while

keeping the shop cleaner. Controlling dust in small shops

is just as important as it is in larger ones. Team the JET

DC-500 Dust Collector with our JET AFS-400 Air

Filtration Unit and your shop environment will be a

healthier and more enjoyable place to work.
