CAP.4 INSTALLATION
4.1 Removal from packing and positioning:
Make sure that the dishwasher is in perfect condition. In case of signs of damage, report them to the seller and
haulage contractor. In case of doubt concerning the dishwasher conditions,
do not use it before having it checked by an authorised service centre.
The installation must be performed exclusively by qualified technicians, according to the manufacturer’s
instructions.
Move the dishwasher where you wish to install it and remove the packing.
This dishwasher is designed for fixed connections only.
Position the dishwasher on a flat surface.
Install electrical, hydraulic and drain lines in the washing area according to the instructions provided on the
machine's technical data sheet. Further details are indicated in the paragraphs relative to plumbing and
electrical connections.
Before connecting the dishwasher to the water and electrical supply, make sure that the general features and
data indicated by the manufacturer on the plate on the back of the manual have been complied with as far as
the arrangement of the installation site is concerned.
The floor must be measured taking the overall weight of the machine into consideration. It must also be
perfectly flat.

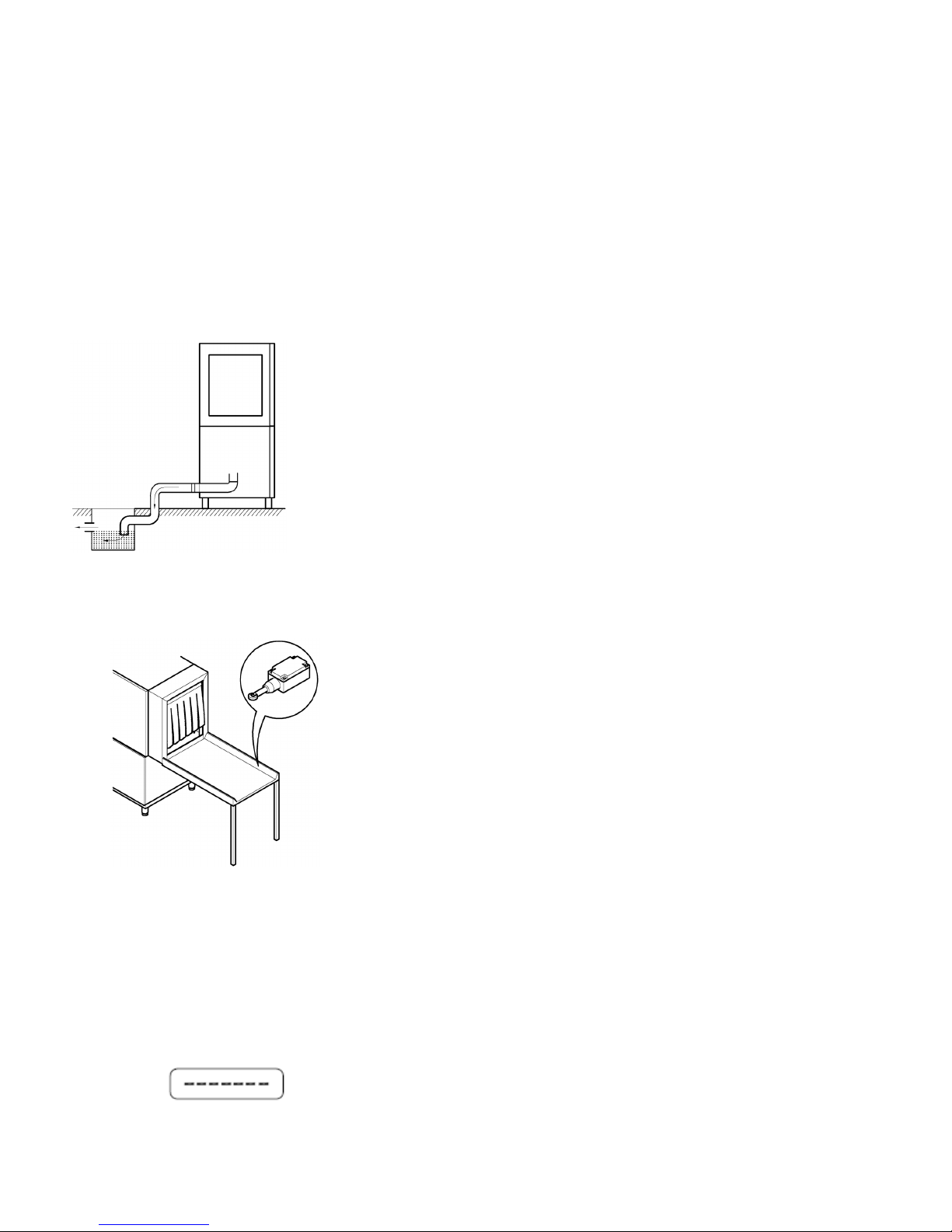

NOTE: to connect the dishwasher to work tops, couple the supports on the edges of the tank and fix them using the
screws provided. The connection can be either on the front or side.
4.2 Electrical connections :
“The dishwasher shall be installed in accordance with local codes, or in the absence of local codes, installed
in accordance with the applicable requirements in the National lectrical Code, NFPA 70, Canadian
lectrical Code (C C), Part 1, CSA C22.1, and Standard for Ventilation Control and Fire Protection of
Commercial Cooking Operations, NFPA 96”
When connecting the dishwasher to the power supply, refer to the wiring diagram and the data plate of the
dishwasher.
Make sure that the voltage and frequency of the power supply correspond to those on the plate indicating the
technical characteristics located on the right side of the machine.
Install a “main switch” (not provided) on the electrical line that supplies the dishwasher in compliance with the
requirements of the local electrical standards.
All the electrical connections go to the terminal block located inside the machine, then connect to the mains
using a power cord (not provided) suitably sized for the load (see plate adjacent to the terminal block); the cord
and plug must comply with the requirements of the local electrical standards.
The appliance must also be included in an equipotential system, the connection of which is performed using a
screw marked with the following symbol: . The equipotential conductor must have a section of 10 mm².
An effective earthing system in conformity with the prevention standards in force is a guarantee for operator and
equipment safety.
In the three-phase models, check for correct rotation of the wash pump.
Note: If interventions on the electric circuit must be performed, disconnect from the mains and apply a tag on the switch
indicating the intervention in progress.
