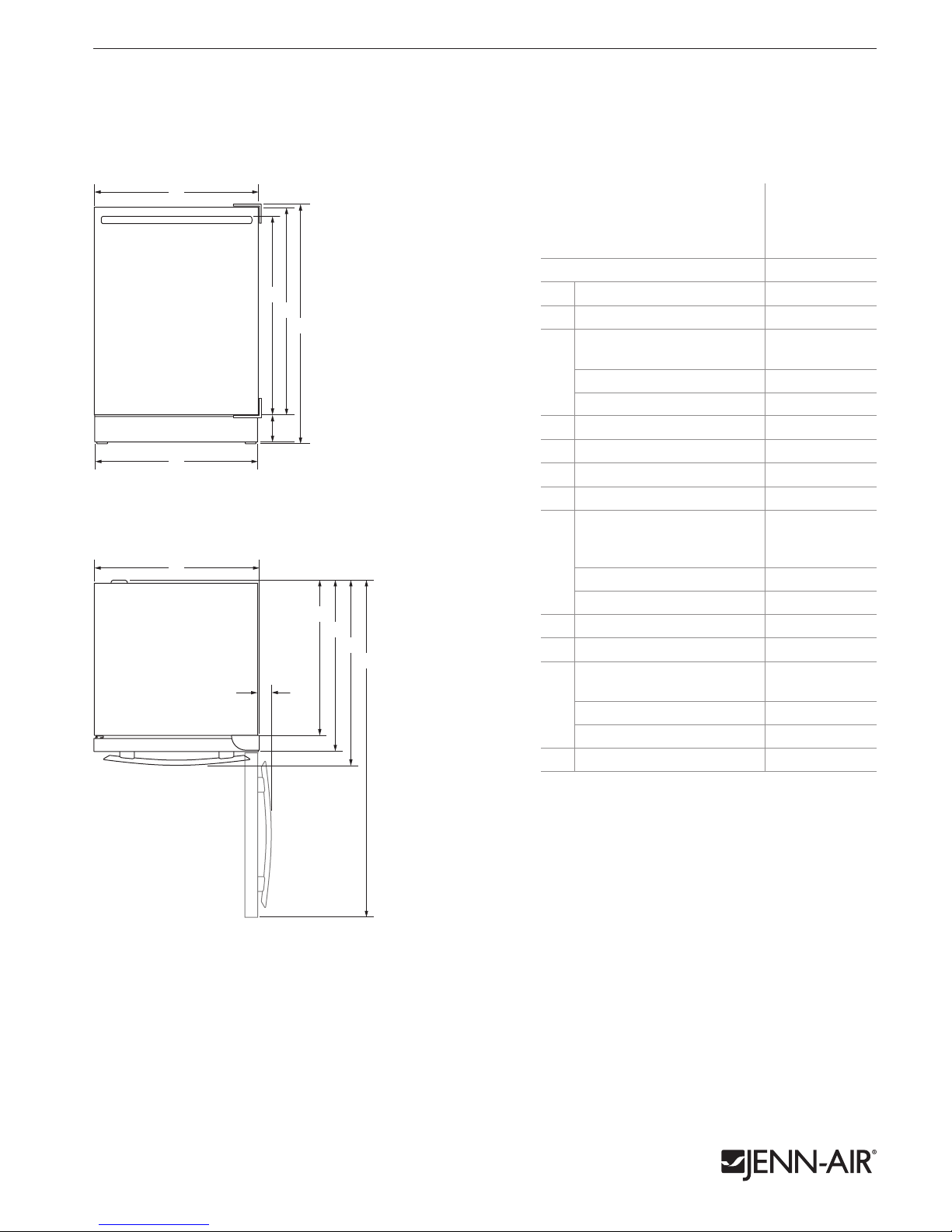

JENN-AIR®DETAILED PLANNING DIMENSIONS 1 of 3

8277AdZw1214

IMPORTANT: Dimensional speciﬁcations are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation or Use & Care Guide

before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All Jenn-Air®appliances are appropriately UL, CUL or CSA approved.

J‡

E†

H‡

UNDER COUNTER REFRIGERATORS

JUR24FRERS, JUR24FLERS – 237⁄8" x 343⁄8" x 26" (including handle)

JUR24FRECX, JUR24FLECX – 237⁄8" x 343⁄8" x 237⁄8"

PRODUCT DIMENSIONS

FRONT VIEW

TOP VIEW

J‡

E†

H‡

MODEL #

JUR24FRERS

JUR24FLERS

JUR24FRECX

JUR24FLECX

in cm

AWidth of door 233⁄460.3

BWidth of grille 233⁄460.2

Height to top of handle

Pro-Style®Stainless* 281⁄471.7

Euro-Style Stainless 28 71.1

Custom panel ** **

DHeight of door 301⁄876.6

E†Height with hinge cover (min.) 343⁄887.4

FHeight of grille 33⁄49.4

GWidth with hinge cover 237⁄860.6

Width from side of refrigerator

to handle – door open 90°

Pro-Style®Stainless* 25⁄86.7

Euro-Style Stainless 21⁄85.3

Custom panel ** **

IDepth without door 215⁄855.0

J‡Depth with door 237⁄860.7

Depth with handle

Pro-Style®Stainless* 261⁄267.4

Euro-Style Stainless 26 66.0

Custom panel ** **

LDepth with door open 90° 473⁄4121.4

*Requires optional Pro-Style®Stainless handle kit – W10588599.

Each kit includes one Pro-Style®badge and one handle.

**For custom panel models, this depends on handle chosen.

†

Add 5⁄8" (1.6 cm) to the height dimension when leveling legs

are fully extended.

‡

Includes recommended 3⁄4" (1.9 cm) custom panel thickness

(JUR24FRECX, JUR24FLECX).

JENN-AIR®DETAILED PLANNING DIMENSIONS 2 of 3

8277AdZw1214

IMPORTANT: Dimensional speciﬁcations are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation or Use & Care Guide

before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All Jenn-Air®appliances are appropriately UL, CUL or CSA approved.

J‡

E†

H‡

SIDE VIEW

DIMENSIONS AS INSTALLED

UNDER COUNTER REFRIGERATORS

JUR24FRERS, JUR24FLERS – 237⁄8" x 343⁄8" x 26" (including handle)

JUR24FRECX, JUR24FLECX – 237⁄8" x 343⁄8" x 237⁄8"

MODEL #

JUR24FRERS

JUR24FLERS

JUR24FRECX

JUR24FLECX

in cm

A* Height with hinge cover (min.) 343⁄887.4

B* Height to top of door (min.) 341⁄886.8

Height to top of handle (min.)

Pro-Style®Stainless** 281⁄471.7

Euro-Style Stainless 28 71.1

Custom panel † †

D* Height to top of grille (min.) 4 10.2

Height of recessed

refrigerator (min.) 341⁄886.8

FDepth with door open

90° (min.) 473⁄4121.4

Depth with handle (min.)

Pro-Style®Stainless** 261⁄267.4

Euro-Style Stainless 26 66.0

Custom panel † †

H‡Depth with door (min.) 24 60.9

IDepth without door (min.) 215⁄855.0

JDepth of grille (min.) 203⁄452.7

*Add 5⁄8" (1.6 cm) to the height dimension when leveling legs

are fully extended.

**Requires optional Pro-Style®Stainless handle kit – W10588599.

Each kit includes one Pro-Style®badge and one handle.

†For custom panel models, this depends on handle chosen.

‡Includes recommended 3⁄4" (1.9 cm) custom panel thickness

(JUR24FRECX, JUR24FLECX).

JENN-AIR®DETAILED PLANNING DIMENSIONS 3 of 3

8277AdZw1214

IMPORTANT: Dimensional speciﬁcations are provided for planning purposes only.

Do not make any cutouts based on this information. Refer to the Installation or Use & Care Guide

before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation.

All Jenn-Air®appliances are appropriately UL, CUL or CSA approved.

UNDER COUNTER REFRIGERATORS

JUR24FRERS, JUR24FLERS – 237⁄8" x 343⁄8" x 26" (including handle)

JUR24FRECX, JUR24FLECX – 237⁄8" x 343⁄8" x 237⁄8"

Floor

Wall

FRONT VIEW

SIDE VIEW

Floor

Wall

BACK VIEW

OPENING/CLEARANCE DIMENSIONS

MODEL #

JUR24FRERS

JUR24FLERS

JUR24FRECX

JUR24FLECX

in cm

AWidth (min.) 24 61.0

BMinimum width from hinged side of refrigerator

to ﬁxed wall – door open 90° 15⁄84.0

CHeight (min.) 343⁄887.3

DDepth (min.) 24 61.0

VENTILATION REQUIREMENTS

For proper ventilation, allow 1⁄4" (0.6 cm) space on the top and each side.

ELECTRICAL REQUIREMENTS

115 volt, 60 Hz, AC only, 15- or 20-amp fused, grounded circuit is required.

A dedicated circuit is recommended. Use an outlet that cannot be turned off

by a switch. Minimum length of the power cord is 63" (160.0 cm). Do not

use an extension cord.
