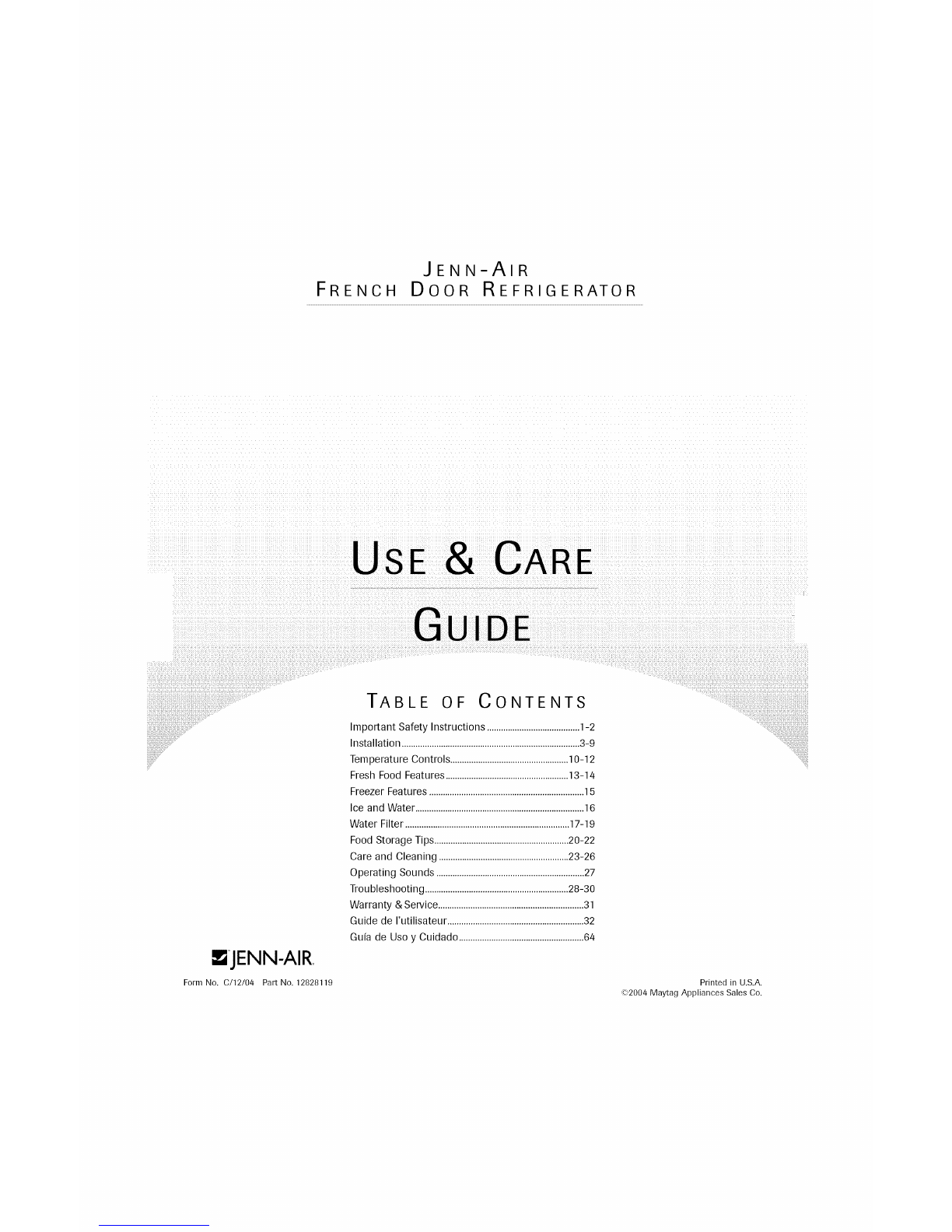

JENN-AIR

FRENCH DOOR REFRIGERATOR

!!ii!ili!ii!iiii i!;;....

JENN-AIR

Form No. 0/12/04 Part No. 12828119

TABLE OF CONTENTS

Important Safety Instructions ........................................1-2

Installation .............................................................................3-9

Temperature Controls ...................................................10-12

Fresh Food Features .....................................................13-14

Freezer Features ...................................................................15

Ice and Water .........................................................................16

Water Filter .......................................................................17-19

Food Storage Tips ..........................................................20-22

Care and Cleaning ........................................................23-26

Operating Sounds ................................................................27

Troubleshooting ..............................................................28-30

Warranty & Service ...............................................................31

Guide de I'utilisateur ...........................................................32

Guia de Uso y Cuidado ......................................................64

Printed in U.S.A.

,_)2004 Maytag Appliances Sales Co.

"i¸¸!_!iii!'i¸i:iiiii_¸i!i_!!!iiii!¸I¸!iiii_!¸I__i!i_i!_!¸il¸iiii!!_iiiil¸¸iiiilill

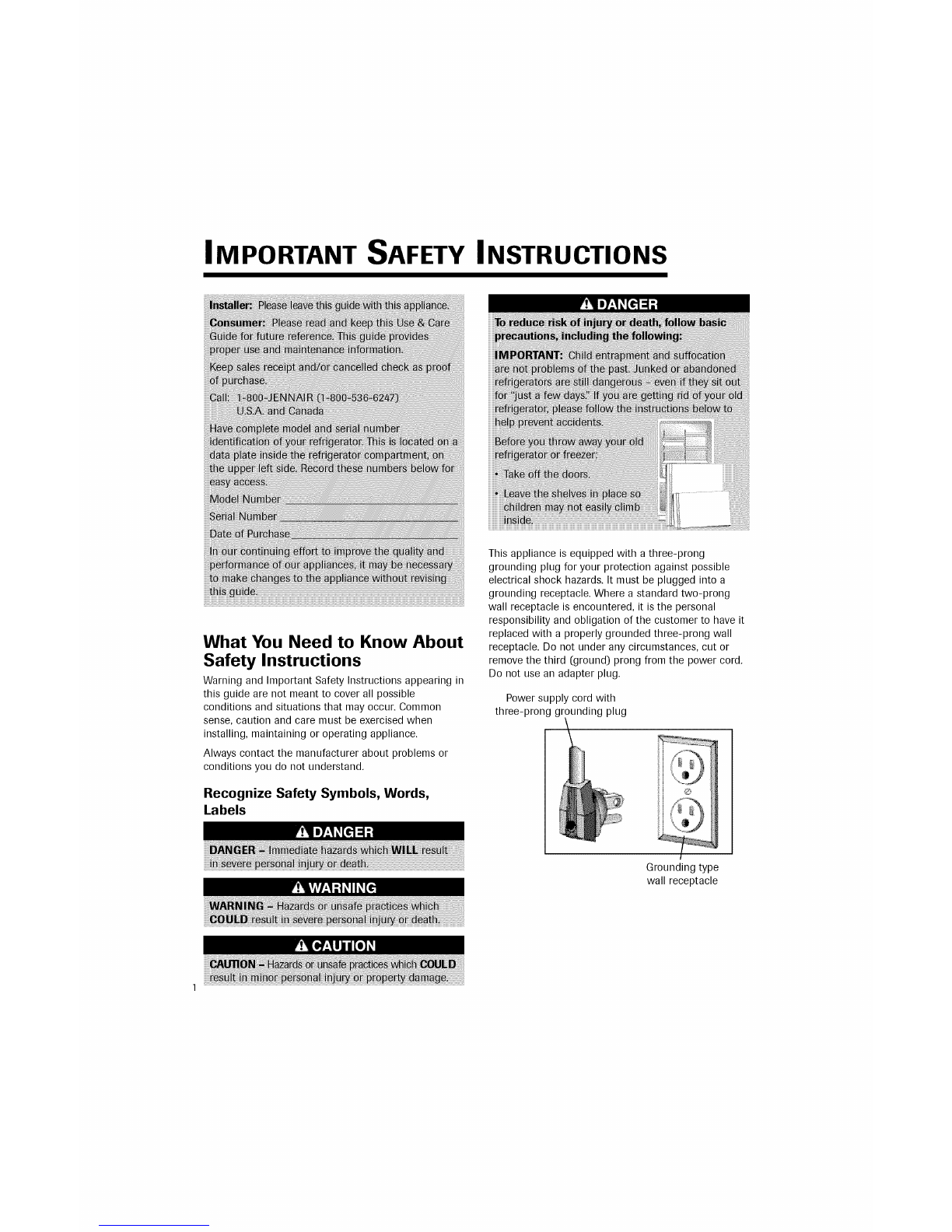

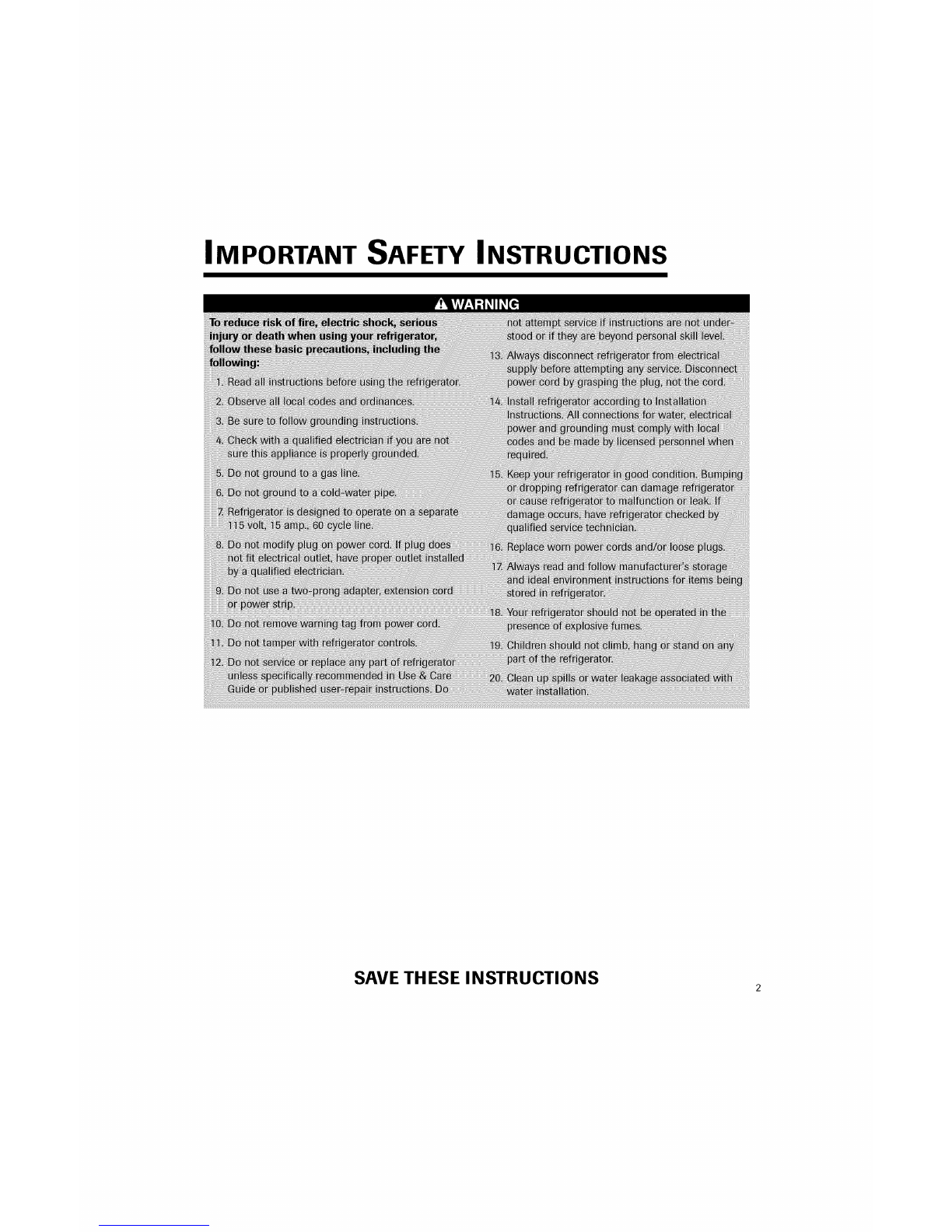

I MPORTANT SAFETY I NSTRUCTIONS

What You Need to Know About

Safety Instructions

Warning and Important Safety Instructions appearing in

this guide are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining or operating appliance.

Always contact the manufacturer about problems or

conditions you do not understand.

Recognize Safety Symbols, Words,

Labels

This appliance is equipped with a three-prong

grounding plug for your protection against possible

electrical shock hazards. It must be plugged into a

grounding receptacle. Where a standard two-prong

wall receptacle is encountered, it is the personal

responsibility and obligation of the customer to have it

replaced with a properly grounded three-prong wall

receptacle. Do not under any circumstances, cut or

remove the third (ground) prong from the power cord.

Do not use an adapter plug.

Power supply cord with

three-prong grounding plug

Grounding type

wall receptacle

I MPORTANT SAFETY I NSTRUCTIONS

SAVE THESE INSTRUCTIONS 2

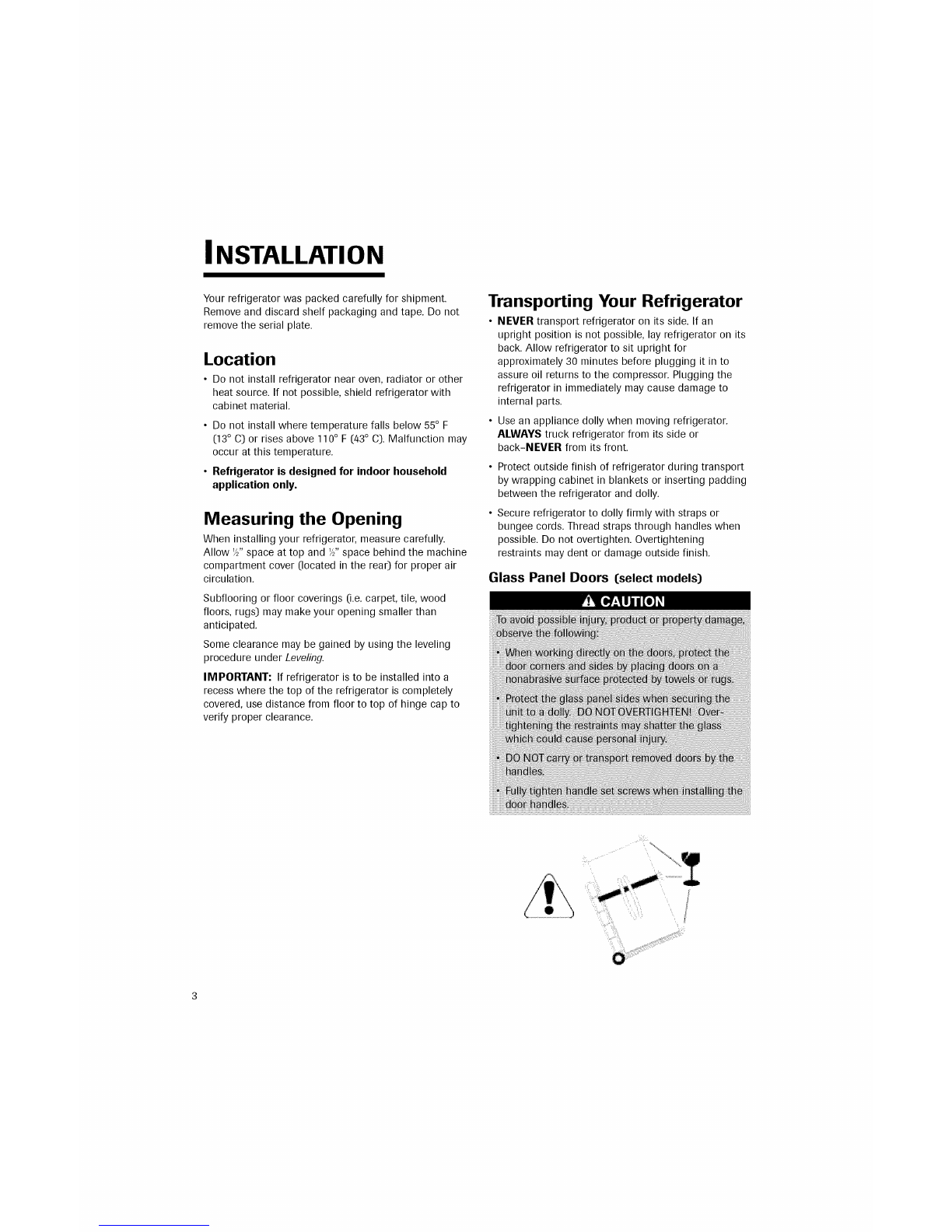

I NSTALLATI 0 N

Your refrigerator was packed carefully for shipment.

Remove and discard shelf packaging and tape. Do not

remove the serial plate.

Location

• Do not install refrigerator near oven, radiator or other

heat source. If not possible, shield refrigerator with

cabinet material.

• Do not install where temperature falls below 55° F

(13° C) or rises above 110° F (43° C). Malfunction may

occur at this temperature.

•Refrigerator is designed for indoor household

application only.

Measuring the Opening

When installing your refrigerator, measure carefully.

Allow '/2"space at top and '/;' space behind the machine

compartment cover (located in the rear) for proper air

circulation.

Subflooring or floor coverings (i.e. carpet, tile, wood

floors, rugs) may make your opening smaller than

anticipated.

Some clearance may be gained by using the leveling

procedure under Leveling.

IMPORTANT: If refrigerator is to be installed into a

recess where the top of the refrigerator is completely

covered, use distance from floor to top of hinge cap to

verify proper clearance.

Transporting Your Refrigerator

• NEVER transport refrigerator on its side. If an

upright position is not possible, lay refrigerator on its

back. Allow refrigerator to sit upright for

approximately 30 minutes before plugging it in to

assure oil returns to the compressor. Plugging the

refrigerator in immediately may cause damage to

internal parts.

• Use an appliance dolly when moving refrigerator.

ALWAYS truck refrigerator from its side or

back-NEVER from its front.

Protect outside finish of refrigerator during transport

by wrapping cabinet in blankets or inserting padding

between the refrigerator and dolly.

Secure refrigerator to dolly firmly with straps or

bungee cords. Thread straps through handles when

possible. Do not overtighten. Overtightening

restraints may dent or damage outside finish.

Glass Panel Doors (select models)

I NSTALLATI 0 N

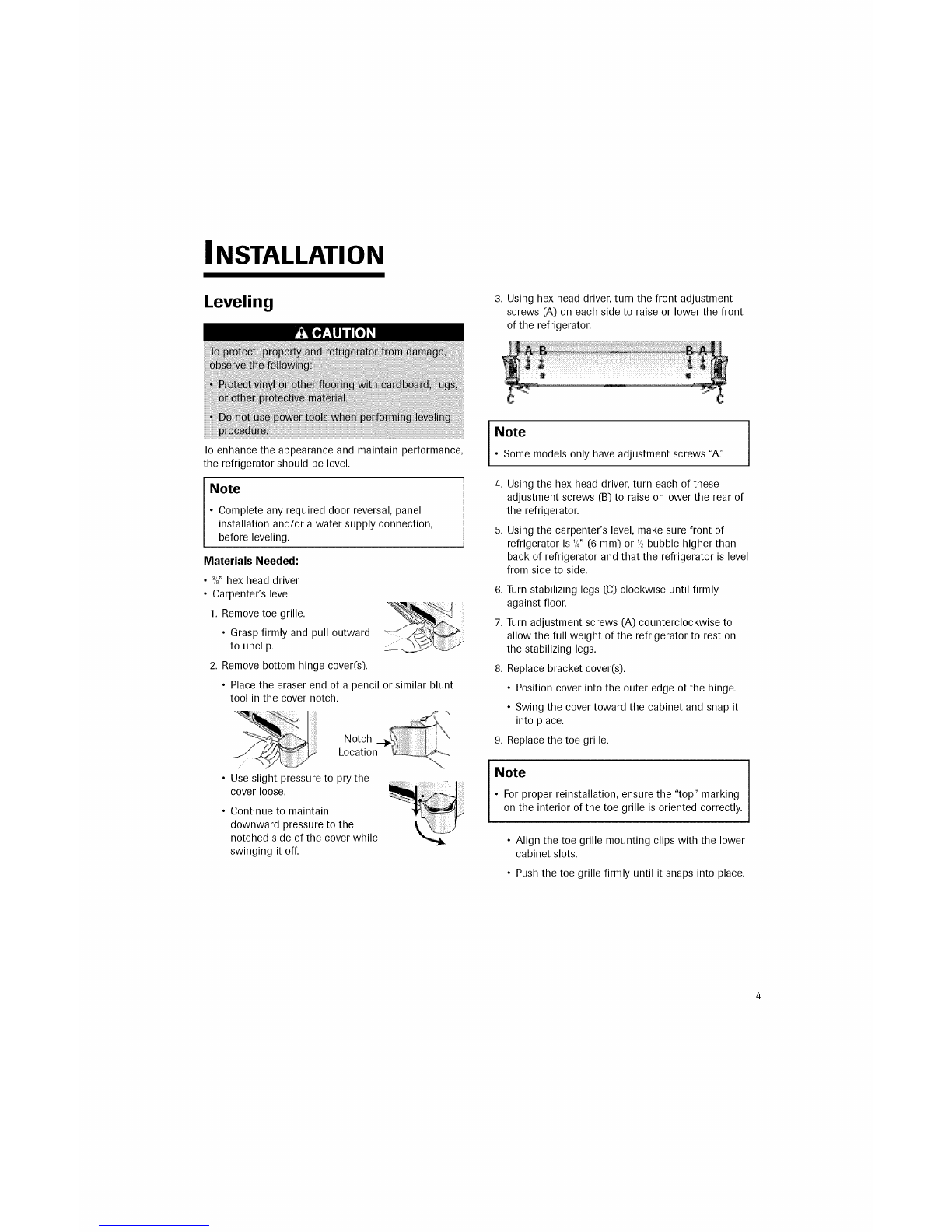

Leveling

To enhance the appearance and maintain performance,

the refrigerator should be level.

3. Using hex head driver, turn the front adjustment

screws (A) on each side to raise or lower the front

of the refrigerator.

Note

• Complete any required door reversal, panel

installation and/or a water supply connection,

before leveling.

Materials Needed:

• 3/8"hex head driver

• Carpenter's level

1. Remove toe grille.

• Grasp firmly and pull outward

to unclip.

2. Remove bottom hinge cover(s).

• Place the eraser end of a pencil or similar blunt

tool in the cover notch.

Notch

Location

• Use slight pressure to pry the

cover loose.

• Continue to maintain

downward pressure to the

notched side of the cover while

swinging it off.

INote

• Some models only have adjustment screws "A:'

Using the hex head driver, turn each of these

adjustment screws (B) to raise or lower the rear of

the refrigerator.

Using the carpenter's level, make sure front of

refrigerator is Y4"(6 ram) or '/8bubble higher than

back of refrigerator and that the refrigerator is level

from side to side.

6. Turn stabilizing legs ((3) clockwise until firmly

against floor.

7. Turn adjustment screws (A) counterclockwise to

allow the full weight of the refrigerator to rest on

the stabilizing legs.

8. Replace bracket cover(s).

• Position cover into the outer edge of the hinge.

• Swing the cover toward the cabinet and snap it

into place.

9. Replace the toe grille.

Note

• For proper reinstallation, ensure the "top" marking

on the interior of the toe grille is oriented correctly.

• Align the toe grille mounting clips with the lower

cabinet slots.

• Push the toe grille firmly until it snaps into place.

I NSTALLATI ON

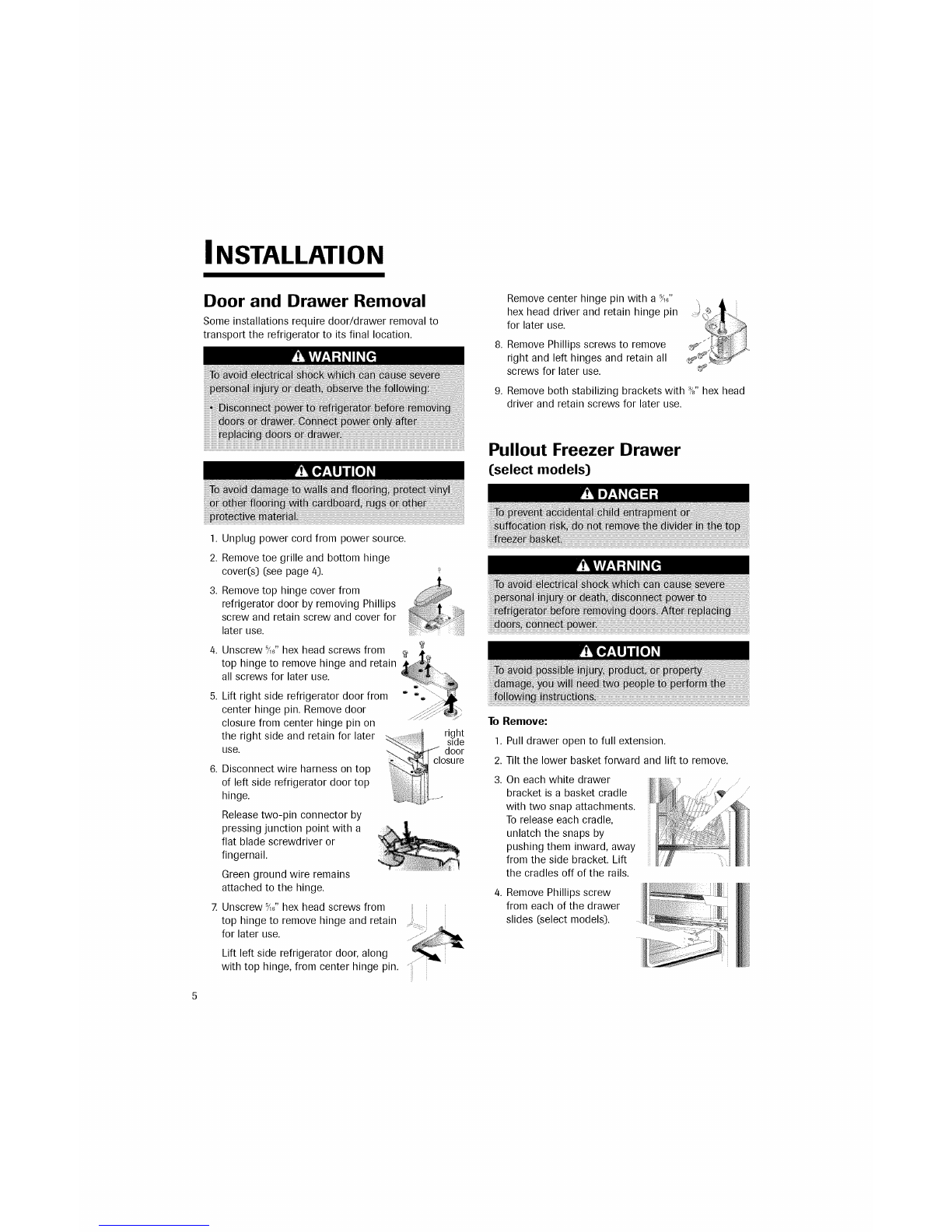

Door and Drawer Removal

Some installations require door/drawer removal to

transport the refrigerator to its final location. .

Remove center hinge pin with a 5/,6"

hex head driver and retain hinge pin

for later use.

Remove Phillips screws to remove

right and left hinges and retain all

screws for later use.

Remove both stabilizing brackets with 3/;, hex head

driver and retain screws for later use.

Pullout Freezer Drawer

(select models)

1. Unplug power cord from power source.

2. Remove toe grille and bottom hinge

cover(s) (see page 4).

3. Remove top hinge cover from

refrigerator door by removing Phillips

screw and retain screw and cover for

later use.

4. Unscrew _/,5"hex head screws from t_

top hinge to remove hinge and retain

all screws for later use.

5. Lift right side refrigerator door from

center hinge pin. Remove door

closure from center hinge pin on . right

the right side and retain for later s_de

use. ---.'_-_I door

osure

6. Disconnect wire harness on top

of left side refrigerator door top

hinge. ..

Release two-pin connector by

pressing junction point with a

flat blade screwdriver or

fingernail.

Green ground wire remains

attached to the hinge.

7. Unscrew _/,5"hex head screws from

top hinge to remove hinge and retain ,

for later use. ._

Lift left side refrigerator door, along

with top hinge, from center hinge pin. "

To Remove:

1. Pull drawer open to full extension.

2. Tilt the lower basket forward and lift to remove.

3. On each white drawer

bracket is a basket cradle

with two snap attachments.

To release each cradle,

unlatch the snaps by

pushing them inward, away

from the side bracket. Lift

the cradles off of the rails.

4. Remove Phillips screw

from each of the drawer

slides (select models).

I NSTALLATI 0 N

5. Lift top of drawer front

to unhook the drawer

from the slides. Lift

door front out to

remove.

To Install:

1. Pull both rails out to

full extension.

2. While supporting door front, hook supports into

slots located on inside of each slide.

Note

•All four drawer bracket supports must be in the

proper slots for the drawer to function properly.

3. Lower door front into final position.

4. Replace and tighten Phillips screws that were

removed from the drawer slides (select models).

5. Place the basket cradles back onto the drawer

slides. Align basket cradle snaps with the slots on

the drawer brackets and press each cradle

towards the bracket until it clicks.

Basket cradle

snap attachments

6. Tilt the lower basket front down and set it down

into the basket cradles.

Door Reinstallation

1. Install hinge assemblies:

• Install center hinge with Phillips screws.

2. Place hinge side of refrigerator door on center

hinge pin.

• Install top hinge with 5/,6"hex head

screws.

3. While holding refrigerator door

upright, tighten down top hinge

with ?,5"hex head driver.

/4. Reconnect two-pin connector.

5. Replace top hinge covers.

Handles ([style varies by model)

This handle style is installed at the factory. Style may

vary by model.

Materials Needed:

• 3/32"allen wrench

To Remove:

• Remove set screw from

handle mounting post

using the 3/_;,allen

wrench.

• Repeat the procedure on

all posts to remove the

handle.

To replace:

• Align handle with the mounting posts.

• Fully tighten all set screws to secure handle

in place.

I NSTALLATI 0 N

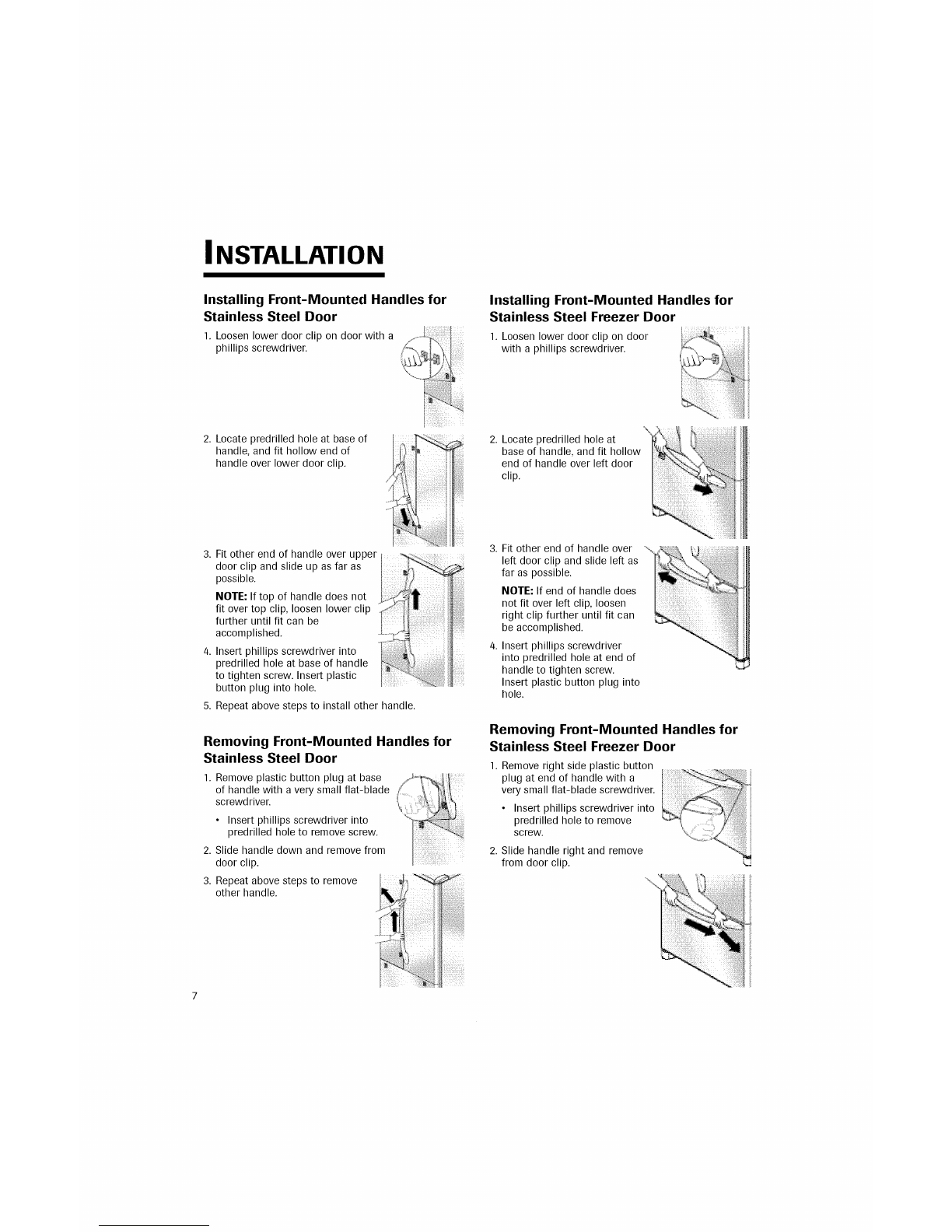

Installing Front-Mounted Handles for

Stainless Steel Door

1. Loosen lower door clip on door with a

phillips screwdriver.

2. Locate predrilled hole at base of

handle, and fit hollow end of

handle over lower door clip.

3. Fit other end of handle over upper

door clip and slide up as far as

possible.

NOTE: If top of handle does not

fit over top clip, loosen lower clip

further until fit can be

accomplished.

/4. Insert phillips screwdriver into

predrilled hole at base of handle

to tighten screw. Insert plastic

button plug into hole.

5. Repeat above steps to install other handle.

Removing Front-Mounted Handles for

Stainless Steel Door

1. Remove plastic button plug at base

of handle with a very small flat-blade

sc rewd river.

• Insert phillips screwdriver into

predrilled hole to remove screw.

2. Slide handle down and remove from

door clip.

3. Repeat above steps to remove

other handle.

Installing Front-Mounted Handles for

Stainless Steel Freezer Door

1. Loosen lower door clip on door

with a phillips screwdriver.

2. Locate predrilled hole at

base of handle, and fit hollow

end of handle over left door

clip.

Fit other end of handle over

left door clip and slide left as

far as possible.

NOTE: If end of handle does

not fit over left clip, loosen

right clip further until fit can

be accomplished.

Insert phillips screwdriver

into predrilled hole at end of

handle to tighten screw.

Insert plastic button plug into

hole.

Removing Front-Mounted Handles for

Stainless Steel Freezer Door

1. Remove right side plastic button

plug at end of handle with a

very small flat-blade screwdriver. ...................

• Insert phillips screwdriver into

predrilled hole to remove

screw.

2. Slide handle right and remove

from door clip.

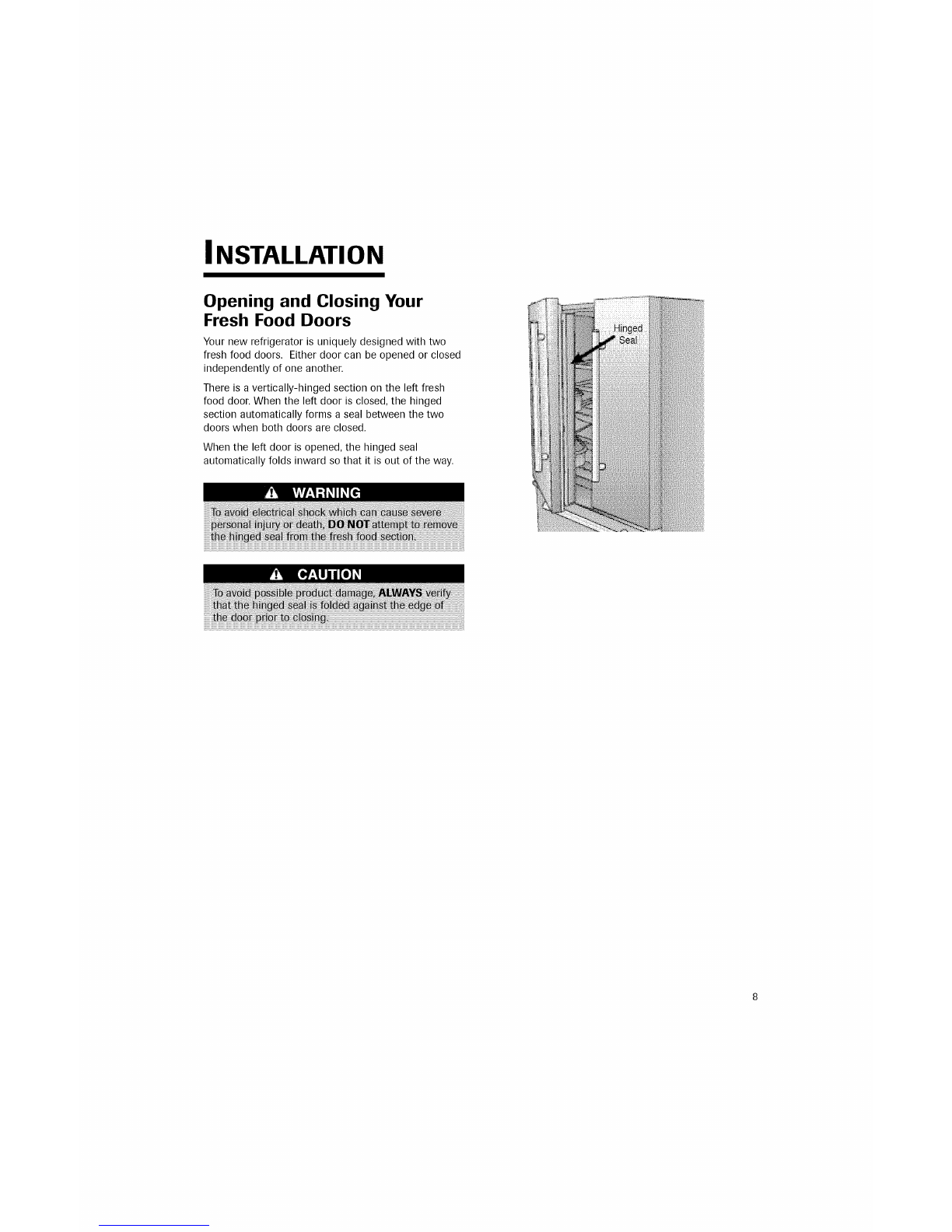

I NSTALLATI 0 N

Opening and Closing Your

Fresh Food Doors

Your new refrigerator is uniquely designed with two

fresh food doors. Either door can be opened or closed

independently of one another.

There is a vertically-hinged section on the left fresh

food door. When the left door is closed, the hinged

section automatically forms a seal between the two

doors when both doors are closed.

When the left door is opened, the hinged seal

automatically folds inward so that it is out of the way.

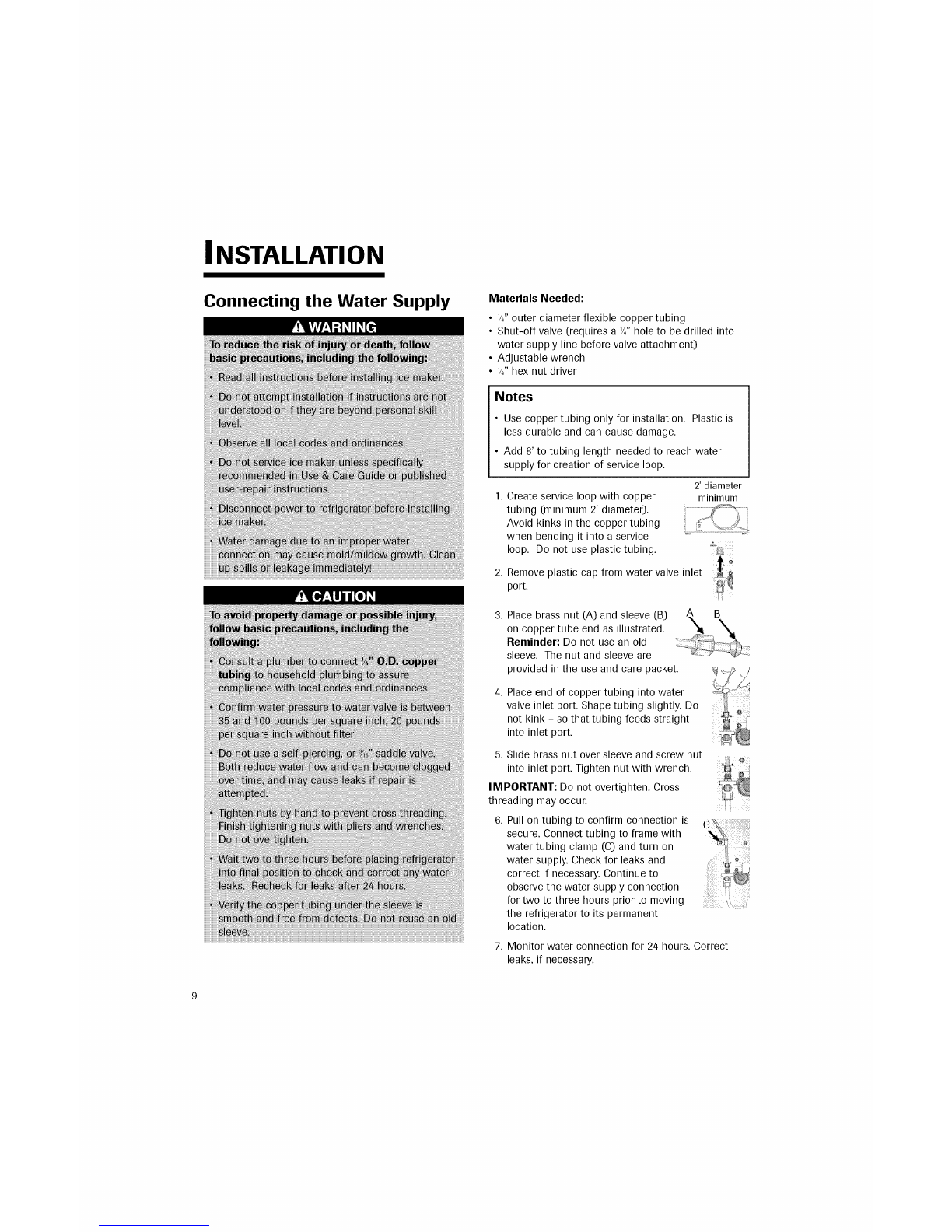

I NSTALLATI 0 N

Connecting the Water Supply Materials Needed:

•'/a"outer diameter flexible copper tubing

• Shut-off valve (requires a '//' hole to be drilled into

water supply line before valve attachment)

• Adjustable wrench

• X" hex nut driver

Notes

• Use copper tubing only for installation. Plastic is

less durable and can cause damage.

• Add 8' to tubing length needed to reach water

supply for creation of service loop.

2' diameter

1. Create service loop with copper minimum

tubing (minimum 2' diameter), f_-_._

Avoid kinks in the copper tubing _" '_, *

when bending it into a service

loop. Do not use plastic tubing.

2. Remove plastic cap from water valve inlet AN

port. _:_(:_

Place brass nut (A) and sleeve (B) A, "-,B

on copper tube end as illustrated. _ ,,,

Reminder: Do not use an old _: _:_i_"

sleeve. The nut and sleeve are

provided in the use and care packet.

Place end of copper tubing into water

valve inlet port. Shape tubing slightly. Do

not kink - so that tubing feeds straight

into inlet port.

5. Slide brass nut over sleeve and screw nut

into inlet port. Tighten nut with wrench.

IMPORTANT: Do not overtighten. Cross

threading may occur.

,Pull on tubing to confirm connection is

secure. Connect tubing to frame with

water tubing clamp (C) and turn on

water supply. Check for leaks and

correct if necessary. Continue to

observe the water supply connection i i

for two to three hours prior to moving

the refrigerator to its permanent

location.

7. Monitor water connection for 24 hours. Correct

leaks, if necessary.

Autres manuels pour JFC2089HEP

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Jenn-Air Réfrigérateur

Jenn-Air

Jenn-Air SIDE BY SIDE Manuel utilisateur

Jenn-Air

Jenn-Air KitchenAid KBSD708M S00 Series Manuel utilisateur

Jenn-Air

Jenn-Air JUC2450ARW Manuel utilisateur

Jenn-Air

Jenn-Air REFRIGERATOR Manuel utilisateur

Jenn-Air

Jenn-Air REFRIGERATOR Manuel utilisateur

Jenn-Air

Jenn-Air JFI2089ATS2 Manuel utilisateur

Jenn-Air

Jenn-Air JS42NXFXDW01 Manuel utilisateur

Jenn-Air

Jenn-Air JFD2589KEP Manuel utilisateur

Jenn-Air

Jenn-Air Euro Series Fiche d'information produit

Jenn-Air

Jenn-Air JFC2089WEM1 Manuel utilisateur

Jenn-Air

Jenn-Air JS42NXFXDW Manuel utilisateur

Jenn-Air

Jenn-Air JBZFR18IGX Feuille d'instructions

Jenn-Air

Jenn-Air REFRIGERATOR Manuel utilisateur

Jenn-Air

Jenn-Air JFX2597AEM2 Manuel utilisateur

Jenn-Air

Jenn-Air JFC2089HEP Manuel utilisateur

Jenn-Air

Jenn-Air JCD2595WES00 Manuel utilisateur

Jenn-Air

Jenn-Air W10276070A Manuel utilisateur

Jenn-Air

Jenn-Air JFC2290VTB10 Manuel utilisateur

Jenn-Air

Jenn-Air SIDE BY SIDE BUILT-IN Manuel utilisateur

Jenn-Air

Jenn-Air JCD2389GEB Guide Manuel utilisateur

Jenn-Air

Jenn-Air JFC2290VEP0 Manuel utilisateur

Jenn-Air

Jenn-Air JUR24FRERS Manuel utilisateur

Jenn-Air

Jenn-Air JS42NXFXDE Instructions d'utilisation

Jenn-Air

Jenn-Air JB36NXFXLW Manuel de la liste des pièces

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
