Jenn-Air Pro-Style JGR8890ADP13 Manuel utilisateur

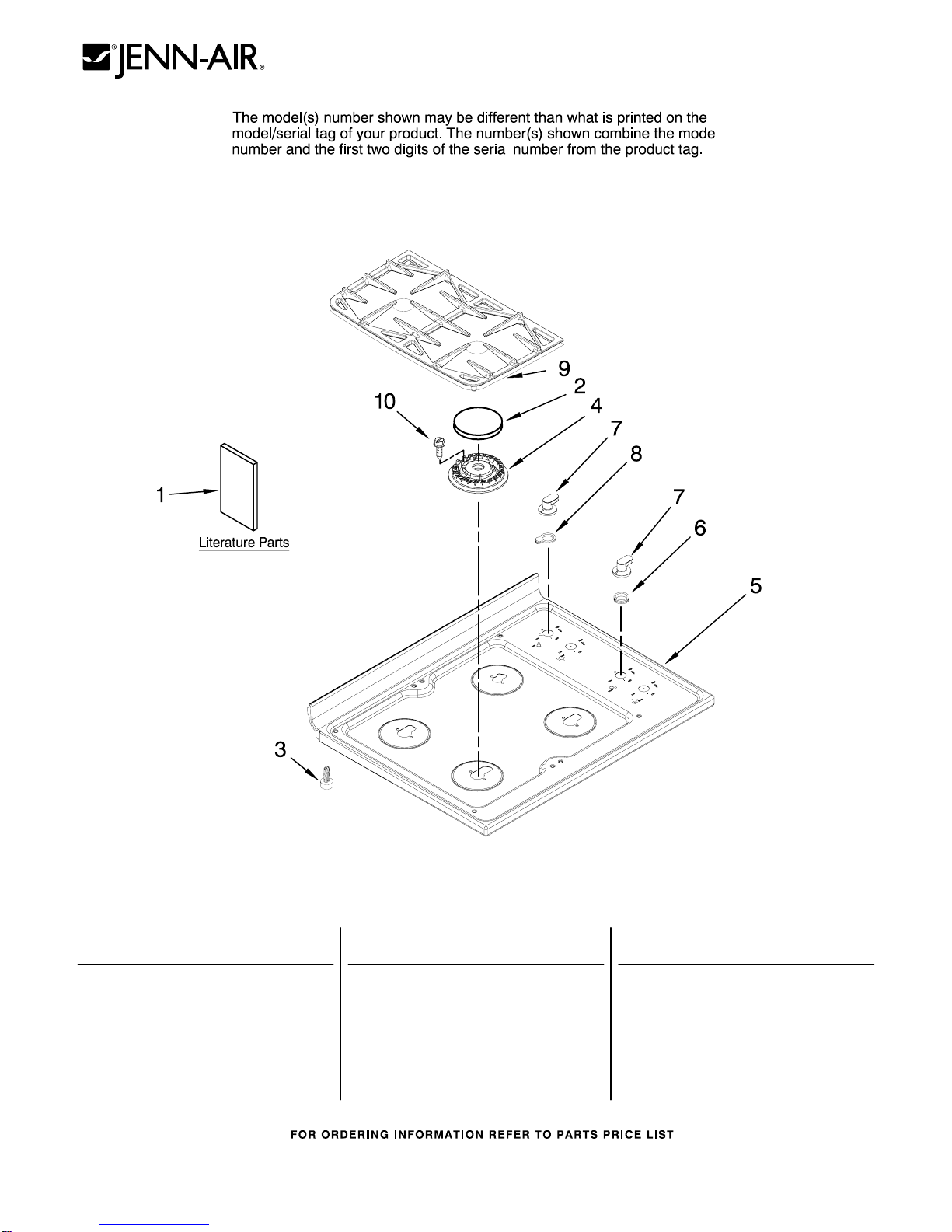

COOKTOP PARTS

For Models: JGR8890ADP13

(Stainless Steel)

9−07 Litho In U.S.A. (pl) Part No. W10167577 Rev A

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

CONVECTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10163152

Installation

Instructions

8113P620−60

Owners Manual

2 Cap, Burner

74007750 (LF−EX−LG)

74010189 (LR & RF−MED)

74007748 (RR−SM)

3 74004558 Glide, Main Top

4 Burner

74007411 (RR)

74009900 (LR & RF)

74007413 (LF)

5 74011885 Cooktop (BLK)

6 74005934 Grommet, Knob (3)

(RF,LF, & LR)

7 74011886 Knob, Control (4)

8 74007368 Grommet, Knob (1)

(RR)

9 74011889 Grate, Burner (2)

(Incl. Bumpers)

7101P685−60

Screw (8)

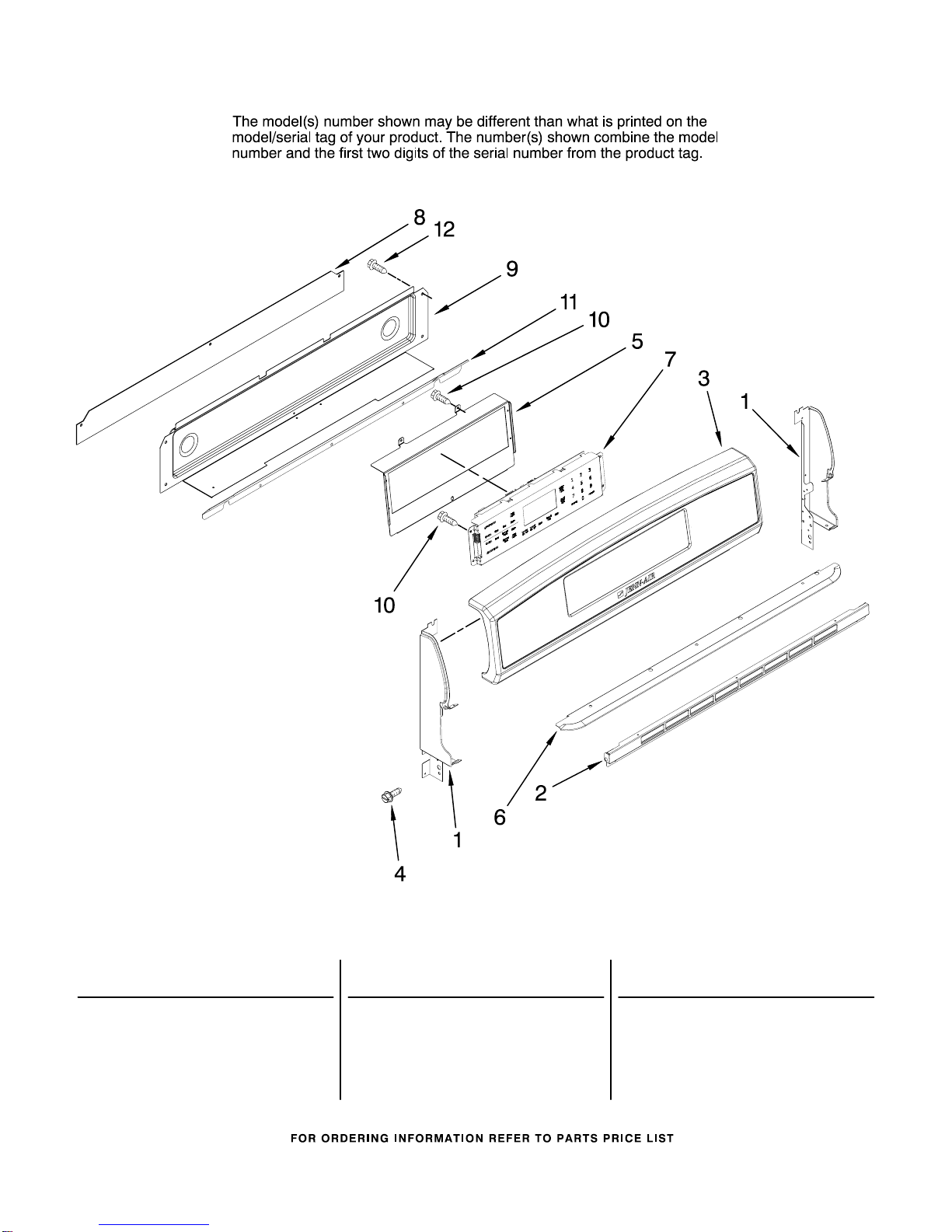

CONTROL PANEL PARTS

For Models: JGR8890ADP13

(Stainless Steel)

W10167577

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Support, Backguard

74010202 Left

74010201 Right

2 74009797 Trim, Vent

W10163203

Panel, Control

(Incl. Overlay)

4 74009537 Screw

W10163277

Bracket, Control

6 74009800 Shield, Vent

W10163250

Control Assy.

(Incl. Membrane

Switch)

8 74010084 Shield, Sight

9 74010983 Cover, Rear Wire

10 74003976 Screw

11 74009978 Shield, Wire

12 71001394 Screw

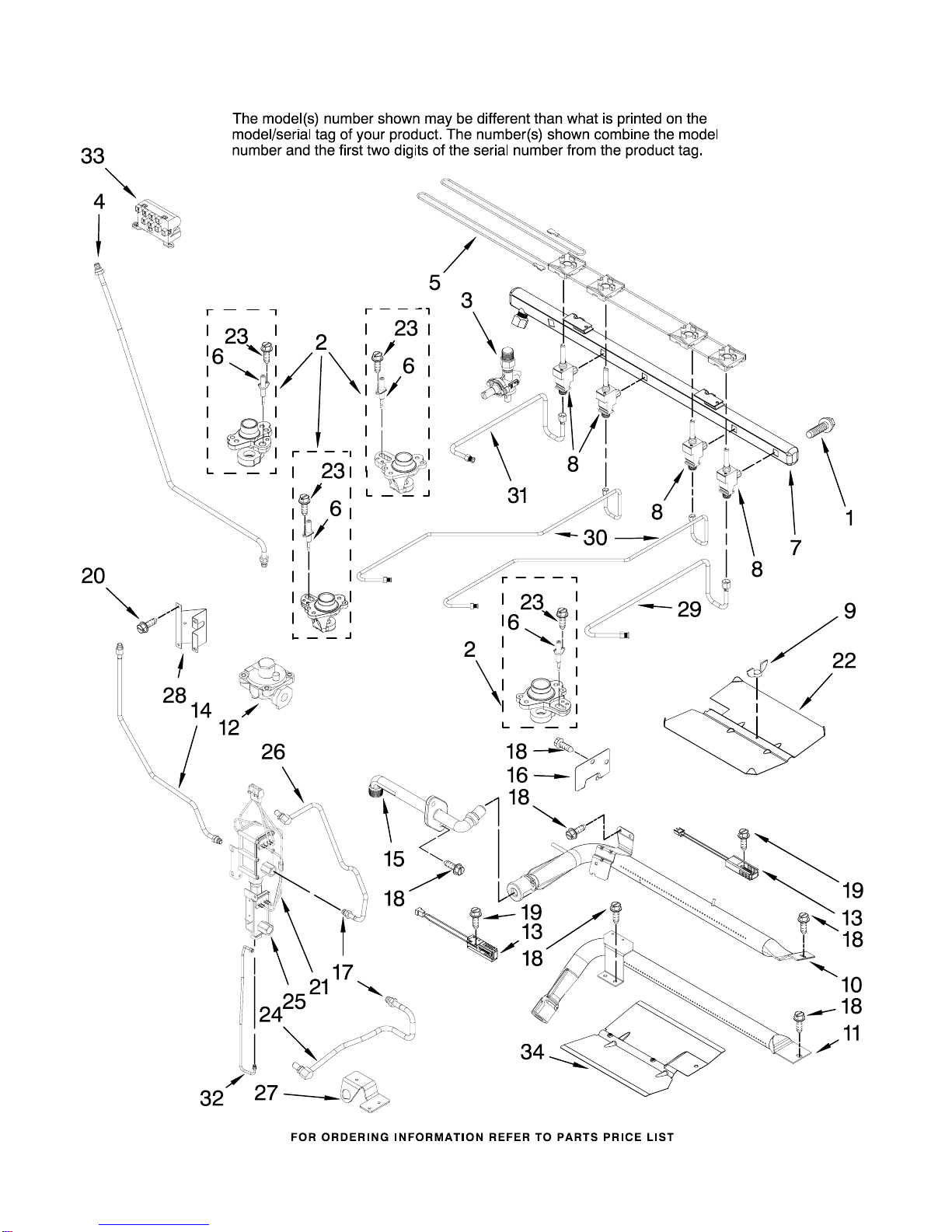

MANIFOLD PARTS

For Models: JGR8890ADP13

(Stainless Steel)

W10167577

MANIFOLD PARTS

For Models: JGR8890ADP13

(Stainless Steel)

W10167577

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 74009416 Screw, Valve (4)

2 Holder, Orifice

74007962 (LF)

74007961 (LR & RF)

74007816 (RR)

3 12002271 Valve, Shut Off

(Incl. Screw)

4 74010098 Tubing,

Manifold to Valve

5 12002790 Harness, Igniter

(Incl. Switches)

6 74007473 Ignitor, Top

Burner (4)

7 74009902 Pipe, Manifold

8 Valve

12002268 (RR)

12002269 (LR & RF)

74011867 (LF)

9 790431 Nut

10 74010093 Burner, Broiler

11 74010094 Burner, Bake

12 74007387 Regulator,

Pressure

13 Igniter

74007966 Broil

7432P143−60

Bake

14 74011292 Tubing (Broiler

Fitting To Valve)

15 74010612 Fitting, Broiler

4005F421−45

Cover, Igniter

17 74007451 Nut, Mounting

18 74001530 Screw

7101P282−60

Screw

20 74001530 Screw

21 74011297 Harness, Triple

Valve

22 74010086 Baffle,

Broil Burner

23 8273062 Screw

24 74011296 Tubing, Bake

Burner

(Incl. Orifice)

25 74011290 Valve, Bake/Broil

26 74011293 Tubing, Broil

Burner

(Incl. Orifice)

27 74007426 Bracket, Orfice

28 74007448 Bracket, Regulator

29 74009240 Tubing (RF)

30 74009242 Tubing (LR & LF)

31 74010097 Tubing (RR)

32 74011291 Tubing, Manifold

to Valve

33 74009098 Module, Spark

34 74007406 Baffle, Bake

Burner

Following Parts Not Illustrated

5789A602−60

Spuds, LP Gas

(Kit of 4)

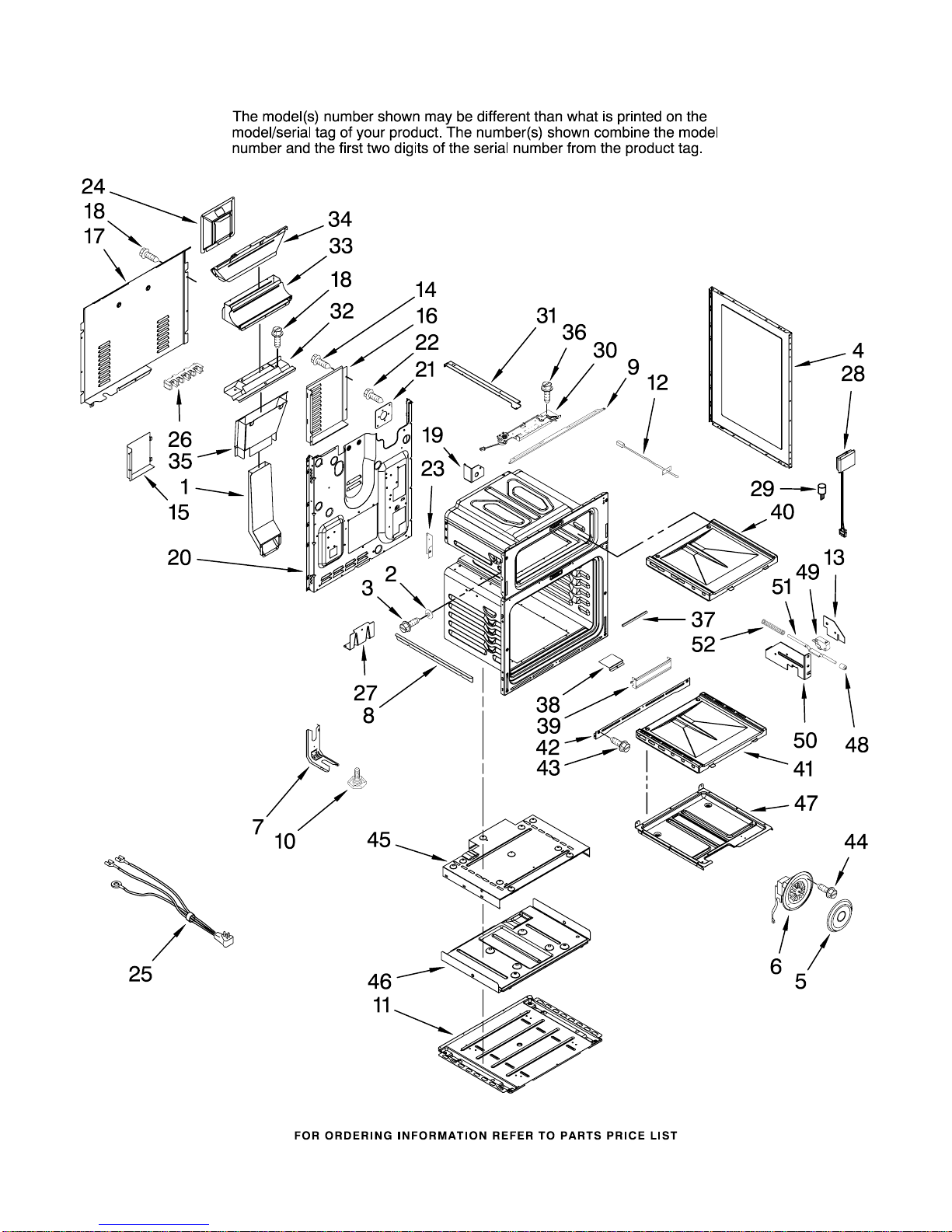

CHASSIS PARTS

For Models: JGR8890ADP13

(Stainless Steel)

W10167577

CHASSIS PARTS

For Models: JGR8890ADP13

(Stainless Steel)

W10167577

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 74007374 Extension, Lower

Vent

8004P024−60

Spacer, Side Panel

3 74001530 Screw

4 74003283 Panel, Side (2)

5 74010119 Plate, Convection

6 74011171 Fan, Convection

7 74005564 Bracket, Anti−Tip

8 74007427 Spacer, Side Panel

(Long)

9 74003384 Bracket, Cooktop

10 74002373 Foot, Leveler (4)

11 74009962 Base, Gemini

12 Sensor, Oven

74011433 Upper Oven

74004944 Lower Oven

13 74001872 Insulator, Switch

14 74001530 Screw

15 74010120 Cover, Conv. Motor

16 74010121 Cover, Bottom Wire

17 74007431 Cover, Upper Wire

18 74001530 Screw

19 Bracket

74007447 Right

74007446 Left

20 74011298 Back, Main

21 74007450 Plate, Broil

Fitting

22 74001530 Screw

23 Support, Upr Oven

74007499 Right

74007500 Left

24 74011858 Retainer,

Insulation

25 74011890 Cord, Power

7401P039−60

Block, Terminal

27 74005500 Support, Lwr Oven

28 74009970 Light Assy. (2)

29 74009925 Bulb, Light (2)

30 74007429 Latch, Door Lock

31 Bottom, Burner Box

W10163331

Right

W10163332

Left

32 74007377 Baffle, Vent Seal

33 74007376 Extension, Upper

Vent

34 74007955 Flue Assy., Upper

35 74007956 Flue Assy., Lower

36 74003975 Screw

37 74007428 Seal, Front Frame

38 74010102 Cover, Burner

Opening (2)

39 74007383 Baffle, Lower Oven

Vent

40 74010085 Bottom, Upper Oven

41 74007382 Bottom, Lower Oven

42 74007436 Trim, Kickplate

43 74009537 Screw (2)

44 74005401 Screw

45 74007577 Cover, Bottom

Insulation

46 74007443 Retainer, Bottom

Insulation

47 Pan, Bake

74010101 Lower

74010103 Upper

48 74001631 Bumper, Door Light

49 74004536 Switch, Light

50 74001632 Bracket, Switch

51 74003562 Rod, Light Switch

52 74001629 Spring

INSULATION

Insulation, Wrap

74007440 Upper Oven

74010089 Lower Oven

Insulation, Back

74010090 Upper Oven

74010091 Lower Oven

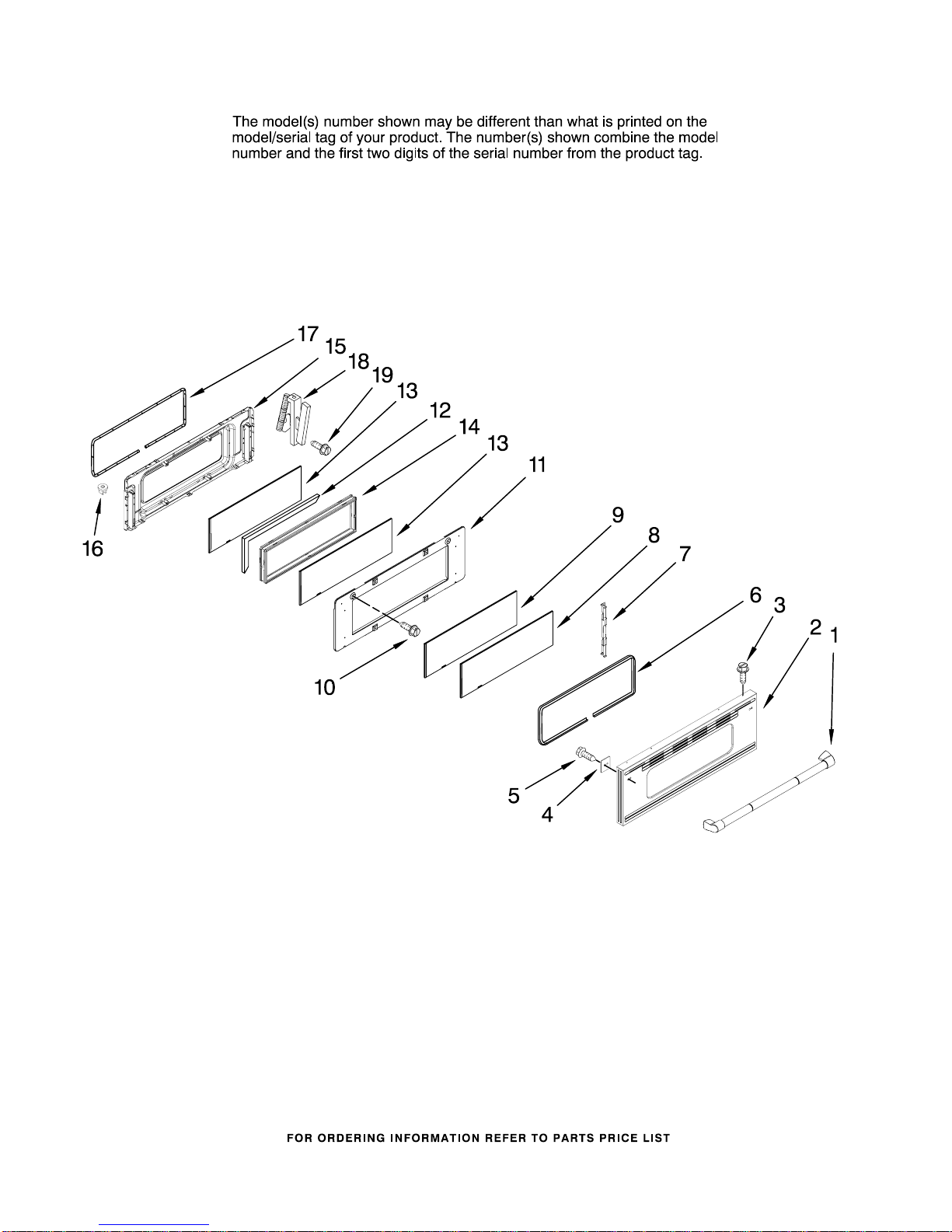

UPPER DOOR PARTS

For Models: JGR8890ADP13

(Stainless Steel)

W10167577

UPPER DOOR PARTS

For Models: JGR8890ADP13

(Stainless Steel)

W10167577

Illus. Part

No. No. DESCRIPTION

1 74008500 Handle, Door

2 74011888 Panel, Door

3 74001530 Screw

4 74010785 Plate, Back (2)

(Handle Mtg.)

5 74011751 Screw

7201P017−60

Gasket, Window

7 74004896 Retainer, Glass

Support (2)

8 74010194 Glass, Outer Door

9 74004691 Glass, Inner Door

10 74002979 Screw

11 74009976 Baffle, Door

12 74004569 Insulation (2)

13 74004566 Glass, Inner (2)

14 74004567 Frame, Glass

15 74004564 Liner, Door

16 74001574 Nut, Snap (2)

17 74004565 Gasket, Door

18 74007830 Hinge, Door (2)

7101P282−60

Screw (4)

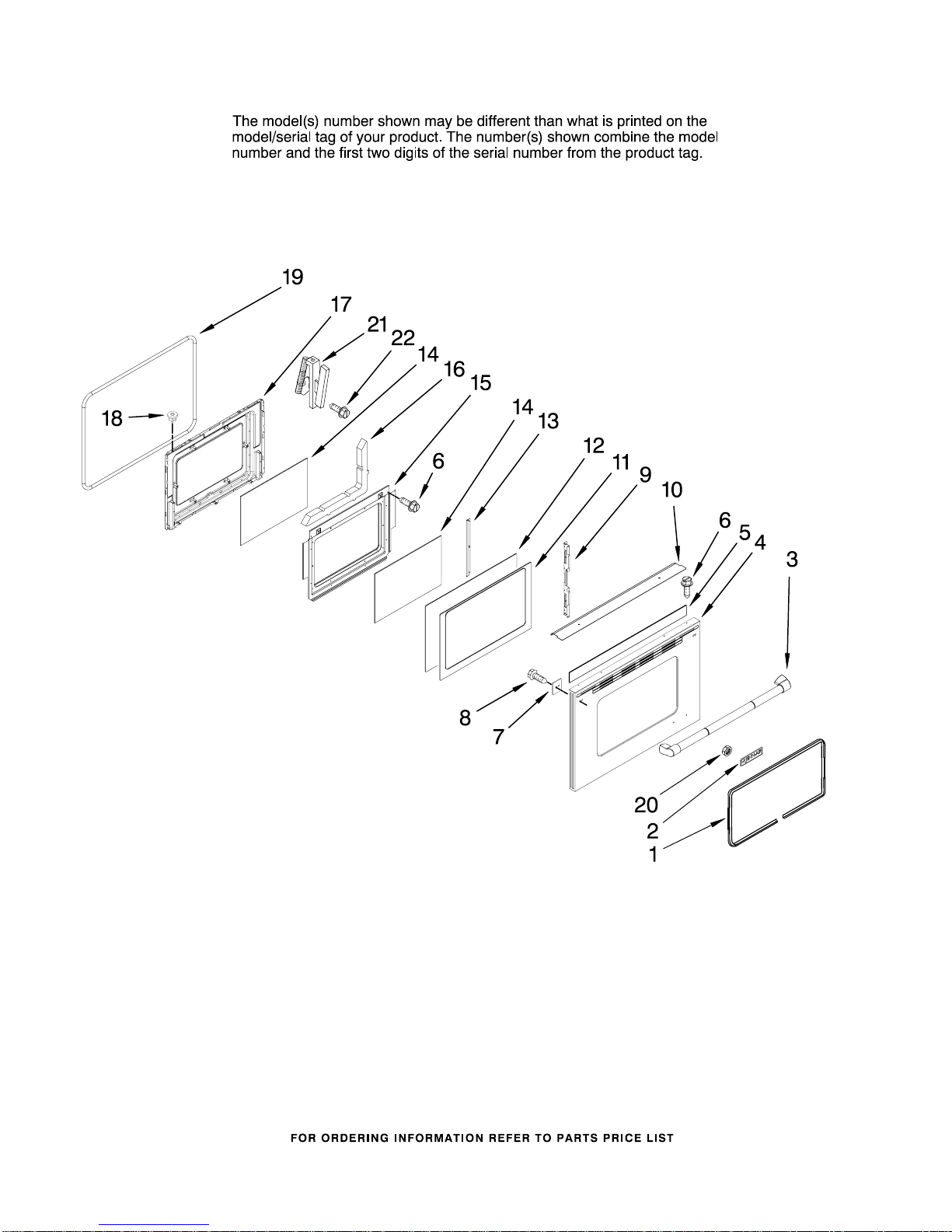

LOWER DOOR PARTS

For Models: JGR8890ADP13

(Stainless Steel)

W10167577

LOWER DOOR PARTS

For Models: JGR8890ADP13

(Stainless Steel)

W10167577

Illus. Part

No. No. DESCRIPTION

1 74008916 Gasket, Window

2 74006889 Nameplate

3 74008500 Handle, Door

4 74011887 Panel, Door

5 74010043 Insulation, Foil

6 74002979 Screw

7 74010785 Plate, Back (2)

(Handle Mtg.)

8 74011751 Screw

9 74010041 Retainer, Glass

Support (2)

W10163149

Shield, Door

11 74010196 Glass, Outer Door

12 74003649 Glass, Door

13 74011458 Bracket, Inner

Glass (2)

14 74003645 Glass, Inner (2)

15 74011457 Baffle, Door

16 74003647 Insulation

17 74011456 Liner, Door

18 74001574 Nut, Snap (2)

7201P046−60

Gasket, Door

20 715500 Palnut (2)

21 74011475 Hinge, Door (2)

7101P282−60

Screw (4)
