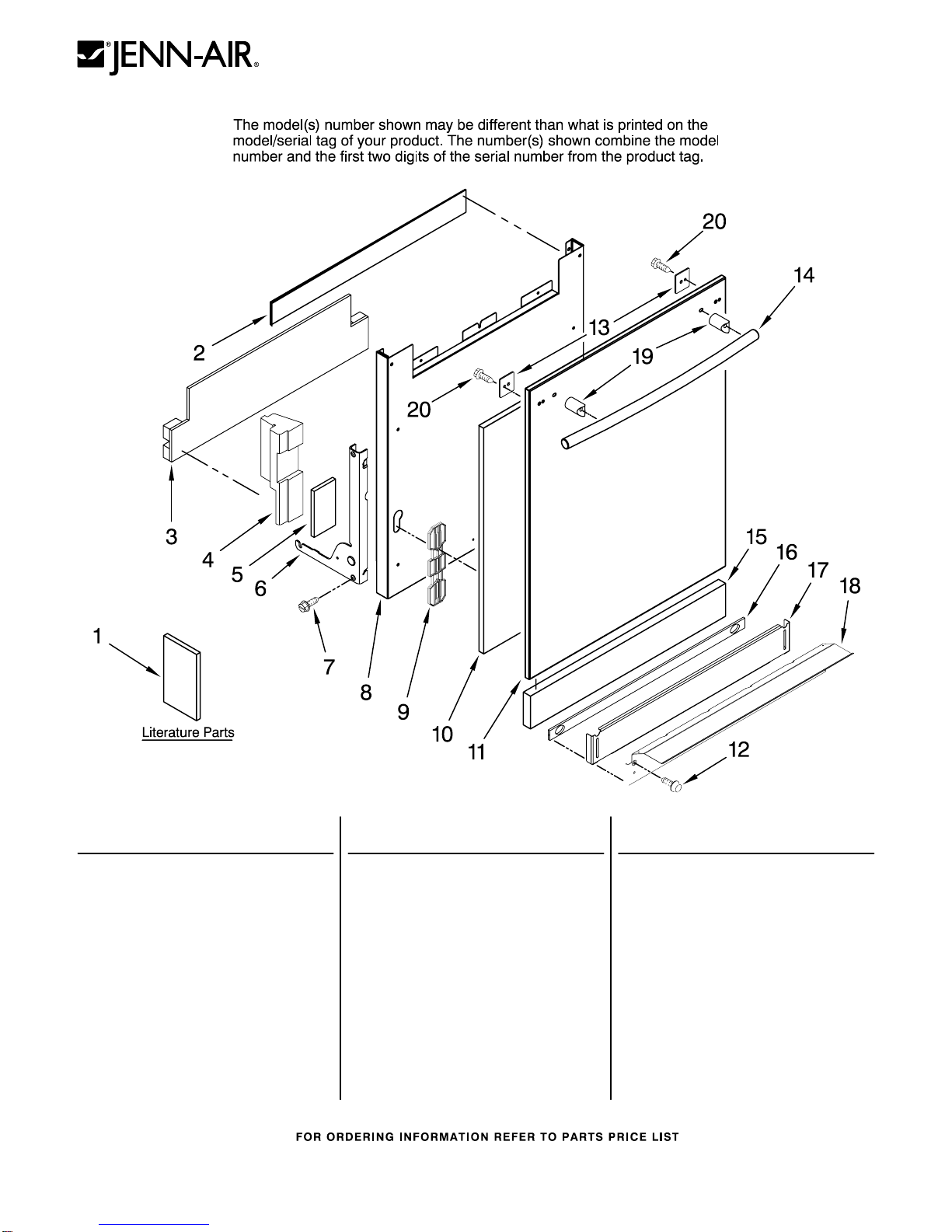

DOOR AND PANEL PARTS
1
For Models: JDB1105AWB0, JDB1105AWW0,JDB1105AWS0
(Black) (White) (Stainless)
01−09 Litho In U.S.A. (cre) (eeb) Part No. W10251405 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10158012
Instructions,
Installation
W10208028
Energy Guide
W10157785
Guide, Use & Care
2 99002693 Insulation, Door
3 99003048 Barrier, Foam
4 Block, Foam
99003046 Left
99003047 Right
5 99003049 Wrap, Foam
6 Bracket, Hinge
99002929 Left
99002930 Right
7 99001075 Screw
8 99003094 Support, Inner
Door
9 99003095 Anchor, Panel
Fastener
10 99003093 Pad, Foam
11 Panel, Front
99003090 Black
99003092 White
W10166535
Stainless
12 Screw
912366 Black
99001194 White
13
W10167659
Plate, Handle
Black
14
W10191101
Handle, Door
15 99002414 Insulation, Toe
Panel
16 Damper, Toe Panel
99002694 Black
99002698 White
17 Panel, Toe
(Includes Item 16)
99002765 Black
99002766 White
18 Support, Front
99002859 Black
99002860 White
19 6918667 Stud, Handle
20 99003154 Screw

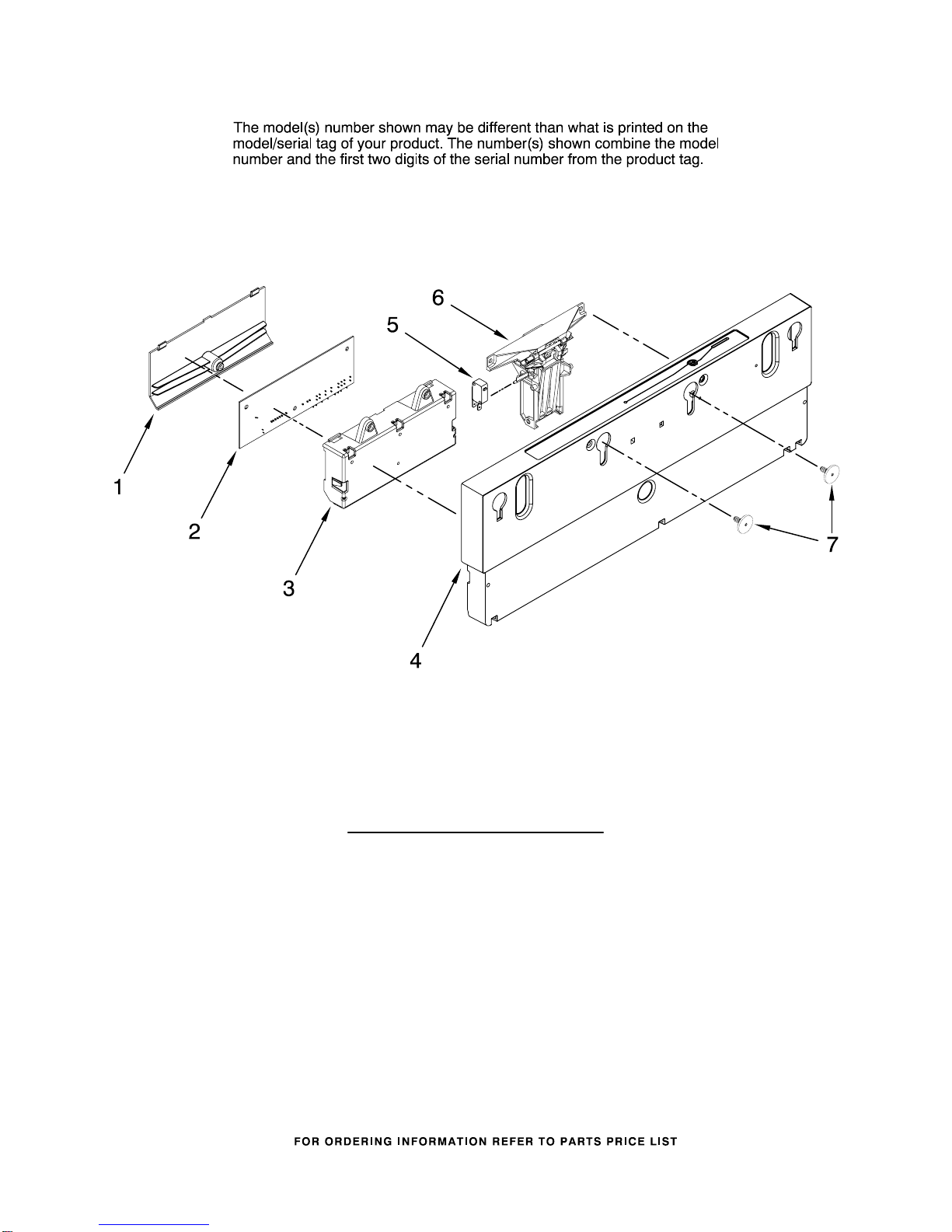

CONTROL PANEL PARTS
2
For Models: JDB1105AWB0, JDB1105AWW0,JDB1105AWS0
(Black) (White) (Stainless)
W10251405
Illus. Part
No. No. DESCRIPTION
1 99002575 Housing, Board
(Top)
2
W10119995
Board, Control
3 99002576 Housing, Board
4
W10161783
Panel, Control
5 99002751 Switch, Door
6 99003347 Latch, Assembly
7 99003096 Fastener, Panel

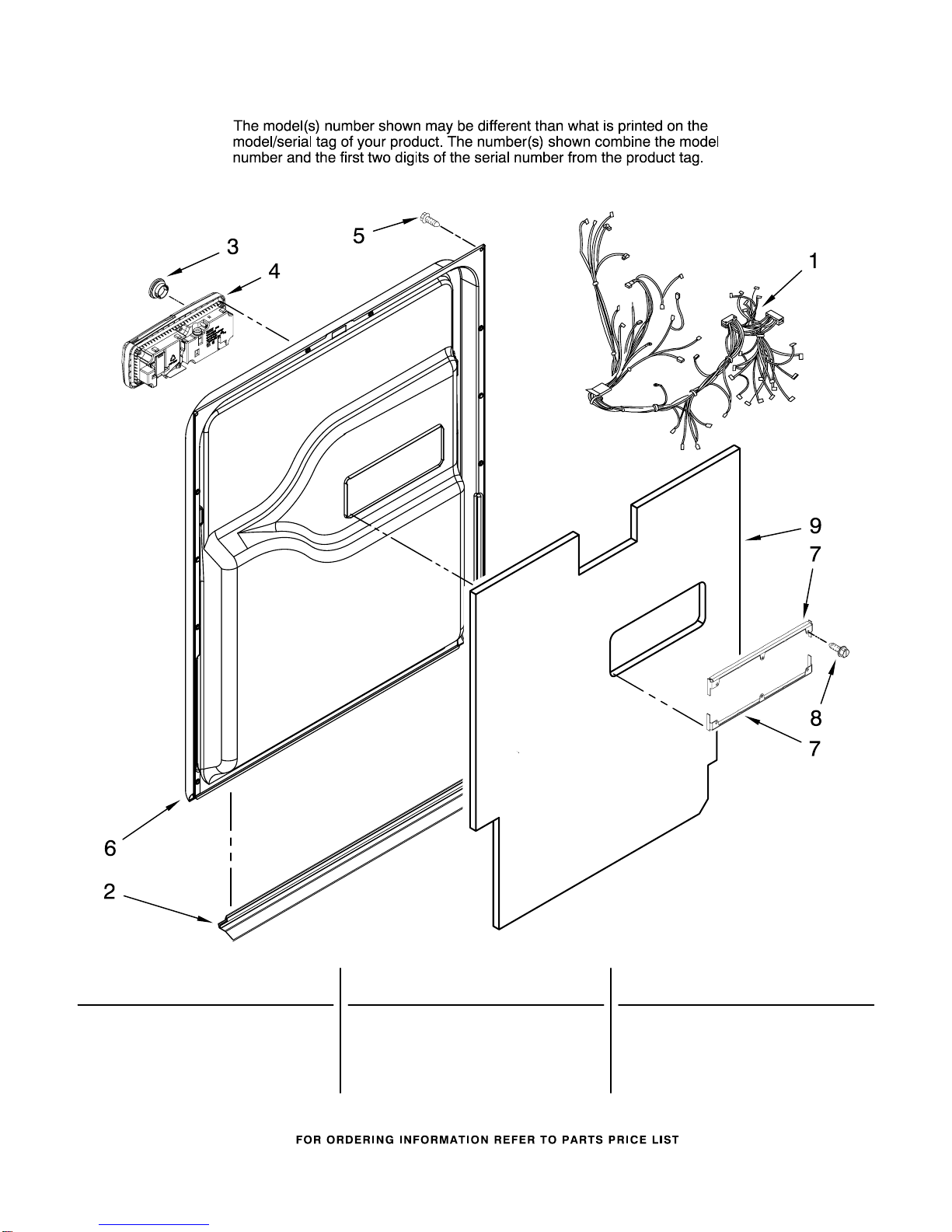

DOOR AND LATCH PARTS
3
For Models: JDB1105AWB0, JDB1105AWW0,JDB1105AWS0
(Black) (White) (Stainless)
W10251405
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 99003308 Harness, Wiring
2 99003045 Seal, Door
(Bottom)
3 99003060 Cap, Rinse Aid
4 99003320 Dispenser, Rinse
Aid
5 Y912620 Screw, Door
6
W10120976
Inner Door
W/ Damper
7 99002465 Bracket, Dispenser
8 912615 Screw
9 99003044 Insulation, Door

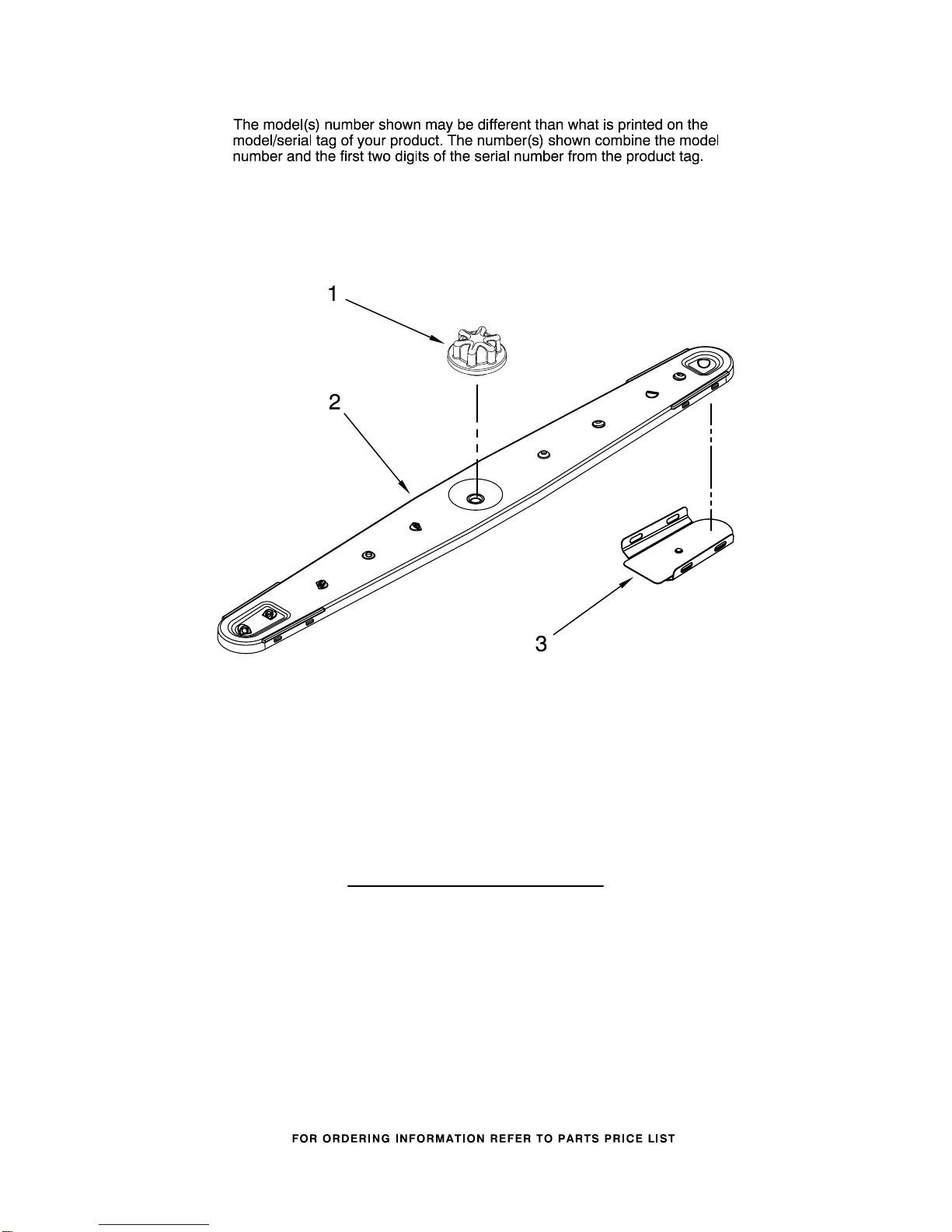

LOWER WASHARM PARTS
4
For Models: JDB1105AWB0, JDB1105AWW0,JDB1105AWS0
(Black) (White) (Stainless)
W10251405
Illus. Part
No. No. DESCRIPTION
1 99003083 Cap, Wash Arm
2 99003144 Wash Arm, Lower
(Includes Item 3)
3
W10218606
Shield, Radiant

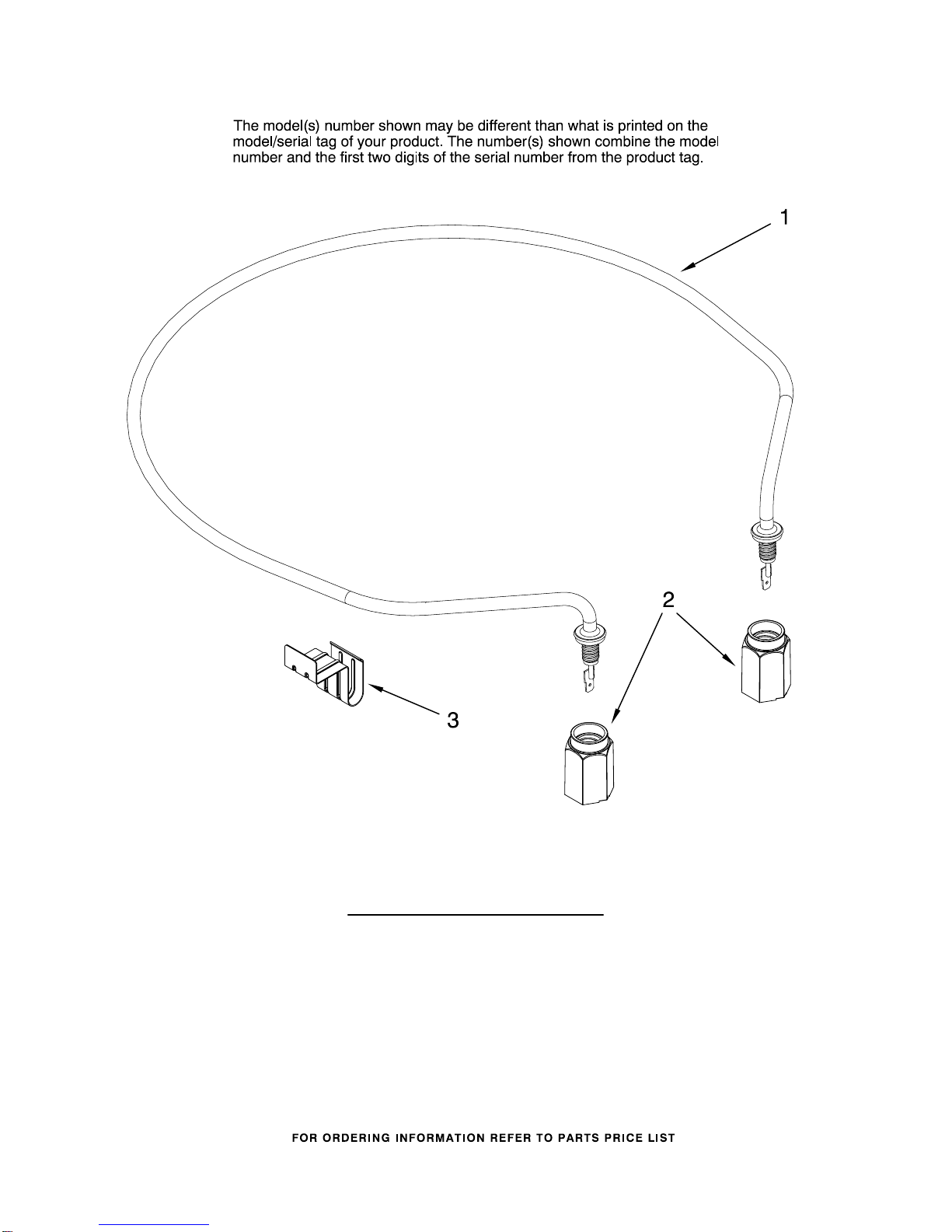

HEATER PARTS
5
For Models: JDB1105AWB0, JDB1105AWW0,JDB1105AWS0
(Black) (White) (Stainless)
W10251405
Illus. Part
No. No. DESCRIPTION
1 99002971 Heater Element
Assembly
W/ Gasket
2 99003033 Nut, Heater
3 99003032 Bracket, Heater
Support
NOTE:
If heater element is
removed, it must be replaced.

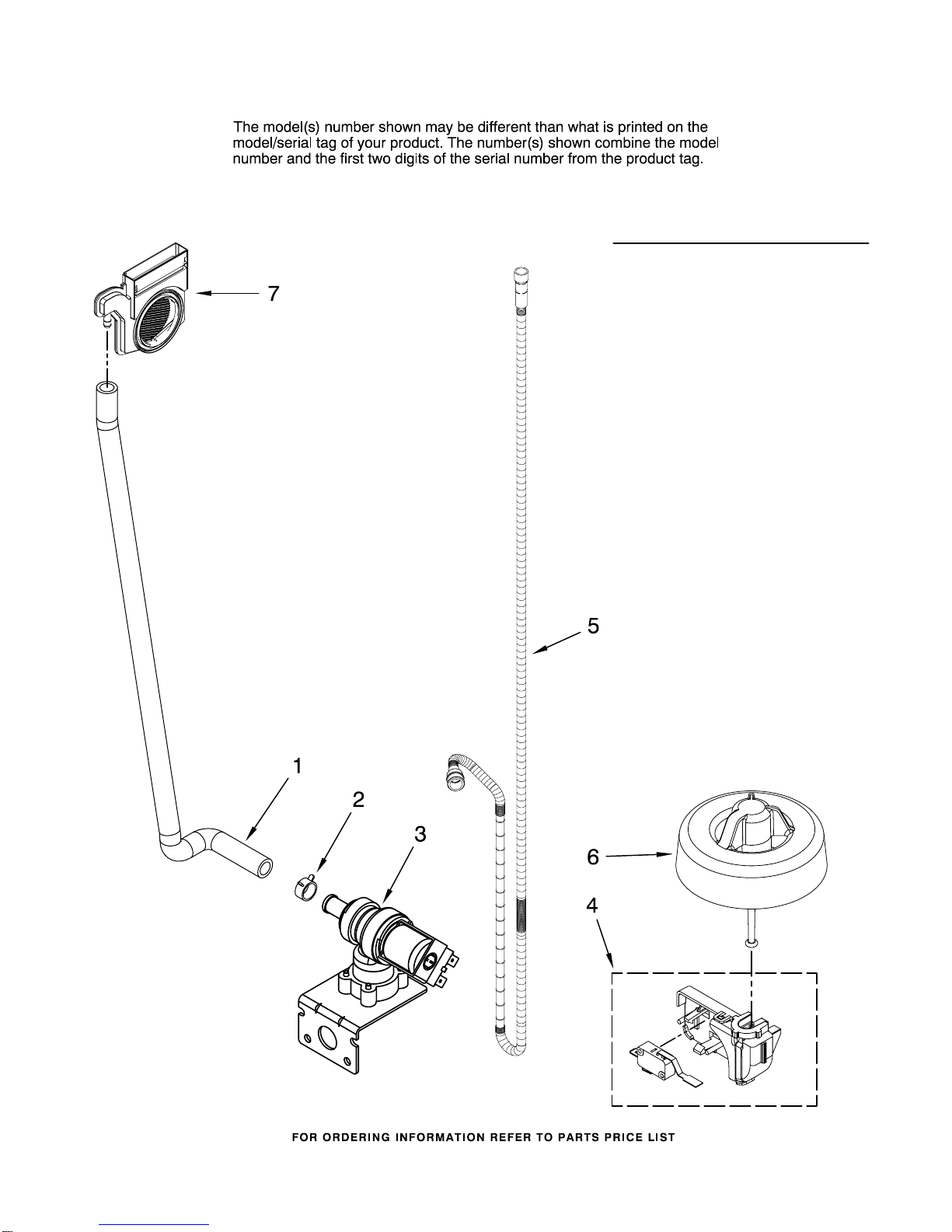

FILL AND OVERFILL PARTS
6
For Models: JDB1105AWB0, JDB1105AWW0,JDB1105AWS0
(Black) (White) (Stainless)
W10251405
Illus. Part
No. No. DESCRIPTION
1 99002852 Hose, Inlet
2 911856 Clamp, Spring
3 99002975 Valve, Water
4
W10205539
Switch, Float
5 99002652 Hose, Drain
6
W10130099
Float
7 99003028 Inlet, Air/Water

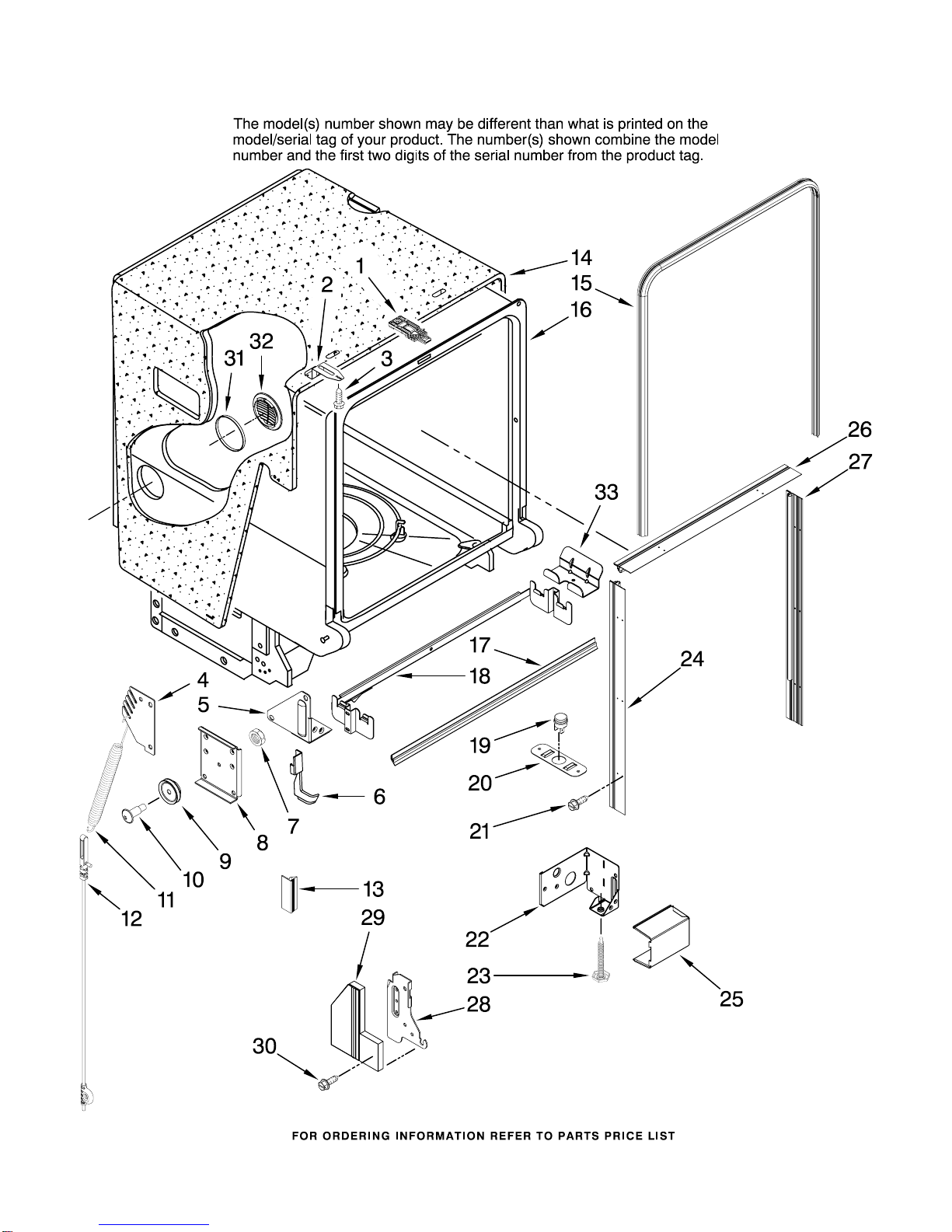

TUB AND FRAME PARTS
7
For Models: JDB1105AWB0, JDB1105AWW0,JDB1105AWS0
(Black) (White) (Stainless)
W10251405
TUB AND FRAME PARTS
8
For Models: JDB1105AWB0, JDB1105AWW0,JDB1105AWS0
(Black) (White) (Stainless)
W10251405
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1
W10119337
Strike, Door
2 99002648 Bracket, Cabinet
Mounting
3 6−912799 Screwr
4 99002610 Bracket, Spring
Adjustment
5 99002636 Bracket, Support
6 Trim, Corner Edge
99003039 Right
99003038 Left
7 99003688 Nut
8
W10173920
Bracket, Cable
9 99002608 Roller, Cable
Bracket
10 99003687 Bolt, Shoulder
11 99003118 Spring, Door
12 99003446 Door Cable Assy.
13 Gap Seal,
Toe Kick
99002701 Black
99002703 White
14 99002849 Insulation, Tub
15 99003337 Seal, Door
16
W10142298
Tub Assembly
(Not Serviced)
17 99003041 Trim, Tub Edge
(Bottom)
18
W10167660
Bracket, Support
(Rear)
19 99002633 Thermostat,
Limiting
20
W10167658
Clip, Thermostat
21 99002692 Screw, Trim
Mounting
22 99002637 Bracket, Junction
Box
23
W10143258
Leg, Leveling
24
W10164700
Strip,Trim Left
25 99002638 Cover, Junction
Box
26
W10164702
Strip,Trim Top
27
W10164701
Strip,Trim Right
28 Support, Hinge
W10117484
Right
W10117485
Left
29 Backer, Hinge
W10174581
Right
W10174569
Left
30 99003155 Screw
31 99002150 Seal, Air/Water
Inlet
32 6−918397 Grill, Air/Water
Inlet
33
W10167916
Clamp, Rear
Support

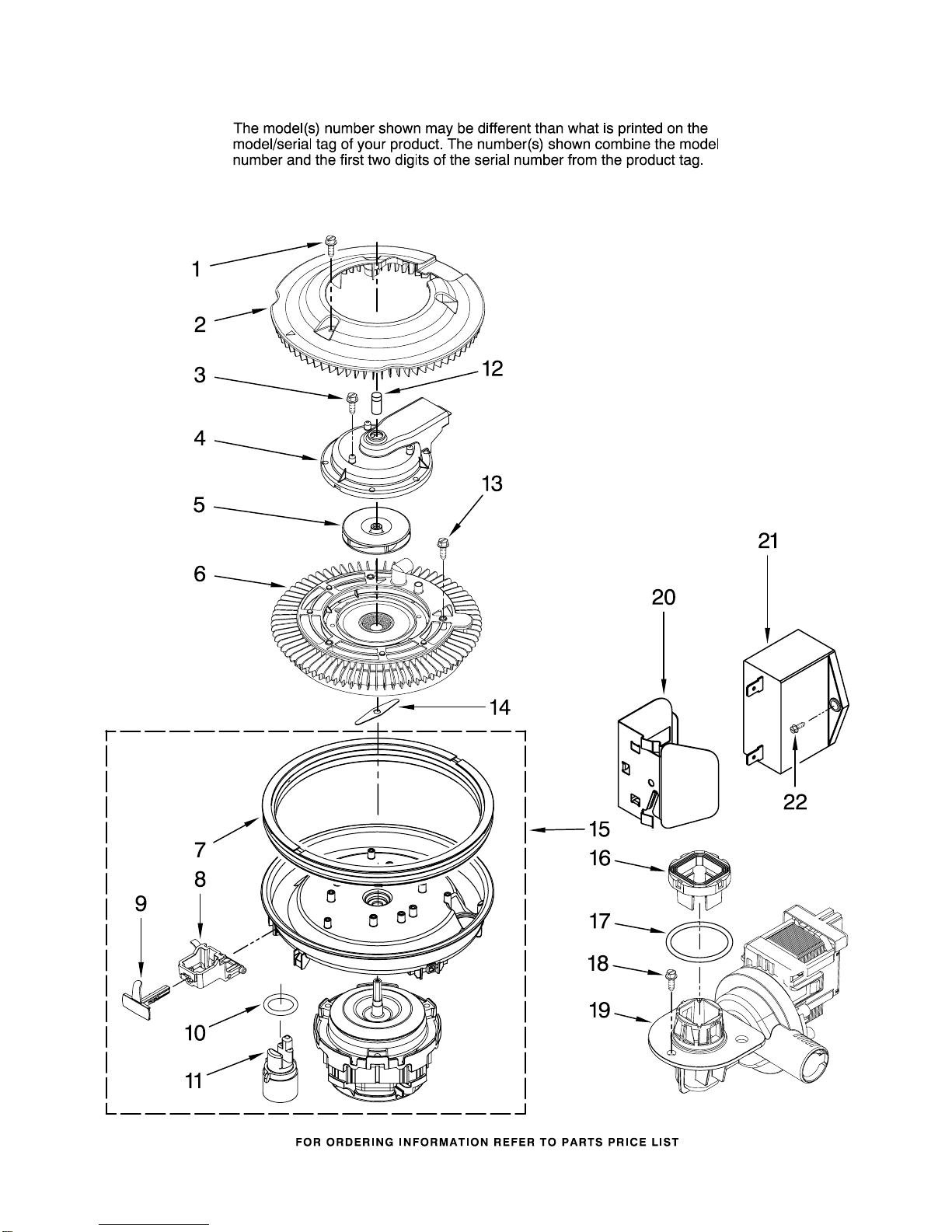

PUMP AND MOTOR PARTS
9
For Models: JDB1105AWB0, JDB1105AWW0,JDB1105AWS0
(Black) (White) (Stainless)
W10251405
PUMP AND MOTOR PARTS
10
For Models: JDB1105AWB0, JDB1105AWW0,JDB1105AWS0
(Black) (White) (Stainless)
W10251405
Illus. Part
No. No. DESCRIPTION
1 99002666 Screw
2
W10166790
Guard, Filter
3 99002668 Screw
4 99003145 Discharge, Housing
Assembly
5 99002659 Wash Impeller
Assembly
6
W10142623
Filter/Flowplate,
Assembly
7 99003055 Gasket, Motor
Mount
8 99003056 Lever, Motor Mount
9 99003057 Plunger, Motor
Mount
10 99002651 O−Ring, Turbidity
Sensor
11
W10120019
Sensor, Turbidity
12 99003697 Pivot, Wash Arm
13 99002664 Screw
14 99003427 Chopper
15
W10118627
Wash Motor Assy.
16 99003309 Flapper, Drain
Pump Inlet
17 99002857 O−Ring, Drain Pump
18 99002740 Screw
19
W10200518
Drain Pump Assy.
20
W10167912
Sheild, Capacitor
21 99002665 Capacitor
22 99002601 Screw
