JENN-AIR

mmm °

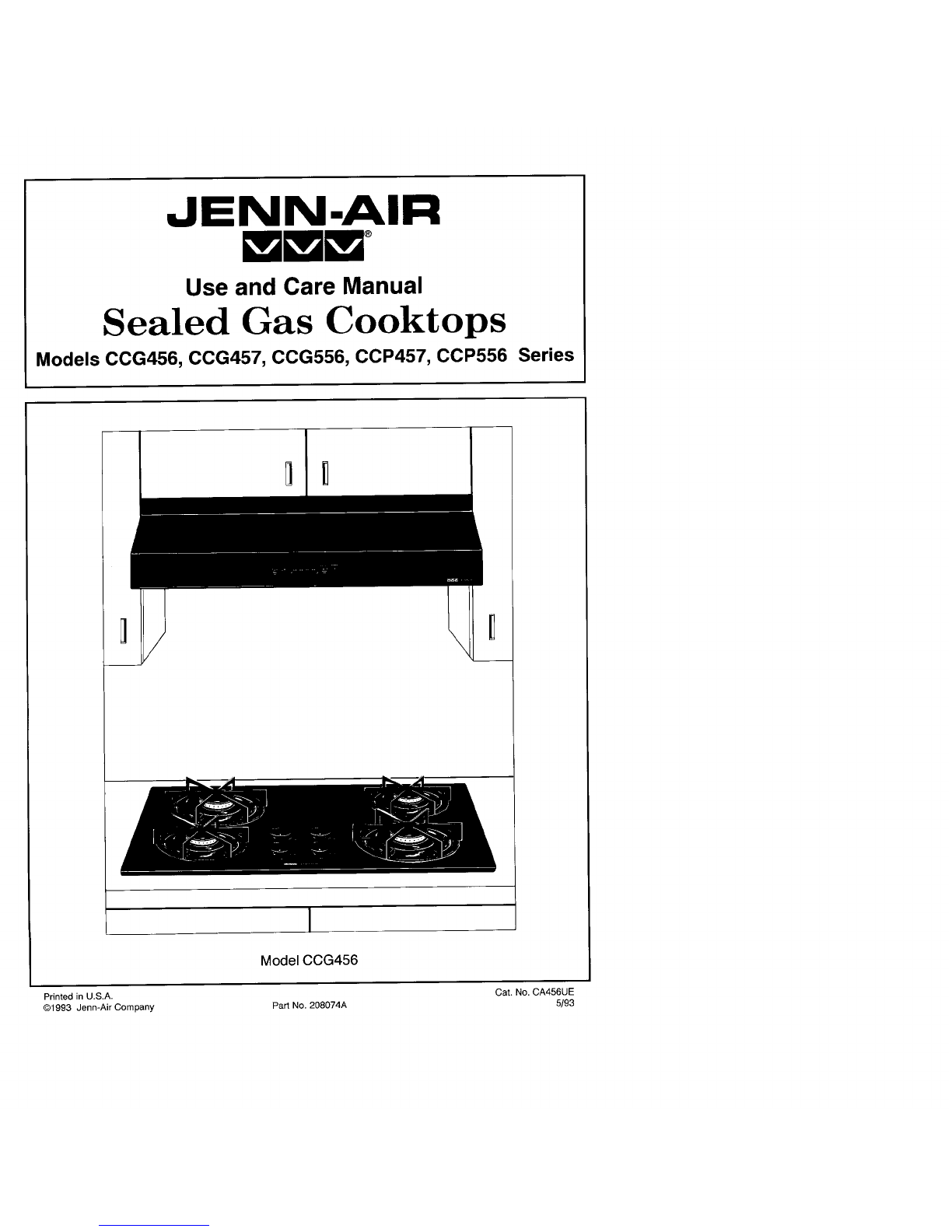

Use and Care Manual

Sealed Gas Cooktops

Models CCG456,CCG457,CCG556,CCP457,CCP556 Series

ModelCCG456

Printed in U.S,A. Cat. No. CA456UE

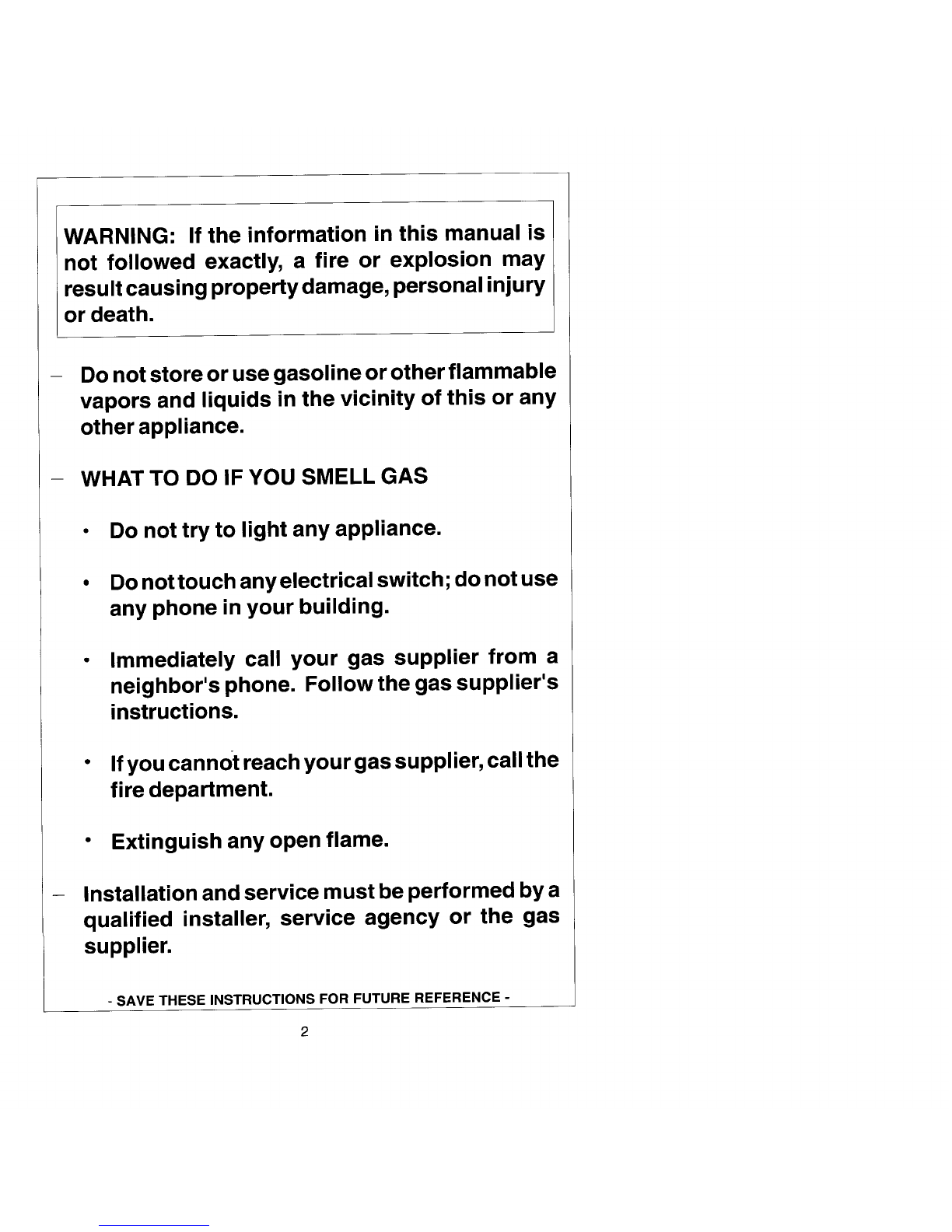

WARNING: If the information in this manual is

not followed exactly, a fire or explosion may

result causing property damage, personal injury

or death.

-Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

- WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

•Do nottouch any electrical switch; do not use

any phone in your building.

•Immediately call your gas supplier from a

neighbor's phone.Follow the gas supplier's

instructions.

•Ifyou cannot reach your gas supplier,call the

fire department.

• Extinguish any open flame.

- Installation and service must be performed by a

qualified installer, service agency or the gas

supplier.

- SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE -

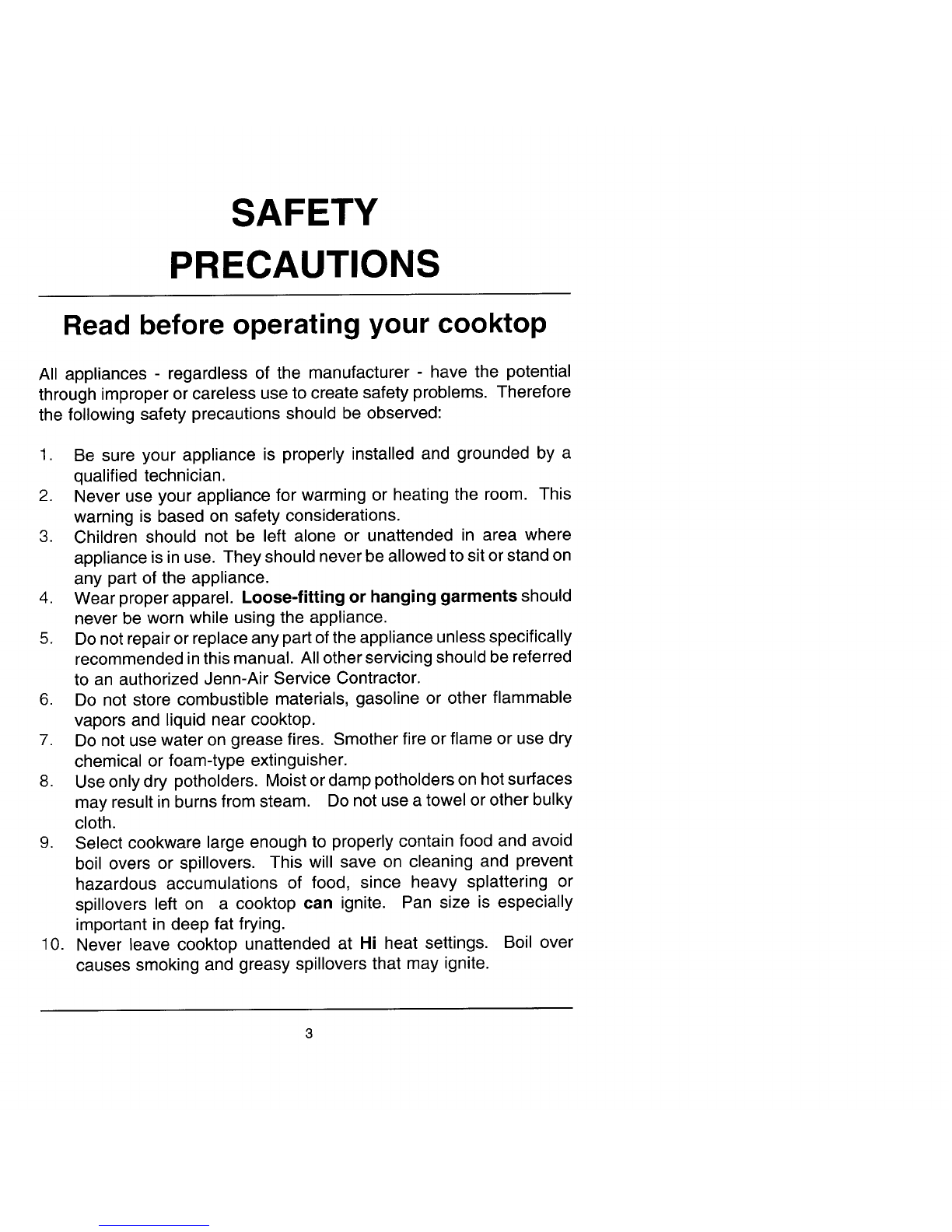

SAFETY

PRECAUTIONS

Read before operating your cooktop

All appliances -regardless of the manufacturer -have the potential

through improper or careless use to create safety problems. Therefore

the following safety precautions should be observed:

1. Be sure your appliance is properly installed and grounded by a

qualified technician.

2. Never use your appliance for warming or heating the room. This

warning is based on safety considerations.

3. Children should not be left alone or unattended in area where

appliance is in use. They should never be allowed to sit or stand on

any part of the appliance.

4. Wear proper apparel. Loose-fitting or hanging garmentsshould

never be worn while using the appliance.

5. Do not repair or replace any part of the appliance unless specifically

recommended in this manual. All other servicing should be referred

to an authorized Jenn-Air Service Contractor.

6. Do not store combustible materials, gasoline or other flammable

vapors and liquid near cooktop.

7. Do not use water on grease fires. Smother fire or flame or use dry

chemical or foam-type extinguisher.

8. Use only dry potholders. Moist or damp potholders on hot surfaces

may result in burns from steam. Do not use a towel or other bulky

cloth.

9. Select cookware large enough to properly contain food and avoid

boil overs or spillovers. This will save on cleaning and prevent

hazardous accumulations of food, since heavy splattering or

spillovers left on a cooktop canignite. Pan size is especially

important in deep fat frying.

10. Never leave cooktop unattended at Hi heat settings. Boil over

causes smoking and greasy spillovers that may ignite.

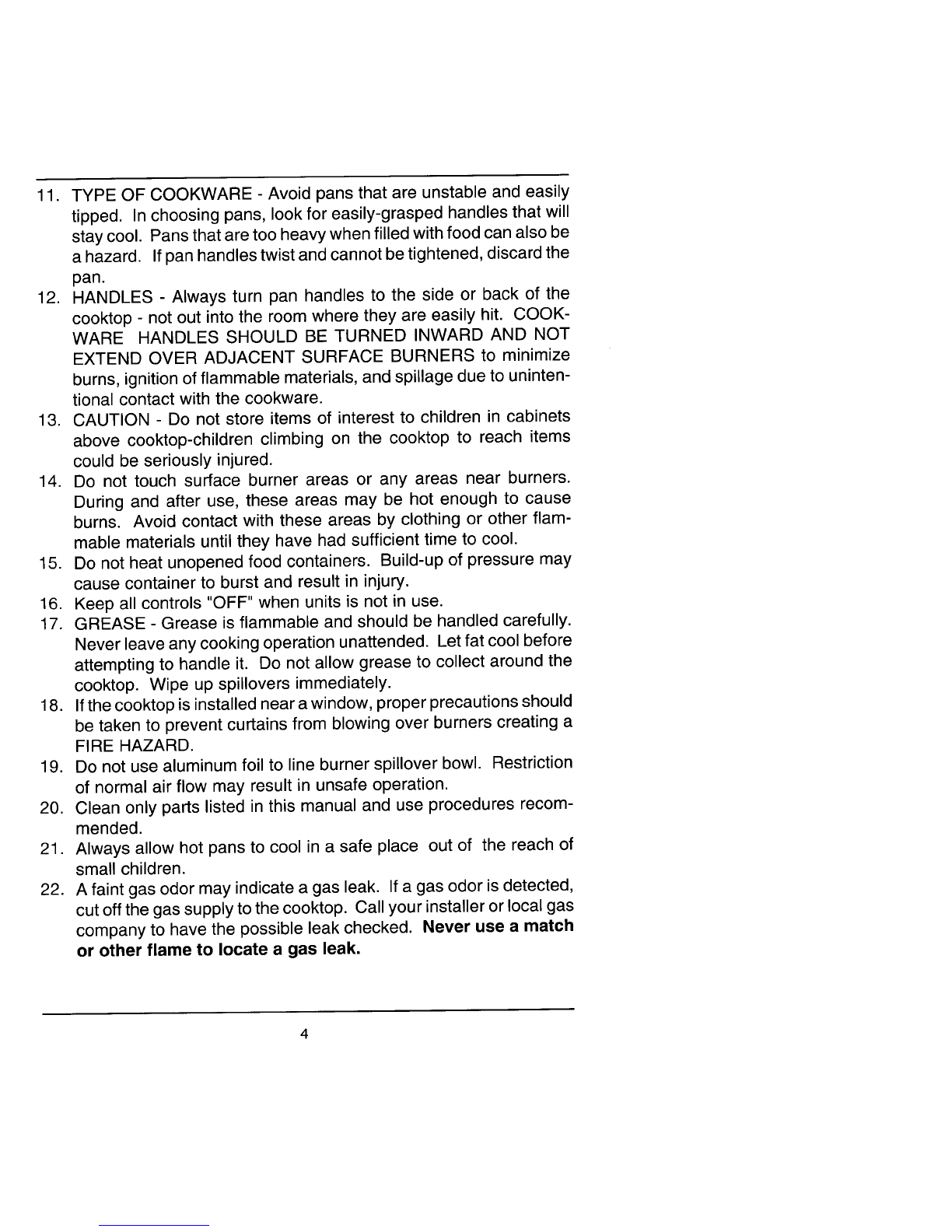

11. TYPE OF COOKWARE - Avoid pans that are unstable and easily

tipped.In choosing pans, look for easily-grasped handles that will

stay cool.Pans that are too heavy when filled with food can also be

a hazard. If pan handles twist and cannot be tightened, discard the

pan.

12.HANDLES - Always turn pan handles to the side or back of the

cooktop - not out intothe room where they are easily hit.COOK-

WARE HANDLES SHOULD BE TURNED INWARD AND NOT

EXTEND OVER ADJACENT SURFACE BURNERS to minimize

burns, ignition of flammable materials, and spillage due to uninten-

tional contact with the cookware.

13.CAUTION - Do not store items of interest to children in cabinets

above cooktop-children climbing on the cooktop to reach items

could be seriously injured.

14. Do not touch surface burner areas or any areas near burners.

During and after use, these areas may be hot enough to cause

burns. Avoid contact with these areas by clothing or other flam-

mable materials until they have had sufficient time to cool.

15. Do not heat unopened food containers. Build-up of pressure may

cause container to burst and result in injury.

16. Keep all controls "OFF" when units is not in use.

17.GREASE - Grease is flammable and should be handled carefully.

Never leave any cooking operation unattended. Let fat cool before

attempting tohandle it.Do not allow greaseto collect around the

cooktop. Wipe up spillovers immediately.

18. If the cooktop is installed near a window, proper precautions should

be taken to prevent curtains from blowing over burners creating a

FIRE HAZARD.

19. Do not use aluminum foil to line burner spillover bowl. Restriction

of normal air flow may result in unsafe operation.

20. Clean only parts listed in this manual and use procedures recom-

mended.

21. Always allow hot pans to cool in a safe place out of the reach of

small children.

22. A faint gas odor may indicate a gas leak.If a gas odor is detected,

cut off the gas supply to the cooktop. Call your installer or local gas

company tohave the possible leakchecked.Never use a match

or other flame to locate a gas leak.

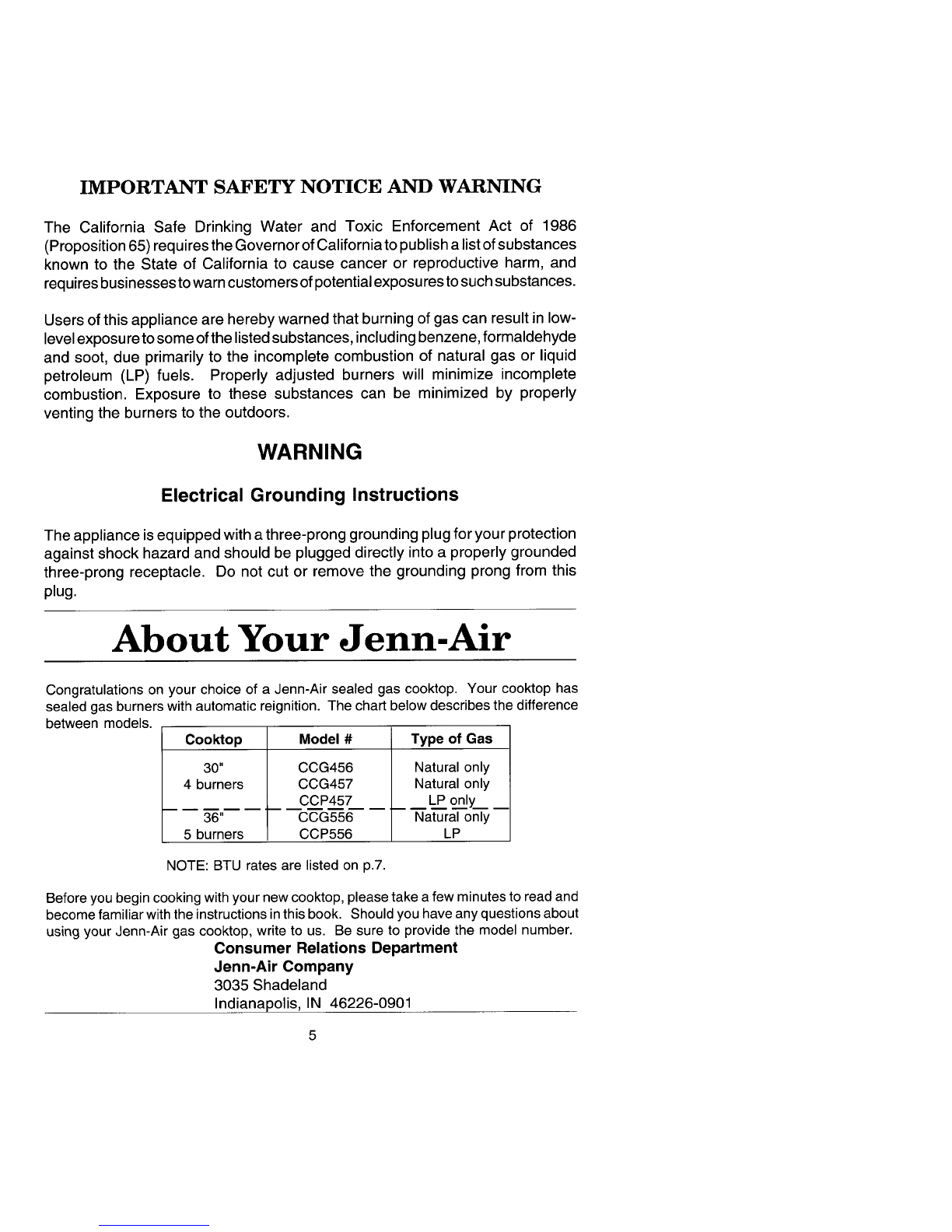

IMPORTANT SAFETY NOTICE AND WARNING

The California Safe Drinking Water and Toxic Enforcement Act of 1986

(Proposition 65) requires the Governor of California to publish a list of substances

known to the State of California to cause cancer or reproductive harm, and

requires businesses to warn customers of potential exposures to such substances.

Users of this appliance are hereby warned that burning of gas can result in low-

level exposu re tosome ofthe listed substances, including benzene, formaldehyde

and soot, due primarily to the incomplete combustion of natural gas or liquid

petroleum (LP) fuels. Properly adjusted burners will minimize incomplete

combustion. Exposure to these substances can be minimized by properly

venting the burners to the outdoors.

WARNING

Electrical Grounding Instructions

The appliance is equipped with a three-prong grounding plug for your protection

against shock hazard and should be plugged directly into a properly grounded

three-prong receptacle. Do not cut or remove the grounding prong from this

plug.

About Your Jenn-Air

Congratulations on your choice of a Jenn-Air sealed gas cooktop. Your cooktop has

sealed gas burnerswith automatic reignition. The chart belowdescribes the difference

between models. Cooktop Model #Type ofGas

30"CCG456 Naturalonly

4 burners CCG457 Naturalonly

...... . CC.P4._557___ _ __ LP only____

36" CCG556 Natural only

5 burners CCP556 LP

NOTE: BTU rates are listed on p.7.

Beforeyoubegin cooking with your newcooktop, pleasetake afew minutesto read and

becomefamiliar withthe instructionsin this book. Should you haveany questionsabout

using your Jenn-Air gas cooktop,write to us. Be sure to provide the model number.

Consumer Relations Department

Jenn-Air Company

3035 Shadeland

Indianapolis, IN 46226-0901

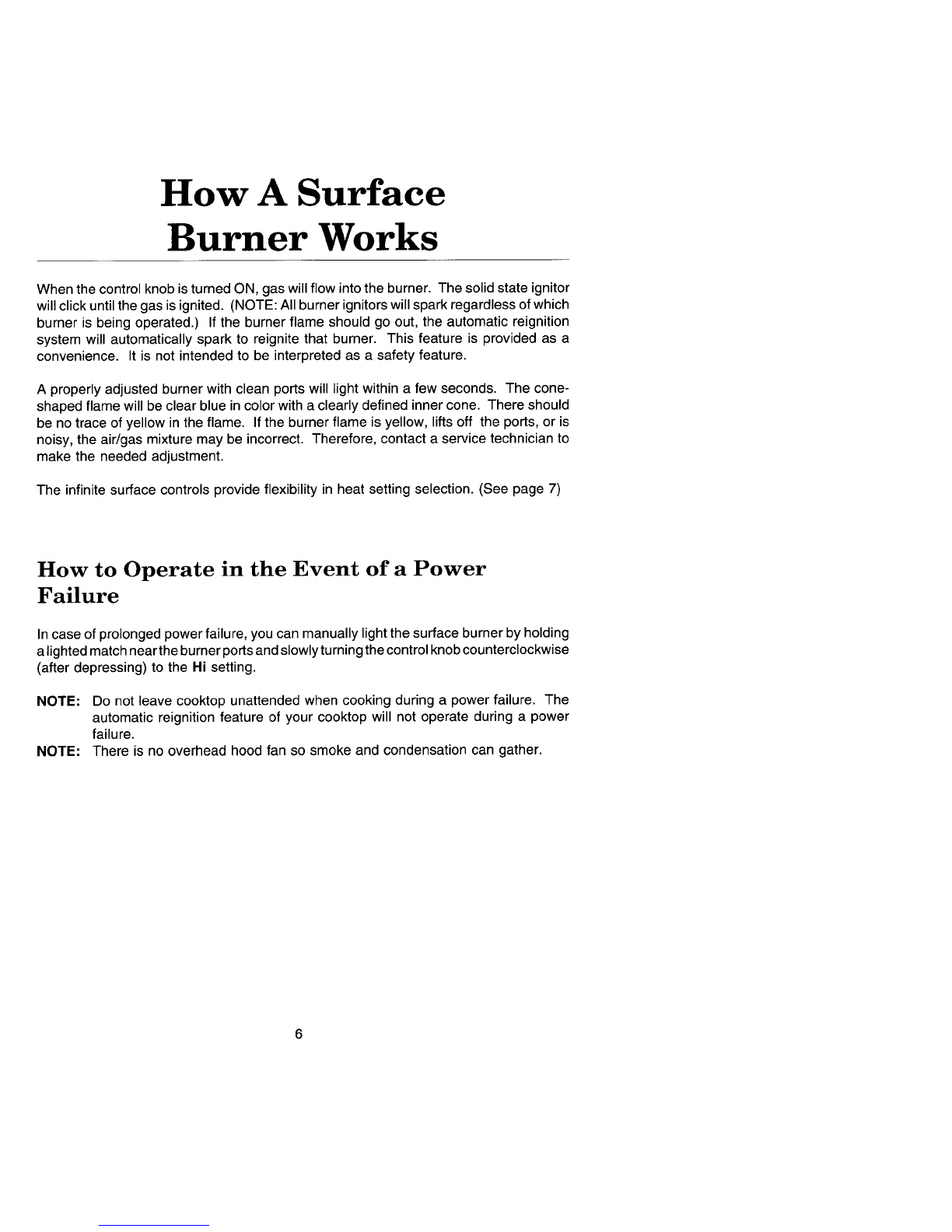

How A Surface

Burner Works

When thecontrol knobisturned ON, gas willflow intothe burner. The solidstate ignitor

will clickuntilthe gas isignited. (NOTE:All burner ignitors willspark regardless ofwhich

burner is being operated.) If the burner flame should go out, the automatic reignition

system will automatically spark to reignite that burner.This feature is provided as a

convenience. It is not intended to be interpreted as a safety feature.

A properly adjusted burner with clean ports will light within a few seconds. The cone-

shaped flame will be clear blue in colorwith a clearly defined inner cone. There should

be no trace of yellow in the flame. If the burner flame is yellow, liftsoff the ports, or is

noisy,the air/gas mixture may be incorrect. Therefore, contact a service technician to

make the needed adjustment.

The infinite surface controls provide flexibility in heat setting selection. (See page 7)

How to Operate in the Event of a Power

Failure

Incase of prolongedpower failure, youcan manually lightthe surface burner by holding

a lightedmatchneartheburnerportsandslowlyturningthecontrol knobcounterclockwise

(after depressing) to the Hi setting.

NOTE: Do not leave cooktop unattended when cooking during a power failure. The

automatic reignition feature of your cooktop will not operate during a power

failure.

NOTE: There is no overhead hood fan so smoke and condensation can gather.

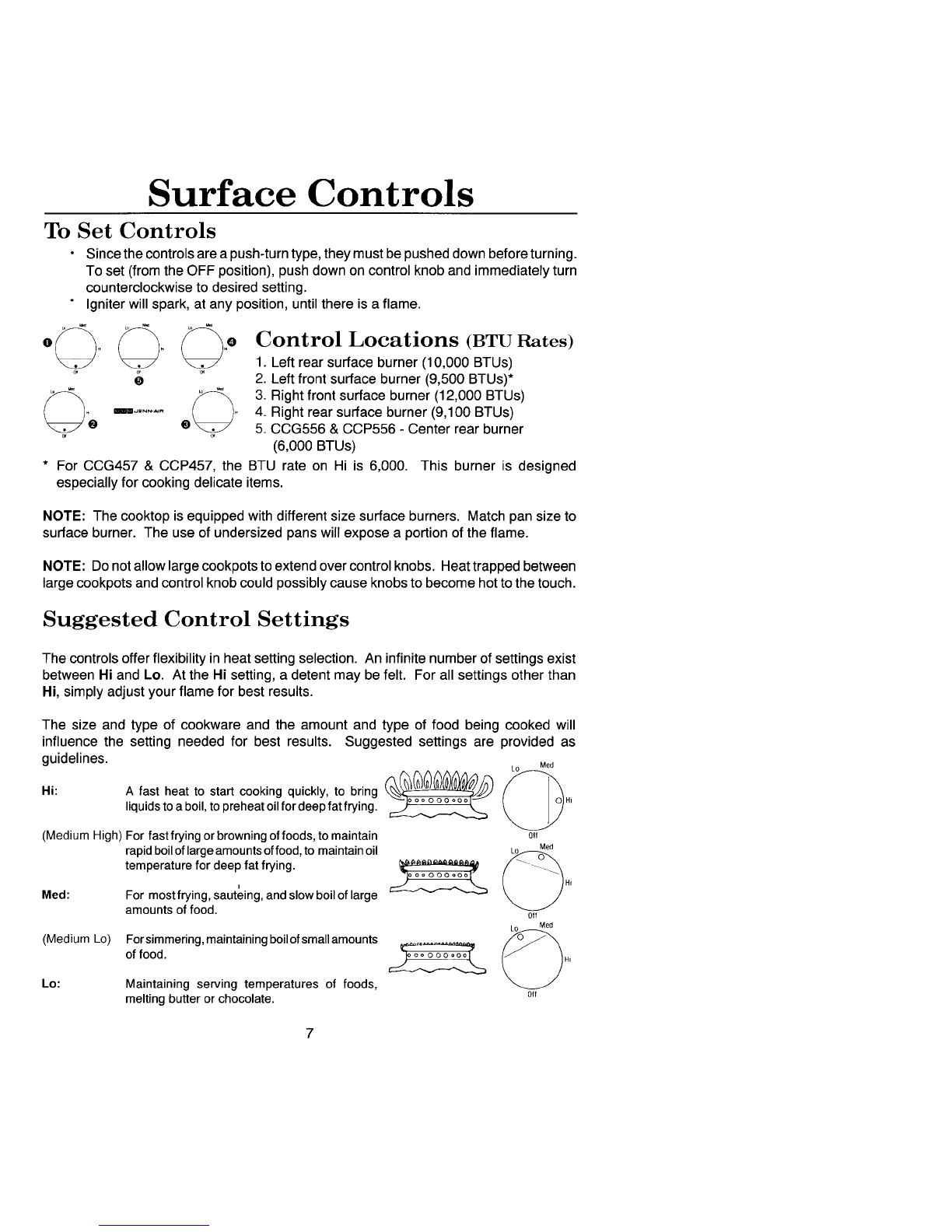

Surface Controls

To Set Controls

Since the controls are a push-turn type, they must be pushed down before turning.

To set (from the OFF position), push down on control knob and immediately turn

counterclockwise to desired setting.

Igniter will spark, at any position, until there is a flame.

e_. _. _e Control Locations (BTU Rates)

1. Left rear surface burner (10,000 BTUs)

e 2. Left front surface burner (9,500 BTUs)*

_e_ 3. Right front surface burner (12,000 BTUs)

....... 4. Right rear surface burner (9,100 BTUs)

@ 5. CCG556 & CCP556 - Center rear burner

(6,000 BTUs)

* For CCG457 & CCP457, the BTU rate on Hi is 6,000. This burner is designed

especially for cooking delicate items.

NOTE: The cooktop is equipped with different size surface burners. Match pan size to

surface burner.The use of undersized pans will expose a portion of the flame.

NOTE: Do not allow large cookpots to extend over control knobs. Heat trapped between

large cookpots and control knob could possibly cause knobs to become hot to the touch.

Suggested Control Settings

The controls offer flexibility in heat setting selection. An infinite number of settings exist

between Hi and Lo. At the Hi setting,a detent may be felt. For all settings other than

Hi, simply adjust your flame for best results.

The size and type of cookware and the amount and type of food being cooked will

influence the setting needed for best results. Suggested settings are provided as

guidelines. M_

Hi: A fast heat to start cooking quickly, to bring ___9 /I_

liquidsto aboil,to preheatoilfor deepfat frying._ _ H,

(Medium High) For fastfrying orbrowning offoods,to maintain o_

rapidboiloflargeamountsoffood,to maintainoil Lo Me_

temperature for deep fat frying. _

I Hi

Med: For mostfrying,sauteing, and slowboiloflarge

amounts of food. off

Lo Med

(Medium Lo) Forsimmering,maintainingboilofsmallamounts _,_0o..._,._,_,_

of food.... _.,

Lo: Maintaining serving temperatures of foods,

meltingbutter or chocolate,off

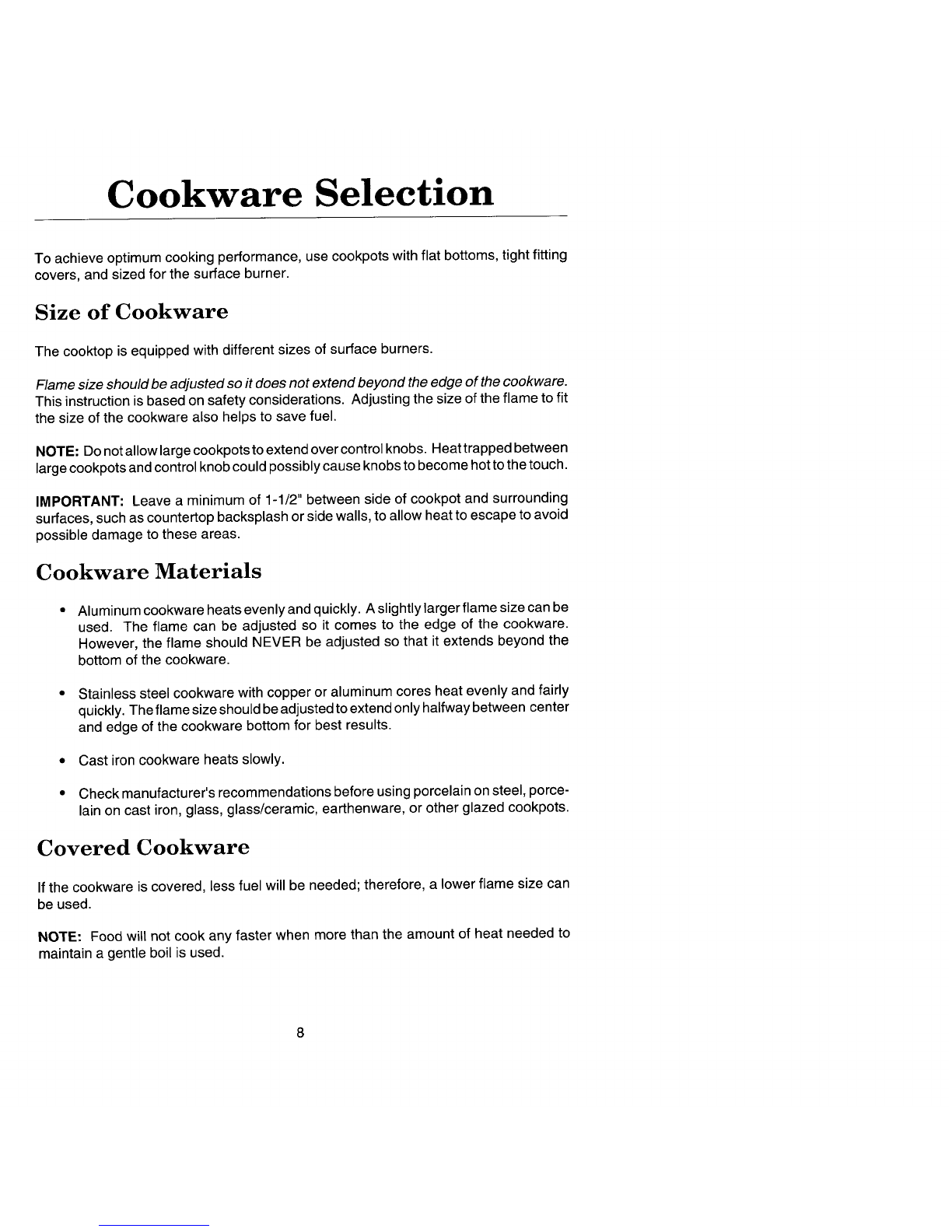

Cookware Selection

To achieve optimum cooking performance, use cookpots with flat bottoms, tight fitting

covers, and sized for the surface burner.

Size of Cookware

The cooktop is equipped with different sizes of surface burners.

Flame size should be adjusted so it does notextend beyond theedge of thecookware.

This instruction isbased on safety considerations. Adjusting the size ofthe flame tofit

the size of the cookware also helps to save fuel.

NOTE: Donotallowlarge cookpots toextendover control knobs. Heattrapped between

largecookpots and control knobcould possiblycause knobs tobecome hottothe touch.

IMPORTANT: Leave a minimum of 1-1/2" between side of cookpot and surrounding

surfaces,such ascountertop backsplash or side walls,to allow heatto escape to avoid

possible damage to these areas.

Cookware Materials

• Aluminum cookware heatsevenly andquickly. Aslightly larger flame size canbe

used. The flame can be adjusted so it comes to the edge of the cookware.

However, the flame should NEVER be adjusted so that it extends beyond the

bottom of the cookware.

• Stainless steelcookware with copper or aluminum cores heat evenly and fairly

quickly. Theflame sizeshould beadjusted toextendonlyhalfwaybetween center

and edge of the cookware bottom for best results.

• Cast iron cookware heats slowly.

• Check manufacturer's recommendations before using porcelainon steel, porce-

lain on cast iron, glass, glass/ceramic,earthenware, or other glazed cookpots.

Covered Cookware

If the cookware is covered, less fuel will be needed; therefore, a lower flame size can

be used.

NOTE: Food will not cook any faster when more than the amount of heat needed to

maintain a gentle boil is used.

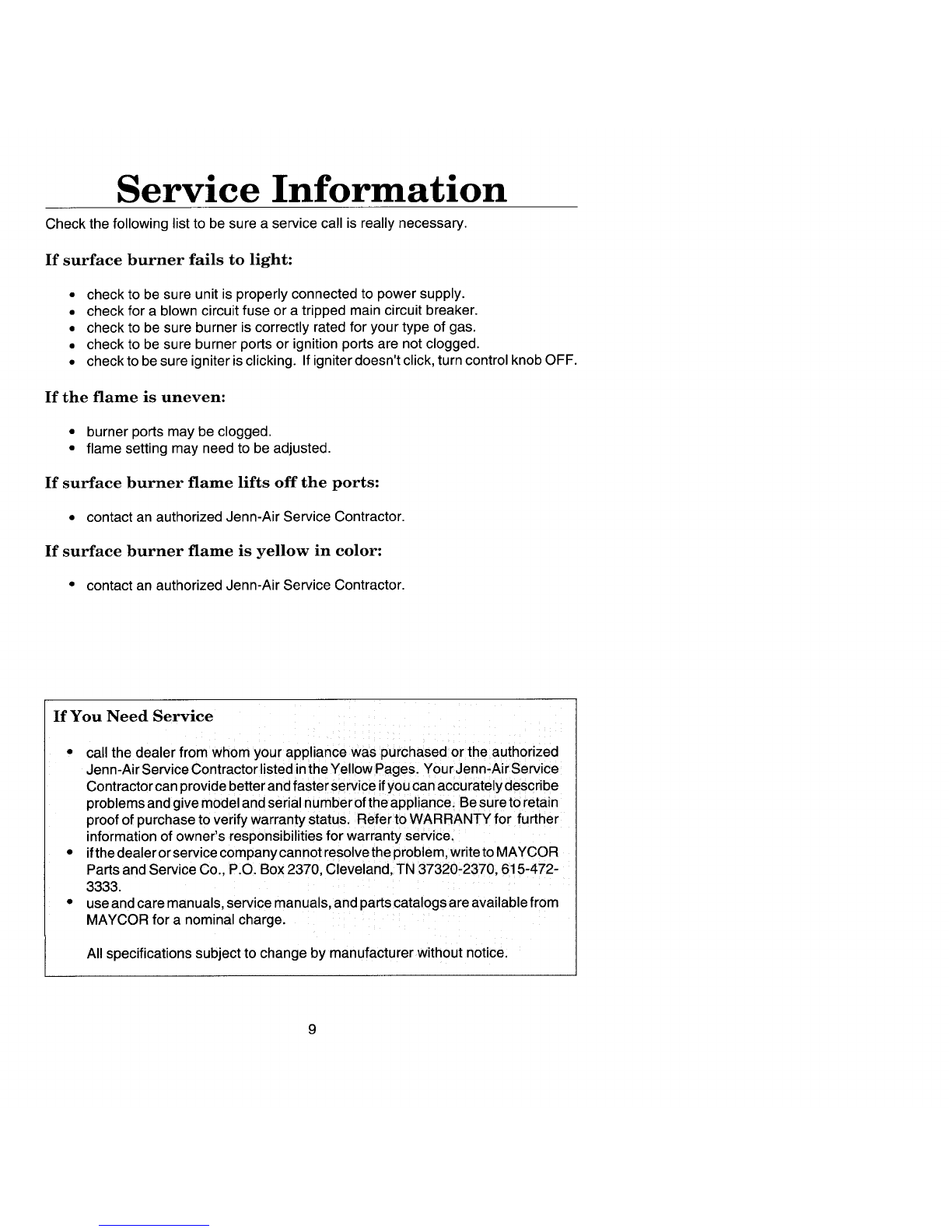

Service Information

Check the following list to be sure a service call is really necessary.

If surface burner fails to light:

• check to be sure unit is properly connected to power supply.

• check for a blown circuit fuse or a tripped main circuit breaker.

• check to be sure burner is correctly rated for your type of gas.

• check to be sure burner ports or ignition ports are not clogged.

• check to be sure igniter isclicking.If igniter doesn't click,turn control knobOFF.

If the flame is uneven:

• burner ports may be clogged.

• flame setting may need to be adjusted.

If surface burner flame lifts off the ports:

• contact an authorized Jenn-Air Service Contractor.

If surface burner flame is yellow in color:

• contact an authorized Jenn-Air Service Contractor.

IfYou Need Service

• call the dealer from whom your appliance was purchased or the authorized

Jenn-Air ServiceContractor listed intheYellow Pages. Your Jenn-AirService

Contractor canprovide betterand fasterservice ifyoucanaccurately describe

problems and givemodeland serialnumber ofthe appliance.Besure toretain

proof of purchase to verify warranty status. Refer to WARRANTY for further

information of owner's responsibilities for warranty service.

• ifthedealer orservicecompanycannot resolvetheproblem, write toMAYCOR

Parts and Service Co., P.O.Box2370, Cleveland, TN 37320-2370, 615-472-

3333.

•useand caremanuals,service manuals,and parts catalogsare availablefrom

MAYCOR for a nominal charge.

All specifications subject to change by manufacturer without notice.

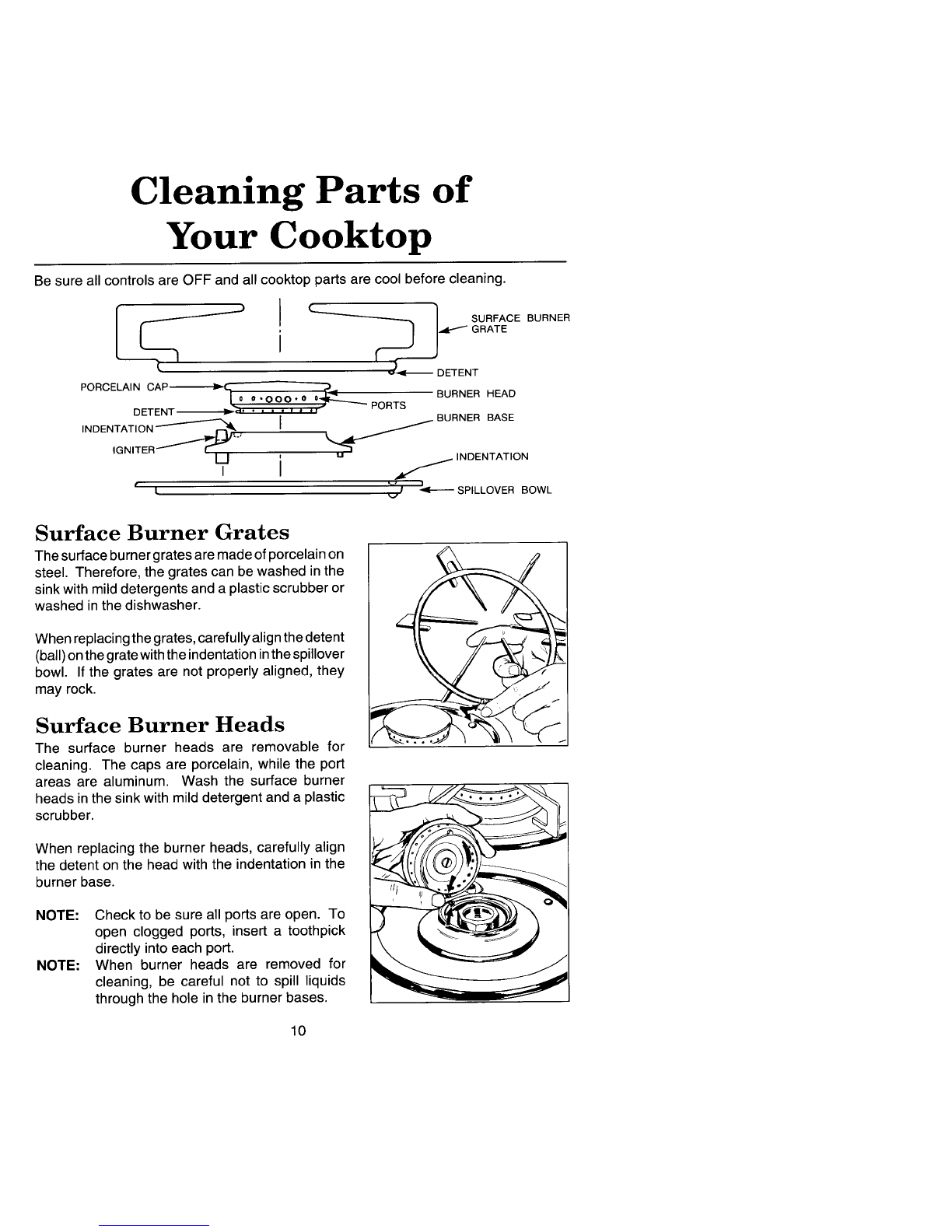

Cleaning Parts of

Your Cooktop

Be sure all controls are OFF and all cooktop parts are cool before cleaning.

DETENT

PORCELAIN CAP _ ,_ BURNER HEAD

0o*OOO * o 0_1,-:__.__ PORTS

DETENT _'_'-_ ........

INDENTATION'_'--'-'-'-"--'_k_ I /BURNER BASE

IGNITER/_ '''

I I _ INDENTATION

"" I_ SPILLOVER BOWL

Surface Burner Grates

Thesurfaceburner grates aremadeofporcelain on

steel. Therefore, the grates can be washed in the

sink with milddetergents and a plastic scrubber or

washed in the dishwasher.

Whenreplacingthegrates,carefullyalignthedetent

(ball)onthegratewiththeindentationinthespillover

bowl.If the grates are not properly aligned, they

may rock. . /

Surface Burner Heads

The surface burner heads are removable for

cleaning. The caps are porcelain, while the port

areas are aluminum. Wash the surface burner

heads inthe sink with mild detergent and a plastic

scrubber.

When replacing the burner heads, carefully align

the detent on the head with the indentation in the

burner base.

NOTE: Check to be sure all ports are open. To

open clogged ports, insert a toothpick

directly into each port.

NOTE: When burner heads are removed for _ -'"------_-_

cleaning, be careful not to spill liquids

through the hole in the burner bases.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Jenn-Air plaque de cuisson

Jenn-Air

Jenn-Air JGC8536BDS Manuel utilisateur

Jenn-Air

Jenn-Air JED4430WB01 Manuel utilisateur

Jenn-Air

Jenn-Air JGC3115GS Manuel utilisateur

Jenn-Air

Jenn-Air CVEX4100B Manuel utilisateur

Jenn-Air

Jenn-Air JGC8430B Manuel utilisateur

Jenn-Air

Jenn-Air JEC6288AAB Manuel utilisateur

Jenn-Air

Jenn-Air JED3536WB01 Manuel utilisateur

Jenn-Air

Jenn-Air W10197059B Manuel utilisateur

Jenn-Air

Jenn-Air ELECTRIC TOUCH CONTROL COOKTOPS Manuel utilisateur

Jenn-Air

Jenn-Air C116-C Manuel utilisateur

Jenn-Air

Jenn-Air JGD8430ADB Manuel utilisateur

Jenn-Air

Jenn-Air PRO-STYLE JGD8348CDP Manuel utilisateur

Jenn-Air

Jenn-Air JGC8536BDB10 Manuel utilisateur

Jenn-Air

Jenn-Air JIC4430X Manuel de la liste des pièces

Jenn-Air

Jenn-Air JGD8130 series Manuel utilisateur

Jenn-Air

Jenn-Air JEC8430 Manuel utilisateur

Jenn-Air

Jenn-Air JED4536W Manuel de la liste des pièces

Jenn-Air

Jenn-Air JID4436ES Manuel utilisateur

Jenn-Air

Jenn-Air JGC1430ADB Manuel utilisateur

Jenn-Air

Jenn-Air JGCP430 Manuel utilisateur

Jenn-Air

Jenn-Air CCG2422 Manuel utilisateur

Jenn-Air

Jenn-Air SEALED GAS CARTRIDGE AND ACCESSORIES Manuel utilisateur

Jenn-Air

Jenn-Air JGC2536EB Manuel utilisateur

Jenn-Air

Jenn-Air JED4430WS Manuel utilisateur

Manuels plaque de cuisson populaires d'autres marques

Bonnet

Bonnet OPTIMUM 700 Manuel du propriétaire

Frigidaire

Frigidaire FES367FCC Guide de démarrage rapide

Ztove

Ztove EZ2 DUO Manuel utilisateur

Kleenmaid

Kleenmaid cooking GCTK9011 Guide d'installation

Casselin

Casselin CSASRE24 Manuel utilisateur

Waldorf

Waldorf RN8603E-B Mode d’emploi

Whirlpool

Whirlpool SMP658CNEIXL Manuel utilisateur

Wolf

Wolf CI243C/B Manuel utilisateur

Fulgor Milano

Fulgor Milano F5PGK305S1 Manuel utilisateur

GE JP389 Manuel utilisateur

Wells

Wells WV-2HFG Manuel utilisateur

IKEA

IKEA Lagan HGA4K Manuel utilisateur

Samsung

Samsung NA36N9755 Manuel utilisateur

Miele

Miele KM 404 Manuel utilisateur

Lacor

Lacor 69562 Fiche technique

Keating Of Chicago

Keating Of Chicago MG-2 Manuel utilisateur

KitchenAid

KitchenAid KGCP482KSS0 Manuel utilisateur

Caso

Caso Pro Chef 1800 Instructions d'installation
