EN User manual
1 Introducon
Intended Use
This manual contains informaon and important instrucons
for the installaon and correct use of the Disc Sander (142009).
The sander disc is intended for the sanding of wood for non-
commercial woodworking acvies. The commercial name of
the device (see cover) is substuted with the name "machine"
in this manual.

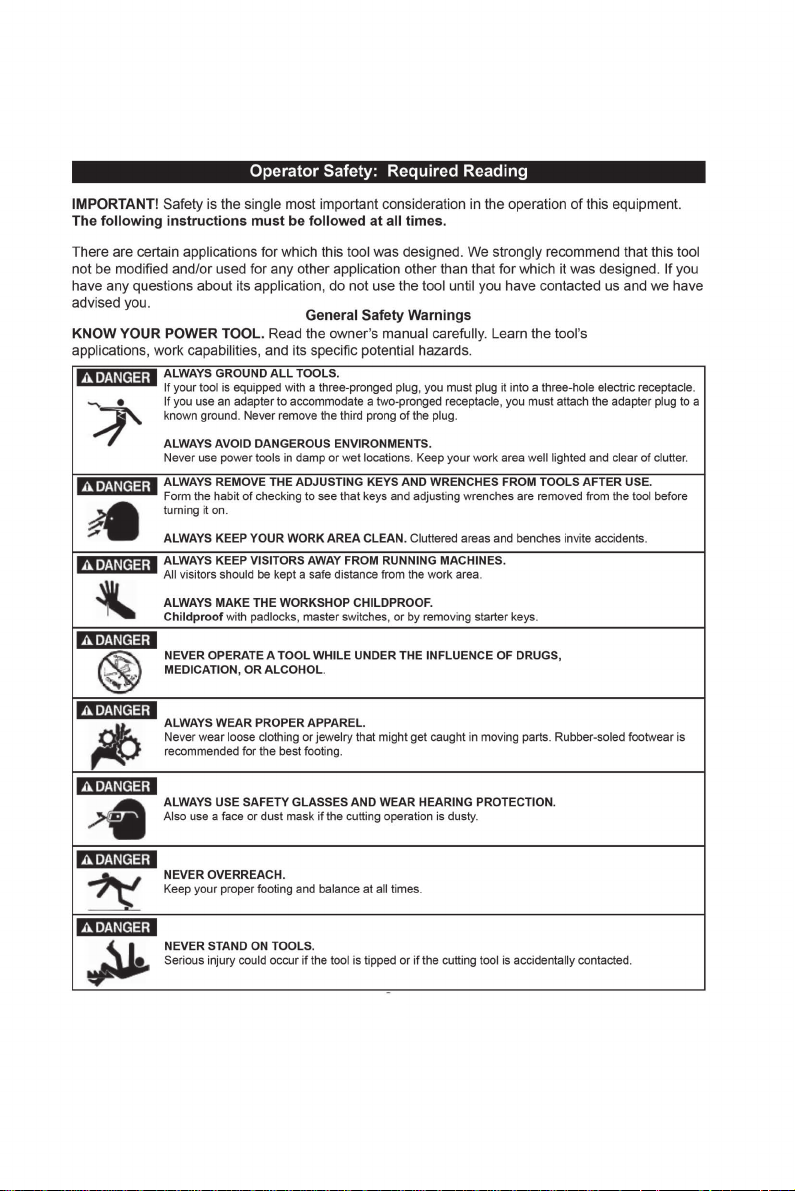

Please read and follow the safety instrucons!
Before rst use, read this manual carefully. It will familiarise you
with the correct use of the product and prevent any
misunderstanding, and avoid any damage to the product and
the user's health.
2 Symbol claricaon
Disposal
Do not dispose of electrical appliances with your domesc
waste! According to the European Direcve 2012/19/EU,
concerning used electrical and electronic appliances and its
implementaon in naonal law, superannuated electrical
appliances must be collected and disposed of via an
environmentally suitable recycling facility.
See image 1

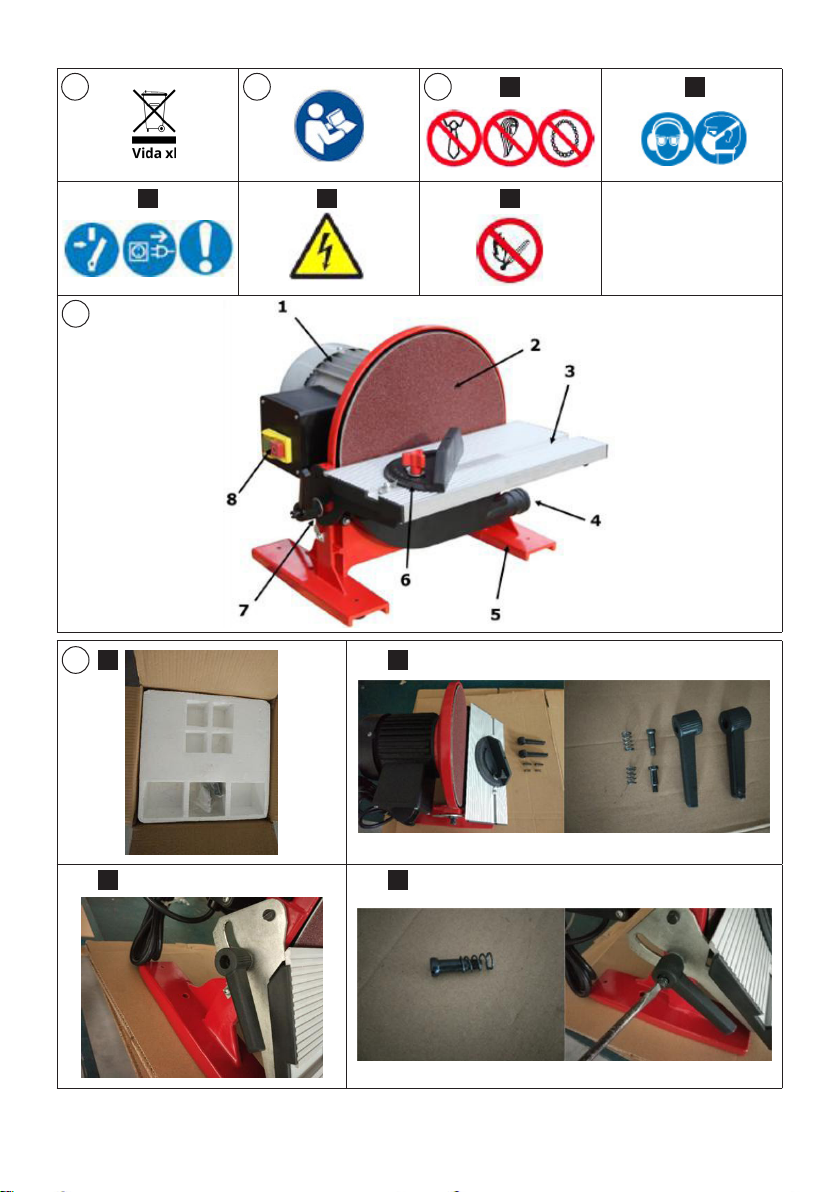

3 Parts list
See image 4
1Motor 5Base
2Sanding Disc 6Mitre gauge
3Work table 7Angle adjustment
4Dust collector connecon 8On-O-switch
4 Assembly instrucons
See image 5
1. Mounng and seng up. Ensure that the machine is
disconnected from the mains. Open the box.
2. Ensure that no parts are missing.
3. Fit locking handles on each side of the table.
4. Fasten the locking handle using the locking bolt and the
spring. Do not over ghten.
5. Set the table to a horizontal posion. Check the pointer to
the 0°scale, ghten both locking handles.
6. Mounng and seng up. Make sure that the machine is
disconnected from the mains socket. Fit the locking handles
on each side of the table using a washer, locking bolt,
locking handle, a spring and a screw through the angle
bracket underneath the table. Set the table in the horizontal
posion, ghten both locking handles. Secure the machine
to a rm surface using bolts (not included) through the four
mounng holes. The machine must be placed on the level
surface to avoid any vibraon during use.
5 Operaon Guide
Check if all parts according to the parts list are included and
without damage as soon as the machine is delivered/purchased.
Each visible defect and in parcular wrong amounts and
transport damages must be clearly noted on the delivery
documents. Otherwise, the goods shall be considered as taken
and fully accepted under the sole responsibility of the customer.
• Warning: Perform all machine sengs with the machine
disconnected from the power supply! Always use the
correct type of sandpaper disc according to the type of
work. Keep hands and tools clear of the sandpaper disc
when in use.
• Aenon: Please observe the following operang
instrucons so that their work can be performed safely and
has the expected results.
5.1 Noce
1. Check before starng work
• All cables and plugs.
• Table and safety fence on ght t.
• The free and centred run of the sanding disc.
2. The sanding
• Always use proper abrasives in working condion. (Change
worn down abrasives immediately!) With the abrasive in
good condion, you will obtain a good grinding result.
• Do not exert too much pressure on the sanding abrasive.
• The maximum distance between the table and the sanding
disc: 2mm!
• The machine has no clamping opportunity, so it is important
to steady the work-piece on the worktable and maintain a
rm grip!

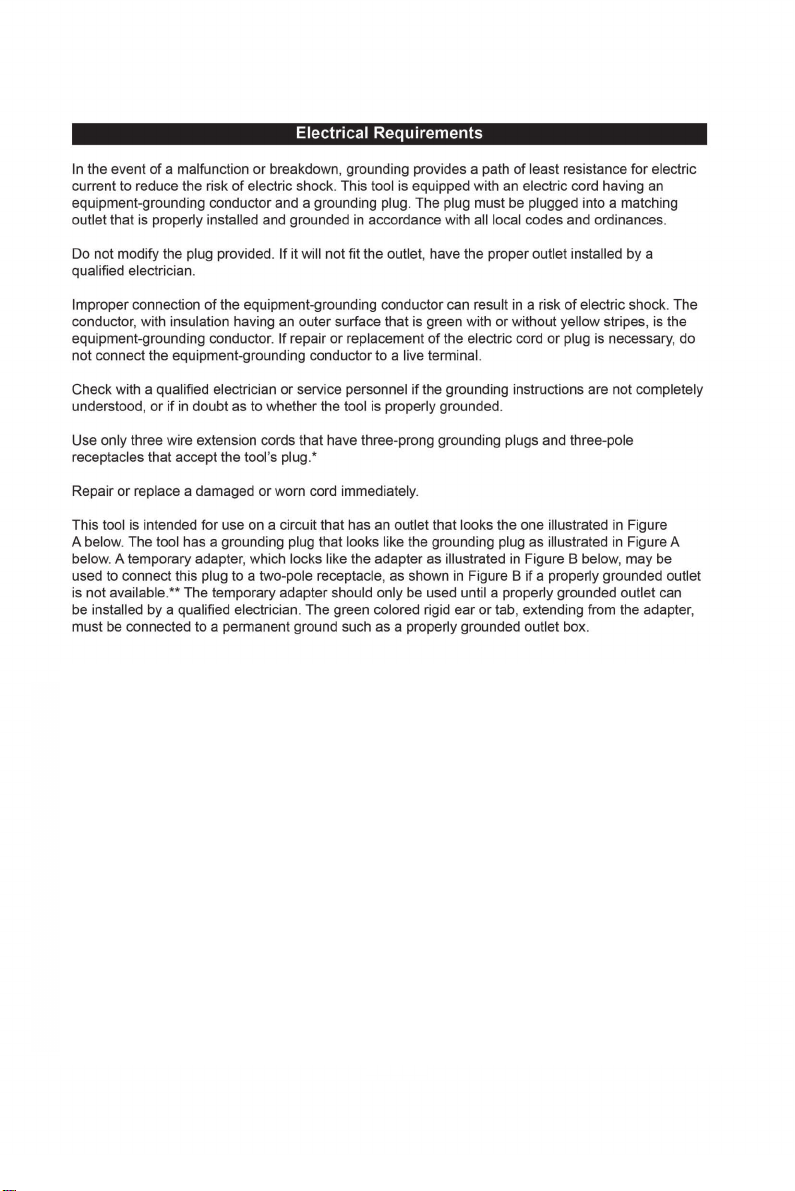

The connecon of the machine to the electric power supply
and the following checks must be carried out by a trained
electrician only.
1) The electronic connecon of the machine is designated for
operaon with a grounded power socket.
2) The mains supply must be secured with a 16A circuit
breaker.
