2017 COMPASS QUICK REFERENCE GUIDE
Electric Park Brake (EPB)
Your vehicle is equipped with a new Electric
Park Brake System (EPB) that offers greater
convenience. The park brake switch is located
in the center console.
To apply the park brake manually, pull up on the
switch momentarily. The BRAKE warning lamp
in the instrument cluster and an indicator on
the switch will illuminate.
To release the park brake manually, the ignition
switch must be in RUN. Then put your foot on
the brake pedal and push the park brake switch
down momentarily. Once the park brake is fully
disengaged, the BRAKE warning lamp and the
switch indicator will extinguish.
The park brake can also be automatically re-
leased. With the engine running and the trans-
mission in gear, release the brake pedal and
depress the throttle pedal. For safety reasons,
your seat belt must also be fastened.
NOTE:
• You may hear a slight whirring sound from
the back of the vehicle while the parking
brake engages or disengages.
• If your foot is on the brake pedal while you
are engaging or disengaging the parking
brake, you may notice a small amount of
brake pedal movement.
• The new Auto Park Brake feature can be
used to apply the park brake automatically
every time you park the vehicle. Auto Park
Brake can be enabled and disabled in the
Settings menu in Uconnect.
• The parking brake can be engaged even
when the ignition switch is OFF, however, it
can only be disengaged when the ignition
switch is in the ON/RUN position.
•
SafeHold a new feature that will automatically
apply the park brake under certain conditions.
The EPB monitors the status of the driver’s
seat belt, driver’s door and pedal positions to
determine if the driver may have exited while
the vehicle is still capable of moving and will
then automatically apply the park brake to
prevent the vehicle from rolling.
• The EPB fault lamp will illuminate if the
EPB switch is held for longer than 20 sec-
onds in either the released or applied posi-
tion. The light will extinguish upon releasing
the switch.

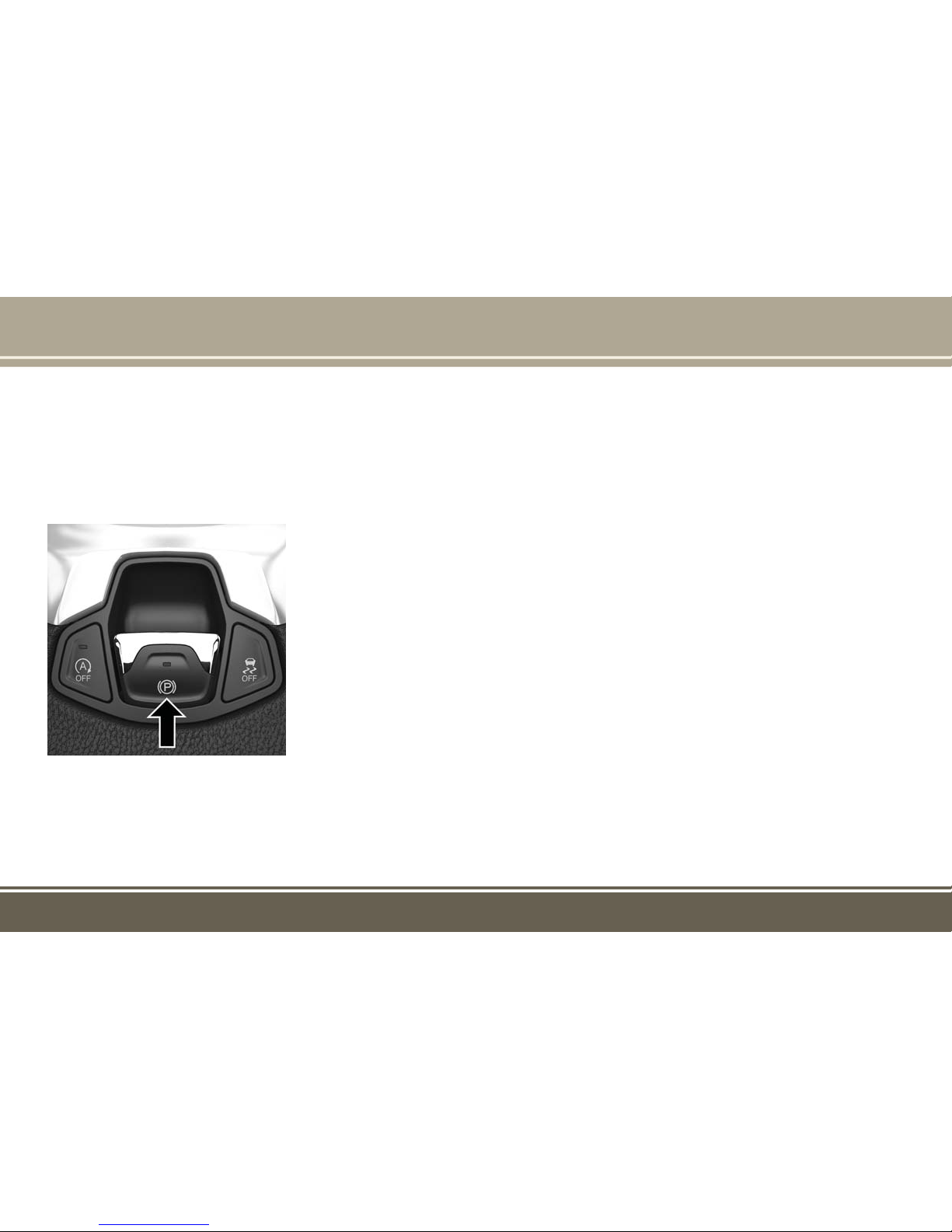

Parking Brake Switch
STARTING AND OPERATING
Auto Park Brake
The EPB can be programmed to be applied
automatically whenever the vehicle speed is
below 1.9 mph (3 km/h) and the automatic
transmission is placed in PARK, or with a
manual transmission, whenever the ignition
switch is in the OFF position. Auto Park Brake is
enabled and disabled by customer selection
through the Customer Programmable Features
section of the Uconnect Settings.
Any single Auto Park Brake application can be
bypassed by pushing the EPB switch to the
release position while the transmission is
placed in PARK (automatic transmission) and
the ignition is in the ON/RUN position.
For further information and applicable warn-
ings and cautions, please refer to your Owner’s
Manual at www.jeep.com/en/owners/manuals.
SELEC-TERRAIN
Selec-Terrain combines the capabilities of the
vehicle control systems, along with driver input,
to provide the best performance for all terrains.
Mode Selection Guide
Rotate the Selec-Terrain knob to select the
desired mode.
•AUTO: This four-wheel drive operation is a
continuous operation, is fully automatic and
can be used on and off road. This mode
balances traction to ensure maneuverability
and acceleration improvement compared to
a vehicle with two wheel drive. This mode
also reduces fuel consumption, since it al-
lows the disconnect of the drive shaft where
conditions permit.

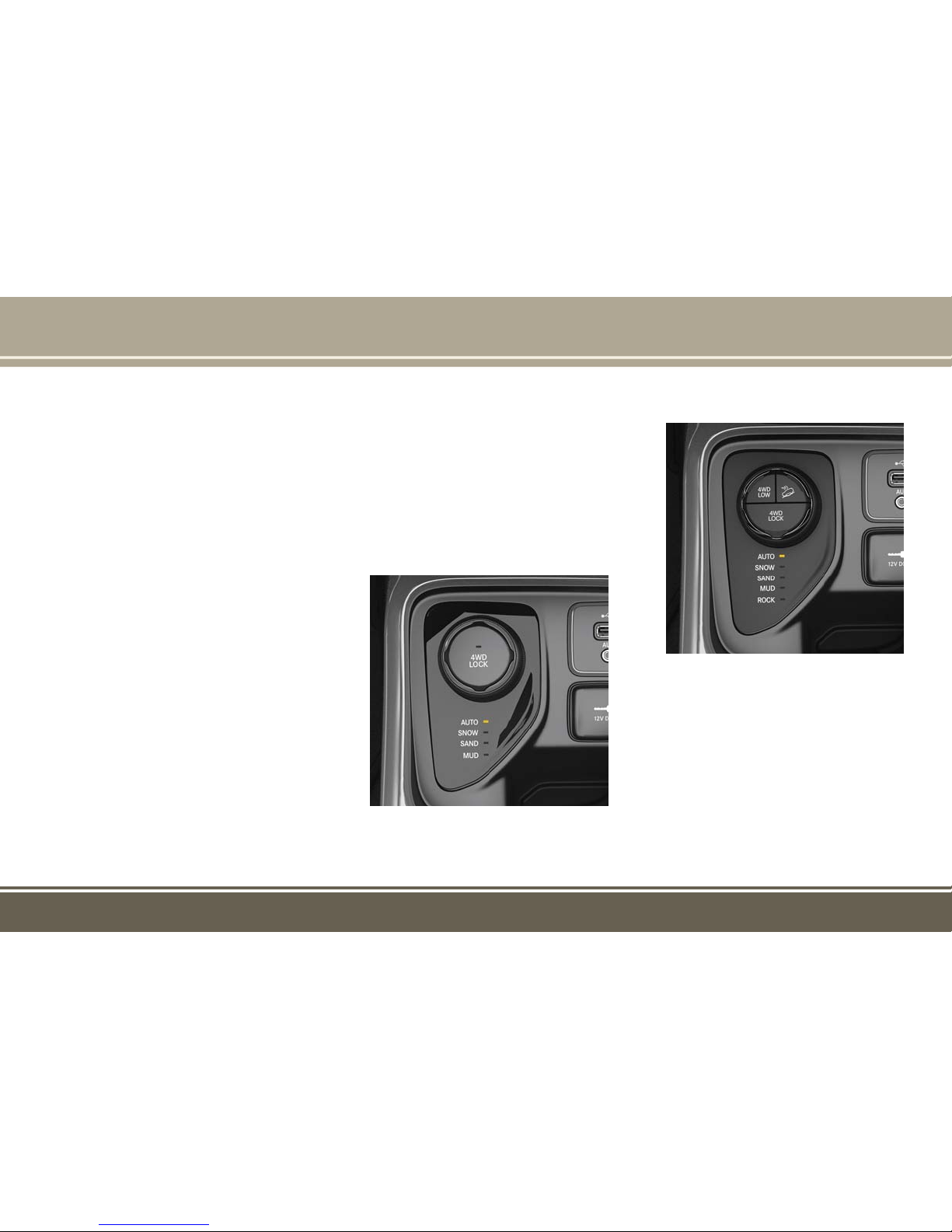

Selec-Terrain Switch
Selec-Terrain Switch (Trailhawk)
•SNOW: This mode allows you to have greater
stability under conditions of bad weather.
For use on and off road on surfaces with poor
traction, such as roads covered with snow.
When in SNOW mode (depending on certain
operating conditions), the transmission may
use second gear (rather than first gear) dur-
ing launches, to minimize wheel slippage.
•SAND: For off-road driving or use on surfaces
with poor traction, such as dry sand. The
transmission is set to provide maximum trac-
tion.
•MUD: For off-road driving or use on surfaces
with poor traction, such as roads covered by
mud or wet grass.
•ROCK (Trailhawk only): This mode is only
available in 4WD LOW range. The device
sets the vehicle to maximize traction and
allow the highest steering capacity for off-
road surfaces. This mode gives you the maxi-
mum performance off-road. Use for low
speed obstacles such as large rocks, deep
ruts, etc.
NOTE:
• Rock mode is only available on the vehicles
equipped with the Off-Road package.
• Activate the Hill Descent Control for steep
downhill control. See “Electronic Brake
Control System” in this section for further
information.
For further information and applicable warn-
ings and cautions, please refer to your Owner’s
Manual at www.jeep.com/en/owners/manuals.
Front Wiper Operation
The windshield wiper/washer controls are
located on the lever on the right side of the
steering column.

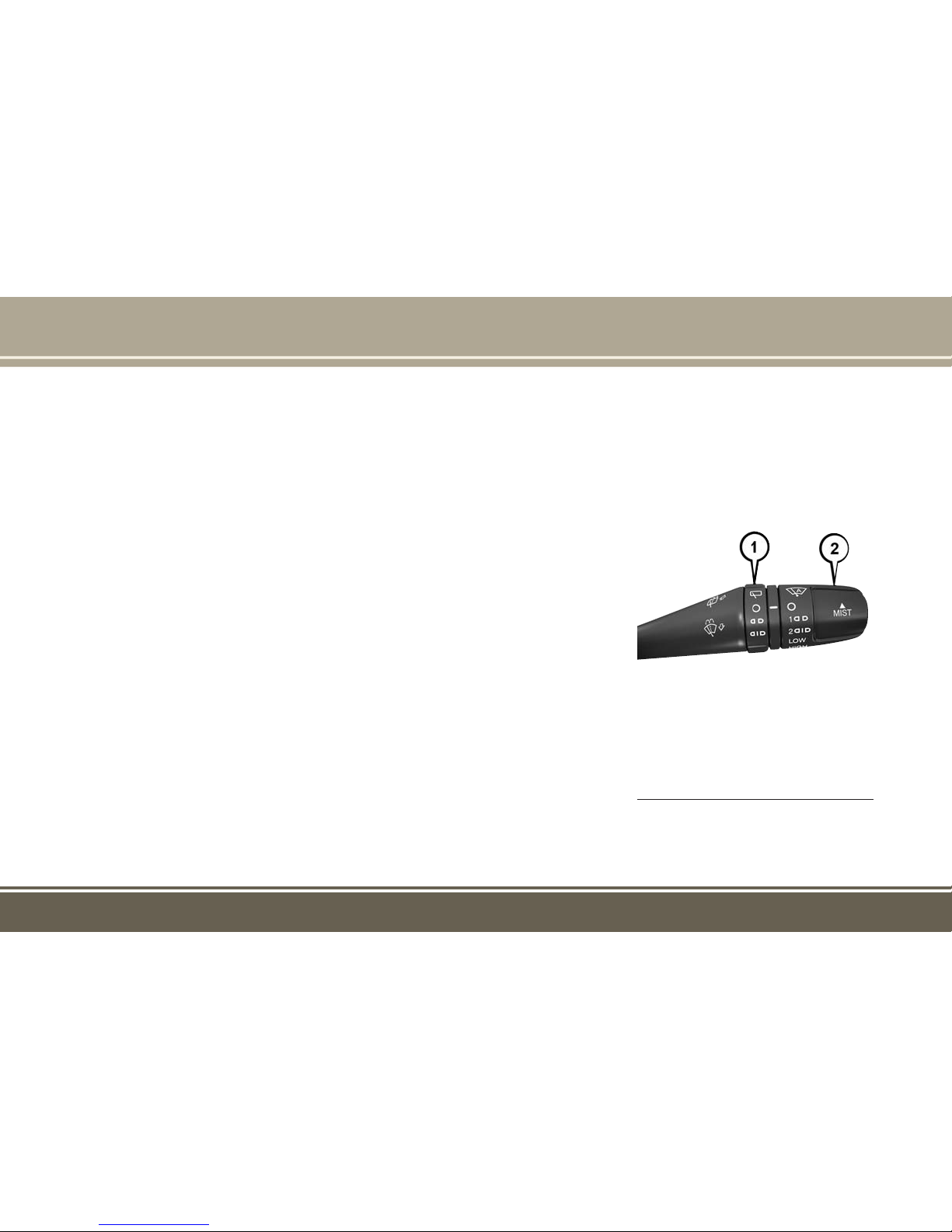

Windshield Wiper Stalk
1 — Rear Wiper Operation
2 — Front Wiper Operation
WINDSHIELD WIPER/
WASHER FEATURES
Front Wiper Operation
The front wipers are operated by rotating a
switch, located on the end of the lever.
Rear Wiper Operation
The rear wiper/washer is operated by rotating a
switch, located at the middle of the lever.
NOTE:
When the front wipers are activated and reverse
gear is engaged, the rear wiper will activate to
clear the rear window.
Rain Sensing Wipers — If Equipped
This feature senses moisture on the windshield
and automatically activates the wipers for the
driver. The feature is especially useful for road
splash or overspray from the windshield wash-
ers of the vehicle ahead. Rotate the end of the
multifunction lever to one of two settings to
activate this feature. Rain Sensing Wipers are
activated through the Uconnect Settings.
For further information and applicable warn-
ings and cautions, please refer to your Owner’s
Manual at www.jeep.com/en/owners/manuals
Speed Control
When engaged, the Speed Control takes over
accelerator operations at speeds greater than
25 mph (40 km/h).
To Activate
Push the on/off button. To turn the system off,
push the on/off button a second time. The
system should be turned off when not in use.
To Set A Desired Speed
Turn the Speed Control on. When the vehicle
has reached the desired speed, push the SET
button and release. Release the accelerator and
the vehicle will operate at the selected speed.
To Deactivate
A soft tap on the brake pedal, pushing the
CANC button, or normal brake pressure while
slowing the vehicle will deactivate Speed Con-
trol without erasing the set speed memory.
Pushing the on/off button or turning the igni-
tion switch OFF erases the set speed in
memory.
To Resume Speed
To resume a previously set speed, push the
RES button and release.

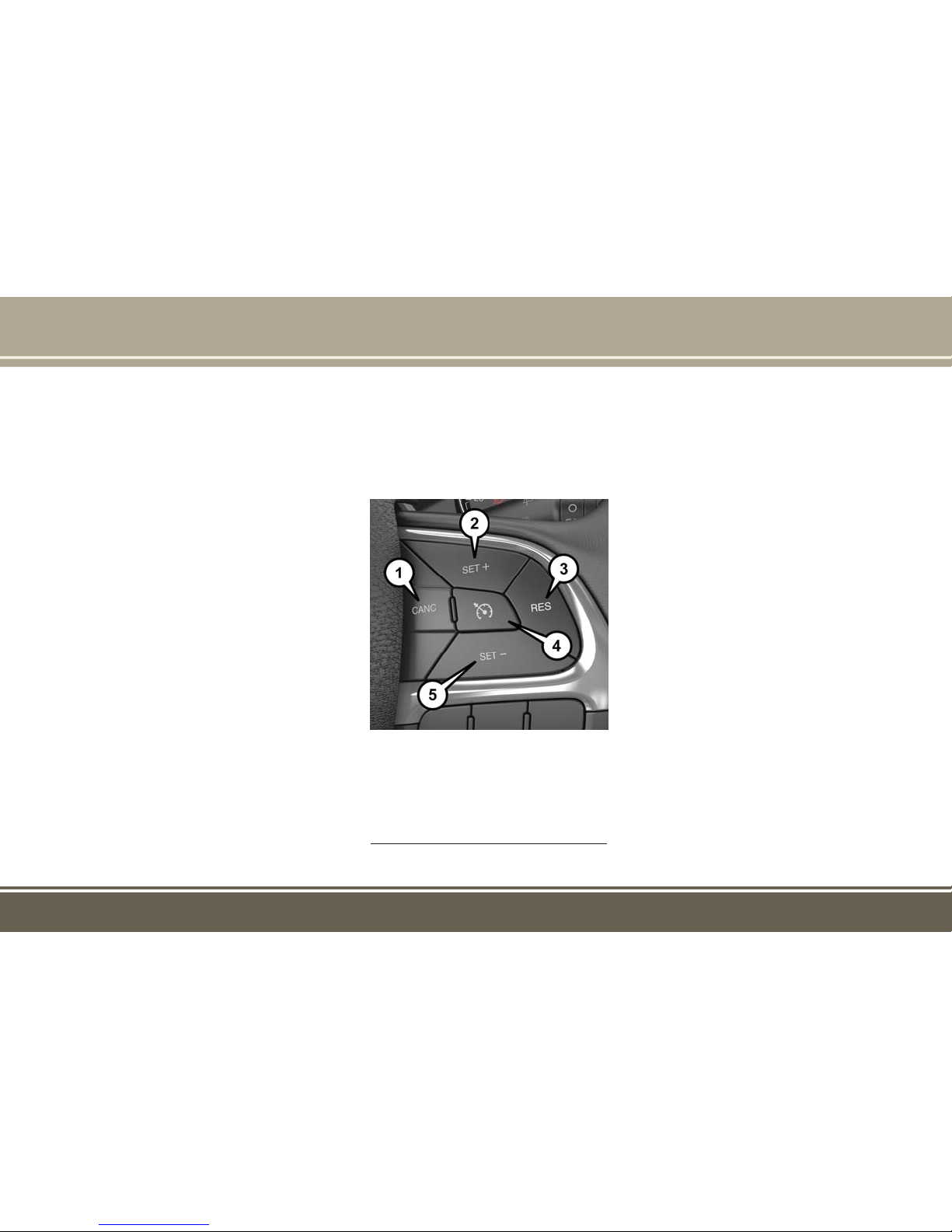

Speed Control Switches
1 — Push Cancel
2 — Push Set+/Accel
3 — Push Resume
4 — Push On/Off
5 — Push Set-/Decel
SPEED CONTROL
To Increase Speed
When the Speed Control is set, you can in-
crease speed by pushing the SET (+) button.
To Decrease Speed
When the Speed Control is set, you can de-
crease speed by pushing the SET (-) button.
To Accelerate For Passing
Press the accelerator as you would normally.
When the pedal is released, the vehicle will
return to the set speed.
For further information and applicable warn-
ings and cautions, please refer to your Owner’s
Manual at www.jeep.com/en/owners/manuals.
ParkSense Rear Park Assist — If
Equipped
• The four ParkSense sensors, located in the
rear fascia/bumper, monitor the area behind
the vehicle that is within the sensor’s field of
view.
• The sensors can detect obstacles from ap-
proximately 12 inches (30 cm) up to
79 inches (200 cm) from the rear bumper
while the vehicle is in REVERSE. When an
obstacle is detected, a warning will display
in the instrument cluster, and a chime will
sound (when Sound and Display is selected
from the Uconnect Settings/Customer Pro-
grammable Features section of the
Uconnect System screen). As the vehicle
moves closer to the object, the chime rate
will change from single 1/2 second tone, to
slow, to fast, to continuous.
• If the system detects a potential impact
with an object, the vehicle brakes may be
applied.
For further information and applicable warn-
ings and cautions, please refer to your Owner’s
Manual at www.jeep.com/en/owners/manuals.

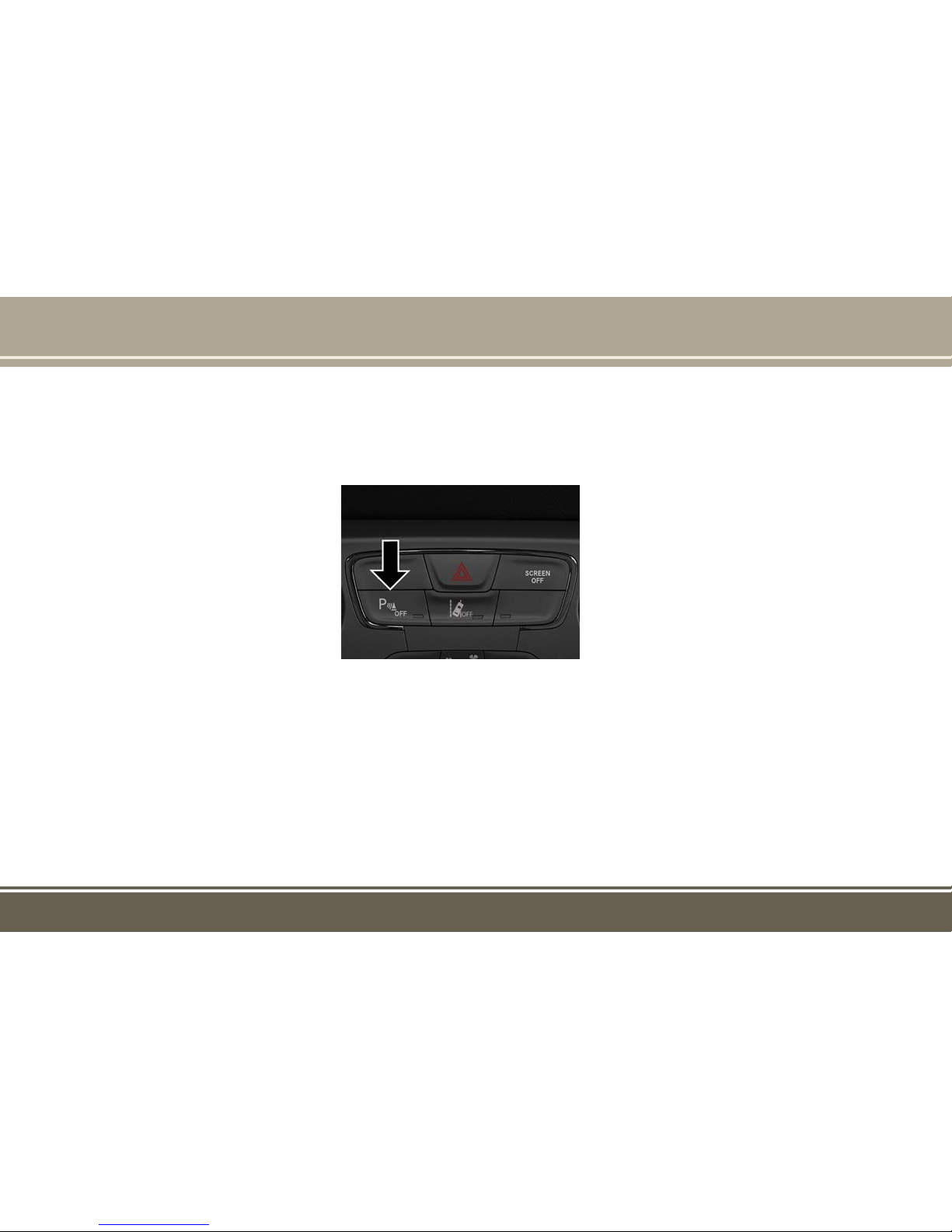

ParkSense Switch
PARKSENSE

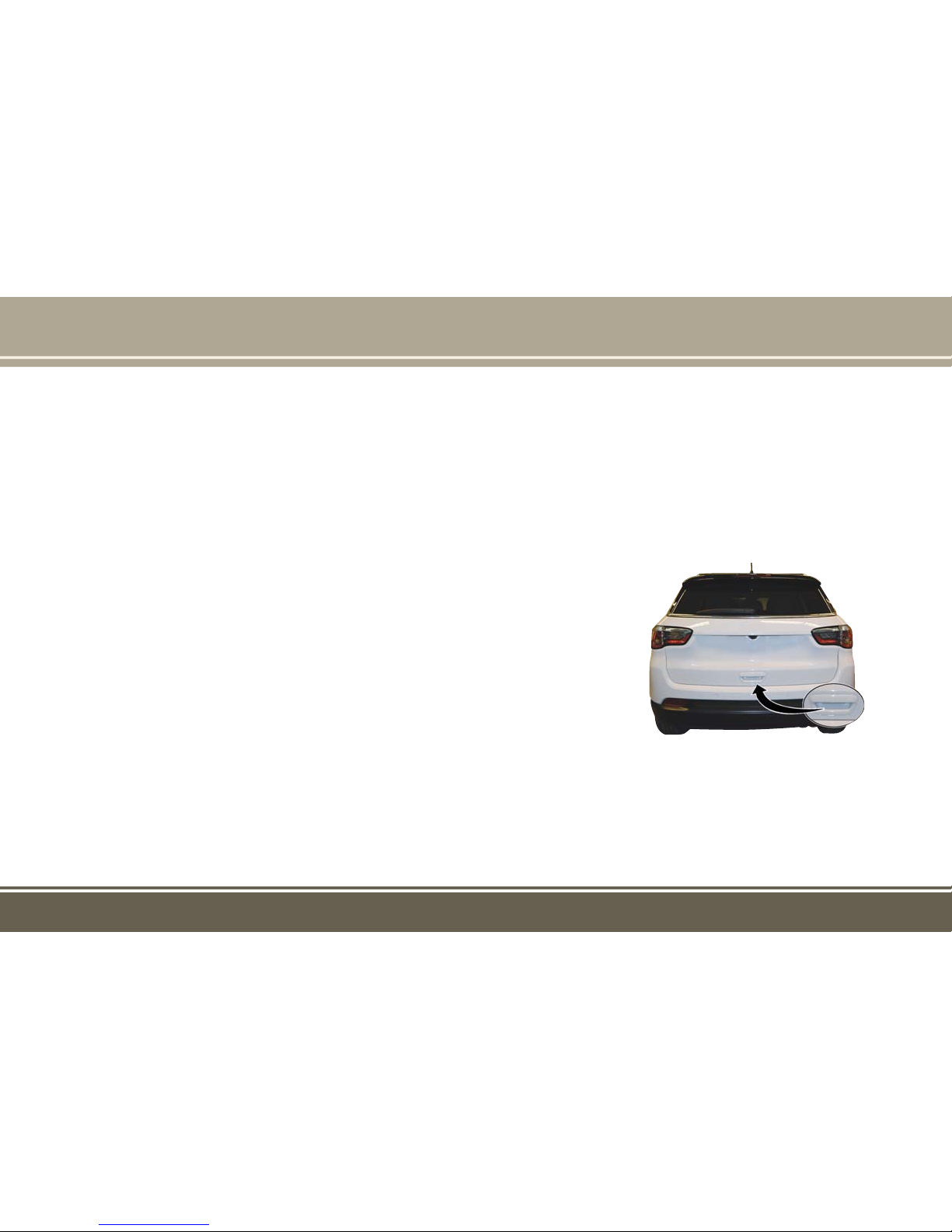

Parkview Rear Back-Up Camera
— If Equipped
You can see an on-screen image of the rear of
your vehicle whenever the transmission is
shifted into REVERSE. The ParkView Rear
Back-Up Camera image will be displayed on the
Uconnect Display, located on the center stack
of the instrument panel.
For further information and applicable warn-
ings and cautions, please refer to your Owner’s
Manual at www.jeep.com/en/owners/manuals.
Blind Spot Monitoring — If
Equipped
The Blind Spot Monitoring (BSM) system uses
two radar-based sensors, located inside the rear
bumper fascia, to detect highway licensable
vehicles (automobiles, trucks, motorcycles,
etc.) that enter the blind spot zones from the
rear/front/side of the vehicle.
The BSM warning light, located in the outside
mirrors, will illuminate if a vehicle moves into a
blind spot zone.
Rear Cross Path
The Rear Cross Path (RCP) feature is intended
to aid the driver when backing out of parking
spaces where their vision of oncoming vehicles
may be blocked. Proceed slowly and cautiously
out of the parking space until the rear end of the
vehicle is exposed. The RCP system will then
have a clear view of the cross traffic and if an
oncoming vehicle is detected, alert the driver.
Mode Of Operation
Three selectable modes of operation are
available through the Uconnect System.
For further information and applicable warn-
ings and cautions, please refer to your Owner’s
Manual at www.jeep.com/en/owners/manuals.

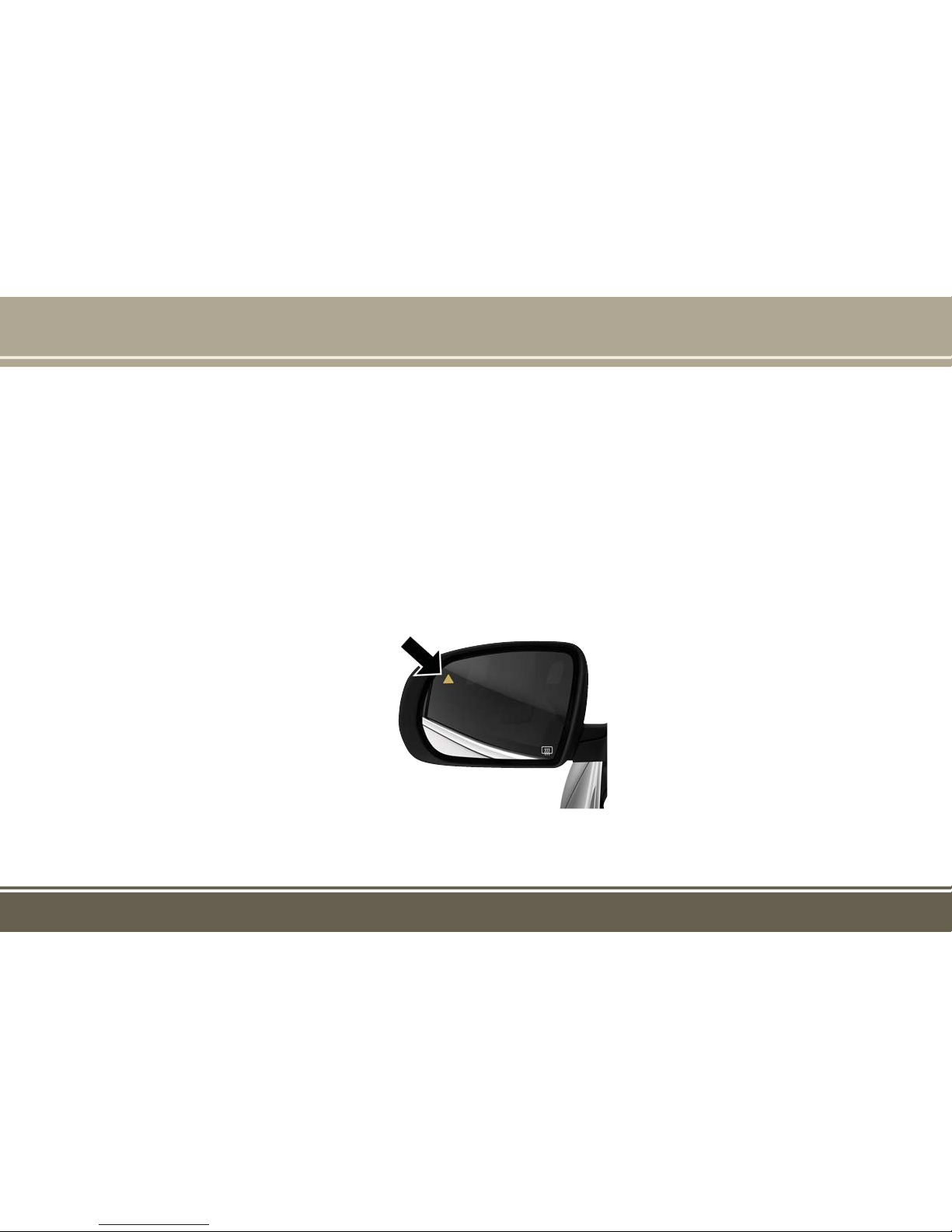

BSM Warning Light
PARKVIEW SAFETY FEATURES
Forward Collision Warning With
Mitigation — If Equipped
The Forward Collision Warning (FCW) system
provides the driver with active braking, audible
and visual warnings [within the instrument
cluster display] and may apply a brake jerk to
warn the driver when it detects a potential
frontal collision. The warnings and limited
braking are intended to provide the driver with
enough time to react and avoid or mitigate the
potential collision.
FCW monitors the information from the
forward-looking sensor, as well as the Elec-
tronic Brake Controller (EBC) to calculate a
probable collision. When the system deter-
mines that a collision is probable, a warning
message (both audible and visual) will be dis-
played within the cluster display along with a
brake jerk warning (previously enabled in the
Uconnect Settings). When the system senses
the driver applying the brakes to avoid a prob-
able collision, additional brake force will be
provided to the vehicle. When the system deter-
mines a collision with the vehicle in front of you
is no longer probable, the warning message will
be deactivated.
NOTE:
The FCW feature can be customized and turned
off through the Uconnect System touchscreen.
For further information and applicable warn-
ings and cautions, please refer to your Owner’s
Manual at www.jeep.com/en/owners/manuals.
Opening
To unlock the liftgate, use the key fob or acti-
vate the power door lock switches located on
the driver door.
To open the liftgate, squeeze the electronic
liftgate release and pull the liftgate open with
one fluid motion.
Liftgate Handle Location
LIFTGATE
Closing
Grasp the liftgate closing handle and initiate
lowering the liftgate. Release the handle when
the liftgate takes over the closing effort.
NOTE:
Before closing the liftgate, make sure to be in
possession of the key because the liftgate may
be locked.
Please refer to your Owner’s Manual on
www.jeep.com/en/owners/manuals for further
information.
IDENTIFYING YOUR RADIO
Uconnect 5.0
• 5.0” Full Color Touchscreen Display
• Bluetooth Connectivity/Bluetooth Streaming
Audio
Uconnect 7.0
• 7.0” Full Color Touchscreen Display
• Bluetooth Connectivity/Bluetooth Streaming
Audio

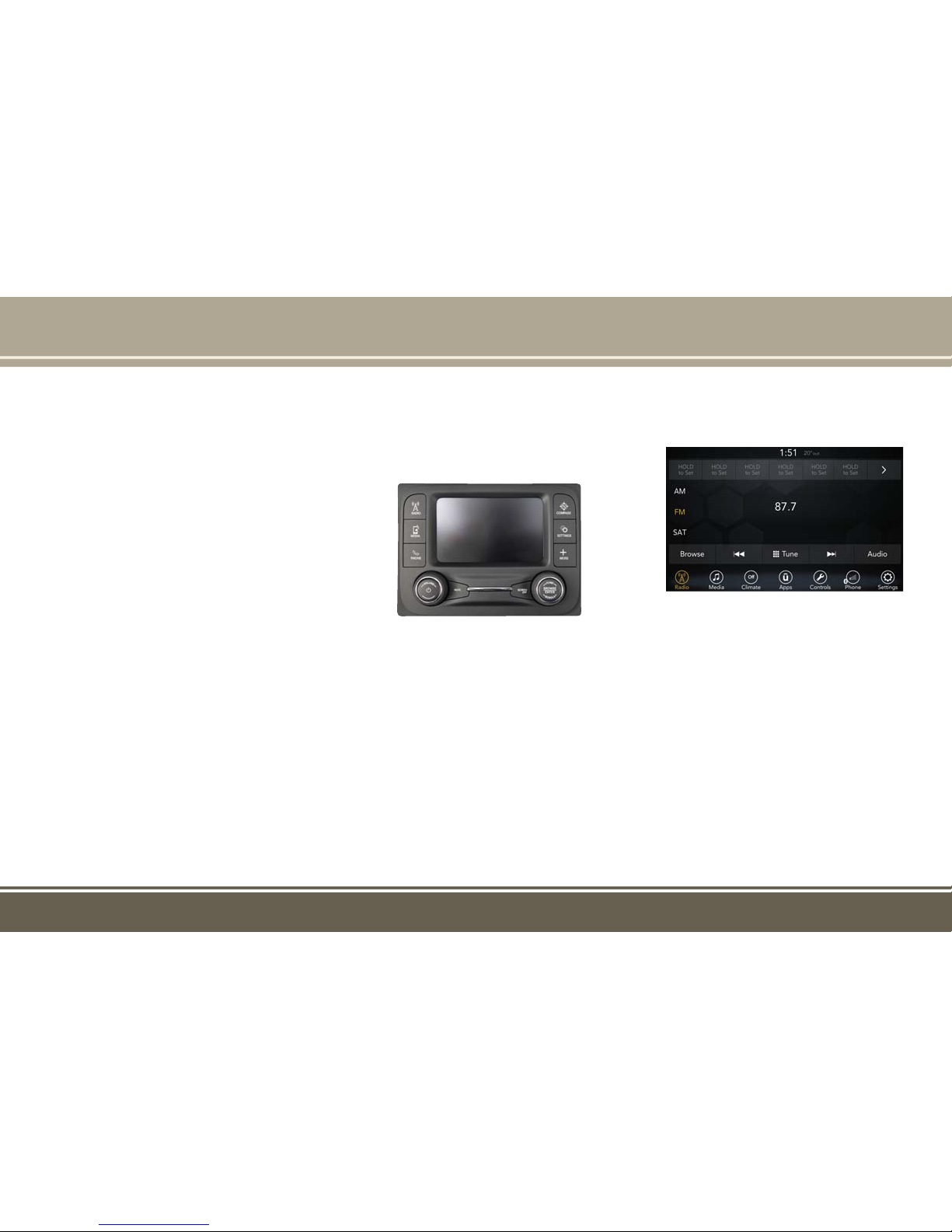

Uconnect 5.0
Uconnect 7.0
UCONNECT
Uconnect 8.4/8.4 NAV
• 8.4” Full Color Touchscreen Display
• Navigation on the bottom bar menu (if
equipped)
• Bluetooth Connectivity/Bluetooth Streaming
Audio
Refer to the Uconnect Owner’s Manual Supple-
ment or the Uconnect Voice Recognition Tip
Card for further information about the
Uconnect Systems.
Activation
To unlock the full potential of SiriusXM Guard-
ian in your vehicle, you must activate your
SiriusXM Guardian services.
1. Press the Apps icon on the bottom of your
in-vehicle touchscreen.
2. Select the Activate Services icon from your
list of apps.
3. Select “Customer Care” to speak with a
SiriusXM Guardian Customer Care agent
who will activate services in your vehicle, or
select “Enter Email” to activate on the web.
Once you have activated your services, you’re
only a few steps away from using remote com-
mands.
To use the SiriusXM Guardian app:
• Once you have activated your SiriusXM
Guardian services, download the SiriusXM
Guardian app to your mobile device. Use
your Owner Account login and password to
open the app.
Uconnect 8.4/8.4 NAV
Mobile App
SIRIUSXM GUARDIAN — IF
EQUIPPED
Autres manuels pour compass 2017
2
Table des matières
Autres manuels Jeep Véhicule tout-terrain
