1. Introduction
1.1. General description

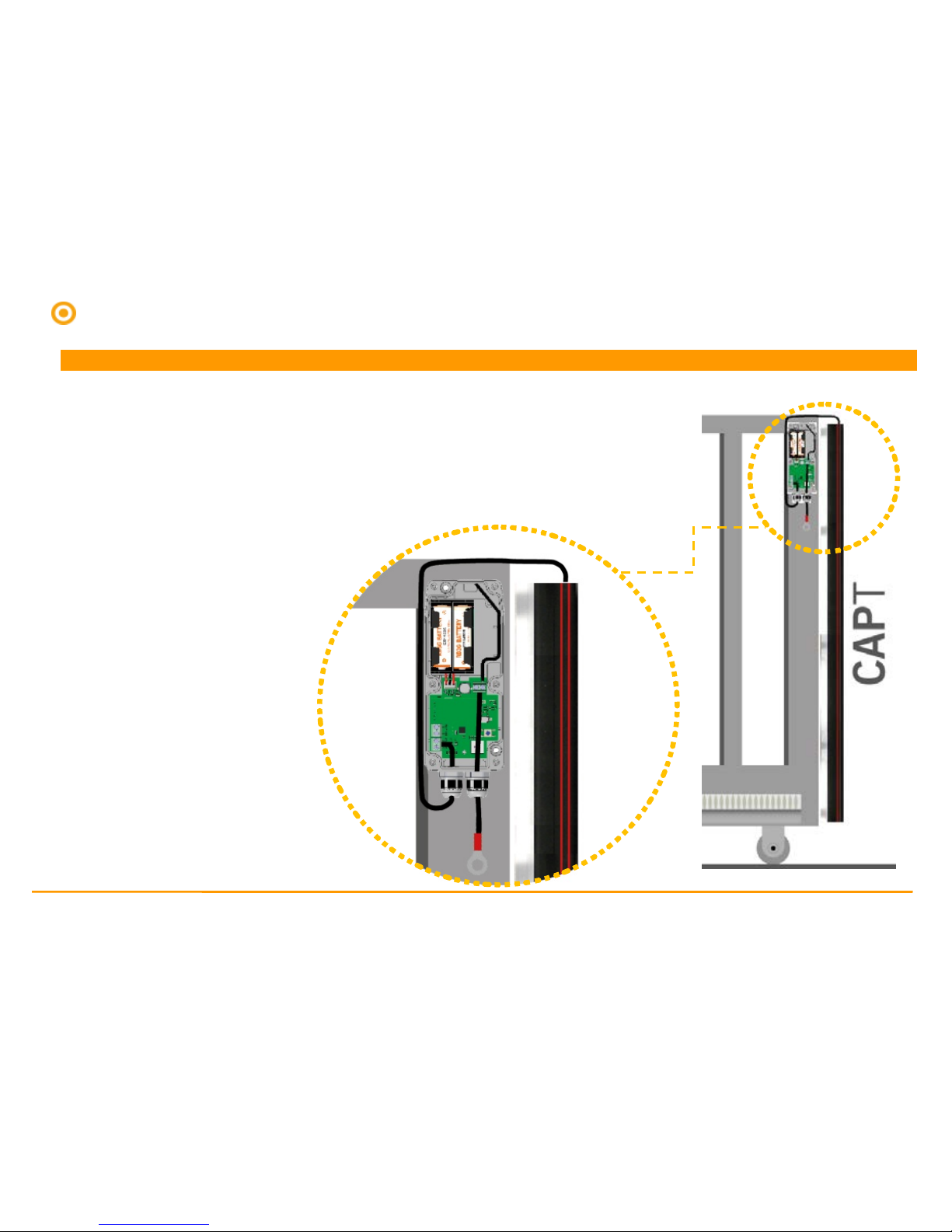

Radio safety solution for industrial sliding gates with NO-TOUCH technology. Based on 3 devices: transmitter (CAP
T868/916, CAP ACTIVE 868), receiver (CAP R868/916) and inhibition detector (CAP MAGIN).
•Compatible with all kind of metallic / aluminum sliding gates.
•Category 2 devices.
Safety edge gives the device security degree. NO-TOUCH detection is a courtesy function.
NO-TOUCH detection is not working all the time, it only should work during the movement of the gate. It detects metal
or conductive objects near the safety edge. It cannot detect plastics, glass neither other no conductive materials.
The receiver manages the activation and deactivation of NO-TOUCH function depending on the status of the inhibition
detector (inhibition input).
Inhibition detector is based on magnetic fields thanks to the use of 2 polarized magnets (grey and black). These 2
magnets are the responsible for activating and deactivating NO-TOUCH sensor on the transmitter. It is needed to
deactivate NO-TOUCH sensor at a distance of 30-50cm before the door is totally closed (inhibition zone).
