Compact Excavators
8025 ZTS, 8026 CTS,
8030 ZTS, 8035 ZTS
Quick Start Guide
2Please see operator manual for full details.
>
This Quick Reference Guide is to provide quick and simple information to the Operator
and does not include any health and safety aspects. In addition, because of our continual
development of machines, features described in this Quick Reference Guide may differ
from those on your machine. No errors and emissions be entirely ruled out.
>
This Quick Reference Guide DOES NOT replace the Operators Manual. You MUST
read ALL the disclaimers and safety and other instructions in the Operators Manual
before initially operating this product. Accordingly, no legal claims can be entertained on
the basis of the data, illustrations or descriptions in this Quick Reference Guide.
>
This machine should not be operated by any person who isn’t appropriately qualified or
had the appropriate training.
>
Operation of this machine without periodic maintenance could cause it to malfunction.
For more information please contact your JCB Dealer.
Disclaimer
8025 ZTS, 8026 CTS, 8030 ZTS, 8035 ZTS 3
Intended Use ......................................................................................................................................4
Dimensions ........................................................................................................................................5
Tie Down Points ................................................................................................................................6
Lifting Points .......................................................................................................................................7
Cab Layout & Controls ................................................................................................................. 8 -11
Start Up Sequence ...........................................................................................................................12
Shut Down Sequence .......................................................................................................................13
Mechanical Hitch Unlock ..................................................................................................................14
Maintenance Position ........................................................................................................................15
Service & Maintenance .....................................................................................................................16
Service & Access Covers..............................................................................................................17-18
Fluids & Lubricants ............................................................................................................................19
Machine Attachments .......................................................................................................................20
Troubleshooting / FAQs ....................................................................................................................21
Your Notes .................................................................................................................................22-23
Index
4Please see operator manual for full details.
General
> Machine Type – Compact Excavator
> Self propelled machine with a tracked undercarriage
> 360° revolving upper structure with boom, dipper, bucket and slew mechanism
Intended Use
> Machine intended to be used in normal conditions as detailed in the operators manual
> With bucket fitted, machine work cycle consists of digging, elevating, slewing and discharging
of materials
> Applications include earthmoving, road construction, building and construction, landscaping etc.
> Can be used for object handling
> Not intended for use in mining and quarrying applications, demolition, forestry, any use
underground and any explosive atmospheres.
> Must not be used for forestry, used with attachments of unknown weight, used on surfaces with
unknown stability – list not exhaustive
>
PPE may be required in certain applications/environments e.g. high silica concentration or asbestos
> TThe machine should not be operated by any person without appropriate qualifications, training
or experience of using this type of machine
> Prior to use, the machines suitability should be considered with regards to the intended
applications and any hazards which may be present
Intended Use
8025 ZTS, 8026 CTS, 8030 ZTS, 8035 ZTS 5

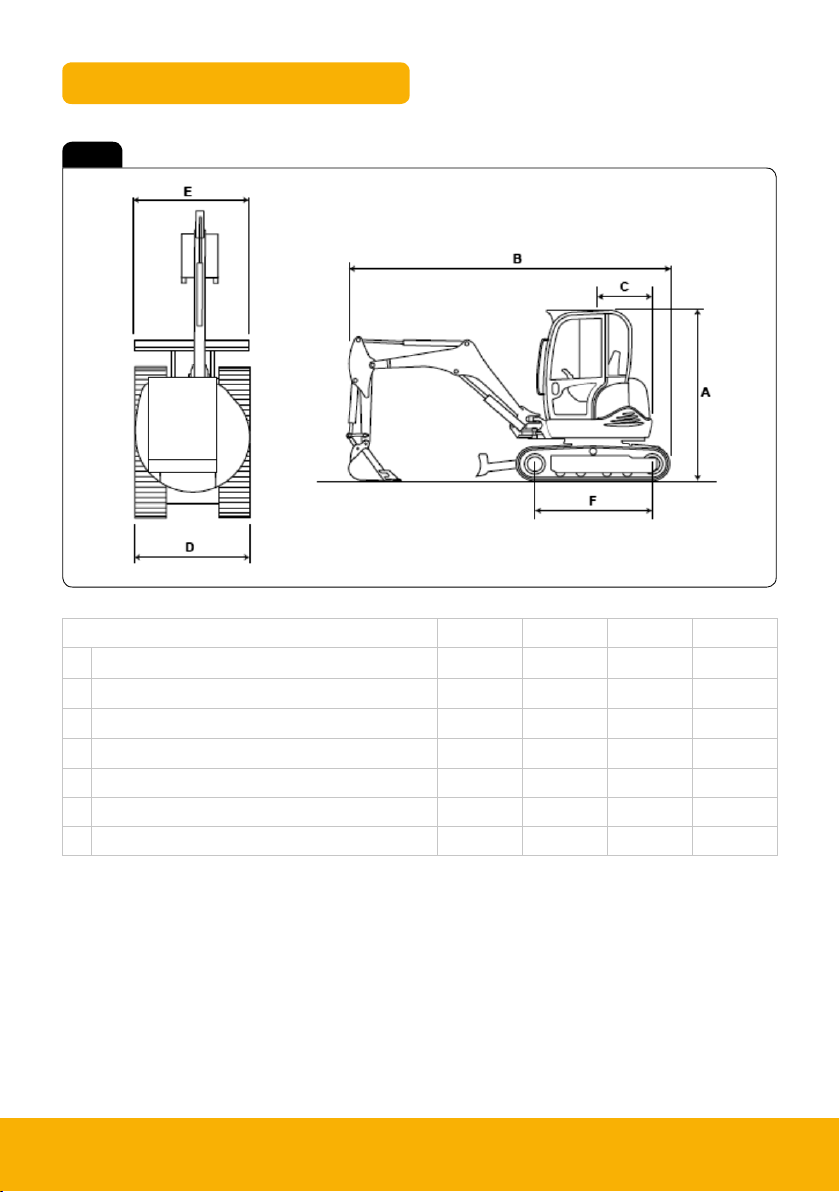

Dimensions
Machine model 8025 ZTS 8026 CTS 8030 ZTS 8035 ZTS
A Overall height (transport position) mm 2470 2470 2470 2475
B Overall length (transport position) mm 4280 4220 4287 4462
CTailswing mm 750 1225 800 850
D Track width mm 1502 1502 1650 1750
E Superstructure width mm 1550 1550 1650 1656
F Track centres mm 1440 1440 1597 1707
Operating weight* kg 2685 2700 3217 3651
* Standard machine specification, please see data plate for specific machine weight.
Fig 1
6Please see operator manual for full details.

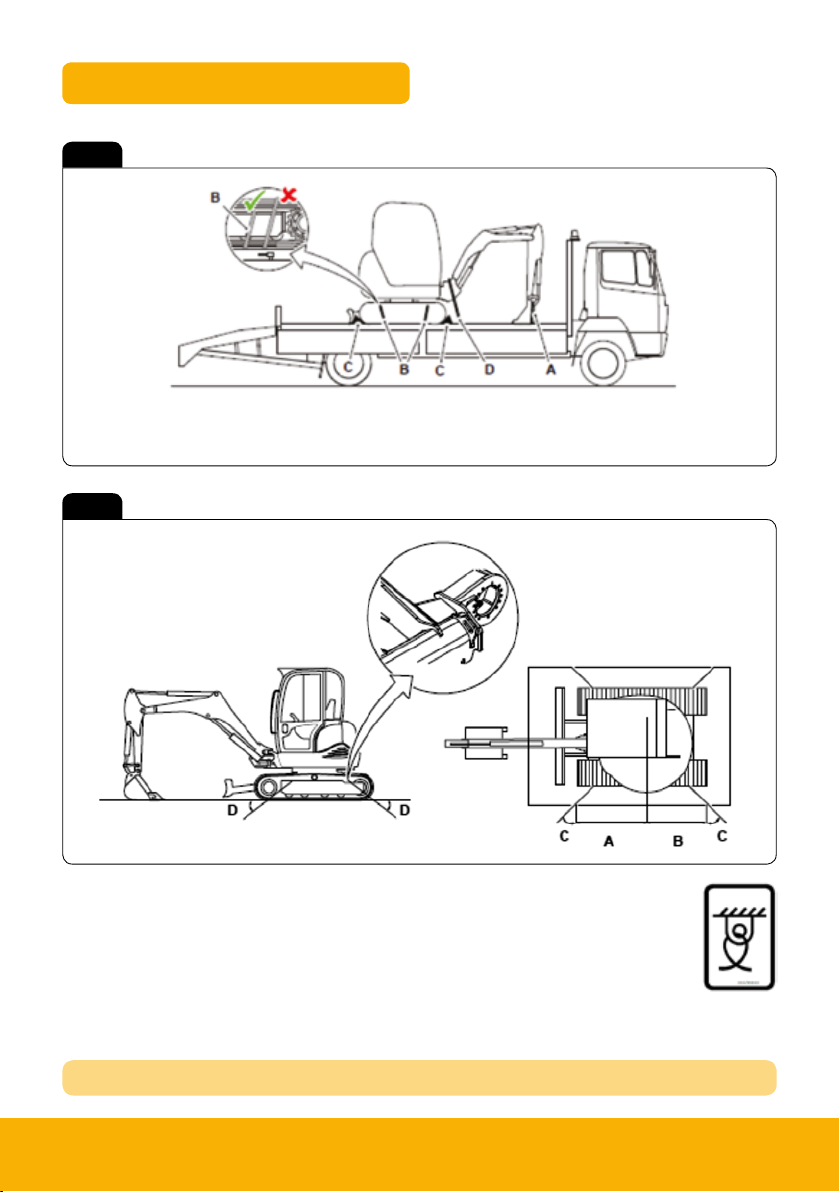

Tie Down Points
Fig 2
Fig 3
A Length = 900 + 100mm
B Length = 950 + 100mm
C Angle = 46˚ ± 7˚
D Angle = 36.5˚ ± 6.5˚
Lashing capacity 30,000N
Minimum lashing breaking force 50,000N
Tie down position decal.
REFER TO OPERATORS MANUAL TRANSPORTING MACHINE
A Securing strap (bucket)
B Securing strap (front and rear of the two track legs
C Skids
D Securing strap (kingpost
8025 ZTS, 8026 CTS, 8030 ZTS, 8035 ZTS 7
REFER TO OPERATORS MANUAL TRANSPORTING MACHINE
Lifting Points
Fig 4
The correct lifting positions are identified on the machine by their labels: Lifting point
position label.
Carry out the following procedure when lifting a machine:
1. Remove all attachments.
2. Remove all loose equipment from machine exterior.
3. Check the unladen weight of the machine.
4. Attach lifting equipment to each end of the dozer blade.
5. Attach lifting equipment to each side of the boom.
6. Take the weight of the machine. Make sure the slings do not interfere with the cab.
It may be necessary to use a spacer bar between the slings.
7. Check that the lifting eye is positioned directly above the machine centre of gravity.
A Boom lift point
B Spacer bar
C Dozer blade lift point
C Skids
D Securing strap (kingpost
8Please see operator manual for full details.
Cab & Switch Panel
A Graphic symbol
B Light bar
The rocker switches have two or three positions (as shown)
Fig 6
Fig 5
A Track control
B Swing/auxiliary pedals
C Horn
D Excavator controls
E Two-speed
tracking switch
F Dozer blade control
G Hand throttle control
H Instrument panel
J Ignition switch
K Auxiliary power socket
L Console switches
M Operator seat
N Swing/auxiliary switch
P Cab interior light
Operator Station Layout
Switch Panel
Work Lights
1 Off
2 On (Boom)
3 On (Boom & Cab)
Overload Warning System
1 Off
2 On (Boom)
Beacon
1 Off
2 On
Window Wipers
1 Off
2 On
2 Washer (if installed)
Fig 7
8025 ZTS, 8026 CTS, 8030 ZTS, 8035 ZTS 9
Instrument Panel
A Fuel gauge
B Two speed (high engaged) indicator
C Auxiliary service (selected) indicator
D SAE controls (selected) indicator
E Air filter (blocked) indicator
F Glow plugs (on) indicator
G Hourmeter
H Indicator is not installed on this machine
J Indicator is not installed on this machine
K Engine oil (low) indicator
L Coolant temperature (high) indicator
M Charge (fault) indicator
Fig 8
Instrument Panel
10 Please see operator manual for full details.

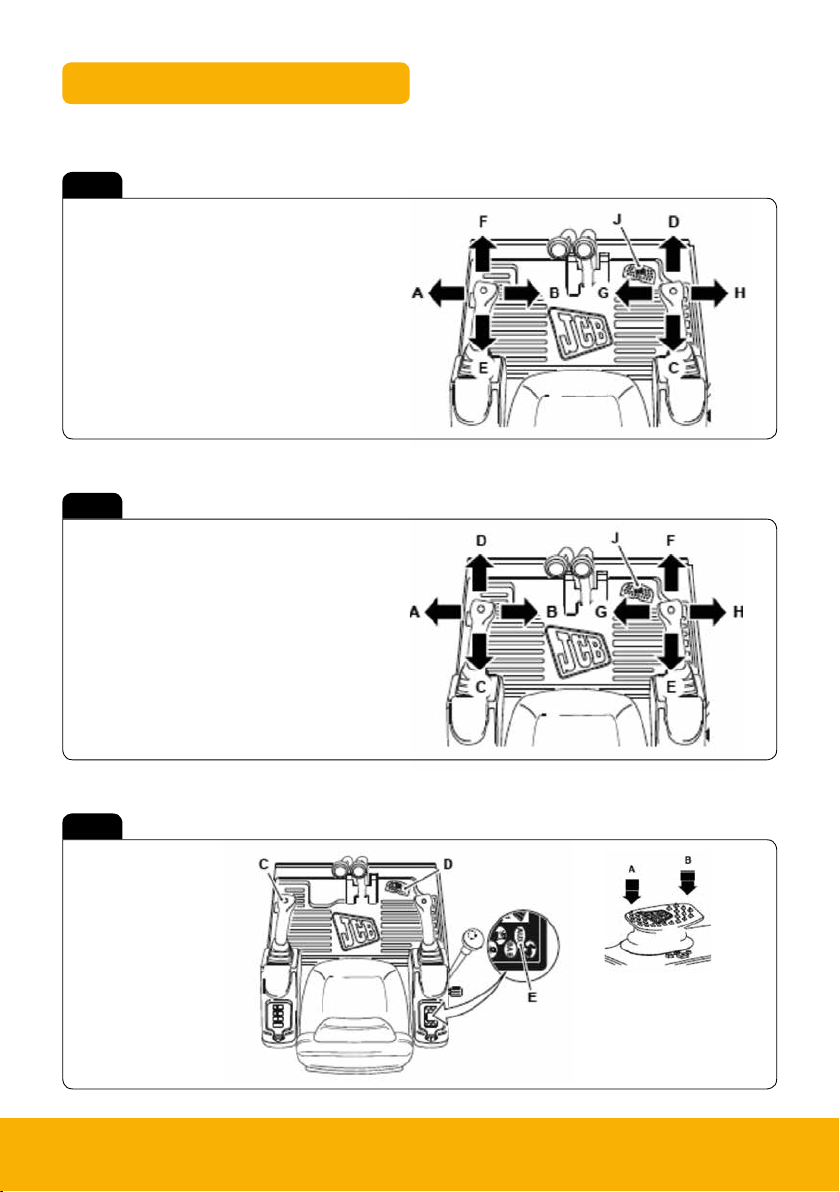

Excavator Controls
A Slew cab left
B Slew cab right
C Raise boom
D Lower boom
E Dipper in
F Dipper out
G Crowd bucket (to gather a load)
H Dump bucket (to dump a load)
J Swing boom
A Slew cab left
B Slew cab right
C Raise boom
D Lower boom
E Dipper in
F Dipper out
G Crowd bucket (to gather a load)
H Dump bucket (to dump a load)
J Swing boom
A Swing left
B Swing right
C Swing/auxiliary switch
D Swing/auxiliary pedal
E AUX indicator lamp
A Left AUX function
B Right AUX function
(double-acting
attachments only)
Fig 9
Fig 10
Fig 11
ISO Control Pattern
SAE Control Pattern
Swing and Auxiliary Controls
