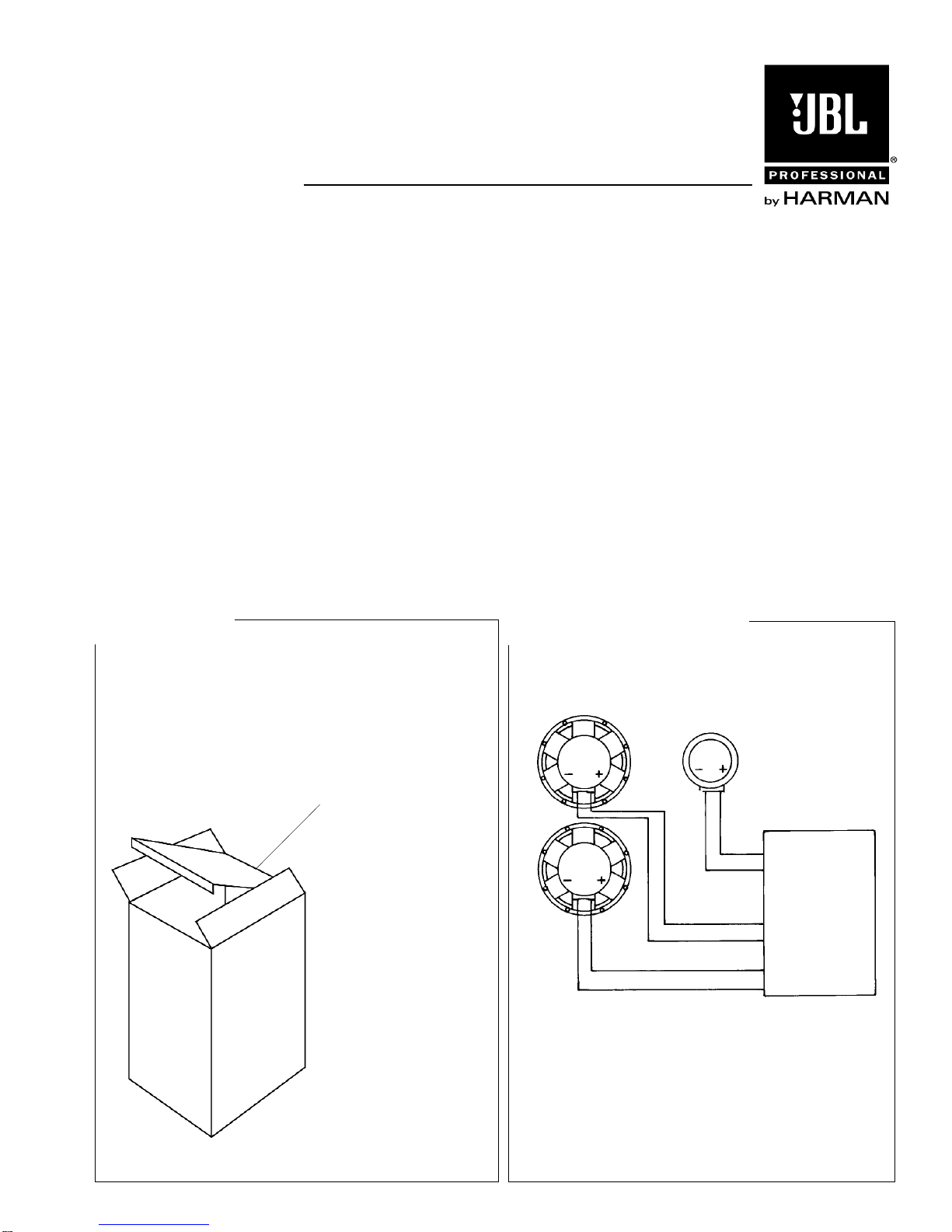

PACKAGE WIRING DIAGRAM

03-12

Technical Manual

JBL PRX425

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance: 8 Ohms

• System Power Rating,

Pink Noise: 600W / 1200W / 2400W, 2 hrs

(Continuous/Program/Peak)

• Frequency Response (±3 dB): 75 Hz – 16Hz

• Frequency Range (–10 dB): 55 Hz – 19 kHz

• Maximum SPL: 128 dB SPL continuous (134 dB SPL

peak)

• System Sensitivity: 100 dB SPL 1 watt @ 1 meter

• Crossover Frequency: 2.2 kHz

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not For Sale)

• Grille: 444801-002

• Low Frequency M115-8A, 380 mm (15 in)

Transducer: woofers

• D.C. Resistance: 5.3 ohm

• High Frequency 2414h-C , 25 mm (1 in) polymer

Transducer: diaphragm

•D.C. Resistance: 3.60 ohm +/- 0.2 ohm

•Input Cup Assembly: 5011408

AURAL SWEEP TEST SPECIFICATIONS:

A. System. Aural Sweep Test: 7V Input, 40 Hz to 20 kHz

B. L.F. Aural Sweep Test: 6V Input, 20 Hz to 200 Hz

C. H.F. Aural Sweep Test: 0.75 Input, 500 Hz to 1.5 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 1044 x 429 x 521 mm D

(H x W x D) (41.1 x 16.9 x 20.5 in. D)

• Net Weight: 74 lb (33.5 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Manual

5011443

Carton

5014367

Filler (2)

5014368

PKG, Microfoam (4)

49790P

Warranty Card 59660

SEE INPUT CUP ASSEMBLY SCHEMATIC - (5011408) PAGE 2

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.

A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.

Input Cup

Assembly

5011408

Driver, Low Freq. (2)

M115-8A

(124-67001-01X)

Driver, High Freq.

2414H-C

(5000169X)

YEL

YEL/BLK

GRN/BLK

WHT

WHT/BLK

GRN

JBL PRX425

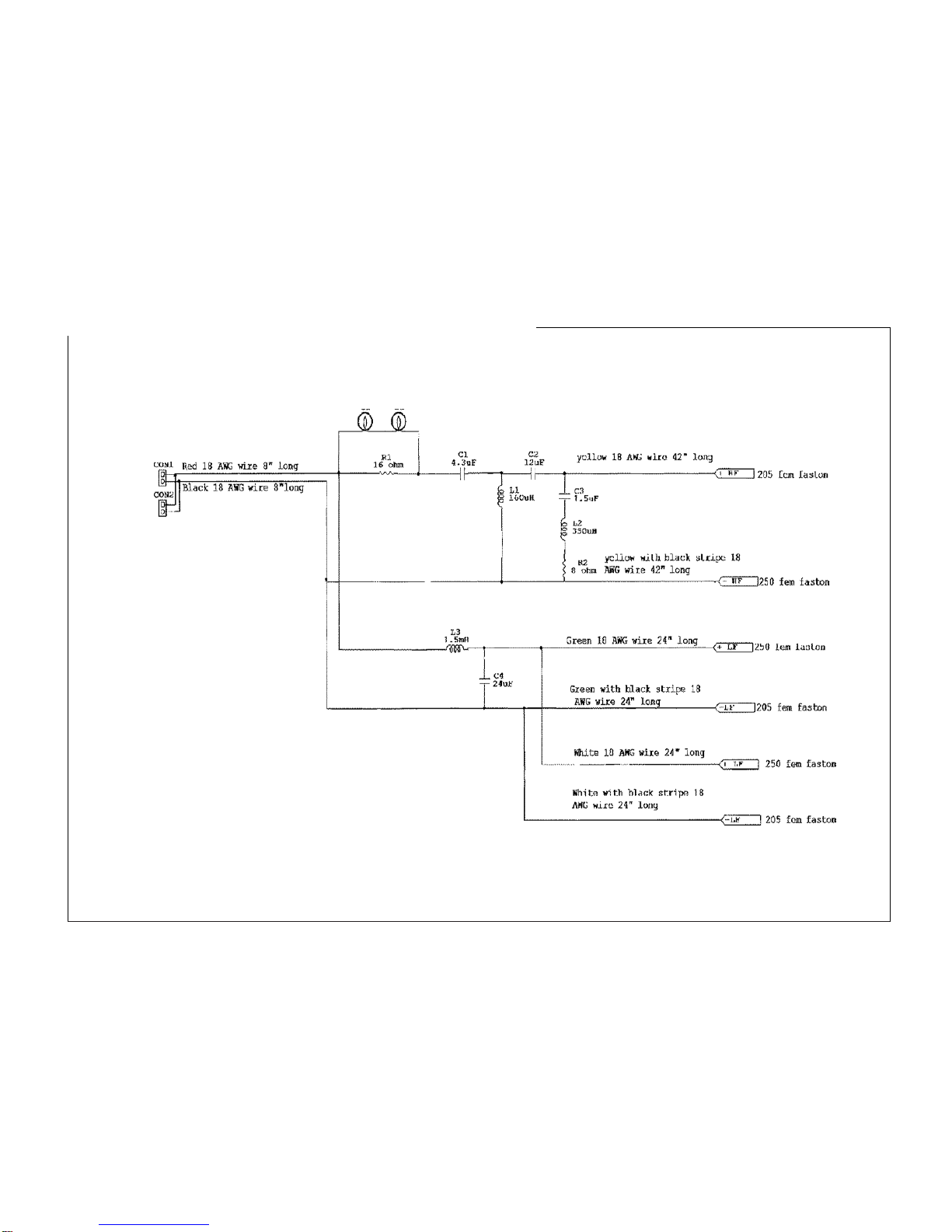

INPUT CUP ASSEMBLY SCHEMATIC - (5011408)

JBL PRX425

Individual Parts for the above crossover are not available.

A complete replacement assembly should be ordered.

SK3 (2)

Bulb, Sylvania

Neutrik Connectors (2)

NLJ2MD-V

10W

JBL PRX425

COMPONENT EXPLODEDVIEW

Handle Cup (2)

444686-001

Gasket, Handle (2)

444827-001

Screw (8)

864-41400-08

#8 10 x 1/2

HILO,PAN,PH,CL,

ZINC

Handle Bar (2)

364855-003

Screw (8)

815-73414-15

M5X0.8X15MM

SOCKHD,HEXSOCK,

BLK

Feet (4)

444707-001

Screw (8)

883-41110-08

8 x 1/2

PAN,PH,PB,BLK

ZINC,LCS

Driver, Low Freq.(2)

M115-8A

(124-67001-01X)

Screw (16)

804-41110-12

10-32 X 3/4

PAN,PH,PB,BLK,

ZINC,LCS

Gasket (2)

360-70002-01

Rear

Dome (2)

71646-03

Grille

Assembly

444801-002

Screw (4)

444811-002

Low Profile

Screw (10)

882-41110-10

6 x 5/8

PAN,PH,PB,BLK

ZINC,LCS

Logo Nut (2)

444829-001

Grille Badge

Assembly

5006459

Horn

338800-001

Gasket, Horn

351577-001

Screw (10)

804-41110-16

10 - 32 x 1

PAN,PH,BLK

Driver, High Freq.

2414H-C

(5000169X)

Enclosure for PRX425

(Not Available for Sale)

Input Cup Assembly

5011408

Screw (4)

882-41110-10

6 x 5/8

PAN,PH,PB,BLK

ZINC,LCS

Screw (4)

882-41110-10

6 x 5/8

PAN,PH,PB,BLK,

ZINC,LCS

Input Cup

5011410

Input Cip Gasket

5013128

Label

5012394

Grille Support (2)

444778-001

T-Nut (4)

61861

10-32

Bracket (6)

444777-002

Side 15”

(internal)

Bolt, (12)

352051-001

M10 x 25MM

HEX,BLK

Screw (12)

883-41100-08

8 x 1/2

PAN,PB,CLR,ZINC,

LCS

T-Nut (26)

61861

10-32

(baffle)
