SPEAKER PLACEMENT

Proper placement of the

speakers is an important step

in obtaining the most realistic

soundstage possible. These

recommendations are for the

optimum placement of the

loudspeakers. Use these

placement recommendations

as a guide. Slight variations

will not diminish your listen-

ing pleasure.

The Performance™Series

loudspeakers referred to in

this guide are video-shielded

and can safely be placed

near a television.

MODELS: P25, P35

5–6 ft.

(1.5–1.8m)

0–2 ft.

(0–0.6m)

The P25 and P35 center

channel loudspeakers are

designed to complement all

of the Performance™Series

loudspeakers. It is the ideal

way to re-create the cine-

matic experience in your

home.

P25, P35

PERFORMANCE™

SERIES

OWNER’S GUIDE

Performance P25-35 OM 10/6/05 3:42 PM Page 3

MODELS: P25,

P35

Speakers and electronics ter-

minals have corresponding (+)

and (–) terminals. It is impor-

tant to connect both speakers

identically: (+) on the speaker

to (+) on the amplifier and (–)

on the speaker to (–) on the

amplifier. Wiring “out of

phase” results in thin sound,

weak bass and poor imaging.

To use the binding-post

speaker terminals, unscrew

the colored collar until the

pass-through hole in the cen-

ter post is visible. Insert the

bare end of the wire through

this hole; then screw the collar

down until the connection

is tight.

The hole in the center of each

collar is intended for use with

banana-type connectors. To

comply with European CE

certification, these holes are

blocked with plastic inserts at

the point of manufacture. To

use banana-type connectors

requires the removal of the

inserts. Do not remove these

inserts if you are using the

product in an area covered by

the European CE certification.

MODELS: P25, P35

The supplied self-adhesive

rubber feet may be attached

to the bottom corners of your

speakers to protect your

furniture.

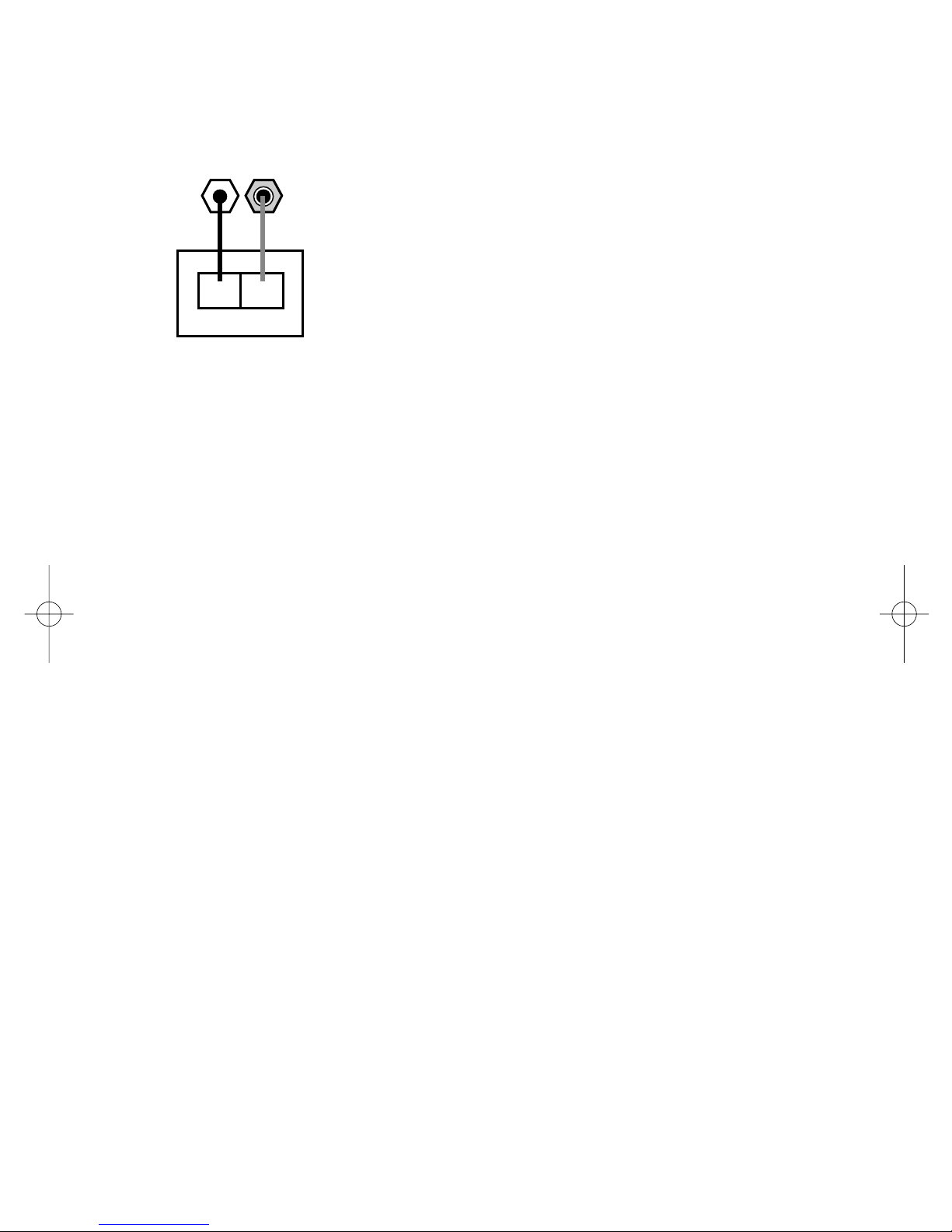

Receiver

Speaker Outputs

– +

CENTER

– +

SPEAKER CONNECTIONS

Performance P25-35 OM 10/6/05 3:42 PM Page 4

TROUBLESHOOTING

If there is no sound from

any of the speakers:

•Check that receiver/ampli-

fier is on and that a source is

playing.

•Review proper operation of

your receiver/amplifier.

Ifthere is no sound com-

ing from one speaker:

•Check the “Balance”

control on your receiver/

amplifier.

•Check all wires and connec-

tions between receiver/

amplifier and speakers.

•Make sure no wires are

touching other wires or

terminals and creating a

short circuit.

•Make sure all wires are

connected. Make sure none

of the speaker wires are

frayed, cut or punctured.

•In Dolby®Digital or DTS®

modes, make sure that the

receiver/processor is config-

ured so that the speaker in

question is enabled.

• Turn off all electronics and

switch the speaker in ques-

tion with one of the other

speakers that is working cor-

rectly. Turn everything back

on, and determine whether

the problem has followed the

speakers, or has remained in

the same channel. If the

problem is in the same chan-

nel, the source of the prob-

lem is most likely with your

receiver or amplifier, and

you

should consult the owner’s

manual for that product for

further information.

If the

problem has followed the

speaker, consult your dealer

for further assistance or, if

that is not possible, visit

www.jbl.com for further

information.

If the system plays at

low volumes but shuts

off as volume is

increased:

•Check all wires and connec-

tions between receiver/

amplifier and speakers.

•Make sure all wires are

connected. Make sure none

of the speaker wires are

frayed, cut or punctured.

•If more than one pair of

main speakers is being used,

check the minimum imped-

ance requirements of your

receiver/amplifier.

If there is no (or low)

bass output:

•Make sure the polarities

(+ and –) of the left and right

“Speaker Inputs” are

connected properly.

•Consider adding a powered

subwoofer to your system for

use with digital “.1” surround

formats.

We, Harman Consumer Group International

2, route de Tours

72500 Chateau du Loir

France

declare in own responsibility that the loud-

speaker described in this owner’s manual is

in compliance with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Laurent Rault

Harman Consumer Group International

Chateau du Loir, France 10/05

Declaration of Conformity

Performance P25-35 OM 10/6/05 3:42 PM Page 5

P25 P35

Description Description

2-Way, dual 5" center 3-Way dual 5" center

Max. Recommended Amplifier Power* Max. Recommended Amplifier Power*

150W 150W

Power Handling (Continuous/Peak) Power Handling (Continuous/Peak)

75W/300W 75W/300W

Nominal Impedance Nominal Impedance

8Ohms 8 Ohms

Sensitivity (2.83V/1m) Sensitivity (2.83V/1m)

90dB 91dB

Frequency Response (–3dB) Frequency Response (–3dB)

80Hz – 20kHz 75Hz – 20kHz

Crossover Frequency Crossover Frequency

4000Hz 800Hz, 3200Hz

High-Frequency Transducer High-Frequency Transducer

3/4" (19mm) Titanium-laminate dome, shielded 3/4" (19mm) Titanium-laminate dome, shielded

Low-Frequency Transducer Midrange Transducer

Dual 5" (130mm) PolyPlas,™shielded 3" (75mm) PolyPlas,™shielded

Baffle Low-Frequency Transducer

Low diffraction, IsoPower™Dual 5" (130mm) PolyPlas,™shielded

Port Baffle

FreeFlow™flared Low diffraction, IsoPower™

Network Port

Straight-Line Signal Path™(SSP) FreeFlow™flared

Terminals Network

Gold-plated, 5-way binding posts Straight-Line Signal Path™(SSP)

Dimensions (H x W x D) Terminals

6-7/8" x 18" x 10" (175mm x 457mm x 254mm) Gold-plated, 5-way binding posts, bi-wirable

Weight per Speaker Dimensions (H x W x D)

15.6 lb/7.1kg 7-1/4" x 22" x 10-7/16" (185mm x 558mm x 264mm)

Weight per Speaker

22 lb/10kg

SPECIFICATIONS

DESIGN GOAL: Bring the thrill of live performance and movie sound to the

home environment by calling on JBL’s professional engineering leadership.

TWEETER TYPE: Pure-titanium dome with EOS™ waveguide

WOOFER TYPE: Cast-aluminum basket with HeatScape™ motor structure

CROSSOVER NETWORK: Straight-Line Signal Path™ (SSP)

ENCLOSURE DESIGN: Sealed

PROFESSIONAL REFERENCE: Studio Monitor

OWNER’S GUIDE

PRODUCT LINE:

MODEL:

P25, P35

PERFORMANCE™SERIES

Part No.

361821-001

PRO SOUND

COMES HOME™

JBL Consumer Products

250 Crossways Park Drive, Woodbury, NY 11797

8500 Balboa Boulevard, Northridge, CA 91329

2, route de Tours, 72500 Chateau du Loir,France

516.255.4JBL (4525) (USA only)

www.jbl.com

JBL and Harman International are registered trademarks, and Performance Series, Pro Sound Comes Home, PolyPlas,

IsoPower, FreeFlow and Straight-Line Signal Path are trademarks, of Harman International Industries, Incorporated.

Dolby is a registered trademark of Dolby Laboratories.

DTS is a registered trademark of DTS, Inc.

* The maximum recommended amplifier power rating will ensure proper system headroom to allow for occa

sional peaks. We do not recommend sustained operation at these maximum power levels.

All features and specifications are subject to change without notice.
