Jbc CSV-2D Manuel utilisateur

English

www.jbctools.com

Compact Desoldering Station

with Electric Pump

Ref. CS-D

www.jbctools.com

2 3

Manual ........................... 1 unit

Ref. 0010207

Packing List

The following items should be included:

CSV Control Unit ...................................... 1 unit

Ref. CSV-1D (120V)

CSV-2D (230V)

CSV-9D (100V)

Electric Desoldering Module .............. 1 unit

Ref. MS-A

Compact Desoldering Station

with Electric Pump

Ref. CS-D

ww w.j bct ool s.c om

Micro Desoldering Iron ........................ 1 unit

Ref. DS360-A

Tips

(5 units)

Ref. C360002

Tips

(5 units)

Ref. C360004

Cleaning Rods

Ref. 0008466

Filter

(2 units)

Ref. 0008473

Cleaning brush

Ref. 0008297

Solder Collector

(2 units)

Ref. 0008467

DS360-A

Accessories ................. 1 unit

Ref. 0010259

Suction Filter ................ 1 unit

Ref. 0821830

Module Cable ............... 1 unit

Ref. 0010207

Cotton Filters .................1 unit

Ref. 0781046

Brass Wool ............................................... 1 unit

Ref. CL6210

Sponge ......................................................... 1 unit

Ref. S0354

Power Cable .................. 1 unit

Ref. 0009417 (100V/120V)

0009401 (230V)

Filter Box .........................1 unit

Ref. 0005966

It contains 50 filters

Module Cable

Ref. 0010207

www.jbctools.com

4 5

Cable collector

Tip Cleaning System

Process Control

Adjustable Stand:

Intelligent Heat

Management

Features

Power Socket

Main switch

Equipotential

connection

Fuse

USB-B

Micro

Desoldering Iron

Ref. DS360-A

Adjustable Stand

Cable collector

Adjust the tool stand to suit your work position.

Place the cable on the collector to keep the work area free of cable.

Suction Filter

Ref. 0821830

USB Connector

Download the latest software from our website to improve your soldering station.

JBC Updater

www.jbctools.com/software.html

Update the station software via USB connection:

Cable USB AB

JBC

Manager

JBC Manager

www.jbctools.com/manager.html

Manage and monitor as many stations as your PC can handle by using the JBC Manager

software. You can export data to other PCs.

Create graphs of the

soldering process in real time

with power and temperature

data.

Manager Settings

Change settings for a group

of JBC stations at the same

time.

any JBC

station

USB

Hub

Cable

USB AB

JBC

Updater

www.jbctools.com

6 7

Tip Cleaning System

Sponge

Ref. S0354

The least harmful cleaning method.

Keep the sponge damp with distilled water to prevent

tip wear.

Brass Wool

Ref. CL6210

Very effective cleaning method. Leaves a small layer

of solder on the tip preventing oxidation between

cleaning and rewetting.

Select the option that best suits your tip cleaning needs.

More options for the splashguard (not supplied):

Inox Wool

Ref. CL6205

An alternative to

Brass Wool.

Metal Brush

Ref. CL6220

When used carefully,

it provides a more

thorough cleaning.

Splashguard

Tip Wipe

Wiping:

Use the slots to wipe off any

remaining particles.

Tapping:

Tap gently to remove the excess

solder.

www.jbctools.com

Change temperature

(from 180 to 450ºC)

Tool Settings:

· Select temperature levels

· Fix one temperature

Tool Settings:

· Set Sleep temperature

· Set Sleep delay

(from 0 to 9 min or no Sleep)

Tool Settings:

· Set Hibernation delay

(from 0 to 35 min or no

hibernation)

8 9

Operation

The JBC Exclusive Heating System

Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user

can work at a lower temperature and improve the quality of soldering. Tip temperature is further

reduced thanks to the Sleep and Hibernation modes which increase tip life by 5.

1. Work

When the tool is lifted from the

stand the tip will heat up to the

selected temperature.

2. Sleep

When the tool is in the stand,

the temperature falls to

Sleep temperature (pre-set

260ºC / 500ºF).

Tool in the stand

Actual Temp. 260

Sleep

Tool in the stand after sleep

No heat

Actual Temp. 20

Hibernation

Selected temp.

350

Power 10%

350

3. Hibernation

After long periods in the stand

(pre-set 30 min), the power is cut

and the tool cools down to room

temperature.

Menu Screen

Main menu

Counters

Tool settings

4 Counters

Program version

Hibernation hours 0

No tool hours 0

6 Sleep cycles

7 Desold cycles

Sleep temp 260

Hibernationdelay

0 min

Temp adjust + O

Tool DS

BackBack

Station settings

Back

Pre-set PIN: 0105

This screen provides

information of tool status

in real time.

Selected temp.

350

Power 10%

Fixed temp.

350

Shown when you fix a

specific temp.

Shown when you have

selected temp. levels.

Work Screen

Process Control

Fix one temp -----

Temp levels set OFF

Sleep delay 0 min

5 Beep ON

Change PIN

1 Temp unit

Celsius

Maximum temp 400

Minimum temp 200

Help text OFF

Levels ºC

270 350 400

Plugged hours 0

Working hours 0

Sleep hours 0

350

Exit

1 Reset settings

Station settings

Tool settings

Long time

in the stand

Spare filters

Ref. 0005966

Cotton filters

Ref. 0781046

Suction filter

Ref. 0821830

Important:

Do not open the

Suction filter with

sharp pointed

objects to avoid

damage.

O Ring

Ref. 0007717

Filter cover

Ref. 0004710

www.jbctools.com

10 11

Changing the Heating Element

Aø

Bø

C360-003

ØA: 1.4

ØB: 1

Ømax.pin: 0.8

C360-002

ØA: 1.2

ØB: 0.8

Ømax.pin: 0.6

C360-004

ØA: 1.4

ØB: 1

Ømax.pin: 0.8

Fixing screw

Heating element

Ref. DSV-DS

1. Remove by pulling the ﬁlter and the solder collector.

2. Take out the ﬁxing screw and withdraw the heating element.

3. Insert the new heating element by following the same steps conversely.

Ø Inside tip

Ø Pin

C360-001

ØA: 1

ØB: 0.8

Ømax.pin: 0.4

C360-007

ØA: 1.9

ØB: 1.4

Ømax.pin: 1.2

C360-006

ØA: 3

ØB: 1.5

Ømax.pin: 1.3

Changing the Tip

Changing the Pump Filters

1. Remove the tip by using a ﬂat-nosed pliers.

Twist the tip and pull.

Compatible tips

The CS and CV desoldering stations work with C360 tip range. Check the model that best adapts to

your desoldering needs in www.jbctools.com

Tip selection

Remember to select the biggest tip possible for your application: Ø inside tip > Ø Pin.

Solder Collector

2. Insert the new tip and follow the same

steps conversely.

Important:

Change tips only when the tool is hot. Do not hold the tip on the spring clamp.

Filter

Ref. 0008473

www.jbctools.com

12 13

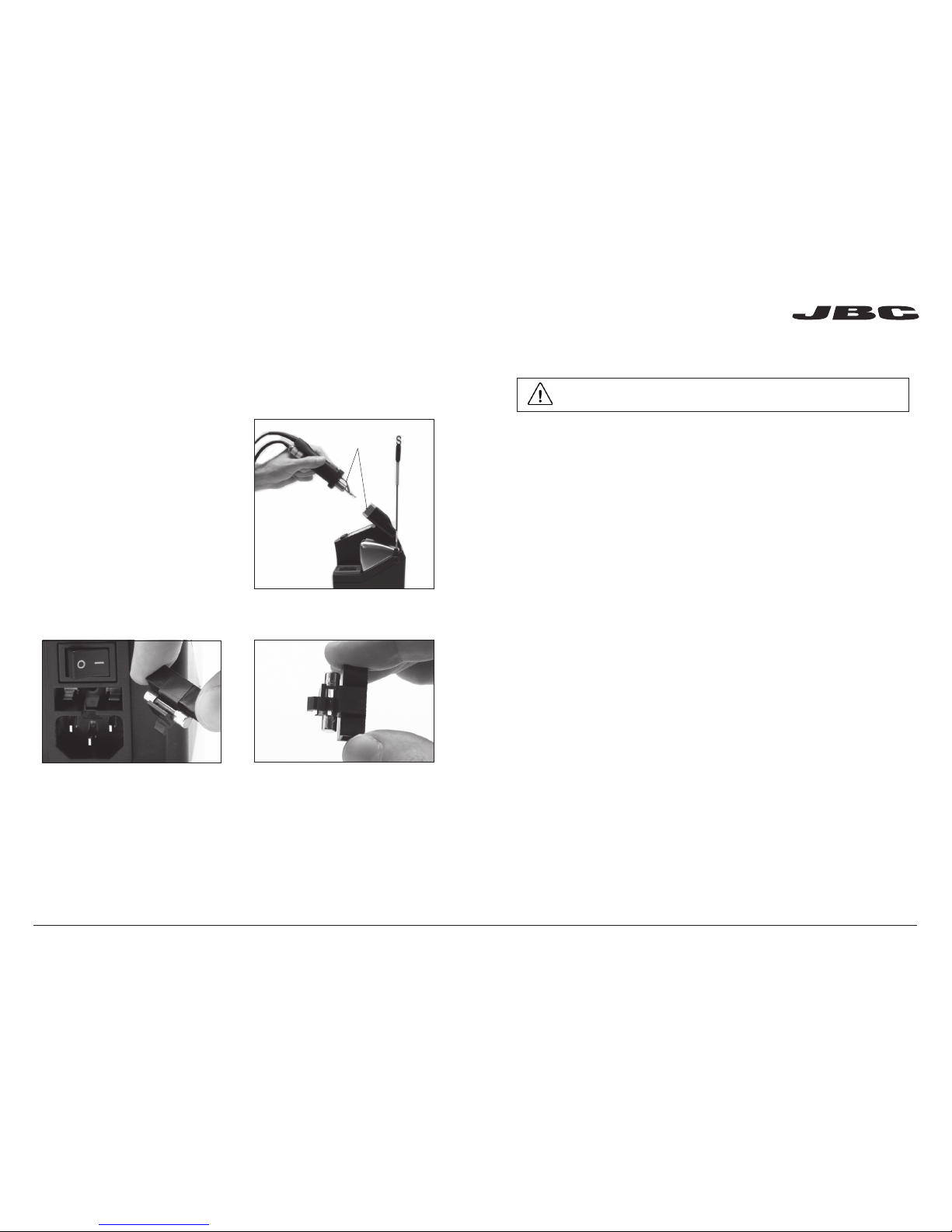

Before carrying out maintenance or storage, always allow the equipment to cool.

- Clean the station screen with a glass cleaner

or a damp cloth.

Remove the fuse by pulling the black cap.

If necessary use a tool to lever it off.

Press the new fuse into the holder and

replace it in the station.

Clean

periodically

- Use a damp cloth to clean the casing and

the tool. Alcohol can also be used when

cleaning the metal parts.

- Periodically check that the metal parts of

the tool/stand are clean so that the station

can detect when the tool is in the stand.

- Maintain tip surface clean and tinned prior

to storage in order to avoid tip oxidation.

Rusty and dirty surfaces reduce heat

transfer to the solder joint.

- Periodically check all cables, tubes and

filters to ensure proper solder suction.

Maintenance

- Replace a blown fuse as follows:

- Replace any defective or damaged pieces. Use original JBC spare parts only.

- Repairs should only be performed by a JBC authorized technical service.

It is imperative to follow safety guidelines to prevent electric

shock, injury, fire or explosion.

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause

fire.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded

before use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts. Antistatic handle of soldering irons is electrically

conductive.

- The tool should be placed in the stand when not in use in order to activate the sleep mode.

The soldering tip, the metal part of the tool and the stand may still be hot even when the station is

turned off. Handle with care, including when adjusting the stand position.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite even when

out of sight.

- Use a “non residue” classified flux and avoid contact with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protective glasses and gloves when

working to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced

physical, sensory or mental capabilities or lack of experience provided that they have been given

adequate supervision or instruction concerning use of the appliance and understand the hazards

involved. Children must not play with the appliance. Maintenance shall not be carried out by

children unless supervised.

Safety

CS-1D 120V 50/60Hz. Input fuse: 2A. Output: 23,5V.

CS-2D 230V 50/60Hz. Input fuse: 1A. Output: 23,5V.

CS-9D 100V 50/60Hz. Input fuse: 2A. Output: 23,5V.

- Weight: 2.8 Kg (6.2lb)

- Dimensions: 150 x 175 x 145 mm

- Temperature selection: 180-450°C (356-842°F)

- Output Peak Power: 40W

- Tip to ground resistance: <2 ohms

- Ambient operating temp: 10-40 ºC / 50-104 ºF

- USB connector station-PC

MS-A

- Weight: 1.2 Kg (2.6lb)

- Dimensions: 145 x 55 x 225 mm

- Vacuum: 75% / 570 mmHg / 22.4 inHg

- Flow rate: 9 SLPM

Comply with CE standards.

ESD protected housing “skin effect”.

www.jbctools.com

14 15

Specifications Exploded View

0014635-1014

Warranty

JBC’s 2 year warranty covers this equipment

against all manufacturing defects, including the

replacement of defective parts and labour.

Warranty does not cover product wear due to use

or mis-use.

In order for the warranty to be valid, equipment

must be returned, postage paid, to the dealer

where it was purchased.

This product should not be thrown in the garbage.

In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life

must be collected and returned to an authorized recycling facility.

www.jbctools.com

Ce manuel convient aux modèles suivants

Table des matières

Manuels pistolet à souder populaires d'autres marques

Bakon

Bakon 3200 Manuel utilisateur

Proxxon

Proxxon Gaslotset MGS Manuel utilisateur

HAKO

HAKO FX-8804 Manuel utilisateur

SATA

SATA 02002A Manuel utilisateur

Velleman

Velleman HRJA151 Manuel utilisateur

Weller

Weller WSM 1 Manuel utilisateur

Vishay Precision Group

Vishay Precision Group Micro-Measurements Mark V Instructions de montage

ersa

ersa i-CON 1V Manuel utilisateur

Hakko Electronics

Hakko Electronics FX-100 Manuel utilisateur

Weller

Weller WAD 101 Manuel utilisateur

Weller

Weller WXD 2 Manuel utilisateur

AlienTek

AlienTek T100 Manuel utilisateur

Atten

Atten ATETOOL AT-689A Manuel utilisateur

Surtek

Surtek 112554 Dimensions et guide d'installation

Parkside

Parkside PLBS 30 A1 Manuel utilisateur

BlackJack SolderWerks

BlackJack SolderWerks BK8000 Manuel utilisateur

Weller

Weller WX1 Manuel utilisateur

multicomp pro

multicomp pro MP740893 Manuel utilisateur

jbc CSV-2D Manuel utilisateur

Manuels pistolet à souder populaires d'autres marques
