Jbc ADS Manuel utilisateur

ADS / HDS / DNS

Stands for Handles

INSTRUCTION MANUAL

Stand Cable 1m ............ 1 unit

Ref. 0024227

Manual ............................. 1 unit

Ref. 0027177

Stand for T210 & T245

Handles ............................ 1unit

Stand for T470 Heavy Duty

Handles ............................ 1unit

Stand for T210N/T245N/T470N

Nitrogen Handles ............... 1unit

This manual corresponds to the following references:

AD-SF (for T210 & T245 Handles)

HD-SF (for T470 Heavy Duty Handles)

DN-SF (for T210N/T245N/T470N Nitrogen Handles)

Packing List

Sponge for Modular

Tool Stands ................... 1 unit

Ref. S7034

Brass Wool .................... 1 unit

Ref. CL6210

Box includes one stand according to purchased reference.

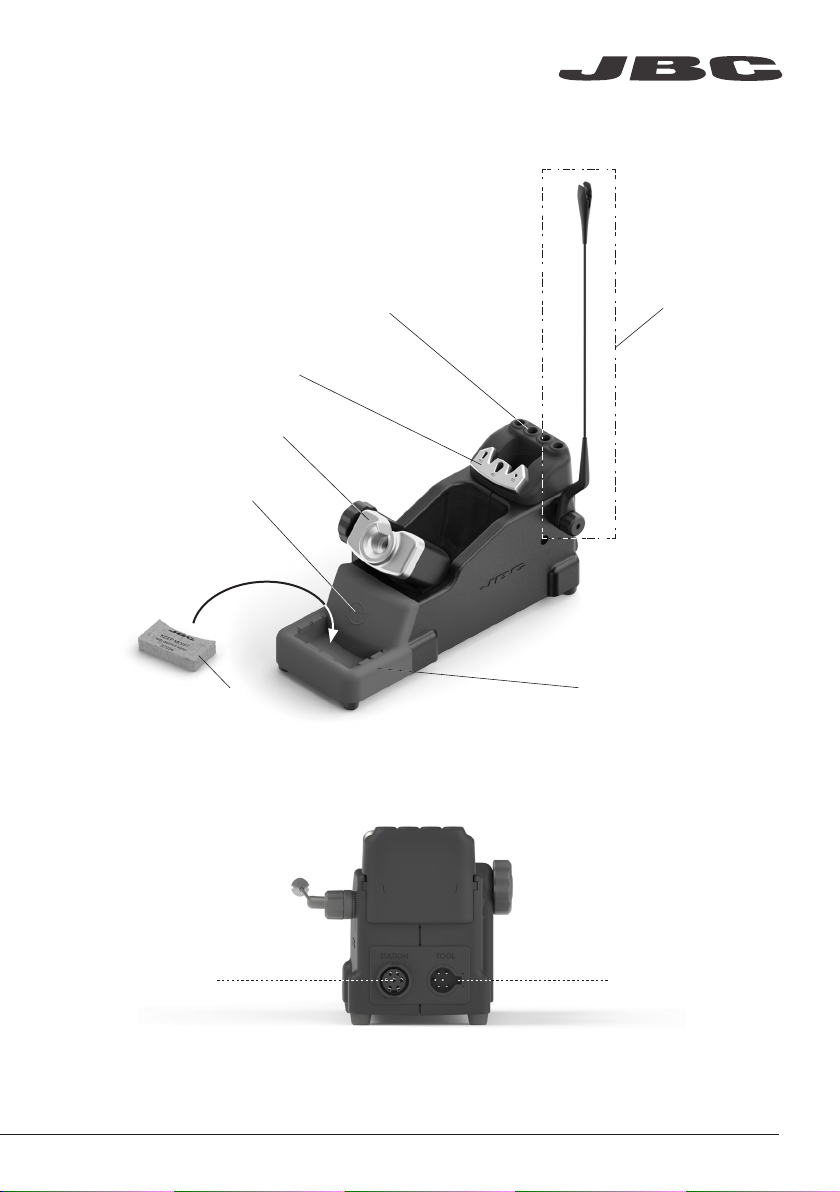

Features and Connections

To Tool

To Control Unit

(DIU, DDU or DMU)

Wiper for

Modular Tool Stand

Ref. CL7899

Adjustable

Cable Collector

Ref. CC1001

Quick Tip Changer

Cartridge Storage

Ajustable Tool Holder

Brass Wool

(inside)

Sponge

www.jbctools.com

DNS (T210N/T245N/T470N)

HDS (T470)

DNS (T210N/T245N/T470N)

HDS (T470)

DNS (T210N/T245N/T470N)

HDS (T470)

Cable Collector and Adjustable Tool Holder

Assembly

Adjust the tool holder angle to

suit the work position.

The wiper offers different ways to

clean the cartridge tips. If desired

use the included sponge.

Insert the cable into the cable

collector clip. Do not leave the

cable longer than necessary

to reach the work area freely.

The cable collector is flexible.

It accompanies and adapts

to the movements during the

soldering process.

DNS (T210N/T245N/T470N)

HDS (T470)

DNS (T210N/T245N/T470N)

HDS (T470)

DNS (T210N/T245N/T470N)

HDS (T470)

DNS (T210N/T245N/T470N)

HDS (T470)

DNS (T210N/T245N/T470N)

HDS (T470)

Quick Tip Changer

1. Removing 2. Inserting 3. Fixing

for ADS and DNS

Place the cartridge in the

extractor and pull the handle

to remove it.

Place the handle on top

of the new cartridge and

press the handle down.

Use the holes to fix the

cartridge as follows:

A. For curved C210

B. For C245

C. For straight C210

D. cartridge Storage rack

Save time and change cartridges safely without switching the station off. Be careful, the cartridges

may be hot, when placing them in the storage rack.

Ref. AD-SF

Ref. HD-SF

Loosen the handle screw.

Place the Soldering Iron with

the cartridge in the extractor

and pull the handle to remove

it.

Place the handle on top of the

new cartridge and press the

handle down.

1. Removing 2. Inserting

Handle Screw

Note: It is essential to insert the cartridge as far as the mark for

a proper connection.

Mark

Note: For T470 handles after

propper cartridge insertion as

far as the mark , tighten the

handle screw.

Handle Screw

3. Fixing

Mark

www.jbctools.com

DNS (T210N/T245N/T470N)

HDS (T470)

Tap gently to remove excess

solder.

Use the slots to remove the

remaining particles.

Wiper

Tapping Wiping Sponge

The softest cleaning method.

Keep the sponge damp with

distilled water when working to

avoid tip wear.

The integrated wiper offers different ways to clean the cartridge tips.

Nozzle Extraction

The quick tip changer area of DNS stand features both, one slot for cartridge exchange and one

for nozzle exchange. The nozzle exchange works as well as the cartridge exchange.

Use the fixings holes as described for the ADS on page 5.

Cartrige

Extraction Slot

Nozzle

Extraction Slot

Ref. DN-SF

Fixing Holes

Wiper and Brass Wool Replacement

Lift the wiper at its front edge.

The wiper and brass wool can easily be removed for cleaning or replacement when they are worn.

Remove the wiper by pulling

it out.

Replace the brass wool with

a new one when it is worn

out.

Place the wiper back o replace

them if desired.

Accessories

Stand Extension Cable

Ref. A1286

Length: 1.5m

Stand Cable

www.jbctools.com

Compatibility - Stand/Tool/Control Unit

Stands

ADS

for T210 & T245

Handles

HDS

for T470 Heavy

Duty Handles

DNS

for T210/T245/T470

Nitrogen Handles

Control

Units

Handles

DIU, DDU, DMU HDU DIU, DDU, DMU

T210

Presicion Handle

T210P

Blue Grip Precision Handle

T210N

Nitrogen Precision Purpose Handle

T245

General Purpose Handle

T245G

General Purpose Handle with Reinforced

Cable

T245P

Blue Grip General Purpose Handle

T245N

Nitrogen General Purpose Handle

T470

Heavy Duty Handle - 1.5m (4.9ft) cable.

T470S

Heavy DutyHandle - 3m (9.8ft) cable

T470F

Thermal Insulator Grip Heavy Duty Handle -

1.5m (4.9ft) cable

T470M

Thermal Insulator GripHeavy Duty Handle -

3m (9.8ft) cable

T470Z

Tri-Lobed Grip Heavy Duty Handle -

1.5m (4.9ft) cable

T470N

Nitrogen Heavy Duty Handle -

1.5m (4.9ft) cable

Clean periodically

Maintenance

Before carrying out maintenance or storage,

always unplug the stand from the station and

the tool.

- Use a damp cloth to clean the stand. Alco-

hol can be used only when cleaning the metal

parts.

- Check periodically that the metal parts of the

tool/stand are clean so that the station can

check the tool’s status.

- Periodically check all cables and tube con-

nections.

- Replace any defective or damaged parts. Use

original JBC spare parts only.

- Repairs should only be performed by a JBC

authorized technical service.

www.jbctools.com

Safety

- Do not use the stands for any purpose other than soldering or rework.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded before

use. When unplugging it, hold the plug, not the wire.

- The tool should be placed in the stand when is not in use in order to activate the sleep mode. The

soldering tip, the metal part of the tool and the stand may still be hot even when the station is turned

off. Handle with care, including when adjusting the stand position.

- Avoid the contact of flux with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working

to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced physical,

sensory or mental capabilities or lack of experience provided that they have been given adequate

supervision or instruction concerning use of the appliance and understand the hazards involved.

Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

It is imperative to follow safety guidelines to prevent electric

shock, injury, fire or explosion.
