=Power Connections

The unit is supplied with a power plug appropriate to its voltage and destination.

Should any other connections be required they must be carried out with the following.

Power AC 120V~60Hz AC 230/240/250V~50/60Hz

Earth Green cable Green/Yellow cable

Neutral White cable Blue cable

Live Black cable Brown cable

Technical Specifications

Power AC 120V~60Hz AC 230/240/250V~50/60Hz

Breaker 10A(AK-250)/7A(AK-150)

Lamps MSD 250/2(AK-250) / CDM-T150(AK-150)

Dimension 380mm x 240mm x 460mm / 15in x 9.5in x 18.2in(AK-250)

333mm x 200mm x 330mm / 13.2in x 7.9in x13in (AK-150)

Weight 25 kg / 55 lbs (AK-250) / 9.6 kg / 21.3 lbs(AK-150)

WWW.JBSYSTEMS.BE

Architectural Lighting

Professional Lighting Technology

AKI COLOR

User Guide

Please read these instructions carefully before use

TABLE OF CONTENTS

1. Safety Instruction

2. Technical Specification

3. How To Install The Unit

3.1 Lamp

3.2 How To Install The Unit On The Floor

4. How To Set The Unit

4.1 Control Panel

4.2 Main Function

5. How To Control The Unit

5.1 By master/slave preprogrammed function

5.2 By Akicolor Processor (AK-1) controller

5.3 By universal DMX Controller

5.4 DMX512 Configuration

5.5 DMX512 Connection

6. Troubleshooting

7. Fixture Cleaning

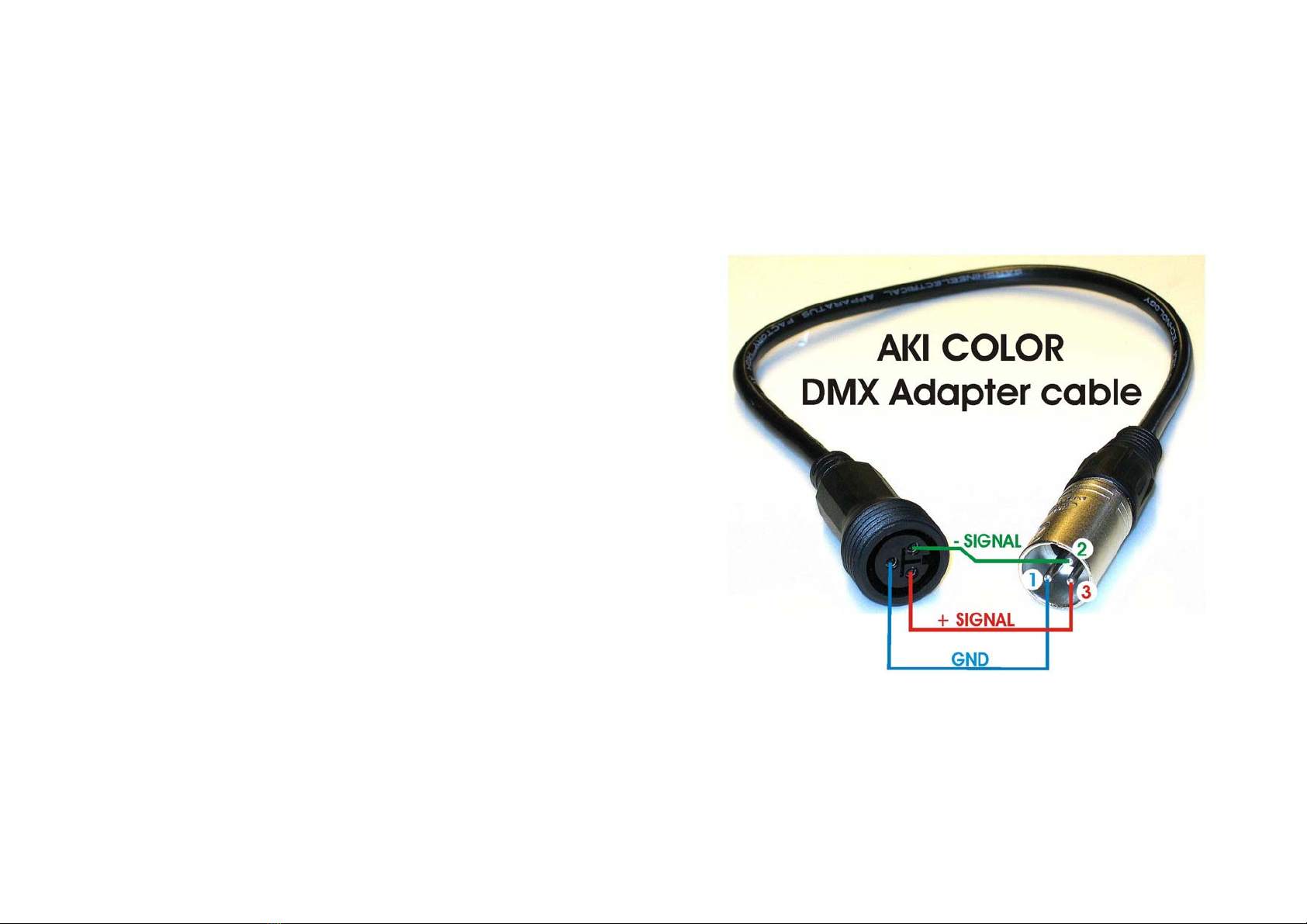

Transition cable from the IP44 connector to a standard DMX-cable

7. Fixture Cleaning

The cleaning of internal and external optical lenses and/or mirrors must be carried out

periodically to optimize light output. Cleaning frequency depends on the environment in which

the fixture operates: damp, smoky or particularly dirty surrounding can cause greater

accumulation of dirt on the unit’s optics.

yClean with soft cloth using normal glass cleaning fluid.

yAlways dry the parts carefully.

yClean the external optics at least every 20 days. Clean the internal optics at least every

30/60 days.

EC Declaration of Conformity

We declare that our products (lighting equipments) comply with the following

specification and bears CE mark in accordance with the provision of the

Electromagnetic Compatibility (EMC) Directive 89/336/EEC.

EN55014-2: 1997 A1:2001, EN61000-4-2: 1995; EN61000-4-3:2002;

EN61000-4-4: 1995; EN61000-4-5: 1995, EN61000-4-6:1996,

EN61000-4-11: 1994.

Harmonized Standard

EN60598-1: 2000+ALL:2000+A12:2002

Safety of household and similar electrical appliances

Part 1 : General requirements

1. Safety Instruction

WARNING

zPlease keep this User Guide for future consultation. If you sell the unit to another user,

be sure that they also receive this instruction booklet.

zUnpack and check carefully there is no transportation damage before using the unit.

zBefore operating, ensure that the voltage and frequency of power supply match the

power requirements of the unit.

zThe unit is designed for use with the MSD250W or CDM-T150W. Do not use any other

type of lamp.

zIt’s important to ground the yellow/green conductor to earth in order to avoid electric

shock.

zThe unit must be installed in a location with adequate ventilation, at least 100 cm from

adjacent surfaces. Be sure that no ventilation slots are blocked.

zDisconnect main power before fuse/lamp replacement or servicing.

zReplace fuse/lamp only with the same type.

zMake sure there is no flammable materials close to the unit while operating as it is fire

hazard.

zDon’t handle the unit by taking its head only, but always by taking its base.

zMaximum ambient temperature is TA: 50℃. Don’t operate it at where the temperature

is higher than this.

zUnit surface temperature may reach up to 85℃. Don’t touch the housing bare-hand

during its operation, and allow about 15 minutes to cool down before replacing bulb or

serving, as the unit could be very hot.

zIn the event of serious operating problem, stop using the unit immediately. Never try to

repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or

malfunction. Please contact the nearest authorized technical assistance center. Always

use the same type spare parts.

zDon’t connect the device to any dimmer pack.

zDo not touch any wire during operation as high voltage might be causing electric shock.

zPlease use 4mm allen wrench to loose the screw of the arm before you adjust the head

angle.

Please read carefully the instruction, which includes important

information about the installation, usage and maintenance.

4D -

2. Technical Specification

Power supply

- AC 120V ~ 60Hz / 230v ~ 50Hz

Lamp

-MSD 250W (AK-250) / CDM-T150W (AK-150)

Optical system

- Standard 45°(AK-250) /30°(AK-150) frost beam angle.

- Frost lens

- Vertical, manual head adjusting range: 270°.

Color wheel

- 2 reliable 1-ch. DMX architectural color changers ideal for the illumination of buildings,

shopping centers, outdoor advertisements, exhibitions, etc.

- Good protection, IP55, against liquid and dust, enables the fixtures to function well in

unfavorable weather conditions.

- Features 2 dichroic color wheels providing blackout and 16 different colors.

- Automatic switching between DMX and Master/ Slave mode. Akicolors can be linked

together without a quantity limit.

DMX Channels

- DMX address can be set remotely by AK-1 controller.

- Synchronous color changing in Master/Slave linkage with adjustable changing speed.

Dimension: 380mm x 240mm x 460mm / 15in x 9.5in x 18.2in(AK-250)

333mm x 200mm x 330mm / 13.2in x 7.9in x13 in(AK-150)

Weight: 25 kg / 55 lbs(AK-250) / 9.6 kg / 21.3 lbs(AK-150)

Beam angle:

6. Troubleshooting

Following are a few common problems that may occur during operation. Here are

some suggestions for easy troubleshooting:

A. The unit does not work, no light

1. Check the connect power and circuit breaker.

2. Measure the mains voltage on the main connector.

B. Not responding to DMX controller

1. Check DMX connectors, cables to see if link properly.

2. Check the address settings and DMX polarity.

3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of

the unit or the previous one.

4. Try to use another DMX controller.

5. Check in the DMX cables run near or run alongside to high voltage cables that may cause

damage or interference to DMX interface circuit.

C. One of the channels is not working well

1. The stepper motor might be damaged or the cable connected to the PCB is broken.

2. The motor’s drive IC on the PCB might be out of condition.

D. The lamp is cutting out intermittently

1. The lamp is not working well. Check the main voltage either too high or too low.

2. Internal temperature may be too high.

3. Check and if necessary replace the lamp on the head.

5.5 DMX512 Connection

The DMX512 is widely used in intelligent lighting control, with a maximum of 512 channels.

1. If you use a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable.

2. At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W

resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the

DMX-output of the last unit.

3. Connect the unit together in a “daisy chain“ by XLR plug from the output of the unit to the

input of the next unit. The cable can not be branched or split to a “Y“ cable. DMX512 is a

very high-speed signal. Inadequate or damaged cables, soldered joints or corroded

connectors can easily distort the signal and shut down the system.

4. If one fixture in the chain is not working all the fixtures after that point will continue to work

normally because the DMX signal will always pass through each fixture.

5. Each lighting unit needs to have an address set to receive the data sent by the controller.

The address number is between 0-511 (usually 0 & 1 are equal to 1).

6. The end of the DMX512 system should be terminated to reduce signal errors.

7. 3 pin XLR connectors are more popular than 5 pin XLR.

3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

5 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+)

3. How To Install The Unit

3.1 Lamp

Lamp:

MSD 250/2 (AK-250)

CDM-T150 (AK-150)

1. Always switch off the main supply and never handle the lamp or luminaries when is

hot.

2.Do not touch the bulb with bare hands. If this happens, clean the lamp with denatured

alcohol and wipe it with a lint free cloth before installation.

3. Never operate the lamp without appropriate shielding.

4. Make sure the lamp is located in the center for the best spot.

Diagram for Lamp changing

AK-250 AK-150

In case of replacement of the lamp or maintenance, do not open the

fixture within 15 minutes until the unit cools down after switching off.

3.2 How To Install The Unit On The Floor

1. Disconnect from main power before making any type of connection.

2. Screw the foot bracket (A) to the unit.

3. Refer to the unit’s foot bracket hole pattern (B) to set the bolts (C) into the floor and screw

the unit.

4. Conjunction the unit’s power supply cord to the mains power supply (D). Be sure that the

local power outlet match that of the required voltage for your unit.

5. If you have another unit, to link the unit together, please refer to chapter 5.3 DMX512

Connection .

Chase pattern:

Pattern 1 Changing colors at random, all units with same color

Pattern 2 Group changing colors – one by one

Pattern 3 Group changing colors – two by two

Pattern 4 Group changing colors – four by four

Pattern 5 Group changing colors – eight by eight

Pattern 6 Group changing colors – 16 by 16

Pattern 7 Color chasing – one after one fixture in sequence

Pattern 8 Color chasing – 2 after 2 in sequence

Pattern 9 Color chasing – 4 after 4 in sequence

Pattern 0 Color chasing – 8 after 8 in sequence

5.3 By universal DMX Controller

If you use a universal DMX controller to control the units, you have to set DMX address from

1 to 512 channel so that the units can receive DMX signal.

Press the MENU button up to when the is showing on the display. Pressing ENTER

button and the display will light on. Use “-“ and “+“ button to change the DMX512 address.

Once the address has been selected, press ENTER button to storing the setting. To go back

to the functions without any change press the MENU button again. Please refer to the

following diagram to address your DMX512 channel for the units.

5.4 DMX512 Configuration

5.1 By master/slave preprogrammed function

By linking the units in master/slave connection, the first unit will control the other units to give

an automatic sound activated synchronized light show. This function is good when you want

an instant show. You will know which unit is the master because its DMX input jack will have

nothing plugged into it.The other units (slaves) will have DMX cables plugged into the DMX

input jacks (daisy chain).

5.2 By Akicolor Processor (AK-1) controller

If you use a AK-1 controller to control the units, you have to set DMX address from 1

to 512 channel so that the units can receive DMX signal .

Hold down the BLACKOUT button, and select the number button to set lighting amount in the

chain; when you set the fixtures amount, the DMX address of each light will be set

automatically.

AK-1 function instructions:

1. Blackout Blackout the fixtures.

2. Chase Press the button for select chase patterns with three modes.

1. One way mode (LED on)

2. Loop mode (LED fast blinking).

3. Manual mode (LED slow blinking).

Regarding for more details, please refer to AK-1 user guide.

3. Hold Press the 10 buttons for color selection.

4. Speed / color Slider Adjust chase speed from fast to slow or select colors within

the value range 0-255.

5. Color / number buttons The buttons for selecting color on White / Red / Orange /

Yellow / Amber / Green / Cyan / Blue / Purple / Pink or

selecting chase patterns 1~10.

4. How To Set The Unit

4.1 Control Panel

1. Display

To show the various menu and the selected functions .

2. Button

MENU To select the programming functions

VAL - To set DMX address value down

VAL + To set DMX address value up

ENTER To confirm the selected functions

3. DMX input/output

For DMX512 link, use 3-pin XLR plug cable to link the unit together.

4.2 Main Function

To select any of the given functions, press the MENU button up to when the required one is

showing on the display. Select the function by ENTER button and the display will light on. The

main functions are showing below:

DMX512 Address Setting

Press the MENU button up to when the is showing on the display. Pressing ENTER

button and the display will light on. Use “-“ and “+“ button to change the DMX512 address.

Once the address has been selected, press the ENTER button to setup the DMX address. To

go back to the functions without any change press the MENU button again.

ShowMode

Press the MENU button up to when the is showing on the display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to select the (show 1) or

(show 2) or (show 3) or (show 4) mode. Once the mode has been

selected, press the ENTER button to setup or automatically return to the main functions

without any change after 8 seconds. To go back to the functions without any change press

the MENU button again.

Show 1 mode - Change color 5 seconds.

Show 2 mode - Change color 10 seconds.

Show 3 mode - Change color 20 seconds.

Show 4 mode - Change color 1 minute.

Blackout Mode

Press the MENU button up to when the is showing on the display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to select the (yes

blackout) or (no blackout) mode. Once the mode has been selected, press the

ENTER button to setup or automatically return to the main functions without any change after

8 seconds. To go back to the functions without any change press the MENU button again.

Led Display

Press the MENU button up to when the is showing on the display. Pressing ENTER

button and the display will blink. Use DOWN and UP button to select the (Led on) or

(Led off) mode. Once the mode has been selected, press the ENTER button to

setup or automatically return to the main functions without any change after 8 seconds. To go

back to the functions without any change press the MENU button again.

Focus Adjust

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button, the unit will focus on different color each time you press ENTER button. To go back to

the functions press the MENU button again.

Self-Test

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the unit will run self-test by built in program. To go back to the functions press the

MENU button again.

Fixture Hours

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and the display will show the number of working hours of the unit. To go back to the

functions press the MENU button again.

Reset

Press the MENU button up to when the is blinking on the display. Pressing ENTER

button and all channels of the unit will return to their standard position. To go back to the

functions press the MENU button again.

5. How To Control The Unit

You can operate the unit in three ways:

1. By master/slave built-in preprogram function

2. By Akicolor Processor (AK-1) controller

3. By Universal DMX Controller

No need to turn the unit off when you change the DMX address, as new DMX address setting

will be effected at once. Every time you turn the unit on, it will show “A250“ or “A150“ on the

display and move all the motors to their ‘home’ position and you may hear some noises for

about 20 seconds. After that the unit will be ready to receive DMX signal.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels JB Systems Équipement d'éclairage

JB Systems

JB Systems Space 3 Manuel utilisateur

JB Systems

JB Systems CAM-SPOT 50TW Manuel utilisateur

JB Systems

JB Systems Gobo Sweeper Manuel utilisateur

JB Systems

JB Systems Genius-2 LED Manuel utilisateur

JB Systems

JB Systems Atom LED Manuel utilisateur

JB Systems

JB Systems Led Strobe Manuel utilisateur

JB Systems

JB Systems World star Color ball Manuel utilisateur

JB Systems

JB Systems Gobo Flower Manuel utilisateur

JB Systems

JB Systems LED Fire Basket Manuel utilisateur

JB Systems

JB Systems CAM-SPOT 30TW Manuel utilisateur

JB Systems

JB Systems LED Par 56 Manuel utilisateur

JB Systems

JB Systems Andromeda Manuel utilisateur

JB Systems

JB Systems Water Wave Manuel utilisateur

JB Systems

JB Systems LED Flower Manuel utilisateur

JB Systems

JB Systems Lynx II LED Manuel utilisateur

JB Systems

JB Systems LED-UV212 black light Manuel utilisateur

JB Systems

JB Systems SOLAR LED Manuel utilisateur

JB Systems

JB Systems Smooth Scan-Blue Manuel utilisateur

JB Systems

JB Systems m-Quantium Laser Manuel utilisateur

JB Systems

JB Systems LED Quadra Beam Manuel utilisateur

JB Systems

JB Systems Invader Manuel utilisateur

JB Systems

JB Systems KALEIDO Manuel utilisateur

JB Systems

JB Systems DUALSCAN Manuel utilisateur

JB Systems

JB Systems iCOLOR4 Mk2 Manuel utilisateur

Manuels Équipement d'éclairage populaires d'autres marques

Brizo

Brizo 8SP-MU-4 Manuel utilisateur

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuel utilisateur

IKEA

IKEA BJÖRKSPIREA Manuel utilisateur

Laserworld

Laserworld Evolution Series ES-400RGB Manuel utilisateur

Alien

Alien RG STAR Manuel utilisateur

EuroLite

EuroLite LED B-40 Manuel utilisateur

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuel utilisateur

Commercial Electric

Commercial Electric 54568141 Manuel utilisateur

CREE LIGHTING

CREE LIGHTING 304 Series Manuel utilisateur

Goobay

Goobay 49867 Manuel utilisateur

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuel utilisateur

Alkalite

Alkalite Krypton KT-81 Manuel utilisateur

Clas Ohlson

Clas Ohlson GU10 Manuel utilisateur

DTS

DTS DELTA 10 F Manuel utilisateur

ring

ring Solar Steplight Manuel utilisateur

One Stop Gardens

One Stop Gardens 57696 Instructions de montage

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuel utilisateur

SIREM

SIREM Swimeo A2 Manuel utilisateur
