ENGLISH USER MANUAL

JB SYSTEMS®1/11 PIXEL PIPE

OPERATION MANUAL

Thank you for buying this JB SYSTEMS®product. To take full advantage of all possibilities and for your own

safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

•Perfect for use in: retail stores, commercial displays, architectural lighting, indoor decoration, clubs, pubs,

mobile DJs, trussing, ...

•Equipped with 32 x RGB SMD5050 LEDs divided in 8 sections.

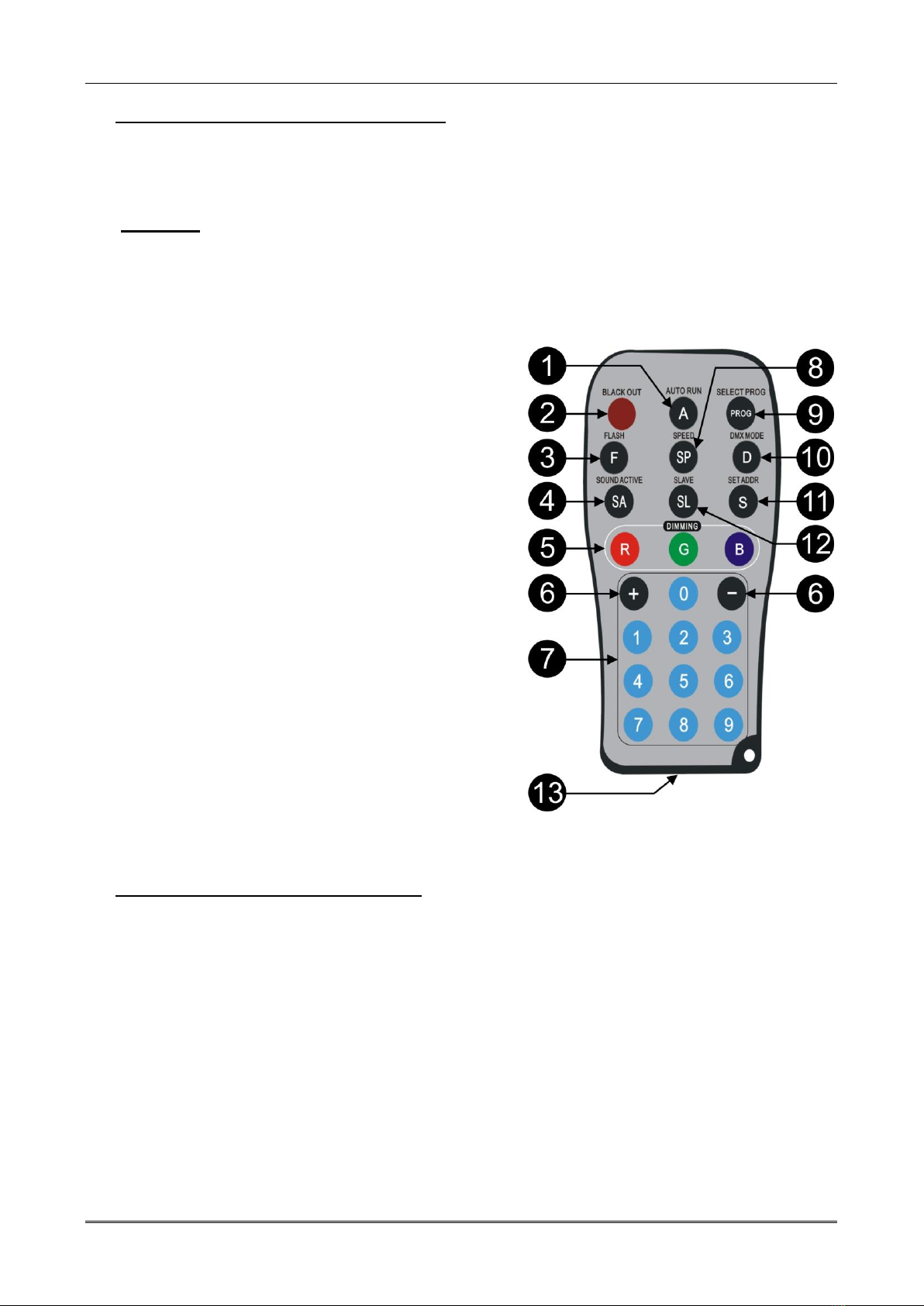

•IR-remote controller included

•Different working modes:

•Standalone with IR-remote: automatic / beat synchronized color patterns.

•Master/slave mode: several tubes can be used together for wonderful preprogrammed, music

synchronized lightshows.

•DMX-controlled: 3 different channel modes (3,7 and 24ch) with program selection and individual

RGB control.

•Low power consumption : only 12W

•For indoor use only.

•0-100% dimming and strobe function.

•4digit LED-display for easy menu navigation

•Tripod stand

BEFORE USE

•Before you start using this unit, please check if there’s no transportation damage. Should there be any, do

not use the device and consult your dealer first.

•Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary

for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused

by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects

or problems caused by disregarding this user manual.

•Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user

manual.

Check the contents:

Check that the packing contains the following items:

•Operating instructions

•PIXEL PIPE + tripod

•IR Remote control

•Power Cable

ENGLISH USER MANUAL

JB SYSTEMS®2/11 PIXEL PIPE

SAFETY INSTRUCTIONS:

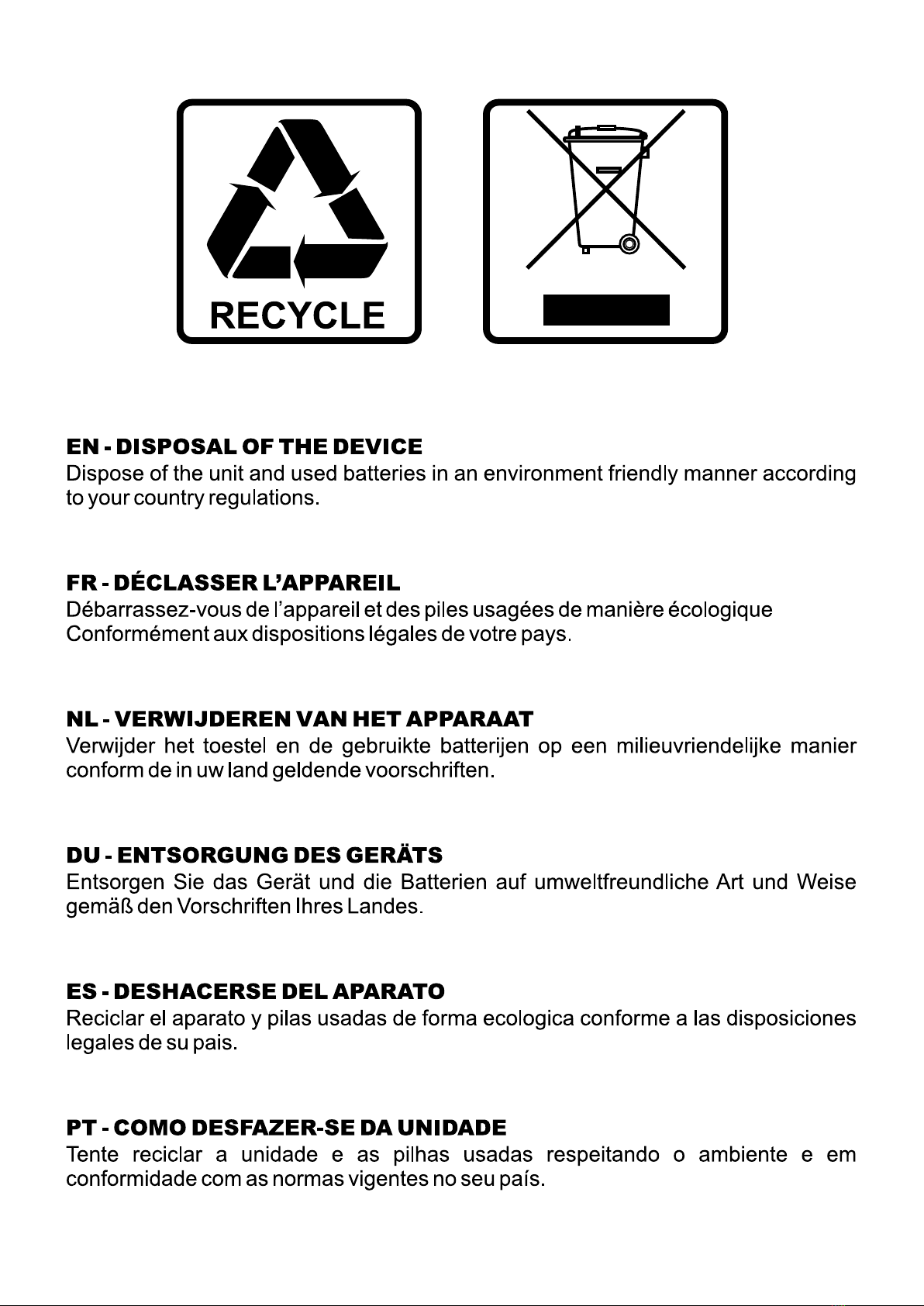

•To protect the environment, please try to recycle the packing material as much as possible.

•To prevent fire or shock hazard, do not expose this appliance to rain or moisture.

•To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when

bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full

performance or may even cause damages.

•This unit is for indoor use only.

•Don’t place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign

object enters the unit, immediately disconnect the mains power.

•Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture

must be fixed at least 50cm from surrounding walls.

•Don’t cover any ventilation openings as this may result in overheating.

•Prevent use in dusty environments and clean the unit regularly.

•Keep the unit away from children.

•Inexperienced persons should not operate this device.

•Maximum safe ambient temperature is 40°C. Don’t use this unit at higher ambient temperatures.

•Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging

and servicing.

•Allow the device about 10 minutes to cool down before to start servicing.

•Always unplug the unit when it is not used for a longer time or before to start servicing.

•The electrical installation should be carried out by qualified personal only, according to the regulations for

electrical and mechanical safety in your country.

•Check that the available voltage is not higher than the one stated on the unit.

•The power cord should always be in perfect condition. Switch the unit immediately off when the power cord

is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

•Never let the power-cord come into contact with other cables!

•This fixture must be earthed in order to comply with safety regulations.

•Don’t connect the unit to any dimmer pack.

•Always use an appropriate and certified safety cable when installing the unit.

•In order to prevent electric shock, do not open the cover. There are no user serviceable parts inside.

•Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same

type and electrical specifications!

•In the event of serious operating problems, stop using the fixture and contact your dealer immediately.

•The housing and the lenses must be replaced if they are visibly damaged.

•Please use the original packing when the device is to be transported.

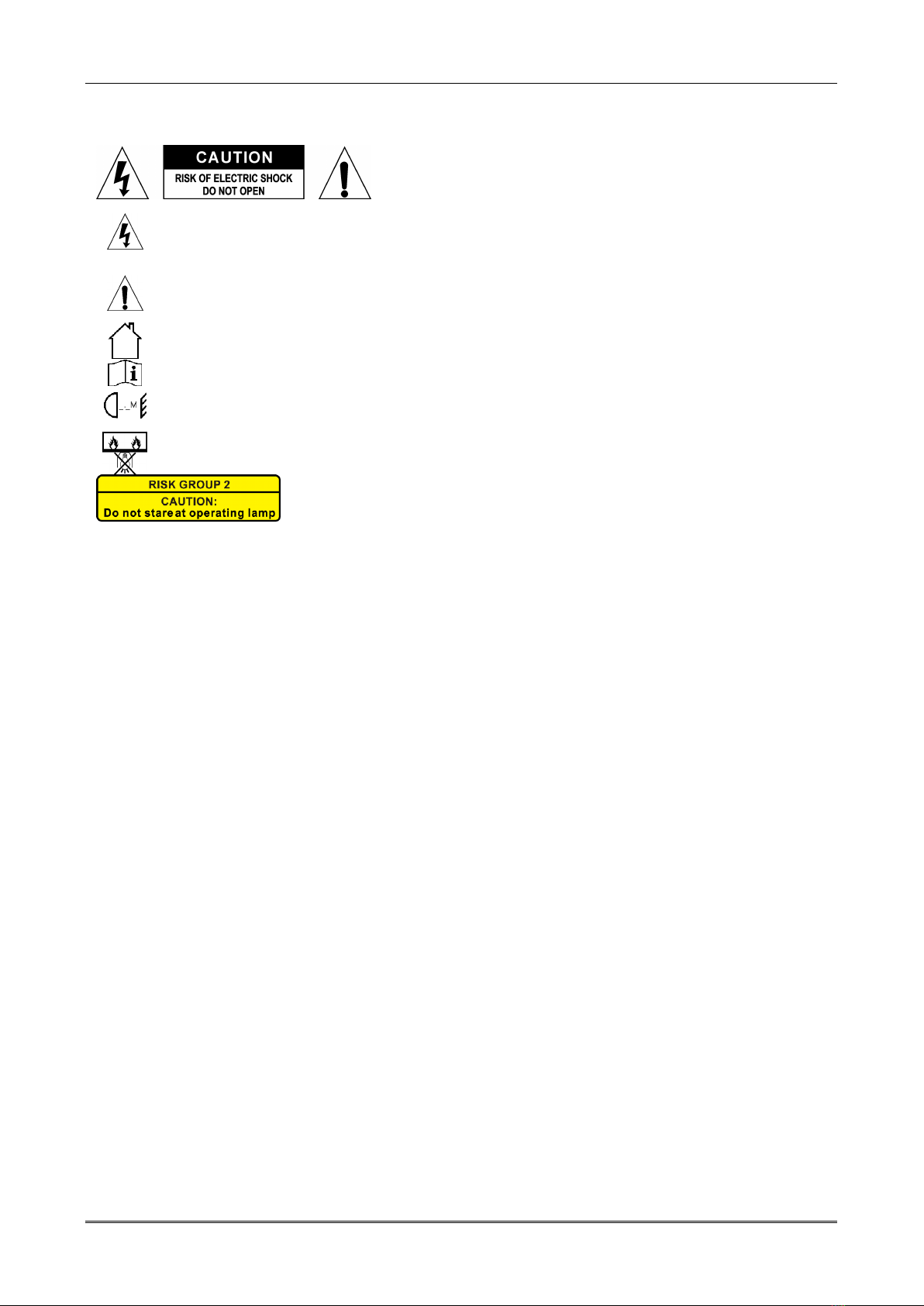

CAUTION: To reduce the risk of electric shock, do not remove

the top cover. No user-serviceable parts inside. Refer servicing

to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the

use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may

be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence

of important operation and maintenance (servicing) instructions in the literature accompanying

this appliance.

This symbol means: indoor use only

This symbol means: Read instructions

This symbol determines: the minimum distance from lighted objects. The minimum distance

between light-output and the illuminated surface must be more than x meters

The device is not suitable for direct mounting on normally flammable surfaces. (suitable only for

mounting on non-combustible surfaces)

CAUTION: Do not stare at operating lamp.

May be harmful to the eyes.

ENGLISH USER MANUAL

JB SYSTEMS®3/11 PIXEL PIPE

•Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering

from epilepsy.

DESCRIPTION:

1. [MODE] button: used to browse the different functions in the menu

2. ▲button: to go up in the menu and/or increase the values shown on the display.

3. ▼button: to go down in the menu and/or lower the values shown on the display.

4. DISPLAY shows the various menus and the selected functions.

5. Mains input/output: cable with Male and Female IEC sockets, connect the supplied mains cable here.

Connect the female output to the next fixture (max. 6A)

6. DMX input/output: cable with Male and Female 3pin XLR-connectors used to connect the tube with the

previous or next unit in the DMX chain.

OVERHEAD RIGGING

•Important: The installation must be carried out by qualified service personal only. Improper

installation can result in serious injuries and/or damage to property. Overhead rigging requires

extensive experience! Working load limits should be respected, certified installation materials

should be used, the installed device should be inspected regularly for safety.

•Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging

and servicing.

•The device should be installed out of reach of people and outside areas where persons may walk by or be

seated.

•Before rigging, make sure the installation can hold a minimum point load of 10times the device’s weight.

•Always use a certified safety cable that can hold 12times the weight of the device when installing the unit.

This secondary safety attachment should be installed in a way that no part of the installation can drop

more than 20cm if the main attachment fails.

•The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!

•Don’t cover any ventilation openings as this may result in overheating.

•The operator has to make sure that the safety-relating and machine-technical installations are approved by

an expert before using them for the first time. The installations should be inspected every year by a skilled

person to be sure that safety is still optimal.

ENGLISH USER MANUAL

JB SYSTEMS®4/11 PIXEL PIPE

ELECTRICAL INSTALLATION

Important: The electrical installation should be carried out by qualified personal only,

according to the regulations for electrical and mechanical safety in your country.

Electrical installation for 1 standalone unit:

•Insert the mains cable. The unit starts working immediately in the last selected mode.

•Refer to chapter HOW TO SETUP to learn how to switch between the different working modes.

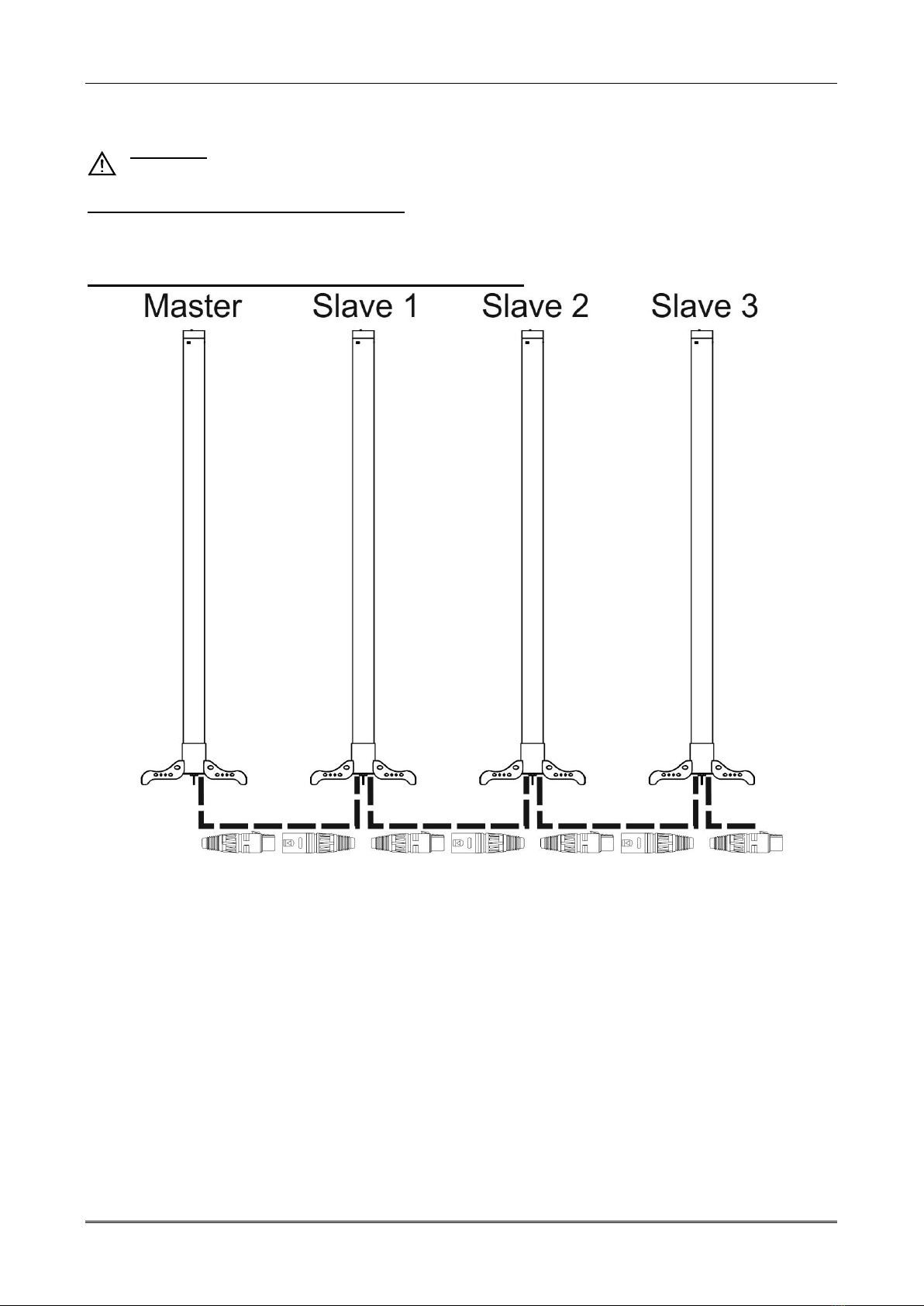

Electrical installation for two or more units in master/slave:

•Connect several units together using good quality balanced microphone cables. The unit that has no

cable connected to its DMX-input is the “master”, the others are the slave units.

•Make sure that all units are connected to the mains.

•Refer to chapter HOW TO SETUP for more information.

•Done!

ENGLISH USER MANUAL

JB SYSTEMS®5/11 PIXEL PIPE

Electrical installation for two or more units in DMX-mode:

•The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to

“daisy chain” your DMX controller and all the connected units with a good quality

balanced cable.

•To prevent strange behavior of the light effects, due to interferences, you must use

a 90Ω to 120Ω terminator at the end of the chain. Never use Y-splitter cables, this

simply won’t work!

•Make sure that all units are connected to the mains.

•Each light effect in the chain needs to have its proper start address so it knows which commands from

the controller it has to decode. In the section HOW TO SETUP you will learn how to set the DMX

addresses. If for example you use the 3 channel DMX mode, a possible address setup could be: unit1 =

001 ~ unit2 = 004 ~ unit3 = 007 ~ unit4 = 010 ~ etc.

ENGLISH USER MANUAL

JB SYSTEMS®6/11 PIXEL PIPE

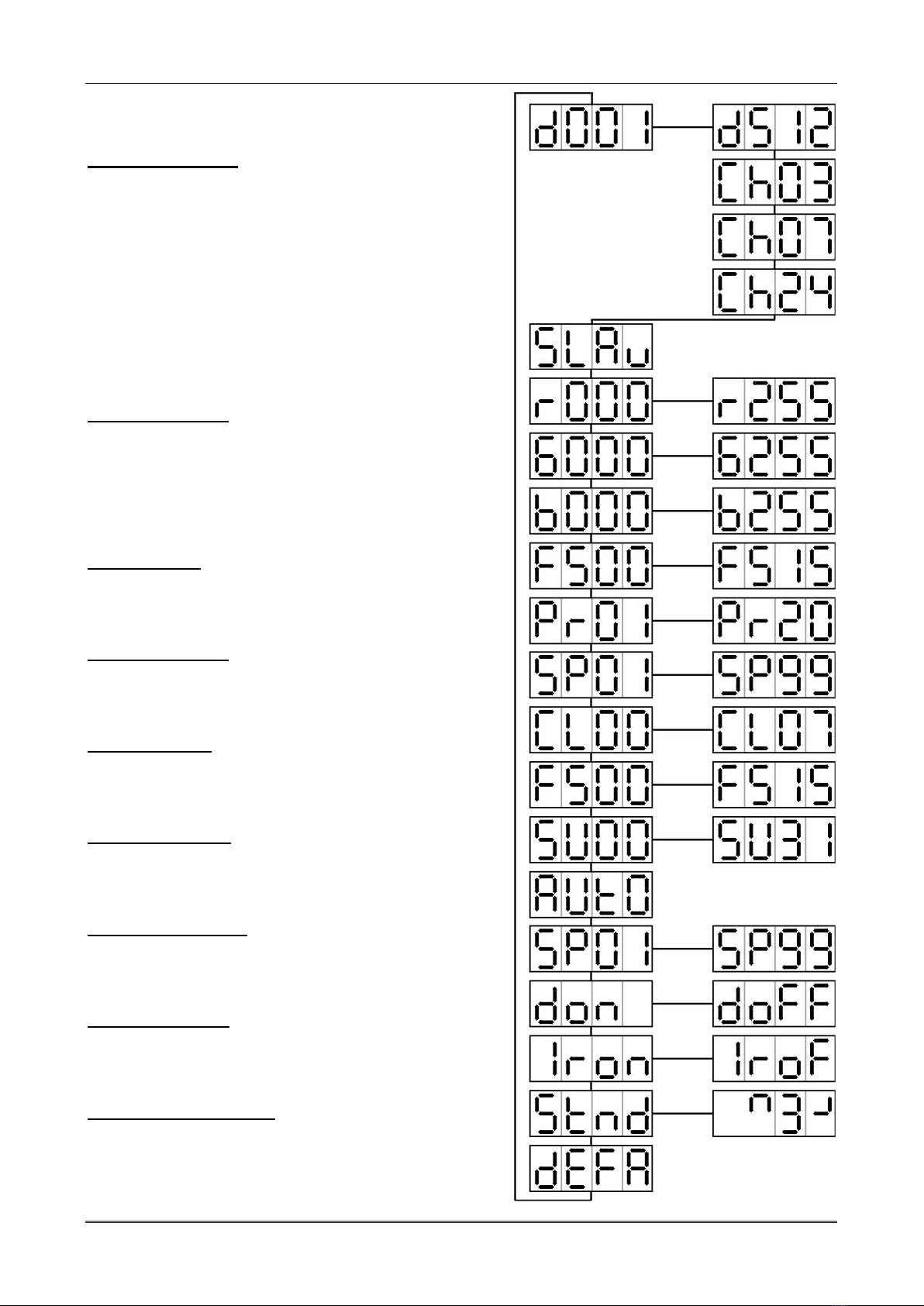

HOW TO SETUP:

DMX/Channel Mode:

The unit has 3 different channel modes, refer to the

DMX-chart to see the differences.

•Press the [MODE] button until [d001…d512] is shown on

the display.

•Press the ▲ or ▼ button to set the desired DMX

address.

•Press the [MODE] button to select the address and go to

channel mode.

•Use ▲ and ▼ buttons to select one of the available

channel modes. (3,7 or 24CH)

•Once the mode is selected, press the [MODE] button to

confirm.

[SLAu] Slave Mode

The first projector in the chain should be set in sound or

program mode , all the other projectors have to be in Slave

mode.

•Press the [MENU] button.

•Press the ▲ or ▼ button until [SLAu] is shown on the

display.

[r000-r255] Red

Use this function to put the fixture in fixed RED color.

Use the ▲ or ▼ buttons for dimming between 0% (000) and

100% (255).

[G000-G255] Green

Use this function to put the fixture in fixed GREEN color.

Use the ▲ or ▼ buttons for dimming between 0% (000) and

100% (255).

[b000-b255] Blue

Use this function to put the fixture in fixed BLUE color.

Use the ▲ or ▼ buttons for dimming between 0% (000) and

100% (255).

[FS00-FS15] Strobe

Use this function for strobe effect.

Use the ▲ or ▼ buttons for adjusting the speed between

slow (FS00) and fast (FS15).

[Pr01-Pr20] Programs

Use this function to choose an internal program.

Use the ▲ or ▼ buttons to select the desired program from

Pr01 to Pr20.

[SP01-SP99] Speed

Use this function to set the speed.

Use the ▲ or ▼ buttons to select the desired speed from

slow (SP01) to fast (SP99).

[CL00-CL07] Fixed colors

Use this function to select one of the seven build in fixed

colors. (CL00-CL07)

Use the ▲ or ▼ buttons to select the desired color.

ENGLISH USER MANUAL

JB SYSTEMS®7/11 PIXEL PIPE

[FS00-FS15] Strobe

Use this function for strobe effect.

Use the ▲ or ▼ buttons for adjusting the speed between slow (FS00) and fast (FS15).

[SU00-SU32] Sound mode

Use this function to activate the sound mode..

Use the ▲ or ▼ buttons for adjusting the sensitivity between not (SU00) and very sensitive (SU31).

[AUtO] Automatic mode

Use this function to put the fixture in an automatic running mode.

[SP01-SP99] Speed

Use this function to set the speed.

Use the ▲ or ▼ buttons to select the desired speed from slow (SP01) to fast (SP99).

[don-doFF]

This function leaves the display on or off during use.

Use the ▲ or ▼ buttons to select the desired mode:

[don] : display on.

[doff] : display off.

[Iron-IroF]

This function is used to enable or disable the IR remote control.

Use the ▲ or ▼ buttons to select the desired mode:

[don] : IR remote control enabled.

[doff] : IR remote control disabled.

[Stnd-rev]

This function is used to inverse the display.

Use the ▲ or ▼ buttons to select the desired mode:

[Stnd] : normal display.

[rev] : inversed display.

[dEFA]

This function is used to reset the fixture to its default factory settings.

Select [dEFA], the display is blinking.

Press the ▲ or ▼ buttons at the same time to reset the fixture to the default factory settings.

OPERATING INSTRUCTIONS

A. Standalone 1unit:

•Just connect the projector to the mains.

•Select one of the automatic, sound or static color modes

•Refer to chapter HOW TO SETUP to learn how to make the settings.

B. Two or more units in master/slave setup:

•Connect the units together. Refer to the chapter “electrical installation” to learn how to do this.

•Select one of the automatic, sound or static color modes on the master (the first projector in the DMX

chain)

•Set all the other projectors in SLAVE mode

•The projectors will now follow the program of the master projector so they all work synchronously.

NOTE: you can use the wireless remote controller to select the functions on the master unit. The slaves

will follow.

ENGLISH USER MANUAL

JB SYSTEMS®8/11 PIXEL PIPE

C. Controlled by the wireless remote controller:

To be able to use the wireless remote control, you need to enable this option in the projector:

•Press the [MODE] button until [Iron] or [IroF] is shown on the display.

•Use the ▼and ▲buttons to enable or to disable the remote control option ([Iron] = remote control

enabled, [IroF] = remote control disabled).

Functions:

1. [AUTO RUN]-button (A): used to start the build in programs in automatic mode.

2. [BLACKOUT]-button: used to switch the output ON/OFF

3. [FLASH]-button (F): used to switch the strobe function ON/OFF. First press the F-button, followed by

the ±buttons (6) to adjust the strobe speed.

4. [SOUND ACTIVE]-button (S): used to start the sound activated programs. With the ±buttons (6) you

can adjust the sensitivity.

5. [DIMMING]-buttons (RGB): press one of these buttons

to select the static custom color and adjust one of its color

components:

•Press the R-button: then use the ±buttons (6) to

adjust the red component in the custom color.

•Press the G-button: then use the ±buttons (6) to

adjust the green component in the custom color.

•Press the B-button: then use the ±buttons (6) to

adjust the blue component in the custom color.

6. ±-Buttons: used to increase / decrease the value of the

selected function.

7. Number buttons (0-9): used to set the DMX-address.

8. [SPEED]-button (SP): used to change the running speed

of the build in programs.

9. [SELECT PROG]-button [(PROG)]: used to select one of

the effect program modes. With each press you go to the

next effect:

•Fixed colors (CL00-CL07)

•Build in programs (PR01-PR20). The speed of these

programs can be adjusted.

10. [DMX MODE]-button (D): used to set the desired DMX

address and channel mode (3, 7 or 24 channels)

11. [SET ADDR]-button (S): used to enter the value of the

desired DMX-address.

12. [SLAVE]-button (SL): used to put the fixture in slave

mode.

13. Battery compartment: receives a CR2025 3V-battery

(supplied).

D. Controlled by a universal DMX-controller:

•Connect all units together. Refer to the chapter “Electrical installation for two or more units in DMX-

mode” to learn how to do this (don’t forget to address all units properly!)

•Connect all units to the mains and turn on the DMX controller.

Since each unit has its own DMX-address, you can control them individually. Remember that each unit

uses 3, 7 or 24 DMX-channels, depending on the DMX-mode you have selected in the menu. See the

different DMX charts below:

Table des matières

Autres manuels JB Systems Matériel de DJ

JB Systems

JB Systems INTRUDER Manuel utilisateur

JB Systems

JB Systems CD 100 Manuel utilisateur

JB Systems

JB Systems Sunbar Combi Manuel utilisateur

JB Systems

JB Systems PARTY SPOT Manuel d'installation

JB Systems

JB Systems mix 3 USB Manuel utilisateur

JB Systems

JB Systems CLUBWASH Manuel utilisateur

JB Systems

JB Systems DYNAMO 250 Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

JB Systems

JB Systems SPYDER-RGB LASER Manuel utilisateur

JB Systems

JB Systems CLUB7USB Manuel utilisateur

JB Systems

JB Systems MCD 200 Manuel utilisateur

JB Systems

JB Systems DJ-kontrol 2 Manuel utilisateur

JB Systems

JB Systems CD 410 Manuel utilisateur

JB Systems

JB Systems BL-B18 Manuel utilisateur

JB Systems

JB Systems beat 6 mk2 Manuel utilisateur

JB Systems

JB Systems UV-400 Manuel utilisateur

JB Systems

JB Systems USB PAR Manuel utilisateur

JB Systems

JB Systems SPACE-4 Mk2 LASER Manuel utilisateur

JB Systems

JB Systems USB PARTYSET Manuel utilisateur

JB Systems

JB Systems USB MUSHROOM Manuel utilisateur

JB Systems

JB Systems CLUBSPOT Manuel d'installation

JB Systems

JB Systems DELUSION Manuel utilisateur

JB Systems

JB Systems Invader Manuel utilisateur

JB Systems

JB Systems MIX6 USB Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur

KAM

KAM DMX Laser80 FScan Manuel utilisateur
