Jaycar Electronics AC1736 Manuel utilisateur

HDMI Extender over

Cat5e/Cat6

(HD

BaseT)

User

manual

I. Introduction

Extend UHD4k HDMI signals to a display 40m away or 1080p signals up to 70m from a

HDMI source. This extender converts standard HDMI signals to HDBase T signals and

transfers them over a common Cat 5E/6 cable. This is more affordable than long HDMI

cable runs and allows for greater distances between a display and source. Includes

bidirectional IR control, so the source or display can be controlled from either end with

your remote. Ideal for lecture theatres, shopping centers, or reception areas.

II. Features

•

Supports UHD up to 4K resolution.

•

HDBase T signal transmission.

•

HDMI V1.4 supported.

•

HDCP compliant.

•

Transfer Bidirectional Infrared control signal together with the HDMI signal.

•

Supports POE (Power over Ethernet) function, either TX or RX powered 12V @2.5A.

The POE Power Consumption is less than 10W.

•

Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long

distance transmission.

III. Package

HDMI Extender Emitter -------------------------------------------------------------- 1PC

HDMI Extender Receiver ------------------------------------------------------------ 1PC IR

Transmitter -------------------------------------------------------------------------- 2PCS IR

Receiver ----------------------------------------------------------------------------- 2PCS

12V2.5A DC Power Supply adapter ------------------------------------------------ 1PCS

Operation Manual --------------------------------------------------------------------- 1PC

IV. Specifications

Frequency Bandwidth 2.97Gbps

HDMI Transmitter Input/Output Ports 1x HDMI Female port/1 x CAT6

1x IR Transmitter/1x IR Receiver

HDMI Receiver Input/Output Ports 1 x HDMI Female port/1 x CAT6

1x IR Transmitter/1x IR Receiver

Power Supply DC 12V 2.5A

ESD Protection Human Body Model: ± 8kV (air-gap discharge)

± 4kV (contact discharge)

Dimensions (mm) 65(W) X 100 (D) X 25 (H)

Weight

200g x 2

Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity 20 ~ 90% RH (Non-condensing)

Power Consumption (Max) 20W

Transmission distance:

40 meters: 1080P @60Hz@48bit; 1080P @120Hz@24bit; 3D1080P@60Hz@36bit

4K x 2K@30Hz@24bit.

70 meters: 1080P @60Hz36bit; 3D1080P@30Hz36bit;

Full HD support: 1080p @60Hz@48bit/pixels, 1080p @120Hz@24bit/pixels, 3D 1080P

@60Hz and 4K x 2K @30Hz@24bit.

V. Operation controls and Functions

Transmitter

DC IN: Plug the 12V DC power supply into the unit.

Power supply can be connected to either Transmitter or Receiver.

IR OUT: Chanel 1 IR Receiver.

IR IN: Chanel 2 IR Emitter.

HDMI IN: HDMI Input port.

HDMI Signal OUT: Standard HDBase T signal output port (Cat6 Socket)

LINK LED: This red LED illuminates when the Transmitter and Receiver are connected.

Receiver

DC IN: Plug the 12V DC power supply into the unit.

Power supply can be connected to either Transmitter or Receiver.

IR IN: Chanel 1 IR Emitter.

IR OUT: Chanel 2 IR Receiver.

HDMI OUT: HDMI Output port.

HDMI Signal IN: Standard HDBaseT signal input port (Cat6 socket)

LINK LED: This red LED illuminates when the Transmitter and Receiver are connected.

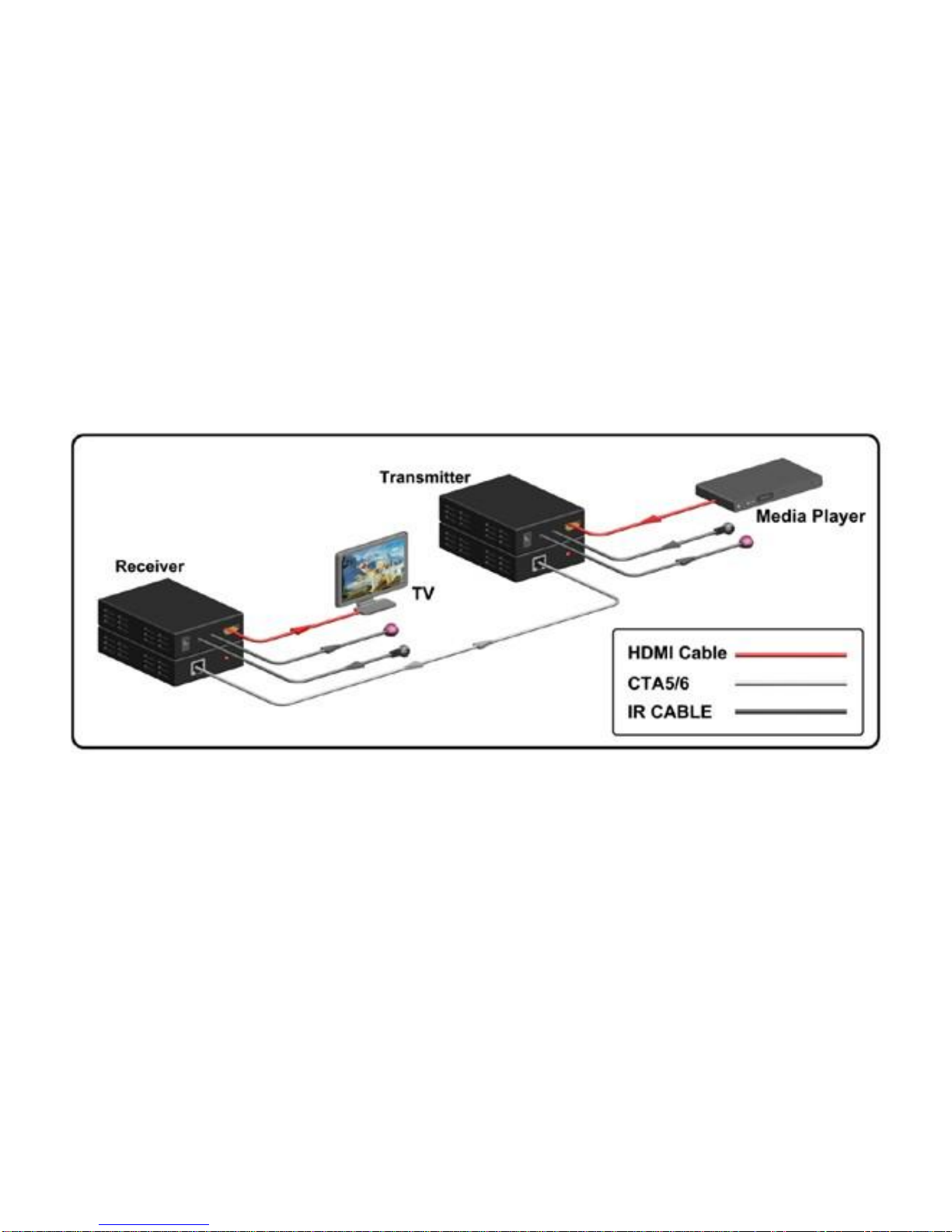

VI. Application Example

Distributed

by:

TechBrands

Electus Distribution Pty.

Ltd.

320 Victoria Rd,

Rydalmere

NSW 2116

Australia

Ph: 1300 738

555

Int’l: +61 2 8832

3200

Fax: 1300 738

500

www.techbrands.com
