Jason.L Echo panel screen Manuel utilisateur

Echo panel screen

Sizes: 1200 / 1600 mm wide

Need help!

Call us on

1300 527 665

www.jasonl.com.au

Page 1 of 4

ASSEMBLY INSTRUCTIONS

STEP 01

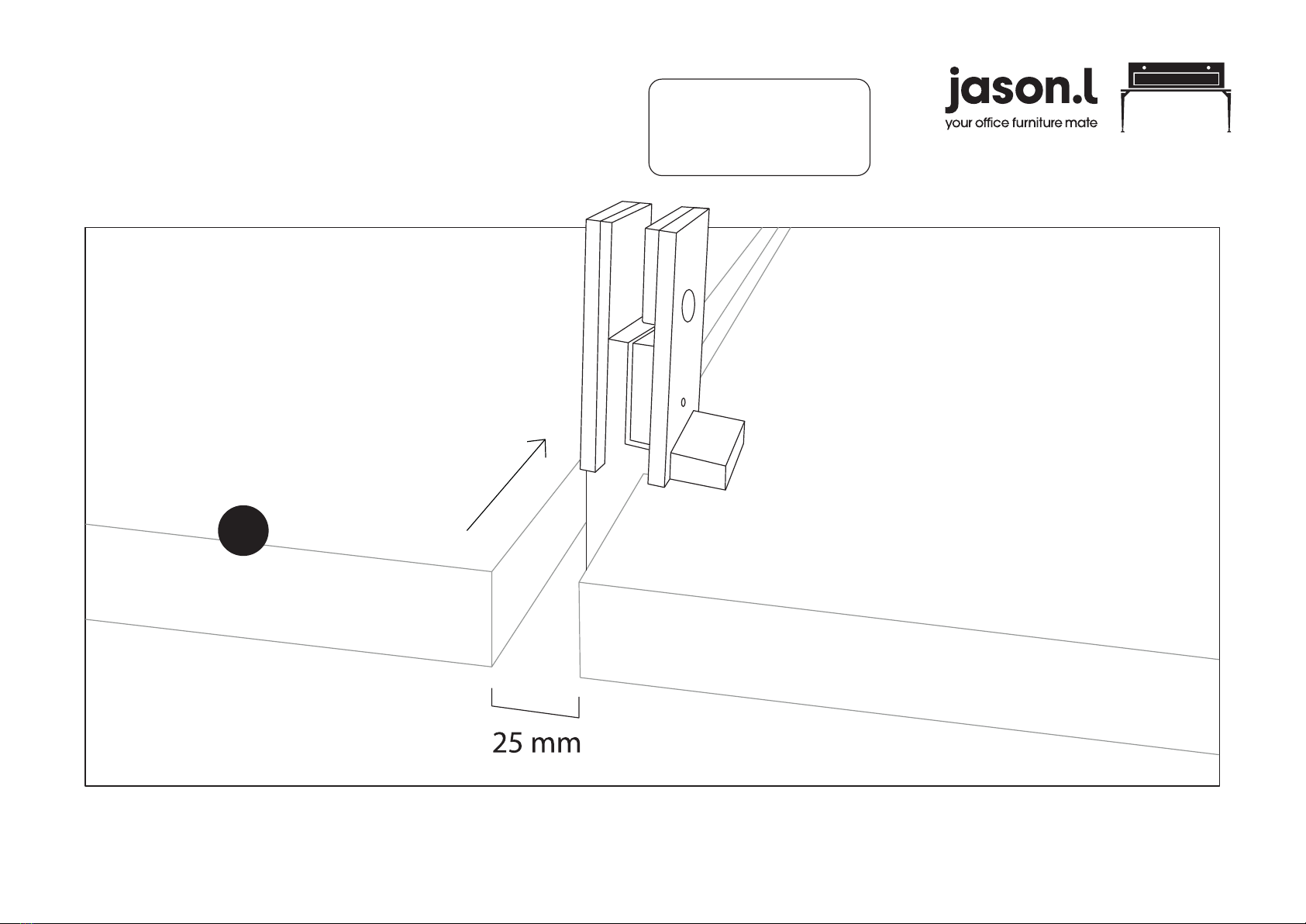

Please leave 25mm gap between table tops (A) so we can install pincer clamp brackets between the two table tops.

Pincer brackets can be installed around 250mm-300mm from the end of the screen (or can be any desired distance).

Echo panel screen

Sizes: 1200 / 1600 mm wide

Need help!

Call us on

1300 527 665

www.jasonl.com.au

Page 2 of 4

ASSEMBLY INSTRUCTIONS

A

Echo panel screen

Sizes: 1200 / 1600 mm wide

Need help!

Call us on

1300 527 665

www.jasonl.com.au

STEP 02 STEP 03

Page 3 of 4

Step 2: Once desired location is set, please tighten the ﬁrst pincer clamp bracket bottom screw using an allen key.

Step 3: Repeat step 2 and assemble the second pincer clamp bracket.

ASSEMBLY INSTRUCTIONS

STEP 04

ASSEMBLY INSTRUCTIONS

Echo panel screen

Sizes: 1200 / 1600 mm wide

Need help!

Call us on

1300 527 665

www.jasonl.com.au

Step 4: Please put the plastic spacer in between the clamp brackets.

Hint: Echo screen use 1x thick & 1x thin plastic spacer.

Step 5: Please slide down Lean Perspex or Lean Echo screens down until it fully rest over the brackets, standing between the pincer clamp

brackets. Please use both plastic spacer to clamp the screen and tighten it using an allen key.

Page 4 of 4

STEP 05
