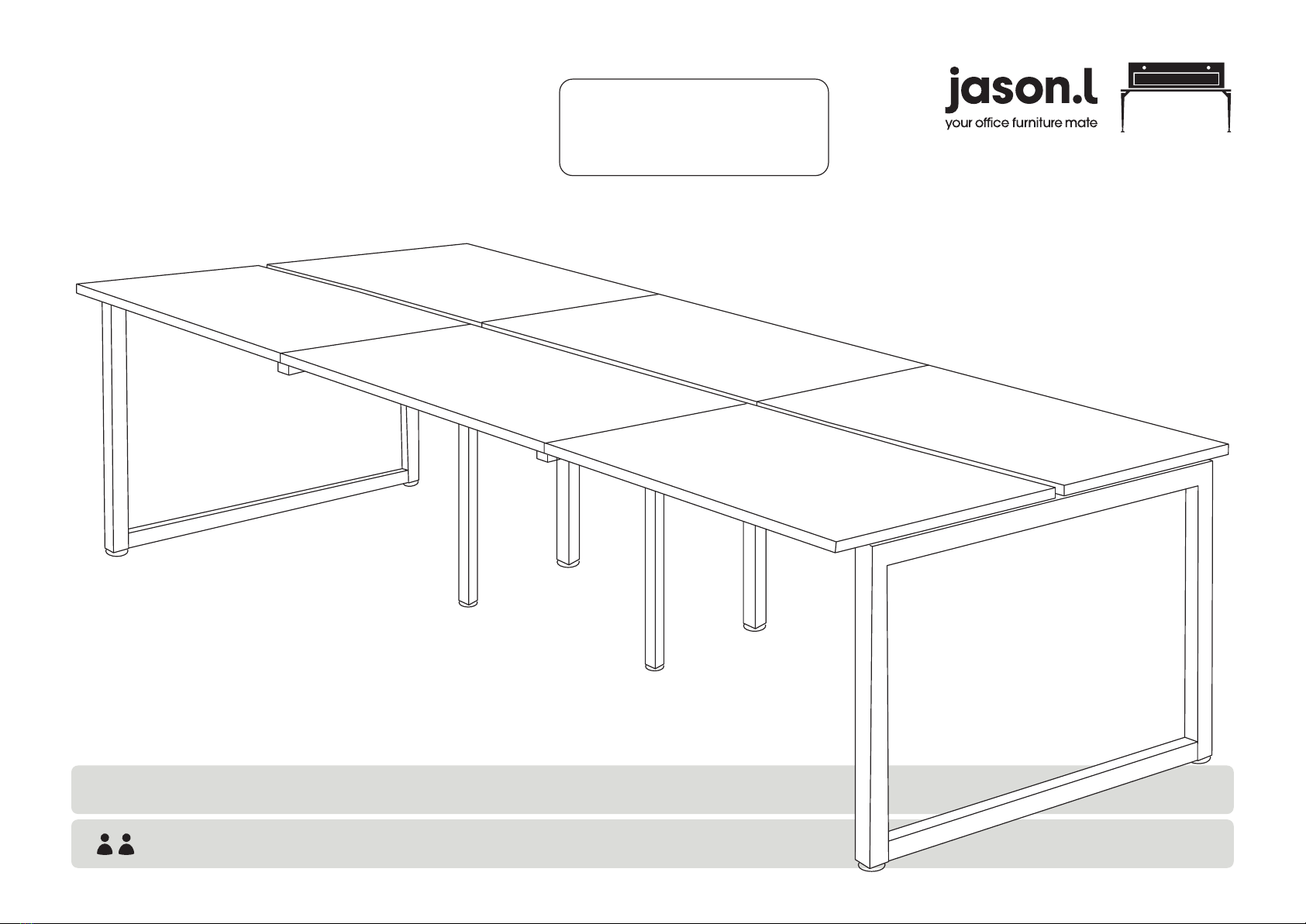

ASSEMBLY INSTRUCTIONS

Quadro Loop

4P workstation

Sizes: 1200, 1400, 1600, 1800 mm

Page 1 of 7

Need help!

Call us on

1300 527 665

www.jasonl.com.au

Tools Required: Power screwdriver; Allen key set (provided)

2 persons required for installation

ASSEMBLY INSTRUCTIONS

Quadro Loop

4P workstation

Sizes: 1200, 1400, 1600, 1800 mm

Table top x6

Leg Quadro x2

Leg Quadro Loop x2

Connector frame x2

Beam x8

Plastic bracket x24

Allen key x2K

M8x20MM CSK x12

M8x20MM Socket head x12

M6x20MM Socket head x24

M6x30MM Socket head x24

COMPONENTS

SCREWS

Page 2 of 7

Need help!

Call us on

1300 527 665

www.jasonl.com.au

G H I J

ASSEMBLY INSTRUCTIONS

Quadro Loop

4P workstation

Sizes: 1200, 1400, 1600, 1800 mm

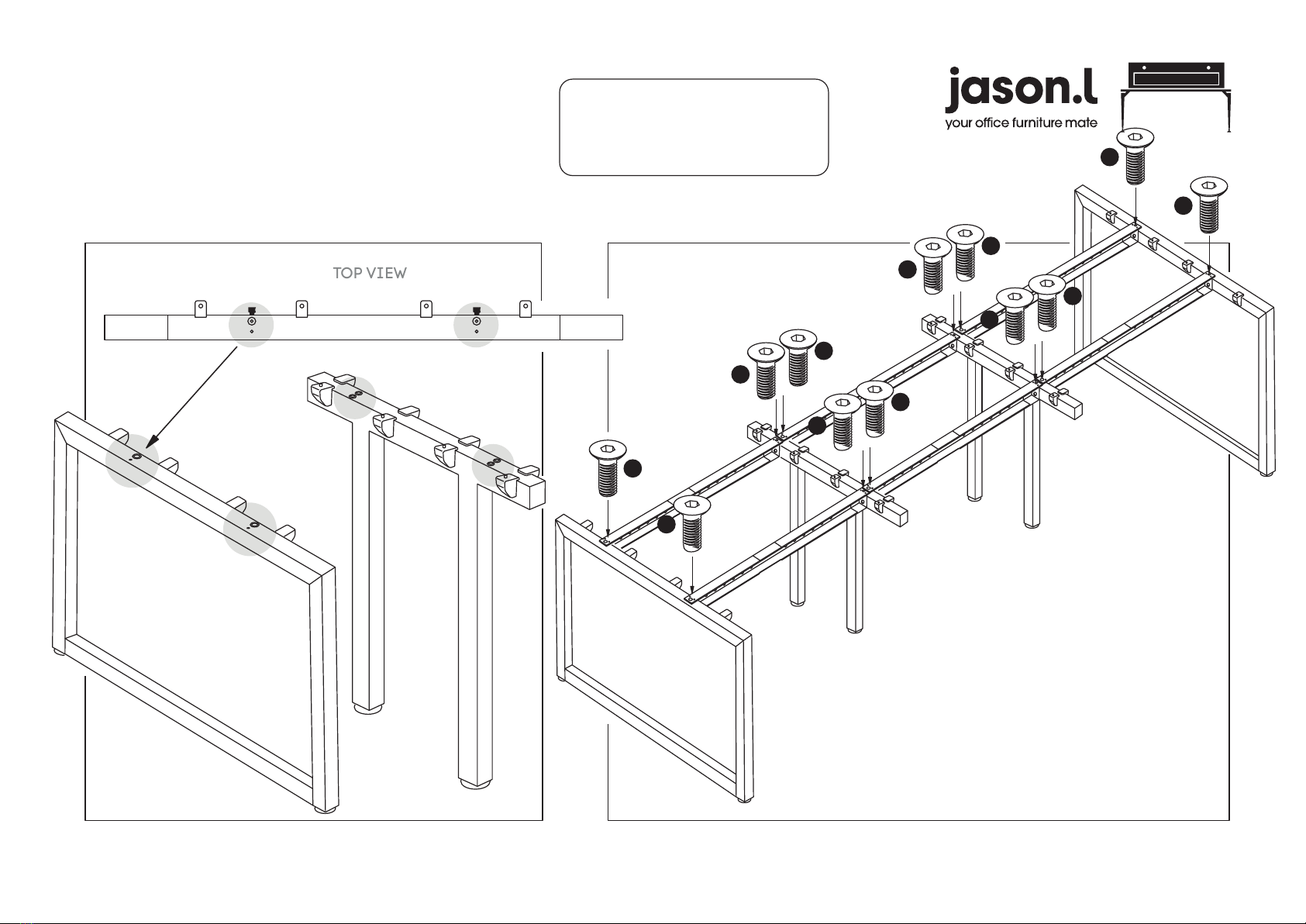

Using Allen Key provided, attach 4 plastic brackets per leg (F)

(as per picture above) using M6x20MM (I) Socket head screw.

Do the same with Connector frame (D). Connect Loop Legs (C)

to Bottom of Quadro Legs (B) by using 4 bolts per leg

Using Allen Key provided, attach M8x20MM Socket head (H)-

screw socket half way into leg for both legs (B) and into

Connector frame (D).Page 3 of 7

Need help!

Call us on

1300 527 665

www.jasonl.com.au

STEP 02

STEP 01

ASSEMBLY INSTRUCTIONS

Quadro Loop

4P workstation

Sizes: 1200, 1400, 1600, 1800 mm

STEP 03

Adjust extendable beam (E) to desired

length using markers and secure beam

at that length using screws provided

Page 4 of 7

Need help!

Call us on

1300 527 665

www.jasonl.com.au

1200

1300

1400

1500

1600

1700

1800

1900

2000

ASSEMBLY INSTRUCTIONS

Quadro Loop

4P workstation

Sizes: 1200, 1400, 1600, 1800 mm

Attach beam (E) to legs (B) and Connector frame (D)

using nut insert in legs. See point attached

Frame looks like this. Using Allen Key, attach beam (E) with Socket (G)

STEP 05

Page 5 of 7

Need help!

Call us on

1300 527 665

www.jasonl.com.au

STEP 04

TOP VIEW

ASSEMBLY INSTRUCTIONS

Quadro Loop

4P workstation

Sizes: 1200, 1400, 1600, 1800 mm

STEP 06

Page 6 of 7

Need help!

Call us on

1300 527 665

www.jasonl.com.au

Place desktops ontop of frame. Nut inserts in top will align with

plastic joiner brackets using M6x30MM (J) sockets attach tops

to frame.

TABLE TOPS

BOTTOM VIEW

ASSEMBLY INSTRUCTIONS

Quadro Loop

4P workstation

Sizes: 1200, 1400, 1600, 1800 mm

Page 7 of 7

Need help!

Call us on

1300 527 665

www.jasonl.com.au

TABLE TOPS

BOTTOM VIEW

The following nut inserts should be used for this speciﬁc desk / workstation

nut insertnut insert
