Jaroby EVOLUTION Manuel utilisateur

OWNER’S MANUAL

EVOLUTION

June 3rd, 2009 Reviewed

EVOLUTION & EVOLUTION 2113

490, rue de l'Argon, Quebec, Qc CANADA G2N 2C9

Phone: 418-849-8095 Fax : 418-849-0077

www.jaroby.com

CAN/ULC_S610-M87

Restricted fireguard utilization

TABLE OF CONTENTS

SPECIFICATIONS – EVOLUTION.................................................................................. 1

WARNING ......................................................................................................................... 2

NOTICE.............................................................................................................................. 4

REOSOTE

........................................................................................................................ 4

LOCATION OF THE FIREPLACE................................................................................... 5

INSTALLATION OF THE CHIMNEY............................................................................. 6

HIMNEY FRAME DETAILS

............................................................................................... 6

INTERMEDIATE JOIST ENTRY

CF....................................................................................... 7

TTIC THERMAL SCREEN INSTALLATION

.......................................................................... 7

NSTALLATION OF THE RADIANT FIREBREAK

.................................................................... 8

NSTALLATION OF ELBOWS

............................................................................................... 8

NSTALLATION OF THE EXTERIOR CHIMNEY

..................................................................... 9

ROOF SUPPORT

............................................................................................................ 9

INTERIOR SUPPORT

DEVIATION SUPPORT

................................................................. 10

NSTALLATION OF THE ROOF FLASHING

.......................................................................... 10

LOWHOLE SYSTEMS AUTHORIZED

................................................................................ 12

EXTERIOR AIR CANALIZATION................................................................................ 14

INTERNAL BLOWER (FANS AND THERMODISC).................................................. 15

BLOWHOLE BY NATURAL CONVECTION .............................................................. 16

CENTRAL BLOWER...................................................................................................... 18

INSTALLATION OF THE 460 CFM FAN..................................................................... 20

EXTRUSION.................................................................................................................... 22

INSTALLATION OF THE FIREBRICKS ...................................................................... 22

DOORS ADJUSTMENT.................................................................................................. 23

SHELF .............................................................................................................................. 23

LIGHTING ....................................................................................................................... 24

FIREGUARD.................................................................................................................... 24

PREVENTIVE MEASURES AND MAINTENANCE.................................................... 25

INTERCHANGEABLES PARTS LIST........................................................................... 26

WARRANTY ................................................................................................................... 28

CAREFULLY READ THIS MANUAL AND KEEP IT FOR FURTHER

REFERENCES.

INSTALLATION OF THIS APPLIANCE MUST BE DONE BY A QUALIFIED AND

CERTIFIED TECHNICIAN AND IN CONFORMITY WITH THE OWNER'S

MANUAL GIVEN WITH THIS APPLIANCE. THE INSTALLATION MUST BE IN

AGREEMENT WITH LOCAL AND NATIONAL REGULATIONS APPLICABLE

FOR SOLID FUEL BURNING APPLIANCES AND CONNEX EQUIPMENT

(CAN/CSA-B365) AND THE APPLICABLE BUILDING CODE .

WARNING! NEVER MODIFY THIS APPLIANCE !

NEVER USE THE FIREGUARD (PAREV) WITH A 1800

, 1" OF ISOLATED

CHIMNEY (ULC-S604).

Page 1

SPECIFICATIONS – EVOLUTION

Combustible Wood

Recommended surface 0 to 2000 Ft² (0 to 186m

)

Evacuation pipe diameter 6“ (15,24cm)

Chimney minimal height 15 ft (457,2cm)

Hot air top exit 6“ (15,24cm)

Dimensions:

Glass viewing area (W X H):

ATC 618 (2 doors) 15” X 12 ¾” ( 38X 32.4cm)

Evolution (1 door) 18 ¾” X 12 ¼” (47.6 X 31cm)

Evolution (2 doors) 20 3/8” X 12 ¼” (52 X 31cm)

Evolution 2113 21” X 13” (53 X 33cm)

Exterior width 32“ (81,28cm)

Exterior depth 25” (63,5cm)

Door opening 20 ¼” X 10 ¾” (51,44cm X 27,31cm)

Inside height 13” (33cm)

Inside width 19” (48,26cm)

Inside depth 17 5/8” (44.8cm)

Maximal length of log 18” (45,72cm)

Weight 402 pounds

Clearances

Back 0

Lateral 0

In corner 0

Roof 84 in (213,36cm)

WARNING

Before installing, please take a few minutes to read this handbook. Keep it in a sure place

and easily reachable for future references. Not following these instructions could be a

cause of property damages, injuries or death. If this appliance is not properly installed, it

could cause fire damages to the property, injuries and death. To reduce fire hazards,

follow instructions contained in this handbook.

Contact an official inspector (ex: a fireman) or your insurance company for installation

permit. Always respect the provincial and municipal building codes of your region.

Your fireplace is a high efficiency appliance certified EPA. It will offer comfort and

pleasure if well installed, maintained and used.

Do not use in a mobile house.

This appliance must not be installed inside a prefabricated fireplace without being tested

first. This fireplace must have its own chimney. Do not connect it to a chimney pipe

already serving another appliance. It is recommended to regularly inspect the chimney.

Utilization of the fire-guard is authorized only with a 2100

chimney (ULC-S629). It is

strictly prohibited to use it with the doors open if the installation was made with a 1800

chimney of 1" isolation (ULC-S604). Do not place insulating material or pass electric

cords in the minimum clearances required for the air passage surrounding the chimney.

You can operate your fireplace with the doors completely open only if you have installed

a 2" chimney and have put the fireguard on the fireplace.

Do not block or modify the air circulation grids.

This appliance is certified to burn wood. Do not use any other combustible. Always use

dried wood. Do not burn green or wet wood. Do not use construction debris such as

pieces of 2x4, plywood... We recommend 16" logs. For a better efficiency, cross the logs

one on an other.

CAUTION :

Very hot while in function

Keep children far away from the appliance.

Never let the appliance without supervision when the door is open.

Never let the doors partly open when in function. Use completely close or

completely open with a fireguard.

Do not use chemical products or other liquid to light the fire.

Do not burn waste or inflammable fluids like gas, naphtha or motor oil.



Combustible materials should not be placed in front of the fireplace



A 2" (5,08cm) minimum clearance must always be maintained between the

chimney and any other combustible materials.

Be sure that the ashes evacuation cap is closed before lighting.

If the evacuation conduct starts to blush, it's because it is too charged. The wood logs

shall never stand higher than the firedog in front of the fireplace.

Ashes must be evacuated frequently, put in a steel container provided with a tight cap and

be placed outside at once. You must never place other waste in this container.

Your fireplace can be use to warm up adjacent rooms or rooms on another floor. A mural

thermostat situated in the room to be heated controls the central blower which provides

hot air from the fireplace.

Be sure to have enough exterior air. Some domestic appliances use exterior air: the

kitchen fan, the extractor fan, heating appliances working by forced air. If you use an

exterior air device, you will not experience a lack of exterior air.

You should contact your municipal or provincial fire department to have knowledge

of the procedure to be followed in case of a chimney fire. Think of an emergency

plan.

Out of control fires can be caused by three main factors:

1. Utilization of inappropriate combustibles or the use of small wood which should

be use only for the lighting.

2. A door let partly open for too long.

3. Operation of your fireplace without the ashes cap.

To avoid out of control fires:

1. Do not burn treated or transformed wood, charcoal or colored paper.

2. Do not overload the appliance and do not let the door slightly open for a long

time after the lighting.

3. Be sure that the ashes cap is at its place before each use.

What to do in case of an out of control fire:

1. Close the air intakes and the doors.

2. Call firemen.

3. Examine the chimney, the attic and the roof to see if some components have

become abnormally hot. If necessary, drench with a fire extinguisher or a hose.

4. Do not use the fireplace before a complete inspection of your chimney and

fireplace.

NOTE :

FOLLOW THESE INSTRUCTIONS

IN ORDER TO AVOID FIRE

HAZARDS, WOUNDS AND

PROPERTY DAMAGES.

NOTICE

Your fireplace Evolution was tested and approved including supports, firebreak and other

chimney components. Any change, modification or unauthorized installation will

automatically cancel the certification of the appliance, its guarantee, its homologation and

the appliance might become dangerous.

If the chimney is to be exterior, it is recommended to compartmentalize it in order to

protect it from the cold temperatures. This could improve the operation of the appliance.

Exterior partitions can be isolated by maintaining a 2 inches minimum clearance from the

chimney.

During the first hours of operation, you must heat it gradually. In order to allow an

appropriate cooking of the paint and in order to facilitate its adhesion with metal, do not

heat the appliance with a strong fire. It will also avoid thermal shock which could lift up

the paint or make it whiten. Make sure that the room is ventilated enough in order to

eliminate the odours and the smoke coming from the paint during the first hours of

utilization. It is normal that a light smoke is released from the paint during the first hours

of use.

Even if this nuisance is temporary, open the windows and the doors in order to ensure a

good ventilation. This special paint is conceived to tolerate temperatures until 1200°F

(650°C).

REOSOTE

The wood burning slowly produces tar and other organic steams, which forms a whole

called “creosote”. The steam condenses in the cool chimney when the wood is burning

slowly. In this way, creosote residues are formed on the walls. Creosote can take several

forms: tarry liquid, soot dust or deposits in crystal form. When in fire, the creosote

releases a very strong heat and can be the cause of a chimney fire. If there is 1/8 inches of

creosote or more in the chimney, you must remove it in order to avoid chimney fires.

- Do not knock on the glasses or violently close the doors.

- Do not use the appliance when a glass is broken or damaged.

- Do not build the fire too close of the glasses. Place the logs behind the two firedogs.

- Do not burn treated wood, charcoal, waste or plastics.

LOCATION OF THE FIREPLACE

- Take knowledge of municipal and fire department requirements.

- Choose a place where you will not have to cut joist.

- The fireplace must be installed against a finished wall around the appliance

- The top of the fireplace must stay free.

- The roof height must be at minimum seven (7) feet from the floor.

- The minimum distance of installation between the opening of the fireplace and every

adjacent wall is of 12 inches, 48 inches at the front and the extension of the hearth is

of 18 inches at the front.

- Do not add isolating wool in the space surrounding the fireplace.

INSTALLATION OF THE CHIMNEY

The minimum height approved for the gas evacuation system is 15 feet and the fireplace

is conceived to support up to 25 feet of vertical chimney. For higher, additional supports

are required. The authorities require that the chimney has at least 1m (3ft) over the

highest point where it passes through the roof, and at least 609mm (2ft) over any point of

the building from a distance of 10 ft. Security bridles or stainless steel screws must be

used on every section which forms an interior joint.

In addition of the owner’s manual, always refer to the instructions of the chimney

manufacturer.

HIMNEY FRAME DETAILS

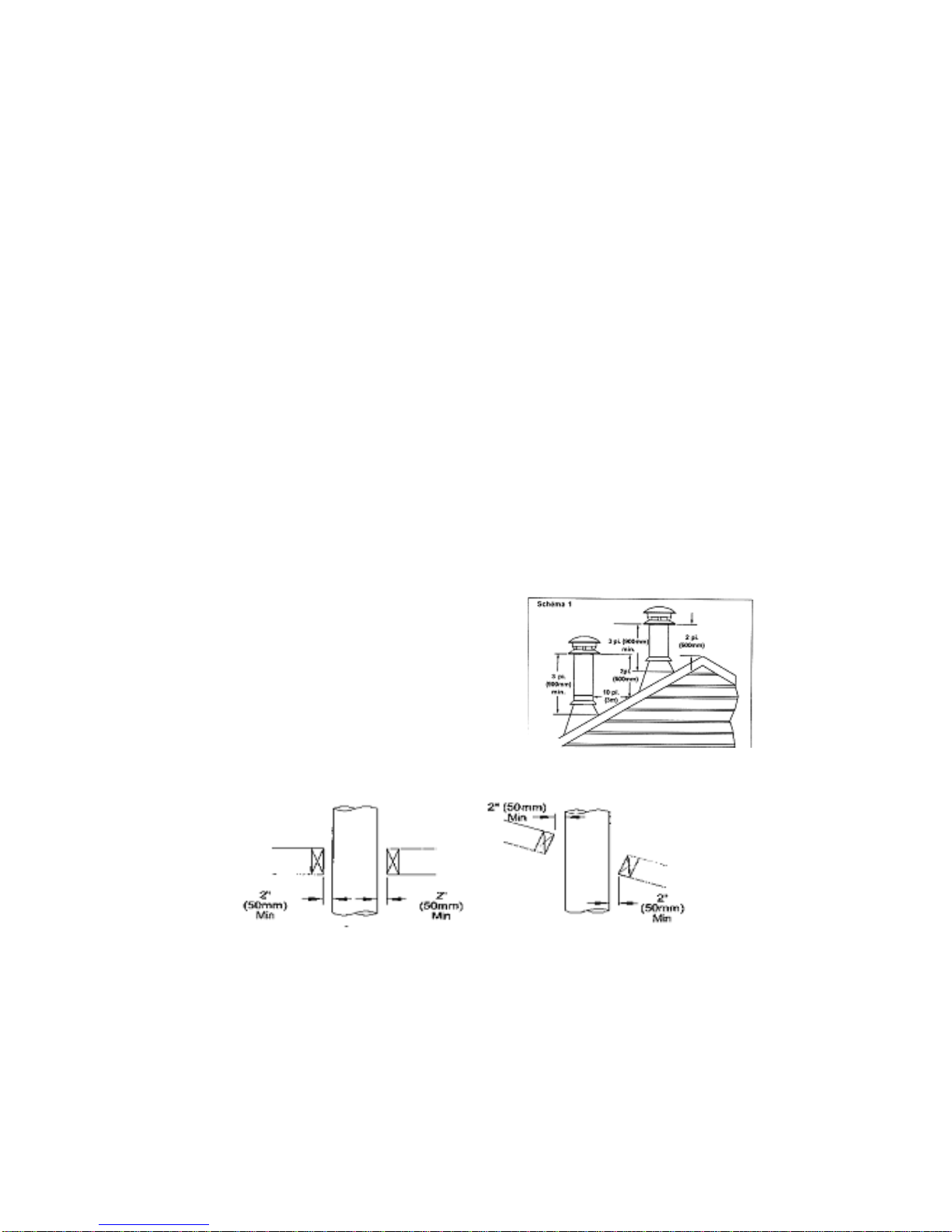

Take the time to carefully plan the installation of your chimney. Draw and frame the

opening and be sure that the 50 mm (2 ft) minimum clearance of any combustible

material is respected. Every opening must be right and well aligned. For an angle roof,

be sure that the dimensions are calculated horizontally.

Maximum chimney height: 35 feet.

Security bridles or stainless steel screws should be used on every interior joint. Security

bridles should be used on every section forming an interior joint.

INTERMEDIATE JOIST ENTRY

(Selkirk CF model)

The intermediate joist entry CF is used at any joist level, except on an opened attic. It

must be installed from the base to the top with 1 ½ inches screws and should not be cut.

TTIC THERMAL SCREEN INSTALLATION

(JSC, SPR, SC-1 and ALT models)

An isolation protector for the attic thermal screen

must be installed where the chimney passes from

a room to a closed and superior attic. It is

conceived to keep the isolations far from the

chimney and will protect the isolations up to

250mm (10 ft) depth. In Canada, the attic thermal

screen must be installed with a firebreak like

illustrated on figure 13a.

Table des matières

Autres manuels Jaroby Cheminée intérieure

Jaroby

Jaroby Volcan B12 TRIDENT Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
