JAMO ZI-8 Manuel utilisateur
ZI-8
WARNING: Improper installation could result in damage to the
amplifier. Read all instructions before installation.
All manuals and user guides at all-guides.com

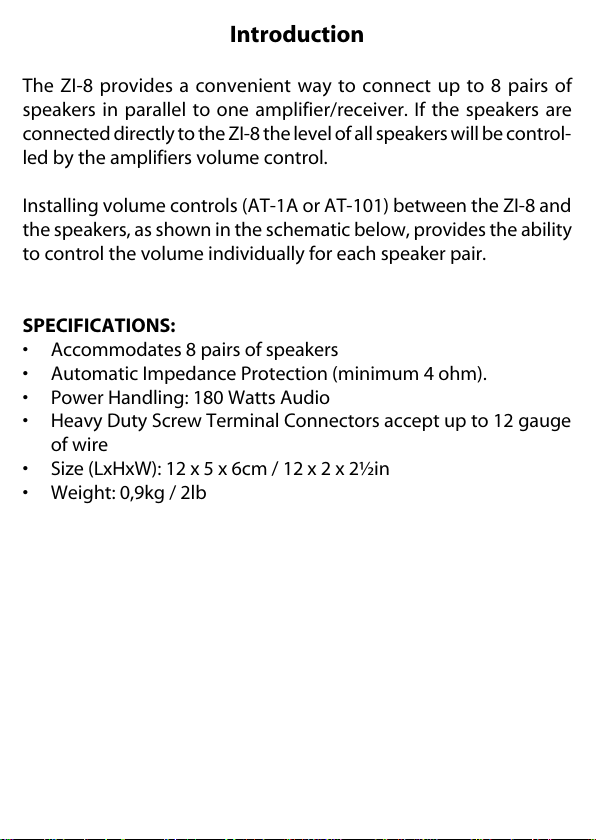

Introduction
The ZI-8 provides a convenient way to connect up to 8 pairs of
speakers in parallel to one amplifier/receiver. If the speakers are
connected directly to the ZI-8 the level of all speakers will be control-
led by the amplifiers volume control.
Installing volume controls AT-1A or AT-101) between the ZI-8 and
the speakers, as shown in the schematic below, provides the ability
to control the volume individually for each speaker pair.
SPECIFICATIONS:
Accommodates 8 pairs of speakers
Automatic Impedance Protection minimum 4 ohm).
Power Handling: 180 Watts Audio
Heavy Duty Screw Terminal Connectors accept up to 12 gauge
of wire
Size LxHxW): 12 x 5 x 6cm / 12 x 2 x 2½in
Weight: 0,9kg / 2lb
All manuals and user guides at all-guides.com
All manuals and user guides at all-guides.com
69445 / 39.2000
The scope of the arranty
The warranty period will come into force as from the purchase date stated
on the invoice. The warranty will apply for the following period of time:
2 years for electronics power supply, amplifier, etc.)
7 years for other parts cabinet, speaker units, etc.)
In case of warranty inquiries, please contact your dealer.
In case of request for service under warranty, please enclose your original
receipt.
Defects covered by the warranty:
Except for the defects stated below, the warranty covers any production
and material defects of the product.
Defects not covered by the warranty:
Defects arising from accidents, misuse, normal wear and tear, mis-
maintenance, voltage variation, overloading, stroke of lightning, and
other force majeure events
Defects arising from incorrect installation or operation
Defects arising from modification/repair/attempt of repair by a non-
authorised service centre
Defects arising from the use of non-original spare parts
Defects on products with altered or lacking series number
Other defects due to conditions or circumstances beyond the suppliers
control
Transportation costs for servicing are not covered by the warranty.
The supplier is liable only to repair or replace defective parts or products. A
replacement cannot exceed the value of the product under warranty.
