WAREFORCE™ UNDER COUNTER DISH MACHINE SERIES
TECHNICAL MANUAL
INSTALLATION, OPERATION & TECHNICAL MANUAL
ELECTRICALLY HEATED MODELS:
WAREFORCE™ UH 30
WAREFORCE™ UL 30
March 11, 2013
P/N 07610-003-67-21 (Revision E)
Jackson WWS,INC
P.O. Box 1060, Hwy 25E
Barbourville, KY USA
1.606.523.9795
www.jacksonwws.com
Revision
Letter
Revision
Date
Made By Applicable ECNs Details
A 03-04-09 ARL N/A Release to production
B 04-21-10 RLC 100420-1456-CW Corrected Wire Colors on WF-UH30 Sche-
matic
C 05-05-10 RLC 8157 Changed UH Peri-pump assembly
D 08-22-11 CW QOF-386 Made strip heater optional
E 03-11-13 RLC QOF NDB-219 Updated manufacturer information & con-
verted to publisher format.
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)
NOMENCLATURE FOR THE MODELS COVERED IN THIS MANUAL
WAREFORCE™ UH 30
WAREFORCE™ UL 30
WAREFORCE™ UH 30 = High temperature, hot water sanitizing, with a booster tank.
Detergent & rinse aid chemical feeder pumps.
WAREFORCE™ UL 30 = Low temperature, chemical sanitizing, no booster tank.
Detergent, rinse aid & sanitizer chemical feeder pumps.
Model:_________________________________________________
Serial No.:_____________________________________________
Installation date:____________________________________
Service Rep. Name: _________________________________
Phone number: _____________________________________
Jackson WWS, INC provides technical support
for all of the dish machines detailed in this man-
ual. We strongly recommend that you refer to
this manual before making a call to our technical
support staff. Please have this manual with you
when you call so that our staff can refer you if
necessary, to the proper page. Technical support
is available from 8:00 a.m. to 5:00 p.m. (EST)
Monday through Friday. Technical support is not
available on holidays. Contact technical support
toll free at 1-888-800-5672. Please remember
that technical support is available for service
personnel only.
TABLE OF CONTENTS
Specifications
Operating Parameters Page 6
Notes Regarding Electrical Requirements Page 7
Electrical Requirements Page 8
WAREFORCE™ UH 30 & UL30 Dimensions Page 9
Instructions
Installation Instructions Page 10
Operating Instructions Page 19
Preventative Maintenance Page 22
Trouble Shooting Page 23
Parts Section
Control Weldment Assemblies Page 25
WAREFORCE™ UH 30 480V Control Panel Assembly Page 26
Control Panel Assembly/Kick Panel Weldment WAREFORCE™ UH 30 Page 27
Control Panel Assembly/Kick Panel Weldment WAREFORCE™ UL 30 Page 28
Terminal Block Box Assembly Page 29
WAREFORCE™ UH 30 Chemical Feeder Pump Assembly Page 30
WAREFORCE™ UL 30 Chemical Feeder Pump Assembly Page 32
Chemical Feeder Pump Components Page 35
WAREFORCE™ UH 30 Plumbing Assemblies Page 36
WAREFORCE™ UL 30 Plumbing Assemblies Page 37
Rinse Solenoid Valve & Vacuum Breaker Repair Parts Kit/Water Hammer Arrestor Kit Option Page 38
Wash Motor/Drain Plumbing/WAREFORCE™ UL 30 Wash Manifold Assembly Page 39
Motor & Pump Assembly Page 41
Rinse Arm & Wash Arm Assemblies Page 42
WAREFORCE™ UH 30 Thermostat & Rinse Tank Assembly Page 43
WAREFORCE™ UL 30 Optional Thermostat & Heater Components Page 44
Door Assembly Page 45
Miscellaneous Door Components Page 47
Frame & Panel Components Page 48
Miscellaneous Parts Page 49
Stands & Components Page 50
HTS-11 (Scale Prevention & Corrosion Control Device) Page 51
WAREFORCE UH/UL 30 Go Box Kit Page 52
TABLE OF CONTENTS (CONTINUED)
Parts Section
Vacuum Switch Assembly Page 53
Vacuum Switch Assembly Installation Page 54
Electrical Diagrams and Schematics
WAREFORCE™ UH 30 208-230 Volt 60 Hertz Single Phase Page 55
WAREFORCE™ UH 30 480 Volt 60 Hertz Three Phase Page 56
WAREFORCE™ UL 30 115 Volt 60 Hertz Single Phase Page 57
6
Page Created: 03-23-2011
Revised: 03-11-2013
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)
Operating Parameters
Model Designation: WAREFORCE™ UH 30 WAREFORCE™ UL 30
Operating Capacity:
Racks per Hour 24 24
Dishes per Hour 600 600
Glasses per Hour 864 864
Tank Capacity (gallons):
Wash Tank 1.1 1.2
Rinse Tank 1.1 3.0
Electrical Loads (as applicable):
Wash Motor HP 0.75 0.75
Rinse Heater KW 8.2 N/A
NOTE: Always refer to the machine data plate for specific electrical and water requirements. The
material provided on this page is for reference only and is subject to change without notice.
HOT WATER SANITIZING
Water Temperatures (Fahrenheit):
Minimum Wash Temperature 150 N/A
Minimum Rinse Temperature 180 N/A
Incoming Water Temperature 110 N/A
CHEMICAL SANITIZING
Water Temperatures (Fahrenheit):
Minimum Wash Temperature N/A 120
Minimum Rinse Temperature N/A 120
Incoming Water Temperature N/A 120
Other Water Requirements:
Water Flow Pressure (PSIG) 20 20
Flow Rate Minimum (GPM) 0.44 0.48
Water Line Size (NPT) 1/2” 1/2”
Drain Line Size (NPT) 1-3/8” 1-3/8”
MIN. CHLORINE REQUIRED (PPM) N/A 50
7
Page Created: 03-24-2011
Revised: 03-11-2013
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)
Notes Regarding Electrical Requirements
All electrical ratings provided in this manual are for reference only. Always refer to the machine data plate
to get the exact electrical information for your machine. All electrical work performed on machines should
be done in accordance with applicable local, state, territorial and national codes. Work should only be per-
formed by qualified electricians and authorized service agents. A list of Jackson Authorized Service Agencies
is located in the back of this manual.
Note that all electrical wiring used in the Wareforce UH/UL30 series of machines must be rated, at a mini-
mum, for 100C (212F). Furthermore, use copper conductors only.
Where applicable, heating element amperage draws have been adjusted for the assumed input voltage. Jack-
son assumes incoming voltages will be either 208, 230 or 460 volts. Some of the heating elements used in
our machines are actually rated for other voltages, such as 240 or 480 volts. Always verify the amperage
draw of the machine in operation when sizing circuit protection.
If your machine is equipped with the optional rinse heater, note the rinse heater has its own electrical con-
nection and therefore requires a separate service. Amperage loads for motors and heaters are called out on
the machine data plate for the installation/service technician.
The electrical configurations of the Wareforce UH/UL30 series of machines are as follows:
Available Electrical Characteristics:
115 volt, 60 Hz, single phase
208 volt, 60 Hz, single phase
230 volt, 60 Hz, single phase
460 volt, 60 Hz, three phase
Available Wash Tank Heaters:
8.2KW (standard for WAREFORCE™ UH 30)
8
Page Created: 03-24-2011
Revised: 03-11-2013
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)
Electrical Requirements for WAREFORCE™ UH 30 & UL30
Volts Ph Freq
Wash
Motor
Amps
Drive
Motor
Amps
Wash
Heater
Amps
FLA
208 1 60 2.69 A N/A 39.42A 42.11 A
230 1 60 2.43 A N/A 35.65 A 38.08 A
460 3 60 0.67 A N/A 9.87 A 10.54 A
WAREFORCE™ UH 30 8.2 kW Wash Heater
WAREFORCE™ UL 30
Volts Ph Freq
Wash
Motor
Amps
Drive
Motor
Amps
Wash
Heater
Amps
FLA
115 1 60 2.69 A N/A N/A 13.2 A
9
Page Created: 03-28-2011
Revised: 03-11-2013
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)
WAREFORCE™ UH 30 DIMENSIONS
*All dimensions are for reference only and are subject to change without notice.
A
BACK
B
41
8[105mm]
111
2[292mm] 7
8[22mm]
35
16 [84mm]
1
4[6mm]
Wall Clearance
C
Door Open
24 3
16 [615mm]
33 5
16 [846mm]
TOP
FRONT
LEGEND:
A - Water Inlet - 1/2" Female Pipe Thread,
2 1/2" AFF (Connect to a true 1/2" ID
water line)
B - Electrical Connection
C - Drain Connection - 10' coiled drain hose.
Shipped inside machine. Must be installed
no more than 24" AFF.
All dimensions from floor can be increased
1" with adjustable feet supplied.
WALL
141
2" [368mm]
DISH
CLEARANCE
253
8[644mm]
165
8[423mm]
19
16 [40mm]
A
11
4[32mm]
B
233
4[604mm]
10
Page Created: 03-28-2011
Revised: 03-11-2013
WAREFORCE UH/UL 30 Technical Manual (07610-003-67-21)

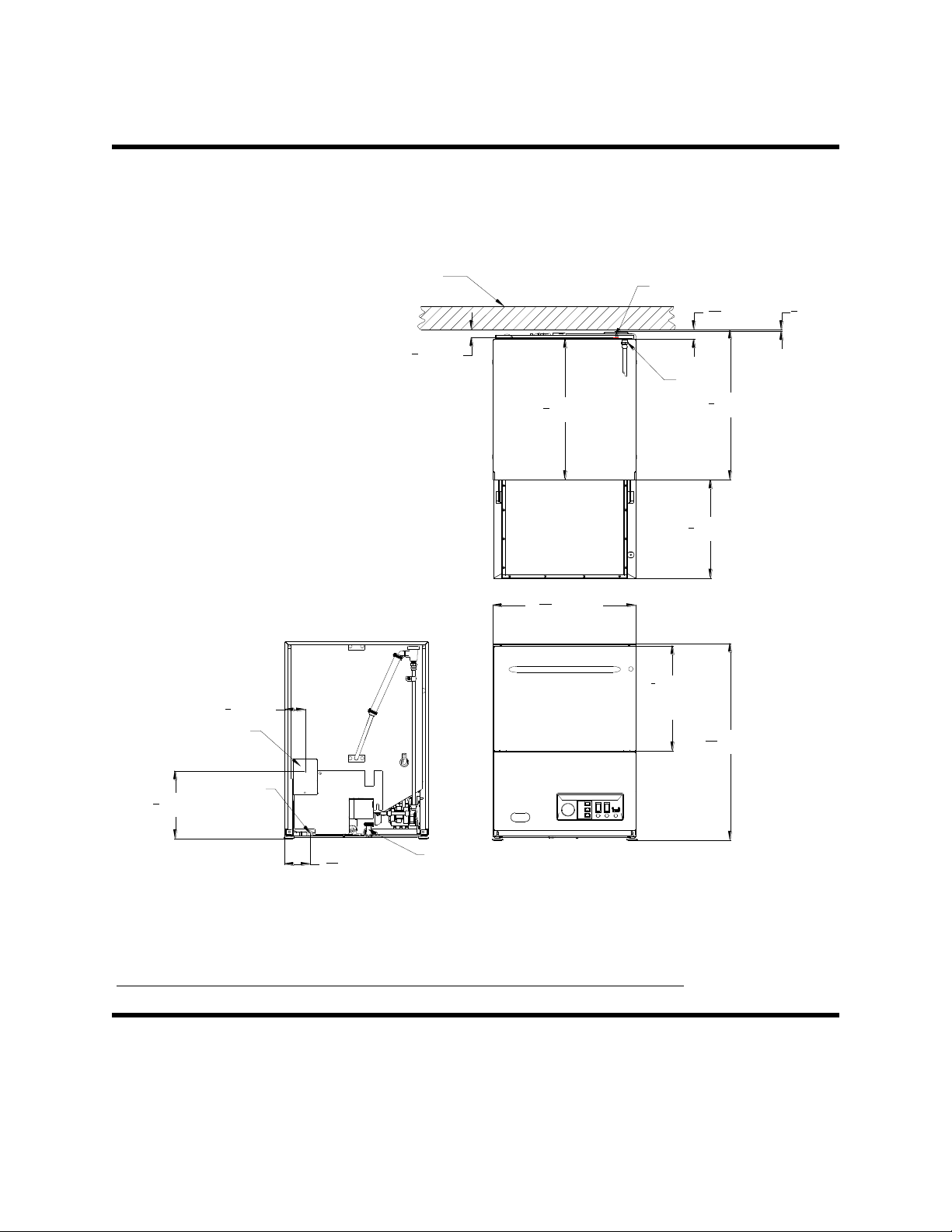

WAREFORCE™ UL 30 DIMENSIONS
*All dimensions are for reference only and are subject to change without notice.
24 3
16 [615mm]
33 5
16 [846mm]
FRONT
131
2" [343mm]
DISH
CLEARANCE
LEGEND:
A - Water Inlet - 1/2" Female Pipe Thread,
2 1/2" AFF (Connect to a true 1/2" ID
water line)
B - Electrical Connection
C - Drain Connection - 10' coiled drain hose.
Shipped inside machine. Must be installed
no more than 24" AFF.
All dimensions from floor can be increased
1" with adjustable feet supplied.
Door Open
TOP
WALL
253
8[644mm]
165
8[423mm]
19
16 [40mm]
A
11
4[32mm]
B
233
4[604mm]
1
4[6mm]
Wall Clearance
C
BACK
B
31
2[89mm]
111
2[292mm]
A
45
