Automatic Outdoor Ice Maker

User’s Manual

Be sure unit is standing upright 24 hours prior to plug-in

Model: BBQ10700

Table of Contents

Page

ICE MAKER SAFETY............................................................................................................... 2

IMPORTANT SAFEGUARDS.............................................................................................. 3 - 5

TECHNICAL INFORMATION ................................................................................................. 5

INTRODUCTION ...................................................................................................................... 6

COMPONENT LOCATIONS .................................................................................................... 7

ICEMAKER INSTALLATION ........................................................................................... 8 - 15

Unpacking......................................................................................................................... 8

Location Requirements ................................................................................................ 8 - 9

Electrical Requirements.................................................................................................. 10

Leveling the Ice Maker ....................................................................................................11

Reversing the Door Swing .......................................................................................11 – 12

Water Supply........................................................................................................... 12 – 13

Drain ............................................................................................................................... 13

Installation Types ............................................................................................................ 14

OPERATION ..................................................................................................................... 15 - 18

Final Checklist before Operation.................................................................................... 15

Operating Method .................................................................................................... 15 - 16

How the Machine Makes Ice .......................................................................................... 16

How the Machine Uses the Water................................................................................... 17

Normal Sounds................................................................................................................ 18

Preparing the Ice Maker for Long Storage ..................................................................... 18

CLEANING AND MAINTENANCE ............................................................................... 19 - 22

Exterior Cleaning ............................................................................................................ 19

Interior Cleaning ............................................................................................................. 20

Condenser Cleaning................................................................................................... 20-21

Water Distribution Tube Cleaning .................................................................................. 21

Ice-Making System Cleaning................................................................................... 21 - 22

MAJOR FUNCTIONS ............................................................................................................. 23

TROUBLESHOOTING..................................................................................................... 24 - 25

We reserve the right to make changes in specifications and design without prior notice.

Ice Maker Safety

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance.

Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential

hazards that can injure or kill you and others. All safety messages will

follow the Safety Alert Symbol and either the words "DANGER",

"WARNING" OR "CAUTION".

DANGER means that failure to heed this safety

statement may result in severe personal injury or

death.

WARNING means that failure to heed this safety

statement may result in extensive product damage,

serious personal injury or death.

CAUTION means that failure to heed this safety

statement may result in minor or moderate

personal injury, or property or equipment

damage.

All safety messages will alert you to what the potential hazard is, tell you how to reduce the

chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock or injury

when using your ice maker, follow these basic precautions:

SAVE THESE INSTRUCTION

•

Plug into grounded 3-prong outlet.

•

Do not remove grounding prong.

•

Do not use an adapter.

•

Do not use an extension cord.

•Disconnect power before cleaning.

•Disconnect power before servicing.

•Replace all panels before operating.

•Use 2 or more people to move & install ice

IMPORTANT SAFEGUARDS

Before the ice maker is used, it must be properly positioned and installed as

described in this manual, so read the manual carefully. Jackson Grills strongly

recommends that you have a professional install your new machine. The

warranty may be affected or voided by an incorrect installation .To reduce the

risk of fire, electrical shock or injury when using the ice maker, follow basic

precautions, including the following:

•Plug into a grounded 3-prong outlet. Do not remove grounding prong, do not use adapter, and

do not use an extension cord.

•It is recommended that a separate circuit, serving only your ice maker, be provided. Use

receptacles that cannot be turned off by a switch or pull chain.

•Do not connect or disconnect the electric plug when your hands are wet.

•Never unplug the icemaker by pulling on the power cord. Always grip the plug firmly and

pull straight out from the outlet.

•Never clean ice maker parts with flammable fluids. Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can

create a fire hazard or explosion.

•Before proceeding with cleaning and maintenance operations, make sure the power line of the

unit is disconnected and the water line is shut off. (EXCEPTION: When cleaning the

machine’s ice making and water systems - See pages 21-22)

•Before operating, put all panels back into place.

•Never allow children to operate, play with or crawl inside the ice maker.

•Do not touch the evaporator by hand when the machine is operating.

•Unplug the ice maker or disconnect power before cleaning or servicing. Failure to do so can

result in electrical shock or death.

•Do not attempt to repair or replace any part of your ice maker unless it is specifically

recommended in this manual. All other servicing should be referred to a qualified technician.

•Use two or more people to move and install ice maker. Failure to do so can result in back or

other injury.

•To ensure proper ventilation for your ice maker, the front of the unit must be completely

unobstructed. Choose a well-ventilated area with temperatures above 45°F (7°C) and below

110°F (43°C).

•The ice maker should not be located next to ovens, grills or other sources of high heat.

•The ice maker must be installed with all electrical and water connections in accordance with

state and local codes. A standard electrical supply (115VAC, 60Hz, 15A), properly grounded

in accordance with the National Electrical Code and local codes and ordinances is required.

•Do not kink or pinch the power supply cord between the ice maker and cabinet.

•The fuse (or circuit breaker) size should be 15 amperes.

•It is important for the ice maker to be leveled in order to work properly. You may need to

make several adjustments to level it.

•All installations must be in accordance with local plumbing code requirements.

•Make certain that the hoses are not pinched or kinked or damaged during installation.

•Check for leaks after connection.

•Although the unit has been tested at the factory, due to long-term transit and storage, the first

batch of cubes must be discarded.

•Remove the packing materials and clean the ice maker before using.

•Turn on the water supply tap before switching on the ice maker. Never turn the water supply

tap off when the ice maker is working.

•Except to take ice from the unit, keep the door closed in order to reduce ice melting and to

promote proper ice formation.

•If the ice maker will not be used for a long time, before the next use it must be thoroughly

cleaned. Follow carefully any instructions provided for cleaning or use of sanitizing solution.

Do not leave any solution inside the ice maker after cleaning.

•DO NOT touch the condenser fins. The condenser fins are sharp and can be easily damaged.

•DO NOT use solvent-based cleaning agents or abrasives on the interior. These cleaners may

transmit taste to the ice cubes, or damage or discolor the interior.

•The ice machine cleaner contains acids. DO NOT use or mix with any other solvent-based

cleaner products. Use rubber gloves to protect hand. Carefully read the material safety

instructions on the container of the ice machine cleaner.

•Do not use this apparatus for other than its intended purpose.

SAVE THESE INSTRUCTIONS

Electrical Connection

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

For personal safety, this appliance must be properly grounded. The power cord of this appliance

is equipped with a 3-prong grounding plug that mates with a standard 3-prong grounding wall

outlet to minimize the possibility of electric shock hazard from the appliance. Have the wall

outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

When a standard 2-prong wall outlet is encountered, it is your responsibility and obligation to

have it replaced with a properly grounded 3-prong wall outlet. The ice maker should always be

plugged into its own individual electrical outlet which has a voltage rating that matches the

rating label on the appliance. This provides the best performance and also prevents overloading

house wiring circuits which could cause a fire hazard from overheated wires. Never unplug your

ice maker by pulling on the power cord. Always grip the plug firmly and pull straight out from

the outlet. Repair or replace immediately all power cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either

end. When moving the ice maker, be careful not to damage the power cord.

Extension Cord

Because of potential safety hazards under certain conditions, it is strongly recommended that you

do not use an extension cord with this ice maker.

Technical Information

Model:

Electrical power:

Power consumption:

Ice-making/Ice-harvest rated current:

Refrigerant:

High/Low Side Pressure:

Width × Depth × Height (with feet):

Unit weight:

Ice-making capacity:

Max. ice stora

Ice shape:

Ice cube dimensions:

BBQ10700

115VAC ~ 60Hz

13.2kWh/100 lbs of ice

3.7A/4.8A

R134a, 7.06 oz.

350psig/130psig

14.6″×23.6″×33.5″

88 lbs

44 lbs/day*

25 lbs

Cube

¾″×¾″×1″

The technical data and performance index listed above should be used for reference only.

They are subject to change.

*The actual quantity of ice produced per day can vary with room and water conditions.

Introduction

The Jackson Grills BBQ10700 Ice Maker produces hard, crystal-clear, gourmet cube ice, and

offers convenience for homeowners and hotel guests. It can be used both indoors and outdoors.

An insulated, removable ice storage bin is included.

This user’s manual is intended as a resource for persons installing, using and servicing model

BBQ10700. It contains valuable information on safety and maintenance. Jackson Grills strongly

recommends that this manual be kept in a place where it can be accessed when needed.

Every Jackson Grills Ice Maker is designed and manufactured according to the highest

standards of safety and performance. It meets or exceeds the safety standard of UL563.

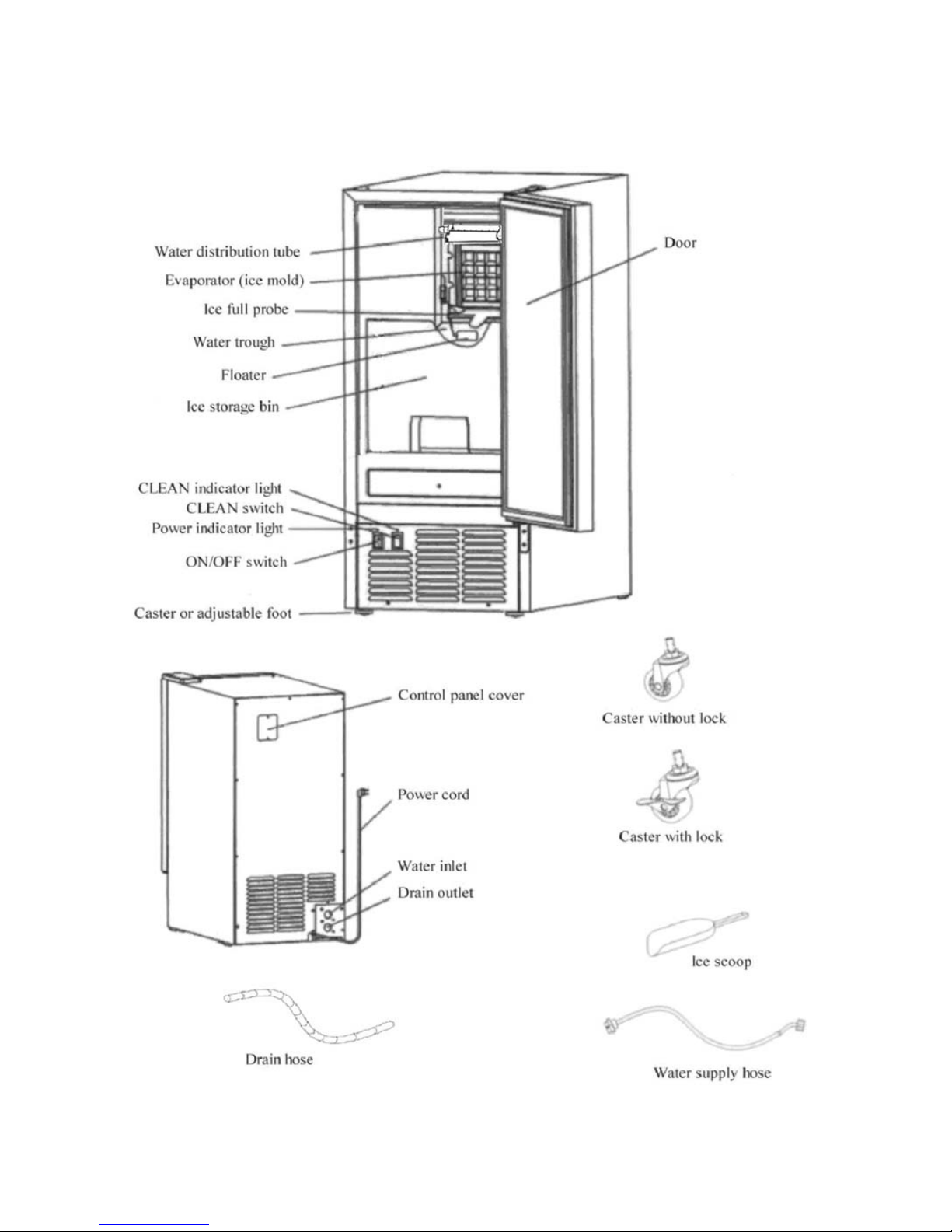

Component Locations

NSTALLATION CLEARANCES

Ice Maker Installation

Unpacking

Remove packaging materials

IMPORTANT: Do not remove any permanent instruction labels or the data label on your ice

maker.

Remove tape and glue from your ice maker before using.

•To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue

residue can also be easily removed by rubbing a small amount of liquid dish soap over the

adhesive with your fingers. Wipe with warm water and dry.

•Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to

remove tape or glue. These products can damage the surface of your ice maker.

Cleaning before use

After you remove all of the packaging materials, clean the inside of your ice maker before using

it. See "Interior cleaning" in the Cleaning and Maintenance section.

Location Requirements

Excessive Weight Hazard

Use two or more people to move and install ice maker.

Failure to do so can result in back or other injury.

Top View Side View

Rear of uni t

Fr ont of uni t

1/ 5"

Si de

1/ 5"

Si de

2/ 5"

Top of uni t

•This ice maker should be installed by qualified personnel.

•To ensure proper ventilation for your ice maker, the front of the unit must be completely

unobstructed.

•When installing the ice maker under a counter, follow the recommended spacing dimensions

shown on the previous page. Allow 2/5" (10mm) or more clearance at rear, 1/5" (5.1mm) at

the sides and 1" (25.4mm) at the top for proper air circulation. The installation should allow

the ice maker to be pulled forward for servicing if necessary.

•Choose a well-ventilated area with temperatures above 45°F (7°C) and below 110°F (43°C).

•The unit should not be located next to ovens, grills or other sources of high heat.

•Installation of the ice maker requires a cold water supply inlet of 1/4” (6.35mm) soft copper

tubing with a shut-off valve.

•The ice maker requires a continuous water supply with a minimum pressure of 15 psig and a

static pressure not to exceed 80 psig. The temperature of the water feeding into the ice maker

should be between 41°F (5°C) and 90°F (32°C) for proper operation.

•It is strongly recommended that a water filter be used. A filter, if it is of the proper

type, can remove taste and odors as well as particles. Some water is very hard; softened water

may result in white, mushy cubes that stick together. De-ionized water is not recommended.

•The ice maker must be installed with all electrical and water connections in accordance with

all state and local codes.

•The unit should be located on a firm and level surface. It is important for the ice maker to be

leveled in order to work properly. If needed, you can adjust the height of the ice maker

adjustable feet. See the Leveling the Ice Maker section.

•A standard electrical supply (115V AC only, 60Hz, 15A), properly grounded in accordance

with the National Electrical Code and local codes and ordinances, is required.

•IMPORTANT: Do not kink or pinch the power supply cord between the ice maker and wall or

cabinet.

Normal operating ambient temperature should be between 45°F (7°C) to 110°

F (43°C). Normal operating water temperature should be between 41°F (5°C)

and 90°F (32°C). Operation of the ice maker for extended periods outside of

these normal temperature ranges may affect production capacity.

Table des matières

Autres manuels Jackson Grills Machine à glaçons

Jackson Grills

Jackson Grills AZ-20A Manuel utilisateur

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur
