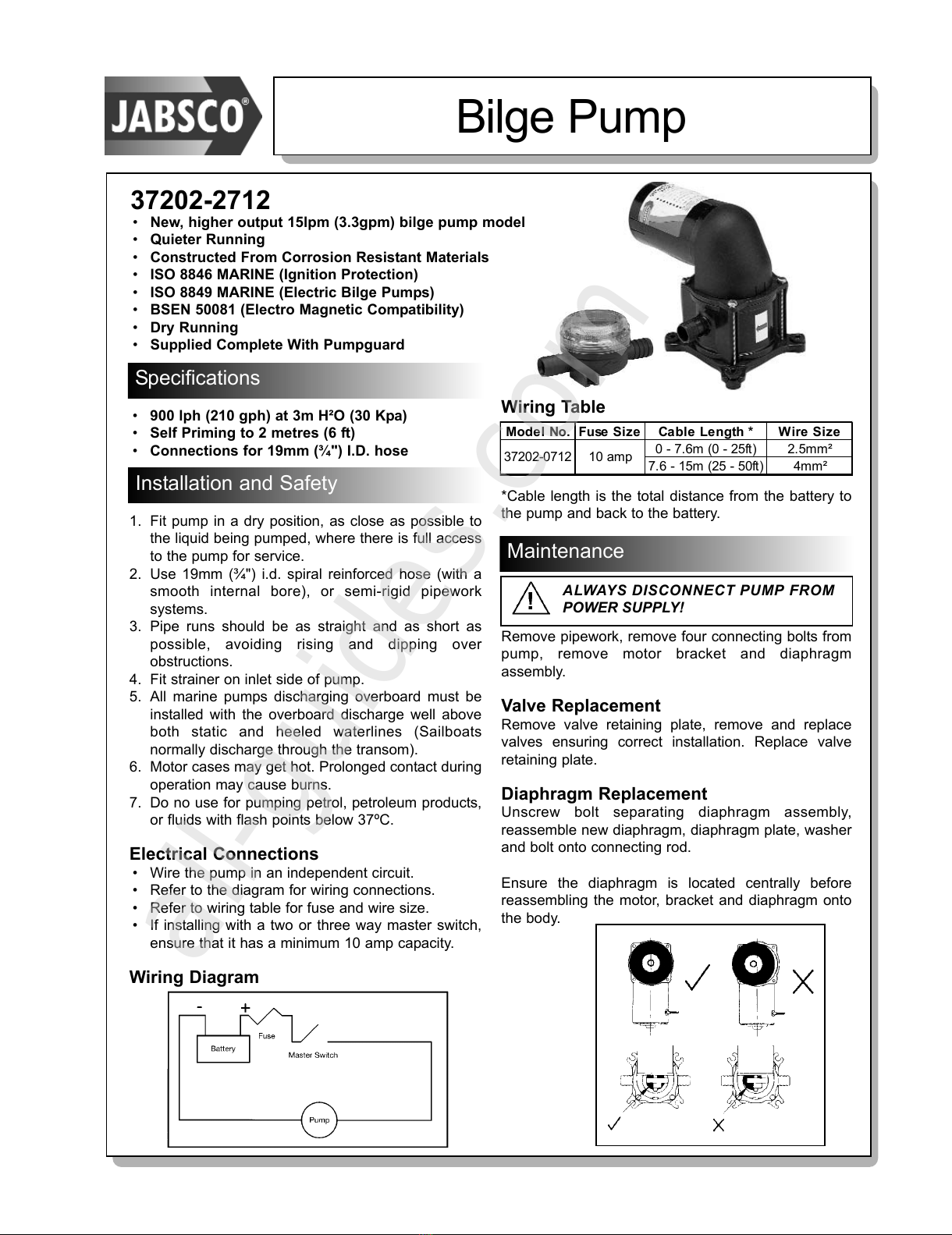

JABSCO 37202-2712 Manuel utilisateur

Bilge Pump

•900 lph (210 gph) at 3m H²O (30 Kpa)

•Self Priming to 2 metres (6 ft)

•Connections for 19mm (¾") I.D. hose

1. Fit pump in a dry position, as close as possible to

the liquid being pumped, where there is full access

to the pump for service.

2. Use 19mm (¾") i.d. spiral reinforced hose (with a

smooth internal bore), or semi-rigid pipework

systems.

3. Pipe runs should be as straight and as short as

possible, avoiding rising and dipping over

obstructions.

4. Fit strainer on inlet side of pump.

5. All marine pumps discharging overboard must be

installed with the overboard discharge well above

both static and heeled waterlines (Sailboats

normally discharge through the transom).

6. Motor cases may get hot. Prolonged contact during

operation may cause burns.

7. Do no use for pumping petrol, petroleum products,

or fluids with flash points below 37ºC.

Electrical Connections

• Wire the pump in an independent circuit.

• Refer to the diagram for wiring connections.

• Refer to wiring table for fuse and wire size.

• If installing with a two or three way master switch,

ensure that it has a minimum 10 amp capacity.

Wiring Diagram

Installation and Safety

Specifications

Wiring Table

*Cable length is the total distance from the battery to

the pump and back to the battery.

Remove pipework, remove four connecting bolts from

pump, remove motor bracket and diaphragm

assembly.

Valve Replacement

Remove valve retaining plate, remove and replace

valves ensuring correct installation. Replace valve

retaining plate.

Diaphragm Replacement

Unscrew bolt separating diaphragm assembly,

reassemble new diaphragm, diaphragm plate, washer

and bolt onto connecting rod.

Ensure the diaphragm is located centrally before

reassembling the motor, bracket and diaphragm onto

the body.

37202-2712

•New, higher output 15lpm (3.3gpm) bilge pump model

•Quieter Running

•Constructed From Corrosion Resistant Materials

•ISO 8846 MARINE (Ignition Protection)

•ISO 8849 MARINE (Electric Bilge Pumps)

•BSEN 50081 (Electro Magnetic Compatibility)

•Dry Running

•Supplied Complete With Pumpguard

Model No. Fuse Size Cable Length * Wire Size

0 - 7.6m (0 - 25ft) 2.5mm²

7.6 - 15m (25 - 50ft) 4mm²

10 amp

37202-0712

Maintenance

ALWAYS DISCONNECT PUMP FROM

POWER SUPPLY!

All manuals and user guides at all-guides.com

all-guides.com

Bilge Pump

Connecting Rod Replacement

Undo set screw, remove two motor mounting screws

and pull away from bracket and connecting rod

assembly. Unscrew bolt separating diaphragm

assembly and connecting rod. Reassemble diaphragm,

diaphragm plate, washer, and bolt onto new connecting

rod. Mount motor onto bracket aligning connecting rod

assembly. Tighten set screw. Reassemble diaphragm

assembly and bracket onto body.

Pulsation Dampener Replacement

Remove pump mounting screws. Remove foot screw

and foot. Pull out and replace pulsation dampener

positioning the three ribbed cavity on the discharge

side. Replace foot and foot screw.

Winter Storage

Completely remove water from pump by removing

pipework, and running the pump until all the water is

expelled

Warranty: All products of the company are sold and all services of the company are offered subject to the company’s warranty and terms and conditions of sale, copies of which will be furnished upon request.

Jabsco

ITT Industries

Jabsco, 20 Icon, Foothill Ranch, CA 92610-3000

Tel : +1 949 609 5106 Fax : +1 949 859 1153

Jabsco, Bingley Road, Hoddesdon, Hertfordshire, EN11 0BU

Tel : +44 (0) 1992 450 145 Fax : +44 (0) 1992 467 132

Fluid Products Canada,55 Royal Road, Guelph, Ontario N1H 1T1

Tel : +1 519 821 1900 Fax : +1 519 821 5316

NHK Jabsco Co Ltd,3-21-10, Shin - Yokohama, Kohoku-ku, Yokohama 222

Tel : +81 (0) 45 475 8906 Fax : +81 (0) 45 475 8908

Jabsco GmbH,Oststraße 28, 22844 Norderstedt

Tel : +49 (0) 40 53 53 73 0 Fax : +49 (0) 40 53 53 73 11

USA

CANADA

JAPAN

GERMANY

www.jabsco.com

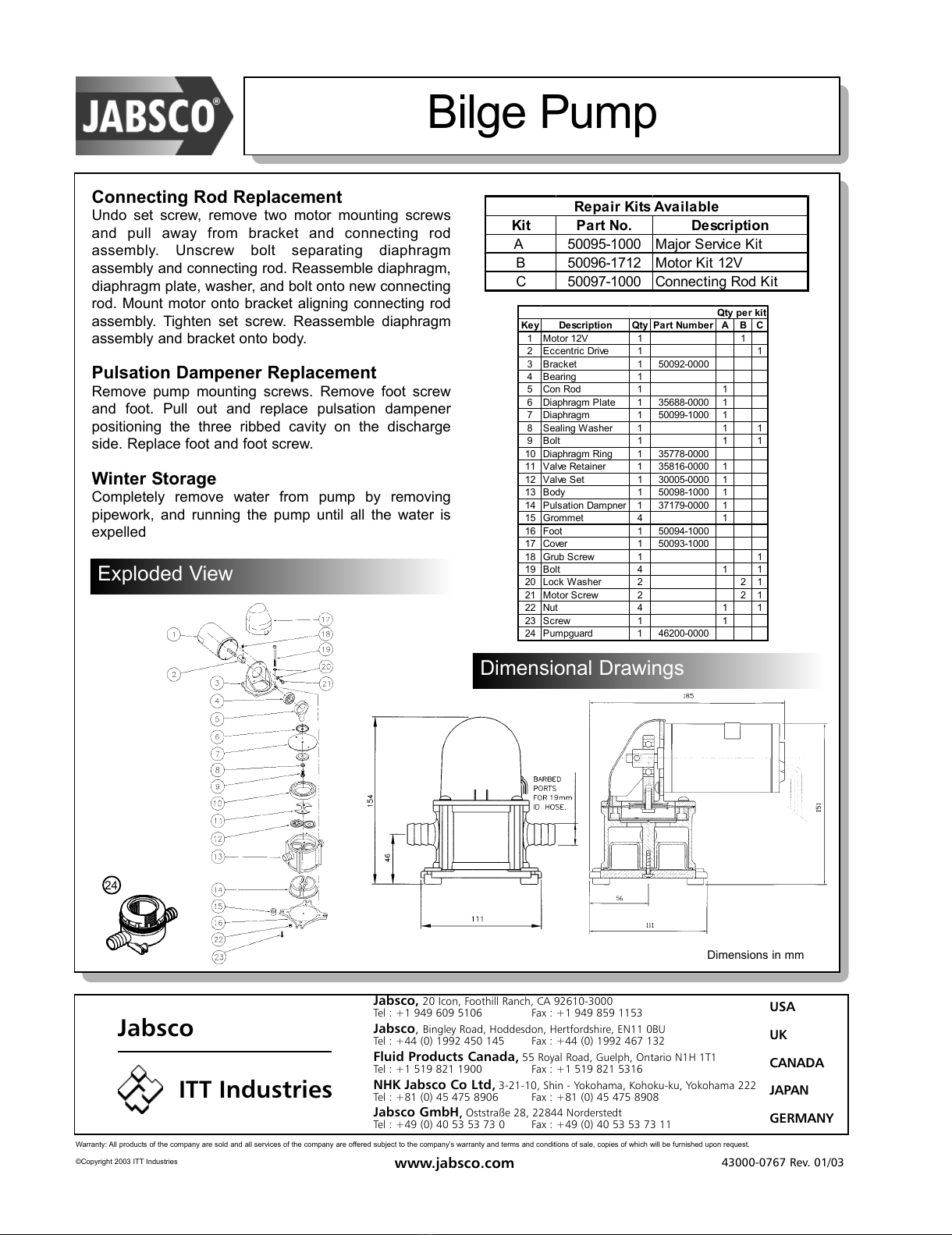

Exploded View

Kit Part No. Description

A 50095-1000 Major Service Kit

B 50096-1712 Motor Kit 12V

C 50097-1000 Connecting Rod Kit

Repair Kits Available

Key Description Qty Part Number A B C

1 Motor 12V 1 1

2 Eccentric Drive 1 1

3 Bracket 1 50092-0000

4 Bearing 1

5 Con Rod 1 1

6 Diaphragm Plate 1 35688-0000 1

7 Diaphragm 1 50099-1000 1

8 Sealing Washer 1 1 1

9Bolt 1 1 1

10 Diaphragm Ring 1 35778-0000

11 Valve Retainer 1 35816-0000 1

12 Valve Set 1 30005-0000 1

13 Body 1 50098-1000 1

14 Pulsation Dampner 1 37179-0000 1

15 Grommet 4 1

16 Foot 1 50094-1000

17 Cover 1 50093-1000

18 Grub Screw 1 1

19 Bolt 4 1 1

20 Lock Washer 2 2 1

21 Motor Screw 2 2 1

22 Nut 4 1 1

23 Screw 1 1

24 Pumpguard 1 46200-0000

Qty per kit

Dimensional Drawings

Dimensions in mm
