USER MANUAL
Jabra PLAY
+
-
1
english
JABRA PLAY
CONTENTS
WELCOME.............................................................................................2
JABRA PLAY OVERVIEW ..................................................................3
CONNECTING......................................................................................6
HOW TO USE THE JABRA PLAY.....................................................7
SUPPORT...............................................................................................10
TECHNICAL SPECIFICATIONS........................................................13
2
english
JABRA PLAY
welcome
Thank you for purchasing the Jabra Play. We hope you enjoy it!
+
_
what your jabra play can do
• Answer, end, reject* and mute calls.
• Voice dialing*.
• Redial last number dialed*.
• Play music and get GPS instructions via your connected mobile
device.
• Connect to two mobile devices simultaneously.
* Phone dependent
3
english
JABRA PLAY
jabra play oVerVIew
+
-
Jabra PLAY
G E T S T A R T ED UNDER
jabra.com/PLAY
MINUTES
5
.uk@jabra.com
.nl@jabra.com
.ch@jabra.com
egistration Pending International
81-03633 B
you’re looking for
Earphones
Warranty Leaet
AC Charger
Warning Leaet
USB cable
Quick Start Guide
Clip
Volume+
(Next track)
Play/pause Button
Volume-
(Previous track)
Answer/end Button
Micro-USB Protector
Micro-USB Port
LED Indicator
3.5mm Jack
Connector Microphone
4
english
JABRA PLAY
wearInG the jabra play
The Jabra Play has two dierent wearing styles.
Around the neck
Create a loop using the headphone cables, and wear around the
neck. Adjust the length of the cable by moving the clip on the
wire either up or down.
Clip-on
Clip the Jabra Play to your clothing, using the clip-on attachment.
5
english
JABRA PLAY

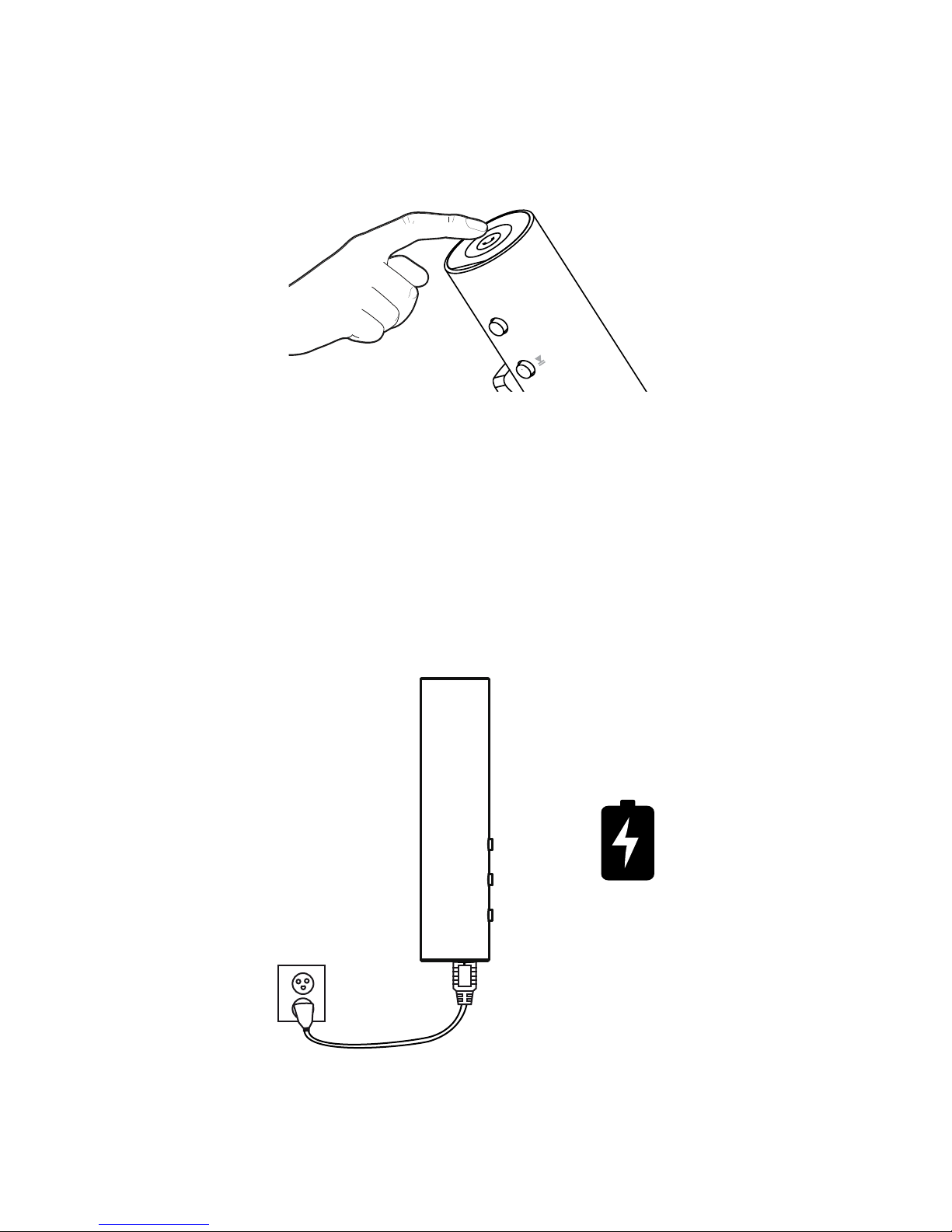

turn on the jabra play
Press and hold (4 secs) the Answer/end button to turn the Jabra
Play on/o.
-
charGInG the jabra play
Remove the micro-USB protector and plug the Jabra Play to a
power supply using the charging adapter. It takes 2 hours to fully
charge.
2 hrs
6
english
JABRA PLAY
connectInG
FIrSt tIme paIrInG
1. Turn the Jabra Play on. (press and hold the Answer/end button
for 4 seconds).
2. Activate Bluetooth on your Mobile phone, and select Jabra
Play. If asked for a PIN code enter 0000.
NOTE: After the Jabra Play and a mobile phone have been paired
they will automatically connect whenever the Jabra Play is
switched on, and the mobile phone has bluetooth activated and is
within range (10 m).
+
_
paIrInG wIth another mobIle phone
1. Turn the Jabra Play o (press and hold the Answer/end button
for 4 seconds).
2. Press and hold the Answer/end button (6 secs) until the LED
indicator ashes blue.
3. Activate Bluetooth on your Mobile phone, and select Jabra
Play. If asked for a PIN code enter 0000.
+
-
+
_
7
english
JABRA PLAY
how to uSe the jabra play
uSInG wIth your mobIle phone
+
-
On/o Press and hold (4 secs) the
Answer/end button
Play/pause
music
Music played on your mobile
phone will automatically transfer
to the Jabra Play. To pause music,
tap the Play/pause button, to
resume music tap the Play/
pause button again
Make call
The call will automatically
transfer to the Jabra Play. If not,
tap the Answer/end button
Answer call Tap the Answer/end button
End call Tap the Answer/end button
Reject call Press and hold (1 secs) the
Answer/end button
Clip
Volume+
(Next track)
Play/pause Button
Volume-
(Previous track)
Answer/end Button
Micro-USB Protector
Micro-USB Port
LED Indicator
3.5mm Jack
Connector Microphone
8
english
JABRA PLAY
Redial last
number*
Double-tap the Answer/end
button
+
-
Speaker volume
up/down*
Tap the Volume + or
Volume - button
Mute/un-mute
microphone
Press both the Volume +
button and Volume - buttons
simultaneously
Skip music
tracks
Press and hold (2 secs) the
Volume + or Volume - button
*Phone dependent
uSInG wIth two mobIle phoneS
The Jabra PLAY can accept and handle calls from two mobile
phones simultaneously.
End current
call and answer
incoming call
Tap the Answer/end button
Reject incoming
call
Double-tap the Answer/end
button
Put current call on
hold and answer
incoming call
Press and hold (2 secs) the
Answer/end button
Switch between
held call and
active call
Press and hold (2 secs) the
Answer/end button
9
english
JABRA PLAY
what the lIGhtS mean
What you see What it means
Power on
Power o
The Jabra Play is powered on, but not
connected to a mobile phone (standby mode)
The Jabra Play is in pairing mode, and ready
to connect
A mobile phone is Bluetooth connected to the
Jabra Play
Incoming call
Active call
Battery is charging
Battery is fully charged
Low battery
