Jabra Link 950 Manuel utilisateur

User manual

Jabra

Link 950

trademark of GN Audio A/S.

Declaration of Conformity can be found on

www.jabra.com/doc

Made in China

MODEL: ENC090(USB-A)

ENC091(USB-C)

ENGLISH

1. Welcome.........................................4

2. Jabra Link 950 overview .............5

2.1 Included accessories

2.2 Optional accessories

3. Connect to a desk phone............7

3.1 Connect to a desk phone with a headset port

3.2 Connect to a desk phone without a headset

port

3.3 Connect to a desk phone with an electronic

hook switch

4. Connect to a computer............ 10

5. Connect your headset .............. 11

5.1 Jabra devices that require a power supply

6. How to use ................................. 13

6.1 Make a call

6.2 Answer a call

6.3 What the LEDs mean

6.4 Adjust the microphone volume for desk

phones

6.5 Missing dial tone in desk phone

7. Jabra Direct................................. 17

8. Support ........................................ 18

8.1 FAQ

8.2 Desk phone and softphone compatibility

guide

ENGLISH

1. Welcome

Thank you for using the Jabra Link 950. We

hope you will enjoy it!

Jabra Link 950 features

• Boost productivity. Seamless connectivity to

a desk phone, softphone and mobile phone*.

• Ready for the future. Firmware upgrades

and central management for optimal

performance.

• Easy to install, use and manage. Simple to

set up and easy call management.

• Compatible with leading desk phones and

softphones. Get full call control via the

headset

*Mobile phone connectivity is limited to headsets with

Bluetooth functionality. Mobile phone audio, answer/end

functionality, etc., is routed directly between the Bluetooth

headset and the mobile phone. No mobile phone audio or

call functionality is routed via the Jabra Link 950.

ENGLISH

2. Jabra Link 950

overview

Headset/Bluetooth adapter port

(USB-C or USB-A)

Desk phone

LED indicator

Computer

LED indicator

Handset port

Telephone port

Aux port

Computer port

Power

supply port

Dial tone switch

for Desk phone

Target phone button

Microphone volume buttons

for desk phone

Front

Back

Bottom

ENGLISH

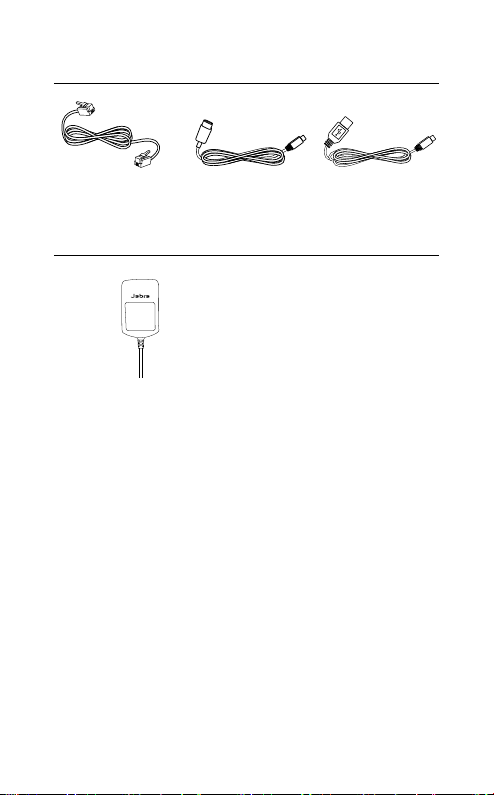

2.1 Included accessories

Telephone

cable

USB-C cable USB-A cable

2.2 Optional accessories

Jabra Link 950 power supply

(required for Jabra Evolve 40, Jabra

Evolve 80, Jabra GN 1000, and Jabra

devices when using the Jabra Link

360 Bluetooth adapter)

ENGLISH

3. Connect to a desk

phone

3.1 Connect to a desk phone with a

headset port

This desk phone has a dedicated headset port

(usually at the back of the phone). These

phones typically have a button on the front

panel for switching between handset and

headset.

1. Plug the supplied telephone cable into the

port marked on the Jabra Link 950.

2. Connect the telephone cable to the headset

port on your desk phone.

ENGLISH

3.2 Connect to a desk phone without a

headset port

This desk phone does not have a dedicated

headset port.

1. On the desk phone, unplug the handset cable

from the phone body.

2. Connect the handset cable to the port

marked on the Jabra link 950.

3. Plug the supplied telephone cable into the

port marked on the Jabra Link 950.

4. Connect the telephone cable into the

handset port on the desk phone.

ENGLISH

3.3 Connect to a desk phone with an

electronic hook switch

An electronic hook switch enables an incoming

call to be answered or ended by the headset´s

multi-function button. If the desk phone has an

electronic hook switch, a Jabra Link adapter*

will need to be connected between the desk

phone and the base.

For specific instructions on connecting an

electronic hook switch adapter* to a desk

phone, please refer to the cabling

documentation supplied with the adapter.

*For details on electronic hook switch compatibility

specific to your desk phone, and to purchase the

required adapter, visit Jabra.com/accessories.

ENGLISH

4. Connect to a

computer

1. Plug the supplied USB cable into the

Computer port on the back of the Jabra Link

950, and into an available USB port on your

computer.

2. Download and install Jabra Direct.

(jabra.com/direct)
