Ivoclar Vivadent Programat CS2 Manuel
Programat®CS2
Short Instructions | Kurzanleitung | Mode d’emploi : l’essentiel
Istruzioni d’uso – versione ridotta |Kısa Kullanım Kılavuzu
Dear Customer
Thank you for having purchased the Programat CS2. In order to render the setting-up and the initial use of the furnace as easy as
possible, we have prepared these short instructions.
These short instructions replace by no means the detailed Operating Instructions. We therefore kindly ask
you to thoroughly read the Operating Instructions and follow the notes contained therein.
Enjoy working with the Programat CS2.
english
Programat®CS2
Short Instructions
1 1
2
3
1 2
4
5
A
C
E
B
D
F
1. Installation
Remove the furnace components from their packaging and place the
unit on a suitable table. Please observe the instructions on the outer
packaging. Make sure the voltage indicated on the rating plate com-
plies with the local power supply. If this is not the case, the furnace
must not be connected.
Mounting the cooling tray
Remove both screws for the cooling tray (1).
Place the cooling tray (2) on the frame plate (3).
Make sure that the cooling tray is correctly positioned on the
frame plate.
Secure the cooling tray with the two screws (1).
Placing the firing plate
The firing plate (4) can now be placed on the firing plate holder (5).
Mounting the furnace head
The furnace head is best mounted with the back of the furnace pointing
towards the user. Lift the furnace head with both hands as shown in the
picture and place it on the furnace head mounting.
Mount the furnace head as shown in the picture until you feel it click
into place. Make sure that neither the firing plate nor the insulation is
damaged during the mounting of the furnace head.
A
B
C
D
E
F
1
2
76
8
9
10
12
11 14
13
G
I
K
H
J
Establishing the connections
Connect the cables of the furnace head with the furnace base.
Proceed as follows:
- Connect vacuum hose (6).
- Insert the thermocouple plug (7). (Make sure that the polarity of
the plug is correct.)
- Insert the heater plug (8).
Insert the heater plug into the specified connector. Secure the heater plug by
rotating it by 45°.
Closing the protective cover
When all cables are correctly connected to the base, close the
cover (9) to protect the connections until you feel it click into place.
Mounting the connection cover
The connection cover (10) can now be mounted and secured with the
screws.
The furnace may only be used with the protective cover closed
and the connection cover mounted!
Establishing additional connections
Power connection
Make sure that the voltage indicated on the rating plate complies with the
local power supply. Subsequently, connect the power cord (11) with the
power socket of the Programat (12).
Connecting the vacuum pump
Connect the vacuum pump plug (13) with the vacuum pump socket (14). We
recommend using only the VP4 vacuum pump from Ivoclar Vivadent, since
this pump is especially coordinated with the furnace. If other pumps are used,
please observe and do not exceed the indicated maximum power consumption.
G
H
I
J
K
english
2. User interface
The Programat CS2 has a wide-screen colour display. The keypad and the touch
screen allow user-friendly handling. By tapping slightly with your fingertips
on the touch screen, the buttons are activated and the furnace performs the
requested function.
Keypad:
Home
Returning to «Home» screen (main menu)
Program key
Pressing once: The currently selected program is
displayed.
Pressing twice:
The program selection via number entry is accessed.
Power-saving key
This key activates the power-saving function.
Open furnace head Close furnace head
START (Start LED)
Starts the selected program. The green LED indicates that a pro-
gram is running. If the program is paused (1 x STOP), the Start LED
flashes until renewed pressing of START results in the program being
resumed.
STOP
A running program can be paused by pressing the STOP
key and terminated by pressing the key twice. Movement
of the furnace head can be stopped at any time by pres-
sing STOP. Acoustic signals can be turned off by pressing
the STOP key.
3. Operation
Turning the furnace on
Connect the power cord with the wall socket.
Switch the On/Off button to position «I».
After the self-test, the display shows the home screen or the last selected program.
To change to the home screen, press the HOME key. All functions of the Programat can
be selected from this screen.
Selecting the program
Select the required program.
Loading the furnace
Open the furnace head by pressing the OPEN FURNACE HEAD key and
place the object to be fired with the firing tray in the furnace.
Starting the program
Press the START key to start the program. The LED lights up green.
The program progress is shown in the display.
At the end of the program, the furnace head opens automatically. As soon as the
OSD lights up green, the furnace is available for the next program start.
A
A
B
B
C
C
english
A
A
B
C
C
B
4. Editing the firing parameters
Parameters are set or edited in two steps.
Example: Setting the holding temperature
In the program screen, press the [Parameter] button.
Press the [T] button.
Enter the desired holding temperature and confirm
by pressing the green button.
The holding temperature has been changed successfully. All parameters
shown in the firing curve can be changed / edited the same way.
Changing program options
By pressing the [Options] button, the menu for additional program options opens.
Example: Open the write-protection program
In the program screen, press the [Parameter] button.
Press the [Options] button.
Edit the desired option and return to the program view
by pressing the [Close] button.
Ivoclar Vivadent programs are partially blocked and cannot be edited.
Please refer to the Operating Instructions for more detailed information.
B
B
C
A
A
C
Programat®CS2
Kurzanleitung
deutsch
Sehr geehrter Kunde
Es freut uns, dass Sie sich für den Kauf des Programat CS2 entschieden haben. Um Ihnen die Inbetriebnahme und die erste Anwendung des Gerätes so
einfach wie möglich zu gestalten, haben wir diese Kurzanleitung verfasst.
Diese Kurzanleitung ersetzt keinesfalls die umfassende Bedienungsanleitung.
Wir bitten Sie daher, auch die Bedienungsanleitung genau durchzulesen und die Hinweise zu beachten.
Wir wünschen Ihnen viel Freude und Erfolg mit dem Gerät.
1 1
2
3
1 2
4
5
A
C
E
B
D
F
1. Installation
Gerätekomponenten aus der Verpackung nehmen und das Gerät auf einen
geeigneten Tisch stellen. Bitte beachten Sie die Anleitung auf der Aussenver-
packung. Prüfen Sie, ob die angegebene Spannung des Typenschilds mit der
vorhandenen Netzspannung übereinstimmt. Ist dies nicht der Fall, darf das
Gerät nicht angeschlossen werden!
Montage der Brenngut-Ablageplatte
Entfernen Sie die zwei Befestigungsschrauben für die
Brenngutablageplatte (1).
Legen Sie nun die Brenngut-Ablageplatte (2) auf die Rahmenplatte (3).
Achten Sie dabei, dass die Brenngut-Ablageplatte korrekt auf der
Rahmenplatte aufliegt.
Sichern Sie nun die Brenngut-Ablageplatte mit den zwei Befestigungs-
schrauben (1).
Brenntisch auflegen
Der Brenntisch (4) kann nun auf die Brenntisch-Aufnahme (5) aufgelegt
werden.
Ofenkopf montieren
Der Ofenkopf kann am einfachsten montiert werden, wenn das Ofen-Hinter-
teil zum Anwender zeigt. Heben Sie den Ofenkopf mit beiden Händen wie
auf dem Bild ersichtlich und setzen Sie ihn auf die Ofenkopfhalterung.
Die Ofenkopfhalterung wie auf dem Bild ersichtlich aufsetzen bis der
Ofenkopf spürbar einrastet. Achten Sie darauf, dass der Brenntisch
bzw. die Isolation durch die Ofenkopfmontage nicht beschädigt wird.
A
B
C
D
E
F
Autres manuels pour Programat CS2
1
Table des matières
Langues :
Autres manuels Ivoclar Vivadent Équipement dentaire
Ivoclar Vivadent
Ivoclar Vivadent OptraDam Plus Manuel utilisateur
Ivoclar Vivadent
Ivoclar Vivadent Odyssey 3Watt Manuel utilisateur
Ivoclar Vivadent
Ivoclar Vivadent Programat EP3010 Manuel utilisateur
Ivoclar Vivadent
Ivoclar Vivadent bluephase Manuel utilisateur
Ivoclar Vivadent
Ivoclar Vivadent Programat EP 5010 Manuel utilisateur
Ivoclar Vivadent
Ivoclar Vivadent IvoBase Injector Manuel
Ivoclar Vivadent

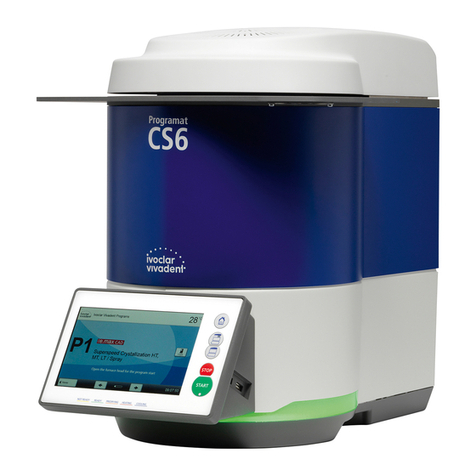

Ivoclar Vivadent Programat CS6 Manuel utilisateur
