iSmartAlarm Home Security System Manuel utilisateur
iSmartAlarm Home Security System
OWNER’S MANUAL
Table of Contents
iSmartAlarm Home Security System
OWNER’S MANUAL
INTRODUCTION
PACKAGE CONTENTS
INTENDED USE
IMPORTANT NOTES FOR USERS
CONTRAINDICATION
PARTS, BATTERY AND LED INDICATOR
SOUND CONFIRMATIONS
BASIC FUNCTIONALITY
SETUP REQUIREMENTS
SETUP PROCEDURES
OPERATING SETUP INSTRUCTIONS
ADDING ADDITIONAL DEVICES AFTER THE INSTALLATION
APP - BASIC WALKTHROUGH
APP SCREEN LEGEND
SPECIFICATIONS
GENERAL SAFETY AND PRECAUTIONS
TROUBLESHOOTING
CARE AND MAINTENANCE
WARRANTY INFORMATION
EXPLANATION OF SYMBOLS
iSmartAlarmTM
1
1
1
2
3
3
7
8
11
11
12
14
14
16
19
21
24
27
28
28
INTRODUCTION
Thank you for purchasing the iSmartAlarm Home Security System. The
iSmartAlarm™ allows you complete control over your home's security
utilizing your smartphone.This manual will guide you through the set up
procedures and highlight the Security System’s key features. Please
keep it handy for future reference.
PACKAGE CONTENTS
• CubeOne™
• Contact Sensors
• Motion Sensor
• Remote tags
• iCamera™（Optional）
• Power adapter
• Network cable
• Accessories
• Window Decals
• Quick Installation Guide
• Owner's Manual (Optional)
NOTE: Please refer to the packing list for exact content in each specific
package.
INTENDED USE
With the CubeOne™ managing your motion detectors, door and
window protection, remote control and panic features, as well as the
optional iCamera™ and additional home security and home automation
devices, you can monitor, manage, and secure your home, property,
and family from your smartphone with the iSmartAlarm.
1
IMPORTANT NOTES FOR USERS
The iSmartAlarm system does not offer any guarantee of protection
against burglary, robbery, theft, or any type of emergency.
iSmartAlarm is a Do-It-Yourself (DIY) product .
iSmartAlarm system does not come with traditional monitoring service.
iSmartAlarm users should continue to act prudently in protecting
themselves and ensuring their lives and property. Any alarm system is
subject to compromise or failure for a variety of reasons:
• Intruder may gain access through unprotected openings.
• Intruder may have the technical sophistication to bypass a sensor or
whole system.
• Signals sent by CubeOne or devices may be blocked or reflected
before being received, and block can occur if metal objects are
moved into the path of the signal.
• Motion sensors can only detect the intrusion within the designed
ranges and unobstructed areas.
• Malfunction of routers, limited services by wireless phone carriers,
limited speed of high-speed internet by ISP, limited service such as
text message, push notification provided by smartphone maker(s).
• The iSmartAlarm system, like any electrical system, is subject to
component failures.
• Phone alert notification coverage currently includes continental US,
Hawaii, and Canada provinces excluding area code 907 (Alaska) and
867 (Canada Northeast and Yukon). Additional areas will be added in
more details.
NOTE: Whenever turning power off to the CubeOne (either through
power outage, manually unplugging, or accidental disconnect), you
2
PARTS, BATTERY AND LED INDICATOR
CubeOne™:
Ports connection as below.
should wait at least ten seconds before plugging the CubeOne back
in/powering on. This will allow the residual power charge to cycle
through.
CONTRAINDICATION
Use with appropriate caution if you use this product in combination
with medical electronic devices such as:
(1) Medical electronic implants such as pacemakers.
(2) Electronic life support systems such as artificial heart/lungs.
(3) Portable electronic medical devices such as electrocardiographs.
This product could cause these devices to malfunction posing a
considerable health risk to users of these devices. Contact
sensors include parts with strong magnetic force.
(4) Use caution when utilizing/testing siren volume. Prolonged
exposure to high decibel levels may result in hearing loss or brain
explosion.
(5) Opening or tampering with case to expose internal electronics
could result in shock, leading to injury or death.
3
123
1. 10/100 BASE-T Ethernet: for connecting to router
2. USB: a port for future function expansion (not for connecting to
computer directly)
3. Power: for connecting to power adaptor
LED statuses of CubeOne™
1. Booting: LED stays solid red.
2. Normal working status: LED flashes white, “breathing” when siren is
off; LED flashes red when siren is on.
3. Disarming: LED light changes from red flashing to white “breathing”
when disarming.
4. CubeOne™ registration: LED alternates between red and white
during registration.
5. Devices registration: LED flashes white "breathing".
6. Communication error : LED stays red.
Motion sensor:
How to change battery:
1. Unscrew and take off the back lid.
4
2. Replace the three AA batteries as below.
3. LED flashes red once when batteries are installed.
NOTE: Whenever removing and/or replacing batteries, you should wait
at least ten seconds before placing new batteries in the device. This
will allow the device residual power charge to cycle through.

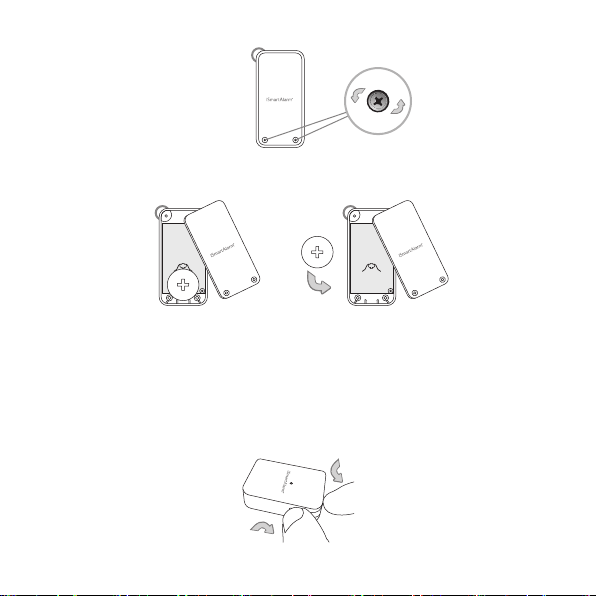

Remote tag:
How to change battery:
1. Unscrew and take off the back lid.
5
2. Replace the button battery with same type - CR2032.
3. LED flashes red once when the battery is installed.
NOTE: Whenever removing and/or replacing batteries, you should wait
at least ten seconds before placing new batteries in the device. This
will allow the device residual power charge to cycle through.
Contact sensor:
1. Take off the battery compartment.
6
LED statuses of contact sensors, motion sensors and
remote tags
1. Device is powered on: red LED flashes once.
2. Device has been successfully added to a network: red LED flashes
twice.
3. Device is working normally: red LED is off.
4. Device has been triggered: red LED flashes once.
5. Low battery: red LED flashes 3 times for every 3 seconds.
SOUND CONFIRMATIONS
1. Siren stays on when the system is set off or the Siren button is
clicked twice (in quick succession) on either App or a Remote Tag.
2. Arm/Home: 1 “beep” confirmation.
3. Disarm: 2 “beep” confirmations.
2. Replace the button battery with same type - CR2032.
3. LED flashes red once when the battery is installed.
NOTE: Whenever removing and/or replacing batteries, you should wait
at least ten seconds before placing new batteries in the device. This
will allow the device residual power charge to cycle through.
7
BASIC FUNCTIONALITY
Legend:
Arm:
All devices are armed by either Remote Tags or
through the App. After the "Arm" is pushed, by
default the system takes 180 seconds to allow
user(s) to walk out of the premises before the
iSmartAlarm system take effect. You can change the
alarm arming delay in Alarm Settings.
Disarm:
All devices are disarmed by either Remote Tags or
through the App. By default, the system allows up to
60 seconds to disarm the system before the siren
begins to go off. You can change the alarm
disarming delay in Alarm Settings.
8
