NEXhome T98 is an Android SIP smart doorphone with

7-inch touchscreen, it oﬀers multiple door access methods

such as the oﬄine facial recognition. This model is good for

multi-family apartment, high-rise commercial buildings and

building complexes.

 Front Panel: Aluminum alloy

 RAM / ROM: 2GB / 16GB

 Display: 7-inch LCD

 Screen: Capacitive touch screen

 RGB Camera: 2M pixels

 IR Camera: 2M pixels

 White light LED: Auto

 Infrared LED: Auto

 Wiegand: Support

 RS485: Support

 RF card reader: 13.56MHz

 Relayout: 1

 Inputs: 2

 Microphone: -42dBV

 Speaker: Dual speakers, 4Ω / 2W

 Bluetooth: Support

 Ethernet: 1×RJ45, 10/100Mbps self-adaptive

 DC 12V/1.5A connector

 IP Level: IP65

 Installation: Wall-mounted & Flush-mounted

 Wall-mounted DIM: 316×130×33mm

 Flush-mounted DIM: 316×130×8mm

 Dimension: 316×130×26mm

 Working Humidity: ≤95%RH

 Working Temperature: -30°C ~ +70°C

 Storage Temperature: -40°C ~ +70°C

AI-Powered Facial Recognition Android Doorphone

IS-T98ISESAR

 Android OS

 7-inch high-resolution IPS touchscreen

 2-mega pixels dual camera with HDR

 Precise face recognition and liveness detection

 Durable vandal-proof glass panel and aluminum

frame

 Support card/keyfob access

 Support Bluetooth access

 IP65 dust and water Protection

 Smart ﬁll-in light

 Body induction

 Easy to integrated with SIP systems and services

Highlights

HIGHLIGHTS

Physical & Power

PHYSICAL & POWER

XI`AN ISESAR TECHNOLOGY CO., LTD. 

ADD:Room2306,LingxianTimesplaza,GaoxinRoad,Xian

Web:www.isesar.com

Video

 Sensor: 1/2.8", CMOS

 Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p

 Video codec: H.264

 Video resolution: up to 1920×1080p

 Max. image transfer rate: 1080p - 30fps

 Viewing angle: 92°(FOV)

 High-intense IR LEDs for ﬁll-in light in dark

 Built-in light sensor to detect environment illumination

Deployment & Maintenance

 Auto-Provisioning

 Web management portal

 Web-based packet dump

 Conﬁguration backup / restore

 Entry log export

 Credentials export/import

 Firmware upgrade

 System logs (include door access logs)

Scenarios

 Entrance of high-rise buildings

 VIP or C-level room

 High-end house or community

 Self-service kiosk

Door Entry Feature

Unlock methods: Face, Card/keyfob, PIN and BLE

Support live detection to prevent malicious attack such as

HD photo and retaken screen

Support visual human activity detection and real-time

video streams analysis, achieve senseless access

Support HDR, highly improve the facial recognition rate

under extreme conditions such as low, strong and back

light

Up to 20,000 facial image data, 98%+ recognition accuracy

Minimum illumination: 0.1LUX



IS-T98ISESAR

Networking

 Protocols: IPv4, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

NETWORKING

 SIP v2 (RFC3261)

 Audio Codec: G.771a, G.711u, G.729 (Narrowband)

G.722 (Broadband)

 DTMF: In-band, RFC2833, SIP Info

 Echo Cancellation

Audio

130mm 26mm

8mm

22.5mm

316mm

MAKE PROPERTIES SAFER

AND SMARTER

Before the installation of the device, please check you have the following items on hand.

IS-T98 Series Quick Guide

Product Overview

PRODUCT OVERVIEW

Preparation

PREPARATION

Waterproof cover

×6

DH-T98 Screw

R3×6

Screw

M4×15

×6×1×1

130.0

316.0

8.0

26.0 114.0

294.0

22.5

①

②

③

④

⑤

⑥

⑦

① White light LED

② Infrared LED

③ RGB and Infrared camera

④ Touch Screen

⑤ Card Reader

⑥ Loudspeaker

⑦ Mic

MAKE PROPERTIES SAFER

AND SMARTER

The device can be installed in both indoor and outdoor environment.

Outdoor installation: Avoid to exposing the device to direct sunlight, which will cause damage

to device and components due to high temperature.

Indoor installation: The device should be installed on somewhere 2 meters (6 feet) away from

light or 3 meters (9 feet) away from window/door.

Installation Environment

INSTALLATION ENVIRONMENT

Installation

INSTALLATION

IS-T98 Series Quick Guide

Backlight Direct sunlight Close to light

 Flush Mounting

307.3

TOP

121.9 43.5

230.0

90.0 51

37.0

66.0

A. Dig out a hole on wall. Hole dimension(mm): 307.3(H)×121.9(W)×51(D)

B. Installation Height: Place the camera 1.5m (around 4ft 11in) away from the ground

STEP 1

MAKE PROPERTIES SAFER

AND SMARTER

A. Lock the wall-mounting box on a Type86 bottom box with two M4×15 screws.

B. Lock the wall-mounting box on wall with four M4×15 screws.

C. Pull cables through the wall-mounting box and waterproof cover, then connect them to corresponding

interfaces of device. Lock the waterproof cover on device with four R3×6 screws.

D. Embed the device into wall-mounting box and adjust it until device sides run in alignment with the

vertical edges of wall, then lock the device from bottom with two R3×6 screws.

IS-T98 Series Quick Guide

A. Put the embedded box into the dug hole and lock it with six M4×15 screws. Then ﬁll the gap between

wall and embedded box with cement or non-corrosive adhesive.

B. Attach the adjusting bracket into the embedded box and lock it with six M4×15 screws.

C. Pull the cables through the embedded box, bracket and the waterproof cover, then connect them to

corresponding interfaces of device. Lock the waterproof cover on device with four R3×6 screws.

D. Hook the top of device with bracket and adjust it until device sides run in alignment with the vertical

edges of wall, then lock the device from bottom with two R3×6 screws.

 Wall Mounting

STEP 2

MAKE PROPERTIES SAFER

AND SMARTER

IS-T98 Series Quick Guide

 Notes

Pin NO/COM is connected to the cathode lock

Pin NC/COM is connected to anode lock or magnetic lock.

+12VGNDGND 485B 485A

NODS GND SW NC COMGND

Exit Button Door LockDoor sensor

Elevator control device

Power

Network

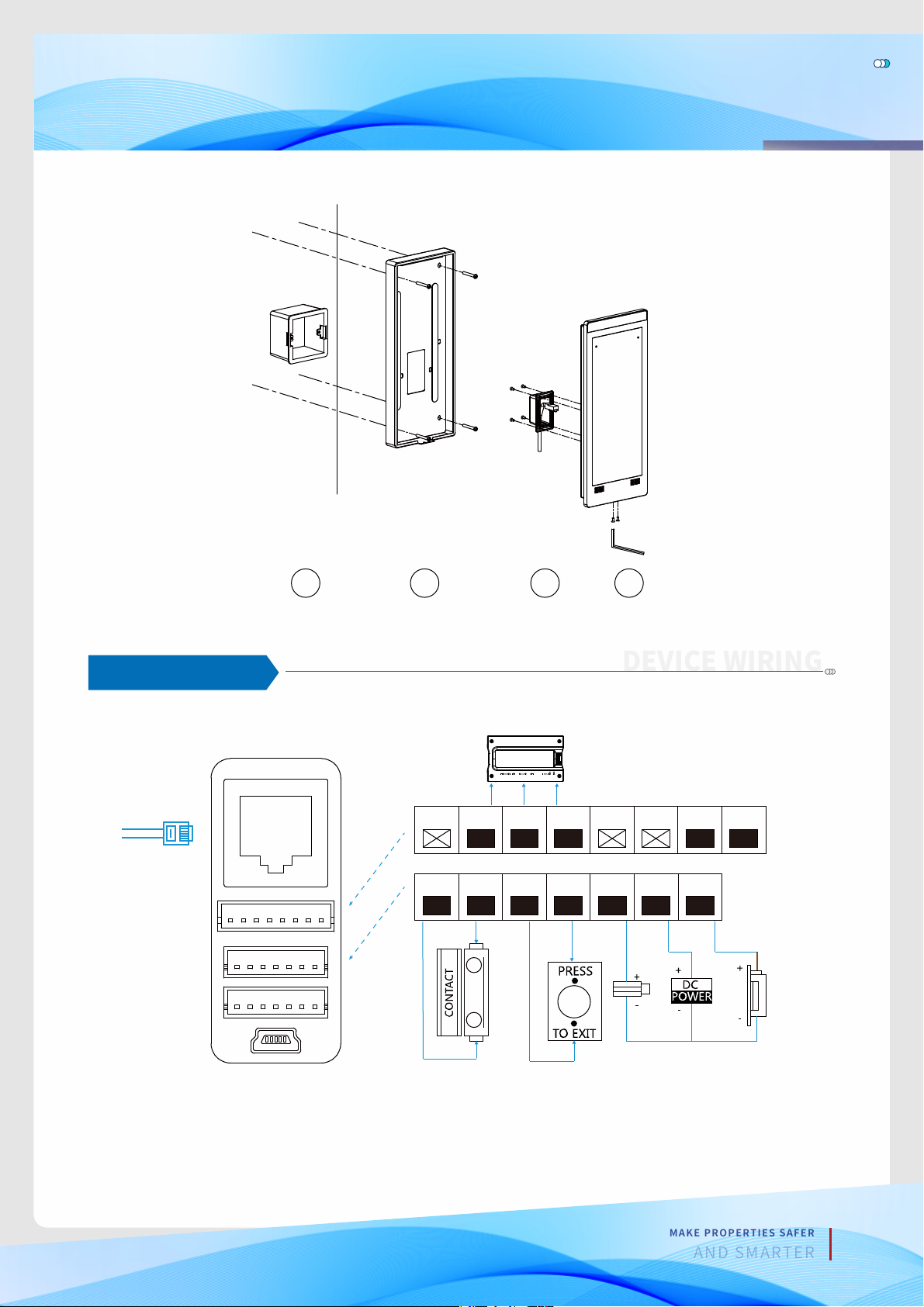

Device Wiring

DEVICE WIRING

A B C D

MAKE PROPERTIES SAFER

AND SMARTER

Speciﬁcations

SPECIFICATIONS

Conﬁgurations

CONFIGURATIONS

Functions

FUNCTIONS

IS-T98 Series Quick Guide

The system language and the network setting can be selected and conﬁgured when the initial booting

of device.

 Initial Setup

You can make calls from the device by select

contacts or dial call number

 Make Calls

Enter the access PIN set in device to unlock the

door.

 PIN Unlock

Attach the saved access card or keyfob on the

card reader area of T98 to unlock the door.

 Card/Keyfob Unlock

Incoming calls to T98 will be answered automati-

cally by default.

 Auto Answer

Walk in front of camera, the device can recog-

nize the face and unlock the door if facial

image is matched.

 Face Unlock

Press the conﬁgured DTMF code on keypad of

device answering the call, the lock connected

on T98 will be unlocked remotely.

 DTMF Unlock

Enter 9999 in CALL menu then enter 3888 to get into the PROJECT SETTING. Tap NETWORK to check

the IP address.

 Check IP Address

Log into Web conﬁguration portal of device, set up and register SIP accounts in INTERCOM-ACCOUNT

page. (You can refer to device user manual for more details)

 Set SIP Account

Select DTMF mode and conﬁgure the code in SYSTEM-RELAY page of Web conﬁguration portal. (You

can refer to device user manual for more details)

 Set DTMF Code

 OS: Android

 Display: 7-inch LCD

 Resolution: 1024×600

 Input power: DC12V / 1.5A

 IP level: IP65

 Front panel: Aluminum

 Working Temperature: -30℃ ~ 70℃

 Working Humidity: 10%~95%RH

 Dimension:

316×130×26mm (Device Surface)

307.3×121.9×51mm (Flush Installation)

MAKE PROPERTIES SAFER

AND SMARTER

Precautions

PRECAUTIONS

IS-T98 Series Quick Guide

 Violent vibration, collision and shock will cause damages to device.

 Intense direct sunlight will seriously aﬀect the device performance and life span.

 Keep the access card/keyfob away from magnet and water. DO NOT fold or bend the card/keyfob.

 The height between camera and ground should be 1.5m (around 4ft 11in) to guarantee the ideal

visual angle.

Visual Angle



MAKE PROPERTIES SAFER

AND SMARTER

XI`AN ISESAR TECHNOLOGY CO., LTD.

ADD.: Room 2306, Lingxian Times plaza, Gaoxin Road, Xi`an

Web: www.isesar.com
