Irritrol CMR-KIT Manuel utilisateur

CMR-KIT

Maintenance Remote

User’s Guide

• Installation

• Setup

• Operation

• Service

Irritrol CMR-KIT 10/27/06 10:55 AM Page i

Table of Contents Page

CMR-KIT System Overview . . . . . . . . . . . . . . . . . .1

Transmitter Components . . . . . . . . . . . . . . . . . .2–3

Receiver Components . . . . . . . . . . . . . . . . . . . .4–5

Receiver Installation . . . . . . . . . . . . . . . . . . . . . .6–9

Indoor Installation . . . . . . . . . . . . . . . . . . . . . . . .7

Outdoor Installation . . . . . . . . . . . . . . . . . . . . .8–9

Remote Control Operations . . . . . . . . . . . . . . . .10

Control Options During Operation . . . . . . . . . . .11

ASC Operation . . . . . . . . . . . . . . . . . . . . . . . . . .12

CMR-KIT Setup Features . . . . . . . . . . . . . . . . . . .13

Reset Receiver Address Code . . . . . . . . . . . . . . .14

Adjust Station Number Range . . . . . . . . . . . . . .15

Transmitter Battery Service . . . . . . . . . . . . . .16–17

Charging the Batteries . . . . . . . . . . . . . . . . . . . .16

Replacing the Batteries . . . . . . . . . . . . . . . . . . . .17

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . .18–19

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Warranty Information . . . . . . . . . . . . . . . . . . . . .21

Site Reference Record . . . . . . . . . . . . . .Back Cover

CMR-KIT Table of Contents

Irritrol CMR-KIT 10/27/06 10:55 AM Page ii

CMR-KIT System Overview

The CMR-KIT Irritrol Maintenance Remote is an

advanced VHF digital radio providing innovative

irrigation system remote control capabilities at extended

range of operation. Built to work in the toughest

commercial and municipal applications, the CMR-KIT is

also right at home in large and small residential systems

as well.

The CMR-KIT kit is comprised of a high-efficiency handheld

remote transmitter, portable receiver, quick-release receiver

mounting assembly and a dual-rate battery charger.

The CMR-KIT kit

adapts to several models of Irritrol and

Toro brand remote-ready controllers, enabling

single-person system operation for ease of maintenance,

startup, winterization and troubleshooting.

Refer to “Specifications” on page 20 for controller model

compatibility details.

CMR-KIT Features and Benefits

❖Programmable handheld transmitter retains up to

999 unique receiver address codes.

❖Ready for future, high station-count controllers —

provides control of up to 512 individual stations.

❖Quick-connect/release receiver mounting system —

receiver easily moved from site to site.

❖Rechargeable NiMH batteries and dual-rate charger

included—keeps batteries at peak efficiency

❖Handheld remote controls include: start, pause/resume,

skip, restart and stop functions of selected stations and

fully automatic ASC (All Station Cycle) for quick-check

system operation.

The CMR-KIT remote control system is designed for years

easy, trouble-free operation. To gain the maximum benefit

from your remote system, it is important to read and comply

with all recommended installation, operating and safety

procedures provided within this manual.

CMR-KIT System Overview

Irritrol CMR-KIT 10/27/06 10:55 AM Page 1

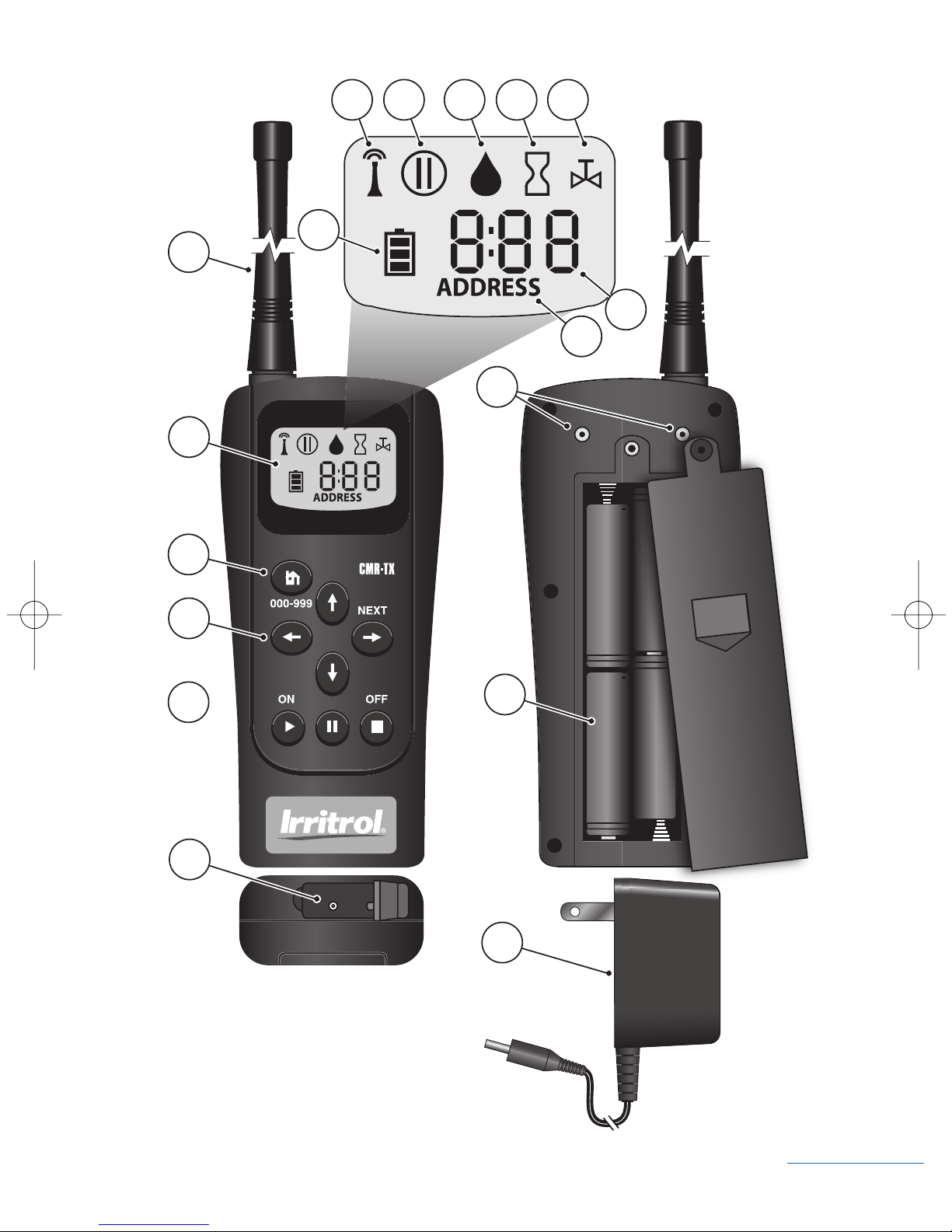

Handheld Transmitter Components

1 - Antenna - Screw-mount, flexible whip.

2 - LCD Display Symbols:

A- Transmit - Indicates signal transmission

B- Pause - Indicates watering on hold

C- Water On - Indicates station watering on

D- Time - Indicates run time is displayed

E- Station - Indicates station number is displayed

F- Numeric Display Characters

G- Address - Indicates address function is displayed

H- Battery Status- Indicates battery charge status

3 - Address Key - Accesses receiver address code function

4 - Cursor Keys - Up/Down arrow keys select station

number. Left/Right arrow keys step through station

sequence during operation.

5 - Function Keys - Accesses On, Pause and Off functions

6 - Battery Charger Receptacle

7 - Belt Clip Attachment Points (belt clip not shown)

8 - NiMH Battery Stack

9 - 115 VAC/7.5 VDC Battery Charger

CMR-KIT Transmitter Components

Irritrol CMR-KIT 10/27/06 10:55 AM Page 2

CMR-KIT Transmitter Components

Irritrol CMR-KIT 10/27/06 10:55 AM Page 3

Receiver Components

1 - Antenna

2 - Receiver Lock - Sliding latch secures the receiver to

the plug assembly.

3 - Activity Monitor LED - Flashes Green while power is

applied; Red when receiving a valid signal from the

transmitter.

4 - Receiver Plug Receptacle

5 - Receiver Plug Mounting Bracket - Enables simple

wall-mount installation. Easily removed enabling

receiver plug installation in threaded 1⁄2" PVC.

6 - Receiver Plug Assembly

7 - Modular RJ-11 Plug and Cable Assembly - Connects

the receiver to a compatible, remote-ready controller.

8 - Receiver Power Wires - Connects the receiver to the

controller’s 24 VAC power terminals.

9 - Receiver Plug Cover - Covers and protects the plug

assembly when the receiver is not installed. Prevents

damage due to prolonged exposure to moisture, sun

and dust.

CMR-KIT Receiver Components

Irritrol CMR-KIT 10/27/06 10:55 AM Page 4

CMR-KIT Receiver Components

Irritrol CMR-KIT 10/27/06 10:55 AM Page 5

Receiver Installation

Before using your CMR-KIT remote control system for the

first time, the following procedures must be completed:



Charge the transmitter batteries for a minimum of

8 hours.



Install and connect the receiver plug assembly and

receiver unit per the instructions provided.



Test the installation to confirm proper signal reception

and remote operation.

For maximum remote control performance and operating

range, select an installation site for the receiver using the

following guidelines:



The mounting location wall is constructed primarily of

wood or other non-metallic materials.



Stuccoed walls, metal buildings and large metal objects

are avoided.



The receiver is located as high above the controller as

possible.



The antenna is free of contact and aligned perpendicular

to the horizon.

The receiver plug provided in this kit is specifically

designed for the CMR-KIT receiver. The Irritrol KwikStart®

Remote receiver plug is similar in design, but is not

compatible.

The receiver plug mounting bracket should be secured to

an inside wall within 4' of the controller (the connecting

cable is approximately 6' in length). Alternately, when an

outdoor installation is preferred, the receiver plug can be

removed from the mounting bracket and installed into a

threaded 1⁄2" PVC pipe fitting.

Indoor Installation

1–

Position the receiver plug assembly on the wall within

4' of the controller, as high as practical. The alignment

hole in the center of the plug must be pointing down.

CMR-KIT Getting Started

Irritrol CMR-KIT 10/27/06 10:55 AM Page 6

2–

Using the provided wood screws (or other appropriate

fasteners), secure the bracket to the wall as high as

possible. If installing the plug assembly bracket onto

drywall or masonry, screw anchors must be used.

3–

With the receiver lock pulled up, align and install the

receiver onto the plug assembly. Push the lock down to

engage the groove in the plug assembly. See Figure 1.

CAUTION: Never connect the remote control

power wires to any voltage source greater than

24 VAC. Failure to comply will result in severe

equipment damage and voided warranty.

4–

Disconnect power to the controller.

5–

Route the receiver plug wiring through the base of the

controller cabinet.

CMR-KIT Indoor Installation

ACATIVITY

Figure 1

Irritrol CMR-KIT 10/27/06 10:55 AM Page 7

6–

Locate the controller’s remote RJ-11 jack and insert

the modular connector. See Figure 2.

The controller illustrated in Figure 2 is shown for

reference only. Refer to the controller user’s guide for

specific installation information.

7–

Locate the controller’s 24 VAC connection terminals

and attach the receiver power wires. Connect either

wire to either terminal.

8–

Apply power to the controller. The receiver Activity

monitor should begin flashing Green. If the Activity

monitor does not illuminate, confirm the receiver is

properly installed and plug assembly is wired correctly.

Outdoor Installation

CAUTION: The receiver plug is weather resistant only

when installed in PVC conduit and the plug cover is in

place. The receiver unit is not weather resistant and

should only be installed outdoors for temporary use. Do

not allow irrigation spray to contact the receiver during

sprinkler operation.

1–

At the selected installation site, bore a 3⁄4" hole through

the wall for 1⁄2" PVC pipe access.

2–

Install a length of PVC pipe through the wall, leaving

about 1" of pipe on both sides.

3–

Inside, install a 90° elbow and a 3" section of pipe.

Use a conduit clamp to secure the pipe assembly to

the wall. See Figure 3.

4–

Remove the mounting bracket from the plug assembly.

5–

Insert the receiver plug wiring through the threaded

end of a 1⁄2" thread/slip PVC fitting. Thread the receiver

plug into the PVC fitting tighten by hand.

6–

Route the wiring through the conduit. Install the

plug/fitting assembly to the pipe, orienting the plug

alignment hole pointing straight down.

7– C

onnect the receiver plug wiring as described above.

CMR-KIT Outdoor Installation

Irritrol CMR-KIT 10/27/06 10:55 AM Page 8
