Iron-A-Way UD-42 Guide de démarrage rapide
Installation
Manual
MODEL: UD-42
Tools Needed: Supplied Parts:
Recessed Mounting:
- Two #10 x 1 1/2” wood screws for top
portion of cabinet
- Two #14 x 2 1/2” Phillips screws for top
side brackets
Surface Mounting:
- Two #14 x 4” wood screws

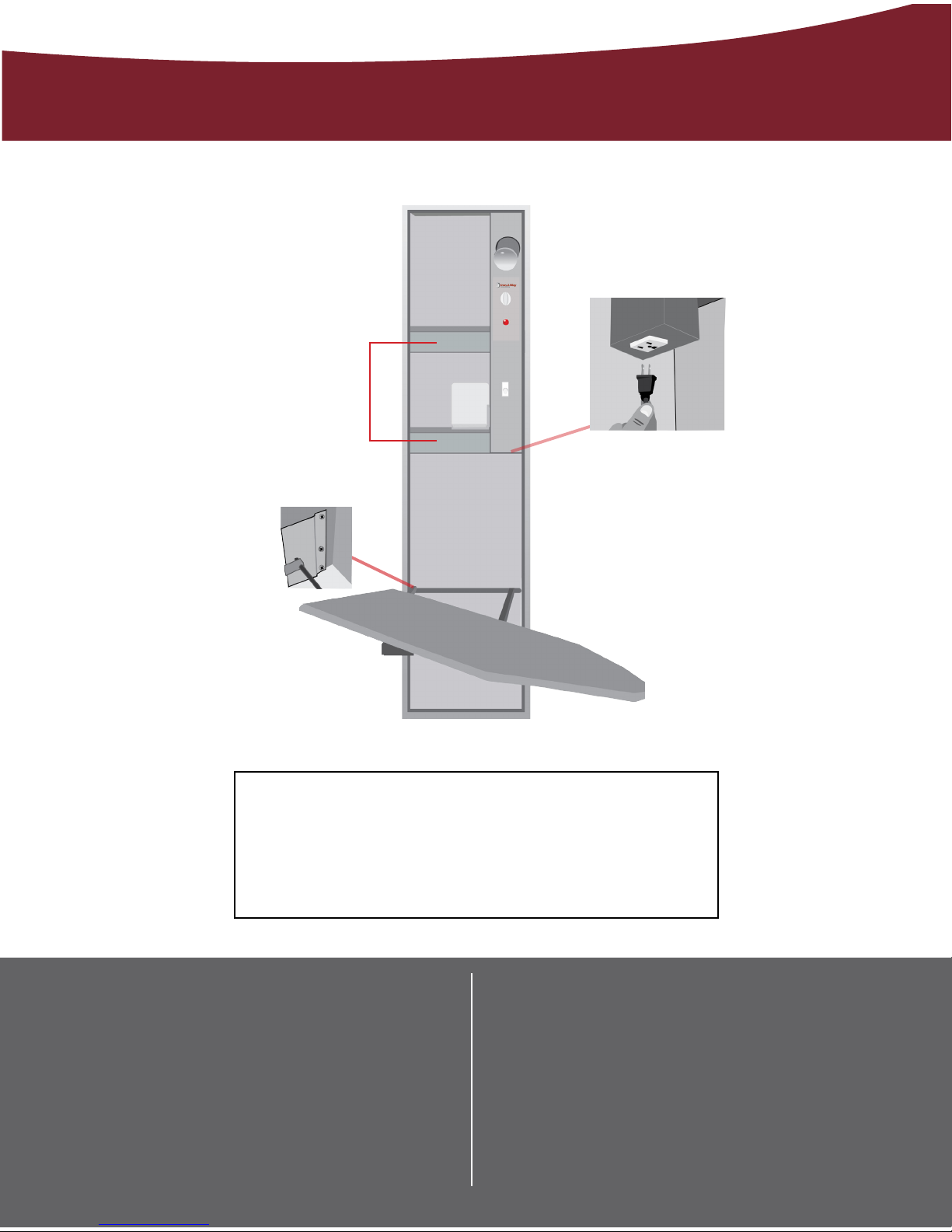

GET TO KNOW YOUR UNIT
1. CROSS BRACES
2. ELECTRICAL RACEWAY
3. SIDE BRACKETS
4. ELECTRICAL OUTLET
5. HOT IRON REST
2
4
1
5
(BOTTOM OF RACEWAY)
3
- Stud Finder
- 12-14” Level
- Tape Measure
- Small Flathead
Screwdriver
- Electric Drill
(with 1/4” & 1/8” drill bit)
- 1/4” Nut Driver
(optional)
- Safety Glasses
- Utility Knife
PRE-INSTALLATION
2. LOCATE STUDS & UTILITIES
Using a stud nder, locate the wall
studs to be used for mounting.
Locate the existing wiring or other
utilities in the wall to prevent drilling
into/severing a wire and/or other utility
during installation.

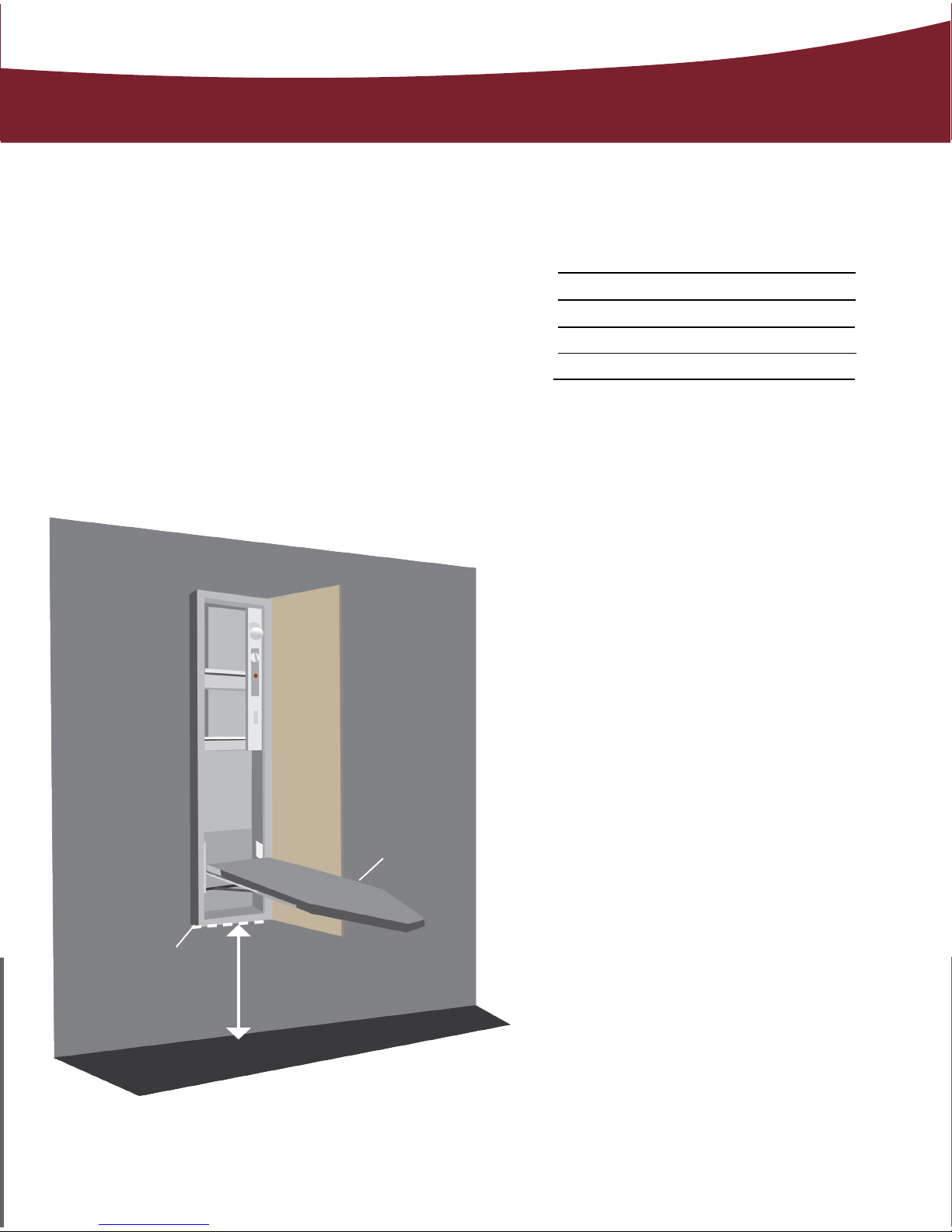

1. DETERMINE MOUNTING HEIGHT
Using the charts provided, determine
the mounting height above oor (the
distance between the oor and the
bottom of the cabinet). First choose
your desired ironing board height
from the left column, then locate the
corresponding mounting height in the
right column.
Mounting
Height
Above Floor
Desired Ironing
Board Height
Desired Ironing
Board Height
Mounting
Height Above
Floor
16”
15”
14”
13”
32”
31”
30”
29”
Refer to provided chart to ensure adequate
clearance for ironing. The cabinet door opens
at 180 degrees; allow 16” from side of cabinet
for door to fully open.
3. ENSURE ADEQUATE SPACE
2. Distance from wall to tip of ironing board
4. Standing area clearance (not shown)
The suggested distance from the side of the ironing where the user
typically stands to ensure adequate space for ironing.
1. Distance needed on either side of unit to fully swivel the board
3. Distance from wall to board when in full swivel position
501/4”
167/8”
321/4”
24”
RECESSED INSTALLATION
Cut an opening into the wall based
on dimensions given below.
Attach a 2” x 4” cross support
cleat between the studs so it
is level with the bottom of the
opening. This will give support to
the drywall during installation and
to the cabinet once installed in
the wall.
Your unit will be attached to the studs by
screws in the upper and lower sides of
the cabinet.
Remove electrical raceway by
unscrewing the top and bottom screws.
Using a 1/8” drill bit, pre-drill holes into
the sides of the cabinet, 14” from the top
and 21/2” from the back.
1. CUT WALL OPENING
2. ATTACH CLEATS
3. PRE-DRILL HOLES
Example shown with exposed
studs & unit to illustrate mounting.
14” from top of cabinet
21/2” from back
of cabinet
Note: Instructions assume wall studs are spaced 16” on center.
CLEAT
14 3/8” x 59 7/8” x 3 7/8”
7. ATTACH CABINET TO STUDS
Using the pre-drilled holes in top
of cabinet, attach unit to studs
with two #10 x 11/2” screws for top
installation.
Example shown with studs
to illustrate mounting.
6. INSTALL UNIT IN WALL
Begin installation by carefully lifting unit
into the wall opening. Make sure the
cabinet is plumb and level. If needed,
add shims to help unit t snug in place.
Ensure that power is
disconnected at service
entrance before proceeding.
4. REMOVE ELECTRICAL KNOCKOUT
Open the front cover of the raceway
by removing the screw at the top and
bottom of the raceway.
Locate the electrical knockout, as
specied on diagram provided.
Install a 3/8” romex connector where
the knockout was removed.
21/2”
21/4”
11/4”
DIA. VENT
HOLE FOR
WIREWAY
DOOR
CABINET
EXTERIOR
5. INSTALL ELECTRICAL WIRING
Verify that there is ample supply wire
available to run from the top of the
ironing center to the approximate
location of electrical pigtails.
Note: A free wire length of 48” is
recommended.
Begin to place the ironing center into
its location while feeding the supply
wire through electrical knockout, and
the 3/8” romex connector through the
back of the raceway.
Locate side ironing board brackets
that are secured to cabinet with
three screws. Then remove the
top screw from each bracket. This
is where the bottom part of your
cabinet will be secured to the
studs.
Pre-drill holes into the cabinet using
the holes in side brackets where
screws were just removed.
Finish installation by inserting the
two #14 x 21/2” screws into the
pre-drilled holes to secure bottom
part of cabinet.
8. REMOVE BRACKET SCREW
9. PRE-DRILL HOLES IN SIDES
10. CONNECT WIRES
Connect all power supply wires and
ground wires in accordance with all
electrical codes. Trim supply wire as
necessary.
11. REPLACE RACEWAY COVER
Place the raceway cover into
position, ensuring that no wires
are pinched. Reinstall the top and
bottom screw to secure in place.
Reconnect power supply.
12. INSTALLATION COMPLETE!
Cabinet is now fully installed! If desired,
decorative trim or molding may be
added to cover an irregularities in the
wall.
SURFACE MOUNT INSTALLATION
2. PRE-DRILL PILOT HOLES
Using a 1/4” drill bit, pre-drill holes in
the upper and lower cross braces
inside the cabinet as determined in
previous step. Ensure that the holes in
both braces are drilled to the same
measurement.
1. PREPARE CABINET
Screws will be drilled through the upper
and lower cross braces (see illustration
on pg.3) inside the cabinet. Determine
location of screws, ensuring that the
location of the mounting screw is as
close to the center of the cabinet as
possible.
Example shown
with studs & unit to
illustrate mounting.
Partially insert a #14 x 4” screw
in the upper cross brace.
4. PARTIALLY INSERT SCREW
3. LOCATE & MARK STUD
Using a stud nder, locate stud in
wall and mark the wall according
to the pre-drilled holes in cabinet.
Setting cabinet aside, pre-drill holes
using a 1/4” drill bit. Do not attempt
to drill into hard board of cabinet.
5. REMOVE ELECTRICAL KNOCKOUT
Open the front cover of the raceway
by removing the screw at the top
and bottom of the raceway.
Locate the electrical knockout, as
specied on diagram provided.
Install a 3/8” romex connector where
the knockout was removed.
Ensure that power is
disconnected at service
entrance before proceeding.
241/2”
213/16”
13. INSTALLATION COMPLETE
Cabinet is now fully installed!
9. ADD TRIM
Add decorative trim or molding to
make cabinet sides ush with the face
frame.
Locate side ironing board brackets
that are secured to cabinet with
three screws. Then remove the top
screw from each bracket. Replace
with a #14 x 3/4” Phillips screw. This
will add stability long-term.
10. REMOVE BRACKET SCREW
7. INSTALL UNIT
Begin installation by carefully lifting
unit into position. Then, attach the
cabinet to the wall by fully inserting
the screw in the upper cross brace
into the wall stud.
Make sure the unit is plumb and
level. Shim if necessary. Fully tighten
installation screw.
8. INSERT SECOND SCREW
Insert the second #14 x 4” screw into
the pre-drilled hole in the bottom
brace of the cabinet and attach to
wall making sure cabinet remains
square and level.
6. INSTALL ELECTRICAL WIRING
Verify that there is ample supply wire
available to run from the top of the
ironing center to the approximate
location of electrical pigtails.
Note: A free wire length of 48” is
recommended.
Begin to place the ironing center into
its location while feeding the supply
wire through electrical knockout,
and the 3/8” romex connector
through the back of the raceway.
11. CONNECT WIRES
Connect all power supply wires and
ground wires in accordance with all
electrical codes. Trim supply wire as
necessary.
12. REPLACE RACEWAY COVER
Place the raceway cover into
position, ensuring that no wires
are pinched. Reinstall the top and
bottom screw to secure in place.
Reconnect power supply.
