IRIS295V2 / IRIS395 Installation Manual & User Guide

1.01 Conventions:

At various points within this guide, the following icons will be

used to illustrate important or potentially dangerous information:

!!WARNING

!!This symbol indicates a risk of damaging the

! ! camera or other items or an important issue that

! ! may effect the operation of the camera.

!!INFORMATION

!!This symbol points out important information

!!pertaining to the installation, operation and

! ! maintenance of the camera.

!!DANGER

!!This symbols alerts the user of a serious risk of

! ! damage or personal injury or death.

1.02 Export Regulations:

Versions of this product with a refresh rate in excess of 9Hz are

subject by European and US Export Regulations:

US Department of Commerce (DOC) Export Administration

Regulations (EAR). The Export control classiﬁcation number is

6A003b4b. US Government authorization may be required for all

destination outside the US except Canada.

UK Export Controls are enforced by the UK Department for

Business, Innovations and Skills (BIS) Export Control

Organisation (ECO). These products are controlled under

classiﬁcation 6A003b4b of the Dual Use Regulation. Prior

authorization is required for all exports to countries outside of

the EU and General Licenses may be available for certain

destinations.

For more information on the export regulations required for

these such devices contact Iris Innovations Ltd, Iris Innovations

USA Corporation or visit the following websites:

USA: www.bis.doc.gov

UK: www.bis.gov.uk/exportcontrol

1.03 Limited Warranty:

This product is warranted to be free from defects in materials or

workmanship for one year from the date of purchase. Upon

registration of the product an additional 12 months warranty will

be awarded FOC. Within this period, Iris Innovations will, at its

sole option, repair or replace any components that fail in normal

use. Such repairs or replacement will be made at no charge to

the customer for parts or labour, provided that the customer

shall be responsible for any transportation cost. This warranty

does not apply to: (i) cosmetic damage, such as scratches, nicks

and dents; (ii) consumable parts, such as batteries, unless

product damage has occurred due to a defect in materials or

workmanship; (iii) damage caused by accident, abuse, misuse,

water, ﬂood, ﬁre, or other acts of nature or external causes; (iv)

damage caused by service performed by anyone who is not an

authorized service provider of Iris Innovations Limited or Iris

Innovations USA Corporation; or (v) damage to a product that

has been modiﬁed or altered without the written permission of

Iris Innovations. In addition, Iris reserves the right to refuse

warranty claims against products or services that are obtained

and/or used in contravention of the laws of any country. This

product is intended to be used only as a travel aid and must not

be used for any purpose requiring precise measurement of

direction, distance, location or topography.

V3.00 Iss 05-06 18 - 2

Table of Contents:

Section! ! ! ! ! ! ! Page

1.01! ! Conventions! ! ! ! 2

1.02! ! Export Regulations! ! ! ! 2

1.03! ! Limited Warranty! ! ! ! 2

2.01! ! Warnings & Product Information! ! 5

3.01! ! Introduction! ! ! ! 6

3.02! ! Overview of Key Features! ! ! 6

3.03! ! Contents of Package! ! ! 6

4.01! ! Typical Conﬁguration Examples! ! 7

5.01! ! Camera Control Data! ! ! 8

5.02! ! Cabling Requirements! ! ! 8

5.03! ! Video Connections! ! ! ! 8

5.04! ! Data Connections! ! ! ! 8

5.05! ! Connecting Multiple Cameras / Controllers!8

5.06! ! Power Connections!! ! ! 9

5.07! ! Extending Cable Length! ! ! 9

5.08! ! Setting Camera Address / Image Flip! ! 9

5.09! ! Installation Considerations! ! ! 9

5.10! ! Protocol Information!!! 9

6.01! ! Hardware Installation! ! ! 10 & 11

6.02! ! Breakout Balun! ! ! ! 12

7.01! ! Powering Up! ! ! ! 13

8.01! ! Controlling The Camera Overview! ! 13

8.02! ! Setup Features! ! ! ! 13

8.03! ! Auto-Flip Feature! ! ! ! 13

8.04! ! User Presets! ! ! ! 13

8.05! ! System Presets! ! ! ! 13

8.06! ! Scan Modes! ! ! ! 13

9.01! ! Auto-Standby Feature! ! ! 14

9.02! ! Colour Palettes! ! ! ! 14

9.03! ! ICE™ Image Contrast Enhancements! ! 14

10.01! ! Protocol Command List! ! ! 15

10.02! ! Hardware Image Flip! ! ! 16

10.03! ! Ground Loop Isolation! ! ! 16

11.01! ! Address Table! ! ! ! 17

V3.00 Iss 05-06 18 - 3

12.01! ! Camera Speciﬁcations! ! ! 18

Table of Contents: (Continued)

Section! ! ! ! ! ! ! Page

13.01! ! Appendix A - Dip Switch Settings! ! 19

14.01! ! Appendix B - Cabling Information! ! 20,21 & 22

V3.00 Iss 05-06 18 - 4

2.01 Warnings & Important Product Information

WARNING: Installation and Operation

This product must be installed and operated in accordance with

these instructions. Failure to do so may result in poor product

performance, damage to the product or vessel and or personal

injury. Installation should only be carried out be qualiﬁed

personnel or by persons competent in electrical systems.

WARNING: Power Supply and Grounding

Ensure the boats power supply is switched off during

installation. Ensure suitably rated circuit breakers / fuses are

used in the installation of the product in accordance with the

electrical values shown in the technical speciﬁcations of the

product. Never switch on power until the power connections are

correctly terminated in accordance with the information provided

in this document. Do not connect or disconnect the product with

the power supply switched on. Never disconnect the DC ground

with the power supply on.

WARNING: Wiring terminations

Where the products video, power and data terminations are

extended, ensure that suitable connectors are used and that the

point of termination for each cable is adequately protected

against moisture ingress. Ensure correct polarity is strictly

observed. Do not cut or remove cable connectors without prior

permission from Iris Innovations Limited.

WARNING: Do Not Open the Unit

There are no user serviceable parts within the product so there s

no need to open the device other than temporarily removing the

Camera Address DIP Switch window whilst setting addresses.

Ensure the DIP switch window is correctly replaced and that the

rubber seal is not lost, pinched or damaged. The product has

been certiﬁed to IP66 standards, however, submersion or the

product or exposure to high pressure washing will invalidate the

warranty.

WARNING: Disclaimer

This product is intended to be used only as an aid to navigation

and must never be used as an alternative to correct navigational

practices and judgements made on the basis of approved

navigation methods. It is the users responsibility to observe

correct and proper navigational skill when using this product.

Only ofﬁcially approved charts and notices to mariners contain

the current information required for safe navigation.

Operating the camera or viewing the video input whilst the

vessel is moving could cause a distraction and result in

accidental collision resulting in property damage, injury or death.

Iris Innovations cannot be held liable for any incidental, special,

indirect or consequential damages whether resulting from the

use, misuse or inability to use this product.

CAUTION: Switch Camera Off When Not in Use.

To prolong the operation life of the thermal cameraʼs micro-

bolometer sensor we strongly advise that power to the camera is

routed via a dedicated switch.

CAUTION: Service and Maintenance

This product contains no user serviceable parts. Please refer all

maintenance and repair issues to your authorized Iris

Innovations dealer. Any unauthoriZed work to the product may

affect the warranty.

CAUTION: Care and Cleaning

This product is a sensitive piece of electronic, imaging

equipment and must be handled and treated accordingly. Do not

drop or shake the unit during installation. Never manually alter

the pan or tilt position whilst the power to the unit is on as this

may permanently damage the motors. Avoid exposure of the

imager to direct sunlight where possible as this may degrade the

cameras performance over time.

When cleaning the device, ensure power is switched off to avoid

unintentional movement of the cameras motors. Clean the

camera housing with a soft cloth. Moisten the cloth and use a

mild detergent if required but take care not to get detergent on

the lens window. The lens window has a protective coating

which may suffer damage as a result of improper cleaning. To

clean the lens window use a soft cotton cloth. Moisten with clean

water if necessary. For further advise on cleaning the lens

window, contact Iris Innovations.

INFORMATION: Product Disposal and Recycling

Dispose of this product in accordance with the WEEE Directive.

The Waste Electrical and Electronic Equipment (WEEE)

Directive requires the recycling of waste electronic and electrical

equipment. Iris Innovations supports the WEEE policy and

politely request you observe correct disposal methods. For

further information on how to correctly dispose of this product

please contact Iris Innovations.

Please recycle unwanted packaging and documentation. The

cardboard carton, all paper manuals and documents and the

protective plastic bag in which the camera is shipped are widely

recyclable. Please check with your local recycling plant for

conﬁrmation.

V3.00 Iss 05-06 18 - 5

3.01 Introduction

Thanks for buying NIghtRunner from Iris Innovations!

By choosing NightRunner you have added a highly sensitive

imaging device to your boat that aids visibility during the day and

perhaps more importantly, at night or in low light conditions, thus

enhancing your on board safety and enjoyment.

NightRunners Thermal Camera has a detection range of up to

2.2Km, and detecting thermal radiation rather than light, can

provide clear, detailed images in zero light conditions.

NightRunner has been especially designed for practical and

extreme operating environments such as marine, military and

emergency service vehicles.

In addition to itʼs remarkably compact and sleek design, the PTZ

is water-resistant and has anti-vibration and anti-corrosion

properties.

This document contains safety, handling, disposal and recycling

regulatory and software license information as well as the one-

year limited (and second year optional) warranty for your

NightRunner Camera. Please follow the information in this guide

and keep in a safe place for future reference.

3.02 Overview of Key Features

Hereʼs a brief list os some of NightRunners Key Features:

• 320 x 240 Vanadium Oxide Thermal Core (295)

• 640 x 512 Vanadium Oxide Thermal Core (395)

• 17µm Sensor Pitch

• <50mK NETD Thermal Sensitivity

• Hi-Resolution 700TVL Daylight Camera

•Digital Zoom on both Thermal & Daylight

Cameras.

• Colour Palettes & ICE™ Image Enhancement

• Single, user selectable camera output

• Easy to install CAT5 connection

• Ball Up or Ball Down Conﬁguration

• Built in Mounting Bracket

• Small, stylish compact housing measures only

16cm high by 15cm in diameter.

3.03 Contents of Package

Please unpack your NightRunner and check to make sure the

following items are included. If there are any items missing

please contact your Iris dealer:

1. NightRunner Camera

2. Breakout Balun

3. 60ft Waterproof CAT5 Cable

4. 2m RG59 Coaxial Video Cable

5. BNC ~ RCA Adapter

6. In-Line Ground Loop Isolator

7. Pack of 6 1/4” x 3/” Stainless Steel Fixing Screws

8. DC Socket with Screw Terminals

V3.00 Iss 05-06 18 - 6

4.01 Typical Conﬁguration Examples.

For single camera, single controller installs no additional hardware is required. Simply connect the IRIS595 controller directly to the data

lines of the breakout balun, and run the video from the breakout balun directly into your screen (or chartplotter etc).

If there are multiple NightRunner cameras, controllers or other PTZ cameras on the system, it will become necessary to add a serial

data distributor in order to balance the data and ensure there are no signal reﬂections that could result in over-runs and poor camera

control. Below is an example of a system with 2 controllers and 4 cameras. An IRISEXP0204 data expander has been used to manage

the data cables, and an IRIS604 Quad Video Switcher has been used to manage the four video feeds.

Systems can be expanded by using Serial Data Expanders to manage the control data and Video Distribution Ampliﬁers, Video

Switchers or Matrices to manage multiple video feeds. In addition, IP encoders can be added to enable connection over a computer

network so cameras can be viewed and controlled from smart-phones, tablets and computers.

For further information or to discuss your requirements, please contact Iris.

V3.00 Iss 05-06 18 - 7

MFD

IRIS-EXP0204

Serial Data Distributor

MFD

IRIS604

Video Switcher

5.01 Camera Control Data

NightRunner cameras are controlled via an RS485 serial data

connection, using a variant of the Pelco-D CCTV camera control

protocol. The Pelco-D protocol was designed to provide

accurate controls for a wide range of standard CCTV features,

such as pan, tilt, user preset features etc, but do not include

certain extended features supported by Iris cameras. Because

of this, Iris have mapped their product speciﬁc features to

certain user preset commands and to other modiﬁed Pelco-D

commands. This means that NightRunner cameras can be

controlled either by a dedicated NightRunner joystick controller

such as the IRIS595 or Irisʼs IRIS516 (v2), as well as other

control devices, such as compatible chart-plotters, multi-

functional displays and third party joysticks. For further

information on compatible third party control interfacing please

contact Iris Innovations. For certain third party interfacing,

additional serial protocol convertors may be required where

NMEA0183 or NMEA2000 connections are used. Details of the

Pelco-D commands mapped for Thermal Camera functions are

included in this document.

5.02 Cabling Requirements

NightRunner utilizes a unique, new cabling system designed to

simplify most installations and therefore cut cabling and install

costs.

The camera features a single, water resistant RJ45 socket into

which power, video and control data are fed via a single

waterproof CAT5 cable (supplied). An active balun adapter is

supplied to connect to the other end of the CAT5 cable. Into the

balun, DC power is fed, composite video is output and RS485

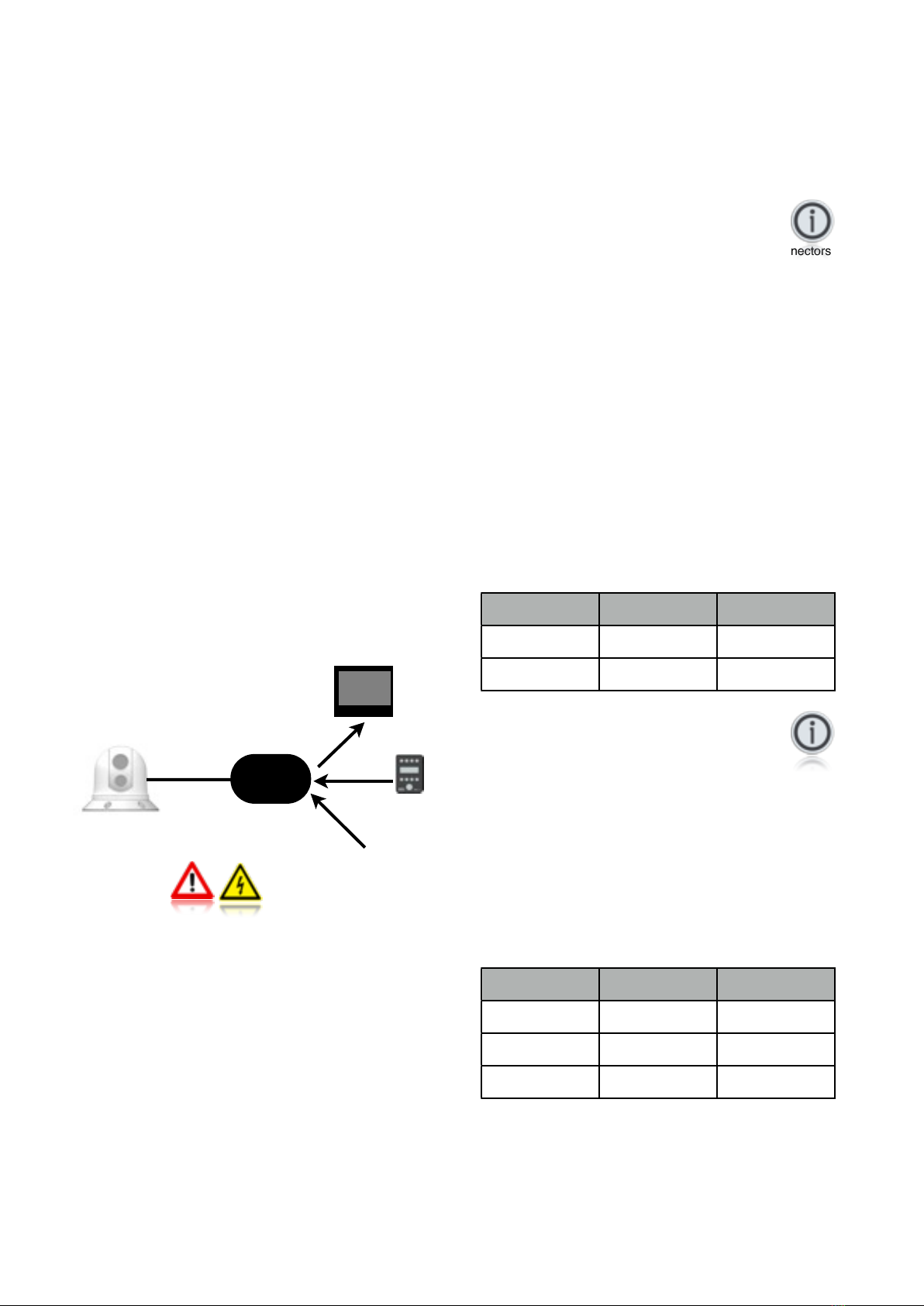

control data from the controller is fed. See Diagram Below:

WARNING!

Due to voltage drop and the associated increase in current draw,

power must be introduced no further than 50ft from the camera

when using CAT5 cable. If the 60ft CAT5 cable supplied is not

long enough, power must be run separately or taken from a

source local to where the 60ft NightRunner cable ends. See

Section 5.07 Extending Cable Length for further details.

NEVER USE CAT5 CROSS OVER CABLE WHEN RUNNING

YOUR OWN CABLE. SEE APPENDIX B FOR FURTHER

DETAILS

5.03 Video Connections

NightRunnersʼvideo output is a 1VP~P Composite video signal

compatible with most Multifunctional Displays (MFDʼs) and TVʼs

(via AV input).

The balun adapter features a male BNC connector for the video

signal, and NightRunner is supplied with a pre-made 2 meter

extension cable. Iris supply a range of pre-made extension

cables if required, alternatively, iʼve you wish to make your own

cable use 75ΩCoaxial cable such as RG59. Please note, RG59

has a solid core conductor which may not be suitable. In this

case use a stranded coaxial cable such as URM70.

A BNC ʻstraight-thruʼadapter is supplied with NightRunner in

case you need to extend the video cable run.

As well as pre-made cables, Iris supply a range of connectors,

tools and adapter plugs. Contact your Iris dealer for further

information.

Many Multifunctional Displays (MFDʼs) / Chart Plotters use RCA

(Phono) jacks for video inputs. NightRunner is supplied with a

BNC/RCA adapter for this eventuality.

5.04 Data Connections

Control commands are sent to NightRunner over an RS485

Serial Data connection which has 2 wires usually labelled either

A and B or + and -. The data wires from the NightRunner balun

are identiﬁed accordingly:

White:!RS485 A (RS485+)

Braid:!RS485 B (RS485-)

When connecting directly to an IRIS595 or IRIS516 controller,

observe the following polarity:

Balun

Function

Controller

White

RS485 A (+)

Green

Braid

RS485 A (-)

White

Note

One of the most common faults when connecting data is

incorrect polarity. In the event that there is no camera control

when you have connected up, please check the polarity of the

data wires. You cannot damage the equipment by reversing

polarity of the data wires.

5.05 Connecting Multiple Cameras / Controllers

If your system features multiple cameras and / or controllers it is

advisable to use a Serial Data Distributor. Iris supply a range of

data distributors as listed below:

Part Number

Inputs

Outputs

EXP0204

EXP0208

EXP0216

Controllers are referred to as Inputs and cameras are referred to

as outputs. If you require more than 2 controller inputs contact

Iris for details of how to conﬁgure your system.

See Page 21 for connection example diagrams.

V3.00 Iss 05-06 18 - 8

BALUN

12V / 24V DC

Power Input

IRIS595

Controller

RS485

Serial Data

60ft

CAT5 Cable

(Supplied)

IRIS295

NightRunner

MFD

5.06 Power Connections

The power tail from NightRunners balun is terminated with a

2.1mm DC Barrel plug, with a positive center pin. Connect your

DC supply to this plug using the Screw Terminal DC Socket

supplied. Always ensure your power supply is protected by a

sufﬁciently rated fuse or breaker. The NightRunner balun is ﬁtted

with a 3A resettable fuse for added safety.

To prolong the lifespan of the thermal cameras sensor, it is

recommended that power to the camera is routed via a helm

mounted switch, and that the camera is switched off when

not in use.

The table below provides information on current draw depending

on the input voltage:

Input

Voltage

Consumption

(Idle)

Consumption

(Full Load)

At Cable

Distance

12VDC

1.2A

2.2A

60ft

24VDC

500mA

650mA

60ft

Details on the considerations that apply if you need to extend

the 60ft CAT5 cable supplied are listed in the section below.

5.07 Extending Cable Length

In the event that the 60ft cable supplied is not long enough, the

following considerations must be taken into account. Failure to

do so could result in damage to the camera, vessel and possibly

personal injury. Electrical connections to NightRunner must only

be conducted by fully qualiﬁed personnel.

1. On no account must a CAT5 cable longer than the 60ft cable

supplied be used to deliver power to the camera. Take power

locally to the end of the 20m cable or run a separate power

cable, suitably rated, back to the supply. Iris supply a

combined CAT5 + 2 core cable for this very purpose.

2. Video and Data can be extended further using CAT5 cable

and an additional set of baluns. Part numbers for cable

extension accessories are as follows:

Part No

Item

IRISX95-EXT-XX

Extension Kit. XX denotes cable length

CAT5-2-XX

CAT5 Cable + 2 Cores for Extending

DC Supply. ʻXXʼdenotes desired

length in meters.

BALX95

NightRunner Balun (Individual)

IM-POW-XX

DC Power Cable (50V, 5A). ʻXXʼ

denotes desired length in meters

IM-BNC-XX

75ΩRG59 Coaxial Cable (BNC~BNC)

Video Extension Cable.

IM-DAT-XX

Single Twisted Pair Data Cable for

RS485 Control. ʻXXʼdenotes desired

length in meters.

Part No

Item

BNC-THRU

Straight Thru BNC Adapter

3. The diagram in section 6.03 illustrates methods of

extending the cabling.

5.08 Setting Camera Address / Image FLIP

Each camera must have itʼs own unique address so that only

control data intended for that camera is received and processed

by the camera. If multiple cameras had the same address, they

would all move together when pan and tilt commands are

transmitted.

To set the camera address, remove the DIP switch cover plate

on the base of the camera with a small cross-head screw driver,

taking care not to loose the 4 screws or the rubber ʻOʼseal, and

set the DIP switches on switch bank 1 accordingly. A table

detailing the switch settings can be found at the end of this

document and further details in Appendix A (Page 19)

Once the desired address has been set, carefully replace the

DIP switch cover plate.

Switch No.8 on bank S1 will also set the image orientation. See

section 10.02 Hardware Image Flip for details.

5.09 Installation Considerations

It's important to fully consider the intended position of the

camera and the desired ﬁelds of view prior to installation, in

terms of how you are going to get cables to the position, will the

camera be able to see the appropriate areas, will the camera

interfere with any other ﬁxture such as a doorway or walkway

once it's ﬁxed in place, or are there any obstructions behind the

surface onto which the camera is to be installed. It's strongly

recommended that if possible the camera should be temporarily

powered up prior to ﬁnal installation and offered into position so

that these factors can be considered and any possible issue can

be addressed before holes are drilled and difﬁcult, time

consuming and costly cable runs are attempted. Check third

party hardware to ensure it doesn't effect the operation of the

camera and vice versa.

5.10 Protocol Information

DIP switch bank 2 is reserved for setting the baud rate and

protocol details. This is factory set to 9600 Baud, Pelco-D

Protocol, N-8-1 (No Parity Bits, 8 Data Bits, 1 Stop Bit). Do not

attempt to change these settings as they are locked. Changing

the settings of Switch bank 2 could result in the camera not

responding to data commands.

Full details of the Pelco-D control protocol can be found at

www.pelco.com.

As well as the standard Pelco-D command set, Iris cameras use

their own commands based on the Pelco protocol to call

features that are speciﬁc to the model or are not covered by the

Pelco command set. A list of these features is included later in

this document. For further details contact Iris Innovations.

V3.00 Iss 05-06 18 - 9

6.01 Hardware Installation

Get to know your NightRunner!

The different parts of your camera are labelled here:

Once youʼve established a suitable ﬁxing position, offer the

camera into place to mark off the six Surface Fixing Positions

and the cable clearance position.

The camera is supplied with 6 x Stainless Steel, 1/4”x3/4” self

tapping screws. Drill pilot holes accordingly and use a 30mm

hole saw to create the cable entry hole.

When the CAT5 cable is correctly terminated (see next section),

offer the camera up into the ﬁxing position and ﬁrmly screw into

place.

Observe extreme caution when siting the camera. Ensure the

act of drilling the pilot holes and cable entry hole does not

infringe any cables, equipment or ﬁxtures behind the panel onto

which the camera is to be installed.

To avoid moisture ingress between the bottom of the camera

and the surface onto which the camera is to be attached, apply

a bead of suitable silicone sealant around the edge of the plate

to create a seal.

V3.00 Iss 05-06 18 - 10

Daylight Camera Lens Window

Protective lens window for daylight camera.

Germanium Lens Window

Protective lens window through

which heat is conducted. This is

manufactured through a material

called Germanium - not glass.

Thermal Imaging cameras cannot

ʻseeʼthrough glass.

Inner Dome

Contains the thermal camera

module and tilt motor

Protective Cowling

Shields the Inner Dome and Tilt

Pivot points

Base Section

Contains the telemetry

data circuitry and Pan

motor

DIP Switch Window

Protects switches for Camera

Address and other features.

Camera Connector

Waterproof RJ45 Connector for camera

Power, Video & Data.

Base Plate

Do not remove. Protects pan motor and

telemetry data circuitry.

Fixing Points

1/4” Clearance holes in six positions for

ﬁxing camera in place.

IRIS295 Thermal Imaging / Daylight Dual Payload PTZ Camera in Standard (Desktop) Orientation.

This style of housing is known as the NightRunner Series Housing.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels IRIS Caméra thermique

IRIS

IRIS IRIS092 Manuel utilisateur

Manuels Caméra thermique populaires d'autres marques

Hikmicro

Hikmicro B20 Manuel utilisateur

FLIR

FLIR E-EST Series Manuel utilisateur

FLIR

FLIR M-Series Manuel utilisateur

BST

BST BT-72 Manuel utilisateur

FLIR

FLIR G300 pt Series Manuel utilisateur

CBC

CBC EN7-S02T Manuel utilisateur

Satir

Satir YRH600 Manuel utilisateur

TESTO

TESTO 882 Manuel utilisateur

TECPEL

TECPEL TIG-320 Manuel utilisateur

SKF

SKF TKTI 21 Manuel utilisateur

TESTO

TESTO 885 Manuel utilisateur

InfiRay

InfiRay AT300 Series Manuel utilisateur

InfiRay

InfiRay AT Series Manuel utilisateur

FLIR

FLIR X6530sc Series Manuel utilisateur

Videotec

Videotec MAXIMUS MVXT Manuel utilisateur

Guide Sensmart

Guide Sensmart D384M Manuel utilisateur

NBN

NBN FLIR A6 Series Manuel utilisateur

WORKSWELL

WORKSWELL SAFETIS Manuel utilisateur
