IRENIS HDE-265 HDMI Encoder User’s Manual

Introduction

IRENIS HDE-265 HDMI HD Encoder is used for high-definition video signal (720P / 1080P, etc.) encoding and network transmission,

using the latest and high-efficient high-definition digital video compression technology H.265, with the characteristics of reliable,

high-definition, low bit rate and low latency. Input the HDMI high-definition video signal to conduct the encoding process, after

compression processing of DSP chip, output the standard TS network stream, the launch of product fills the gap in this

industry, which is a direct replacement for the traditional capture card or software coding method, using hard-coded, the system

is more stable, and image quality is more perfect, which can be used in a wide variety of needs for high-definition video and high-

resolution and high frame rate acquisition-based IP network transmission, its powerful scalability makes it more easily to respond

to the needs of different industries and can be used as live video encoder. Industrial controlled, precision design, small size, easy

installation, the power is less than 5W, which is more energy and more stable.

Interfaces

1) Power input ----- 12V / DC input, using 12V1A power supply, if it is 5V input, chose 5V / 2A.

2) Initialization button------it is used to reset the device, when turned on, press and hold for 10 seconds, the device IP will back to

factory IP, 192.168.0.31

3) HD video input ------ it is used for HDMI signal input.

4) 1000M network port ------ 1000M Ethernet interface.

5) Status indication ------- if there is internet connection, the display light is on, when there is no network, the light is off. At reset,

if the light is not on after 10 seconds, the device is restarted.

6) Power indication--- to indicate if the power is normal

IRENIS®HDE-265 Encoder

www.irenis.com

2/16

SPECIFICATION

Input：

Video

HDMI

Resolution

1920×1080_60i/60P、1920×1080_50i、1280×720_60p

1280×720_50p, etc

Coding

H.264/H.265

Rate

0.8Mbps~12Mbps

Rate Control

CBR/VBR

GOP type

Adjustable

Video preprocessing

De-interlacing, noise reduction, sharpening

Audio：

Encoding format

AAC、MP3

Sampling rate

Auto

Bit rate

32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K

Sampling accuracy

24 bit

Code rate

64Kb/s~384Kb/s

System：

RJ45

1000M internet access

Head stream

HTTP, UTP, RTSP, RTMP,ONVIF protocol

Configuration interface

WEB operation interface

Upgrade

The software can be upgraded through internet

General：

Size

(width x length x height) 165*85*24mm

Weight

Single set 0.3KG

Temperature Range

-20~60℃(working),-20~80℃(storage)

Power supply

12V/1ADC

Power consumption

5W/1 channel

IRENIS®HDE-265 Encoder

www.irenis.com

3/16

Settings

Step 1: Reset & initialization

Input the power supply to turn on encoder and hold a pin to press RST on the encoder for 10 seconds, it will be restarted

and initialized. The default Route IP of dash board is 192.168.0.31 after initialization.

Step 2: Change the administrator’s computer IP (example in WIN 7)

Set the administrator’s computer IP as: 192.168.0.* to avoid IP conflicting with dashboard IP 192.168.0.31. (mark “*”

numbers range will be 0-254 except 31 )

Step 3: Login Dash board in IE

Enter 192.168.0.31 in URL address,

Default user Name: admin

Default password: admin

IRENIS®HDE-265 Encoder

www.irenis.com

4/16

Step 4. Status Display

IRENIS®HDE-265 Encoder

www.irenis.com

5/16

Note:

Input Status: Display input resolution

Mainstream Status: Display mainstream output resolution and access address

Secondary flow state: Display secondary stream output resolution and access address

Mainstream Live View: First, install the soft of VLC 2.2.1. Then you can browse the mainstream video through your PC

Secondary Stream Live View: First, install the soft of VLC 2.2.1. Then you can browse the secondary stream video

through your PC

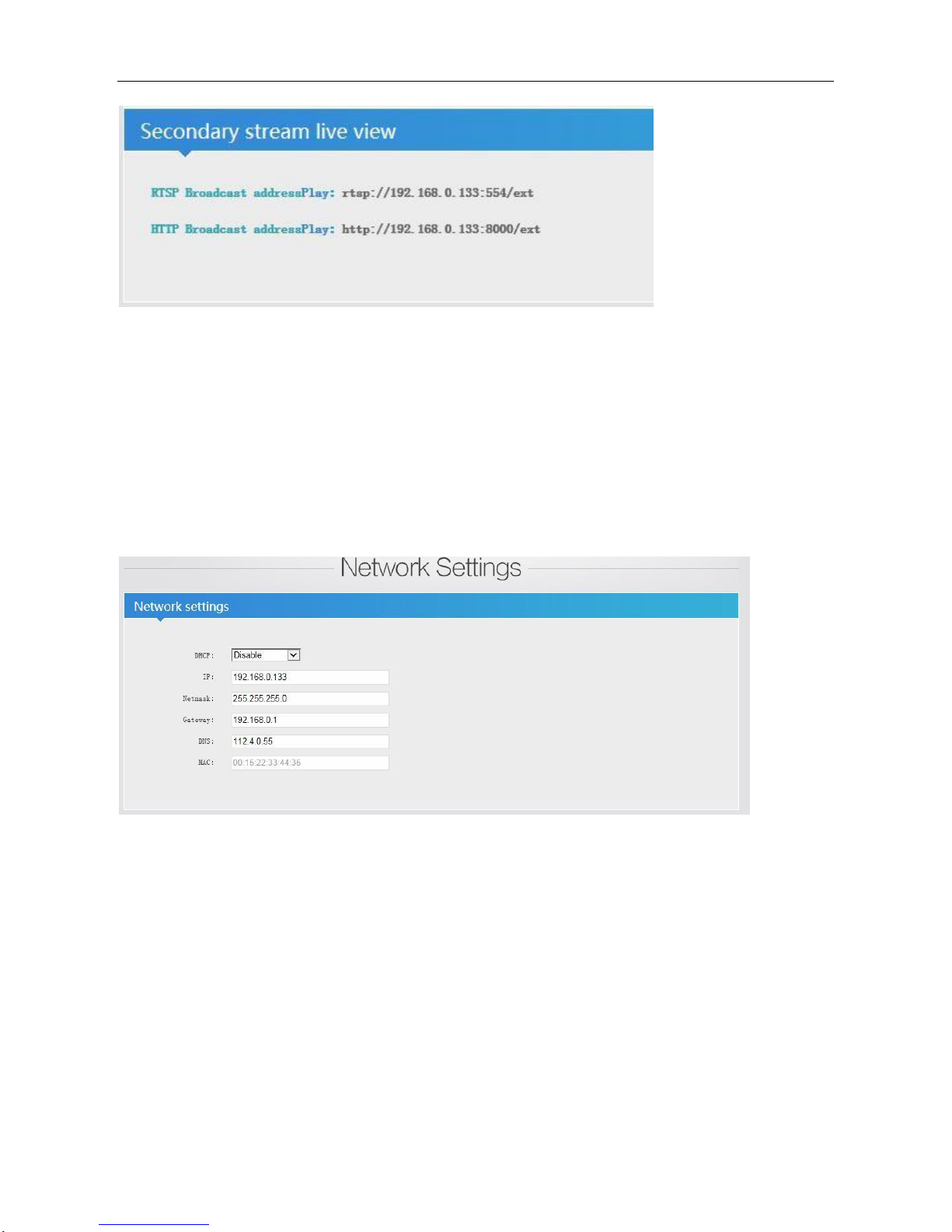

Step 5: Network Settings

Changing default dash board IP

Note: Default IP is 192.168.0.31. if IP setting is forgotten after changing. You can reset it to default IP follow step 1 above.

IRENIS®HDE-265 Encoder

www.irenis.com

6/16

Step 6: Mainstream Encoding Setting

Main stream setting



Enc type: H.264 & H.265 is optional



Profile: baseline profile / main profile / high profile



Frame rate: 5-60 (when the input resolution is 1080i50, the frame rate will choose 25)



Bitrate mode: VBR / CBR



Group of picture: 30



Bitrate: 16-1200K (Network bandwidth setting)

Mainstream protocol setting

IRENIS®HDE-265 Encoder

www.irenis.com

7/16

OSD Setting

Image quality settings

7) Step 7. Side stream Encoding Setting

Secondary stream Setting



Enc type: H.264 & H.265 is optional



Profile: baseline profile / main profile / high profile



Frame rate: 5-60 (when the input resolution is 1080i50, the frame rate will choose 25)



Bitrate mode: VBR / CBR



Group of picture: 30



Bitrate: 16-1200K (Network bandwidth setting)

IRENIS®HDE-265 Encoder

www.irenis.com

8/16

Sidestream protocol setting

IRENIS®HDE-265 Encoder

www.irenis.com

9/16

OSD Settings

Note: the same with the mainstream setting

RTMP（Real Time Streaming Protocol）settings

IRENIS®HDE-265 Encoder

www.irenis.com

10/16

Sep 1: Set H.264 level: baseline profile

Sep 1: Set RTMP protocol: Enable

Sep 1: Set RTMP sever IP

Sep 4: Set RTMP sever port

Sep 5: Set RTMP stream name

Sep 6: Sever test:

Install software: Flash+Media+Server 3.5 there’s no need for serial number when install, both user name and code are

“1”.

Start background software:

Open up the file of Flash Player: VideoPlayer.html

Type in : rtmp://ip address / rtmp / hdmi ,choose live, then can see the image or type in ：

rtmp://192.168.1.100:1935/live/hdmi choose：LIVE click：Play stream
