Ipevo VZ-X Manuel utilisateur

Quick Start Guide

VZ-X Wireless, HDMI & USB Document Camera

The Basics

VZ-X Wireless, HDMI & USB Document Camera features three connection modes －Wi-Fi, HDMI and USB－that let you capture and

stream real-time images to your computer, iOS/Android devices, TV, projector or monitor in the setup that best suits your needs.

Table of Contents

The Basics 2

Getting to Know Your VZ-X

Charging VZ-X

Connecting Wirelessly to Your Devices

Connecting to Your HDMI Displays

Connecting to Your Computer via USB

Accessing VZ-X’s Advanced Settings

Resetting VZ-X

Product Safety Certification

3-6

8-9

Camera

Multi-jointed Stand

Gives you the freedom to quickly and easily position the camera at

different heights, angles, and various orientations for capturing

material.

Base with Battery

Provides a stable base for VZ-X and houses the battery.

Getting to Know Your VZ-X

8 megapixel camera. Camera head can be swiveled for customizing

orientation.

Display up to 3264 x 2448 when used in USB mode with IPEVO

Visualizer software.

Display up to 1920 x 1080 when used in standalone HDMI mode or

Wi-Fi mode (with IPEVO Visualizer software).

off

Microphone

Built-in microphone for video conferencing, recording

lessons and more.

Note: The microphone is only functional in USB mode.

Increase Exposure

Increase the exposure if the subject is too dark.

Decrease Exposure

Decrease the exposure if the subject is too bright.

Focus Button

Focuses the live image or changes the focus mode.

Press once to focus.

Press and hold until you hear a “beep” sound to change

the focus mode to AutoFocus-Single (AF-S). By default, the

focus mode is set to AutoFocus-Continuous (AF-C).

Press again to change the focus mode back to AF-C.

LED Indicator

Three colors – Green, Amber and White.

Green indicates that VZ-X is powered on.

Amber indicates that VZ-X is in Wi-Fi mode.

White indicates that VZ-X is in use and providing an image.

Light

Turn the built-in LED light on/off.

Filter

Apply a video filter to the live image.

Rotate

Rotate the live image.

Zoom In

Zoom in on the live image.

Zoom Out

Zoom out on the live image.

Power Switch

Turn VZ-X on/off.

Getting to Know Your VZ-X

Mode Switch

Switch between Wi-Fi and USB/HDMI mode.

Micro-USB Port

Plug in the included Micro-USB cable here to:

Connect VZ-X to a computer for using in USB mode.

Provide power for VZ-X in HDMI mode.

Charge VZ-X’s battery.

HDMI Port

Connect your HDMI cable (not included) here.

Frequency Switch

Change the frequency to 50Hz or 60Hz.

Getting to Know Your VZ-X

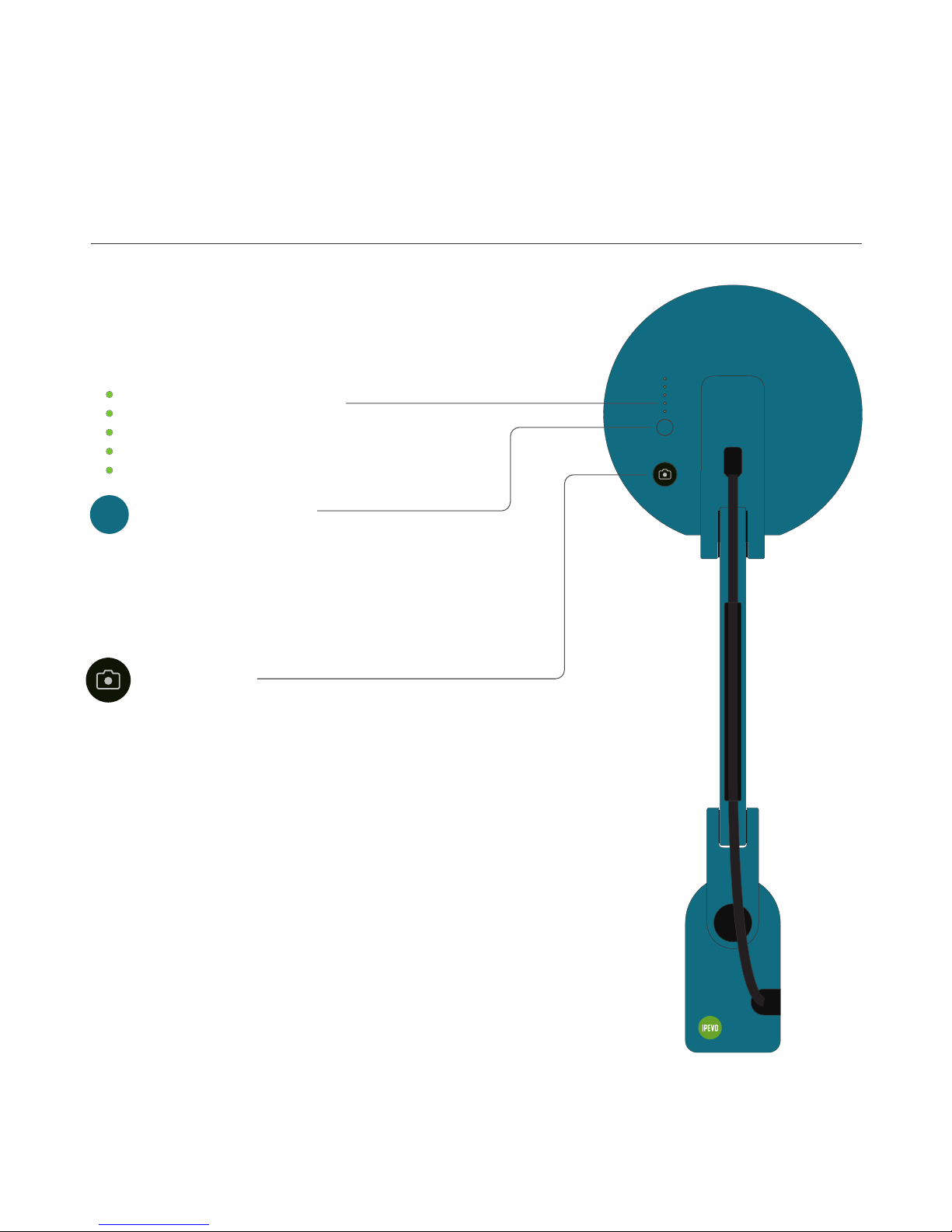

Action Button

Perform the primary function of the respective function

mode that is available in IPEVO Visualizer.

Note: The Action Button is functional in both Wi-Fi and USB modes.

You can check VZ-X’s battery level by pressing this.

Battery Check Button

Indicate the battery level or charging status.

All five indicators will light up Green when VZ-X is on a

full charge or has been fully recharged.

Battery Status Indicators

Getting to Know Your VZ-X

Charging VZ-X

When VZ-X is charging, its Battery Status Indicators will flash Green indicating that it is

receiving a charge. All of its indicators will light up Green when VZ-X is fully recharged.

Note:

(1) It takes approximately 9 hours to fully recharge VZ-X on an empty battery assuming that it is

powered off during recharging. It will take significantly longer to fully recharge if it is in use.

(2)VZ-X’s battery can last for at least 9 hours on a full charge.

Please charge VZ-X before using to make sure you have sufficient battery power for your session. The steps for charging VZ-X are as

below :

Connect the included Micro-USB cable to the Micro-USB port of VZ-X.

Next, connect the other end of the cable to a 5V/2A USB power adapter (not included).

Then, plug the adapter to an outlet for charging.

Note:

(1) It is not possible to charge VZ-X via the USB ports of a computer, TV or projector as they do not provide

sufficient power output for charging VZ-X.

(2) You may use VZ-X when it is plugged into a power outlet regardless of its remaining battery power.

9hrs

5V/2A USB power adapter

(not included)

Connecting Wirelessly to Your Devices

VZ-X can be used wirelessly with your iOS/Android devices (iPad & iPhone/Android Tablet & Android Phone), Mac or PC. You may want

to check VZ-X’s remaining battery power by pressing the Battery Check Button before you start using it. To use it wirelessly with your

device, please follow the steps below:

For iOS and Android devices, please download the free software

“IPEVO Visualizer” or “IPEVO Whiteboard” from App Store or Play Store.

For Mac and PC, please download “IPEVO Visualizer” from

http://support.ipevo.com/visualizer.

Check the LED Indicator and make sure the

Green and Amber lights are on.

If the Amber light is not on, please switch VZ-X

to its Wi-Fi mode using the Mode Switch

located on its back.

Turn VZ-X on using the Power Switch.

Visualizer Whiteboard

Download

Visualizer Whiteboard

Download

Connecting Wirelessly to Your Devices

Turn on your device's Wi-Fi. Browse the available Wi-Fi connections and connect to VZ-X’s SSID.

The SSID can be found on the label located on the bottom of VZ-X.

Launch IPEVO Visualizer or IPEVO Whiteboard and choose VZ-X as your camera device.

A live image from VZ-X should appear on your device. VZ-X is now ready for use.

For more information on the features offered by IPEVO Visualizer and IPEVO Whiteboard,

please visit http://support.ipevo.com/visualizer or http://support.ipevo.com/whiteboard.

Note:

(1) VZ-X only supports 2.4GHz Wi-Fi network and not 5GHz.

(2) The effective range of VZ-X’s wireless connection is 33ft (10m). However, the actual effective range may be

affected by environmental factors such as obstacles or other wireless signals. Please adjust the placement

accordingly to get the best streaming effect.

(3) The actual image transmission rate of VZ-X depends largely on the network environment it is used in. Having

multiple wireless signals in the same environment may cause interference and a drop in the transmission rate.

Visualizer Whiteboard

Launch

Connecting to Your HDMI Displays

Please follow the steps below to connect your VZ-X directly to a TV, projector or monitor via HDMI:

Connect an HDMI cable (not included) to the HDMI port of VZ-X. Then, connect the other end of the cable to the HDMI port of a TV,

projector or monitor.

Connect the included Micro-USB cable to the Micro-USB port of VZ-X. Then, connect the other end of the cable to the USB port of your

TV, projector or computer to provide power for VZ-X. Or, you can also power VZ-X on by connecting the cable to a 5V/2A USB power

adapter (not included) and then to an outlet.

Note: If VZ-X is on a full charge or there’s sufficient battery power for your session, you do not need to connect VZ-X to any USB port or outlet for powering it on.

Check the Mode Switch of VZ-X. Make sure you’ve switched it to USB/HDMI mode.

Turn VZ-X on using the Power Switch. A live image from VZ-X should appear on your HDMI display. VZ-X is now ready for use.
