IPA SUPER RANGER MUTT Manuel utilisateur

Innovative Products of America®Incorporated

888-786-7899 • 234 Tinker Street, Woodstock, NY 12498 • www.ipatools.com

Ultra Portable, Battery Powered, Advanced

Diagnostic Trailer ABS and Light Tester

MADE IN

USA

OPERATOR’S MANUAL

#4300A-L4

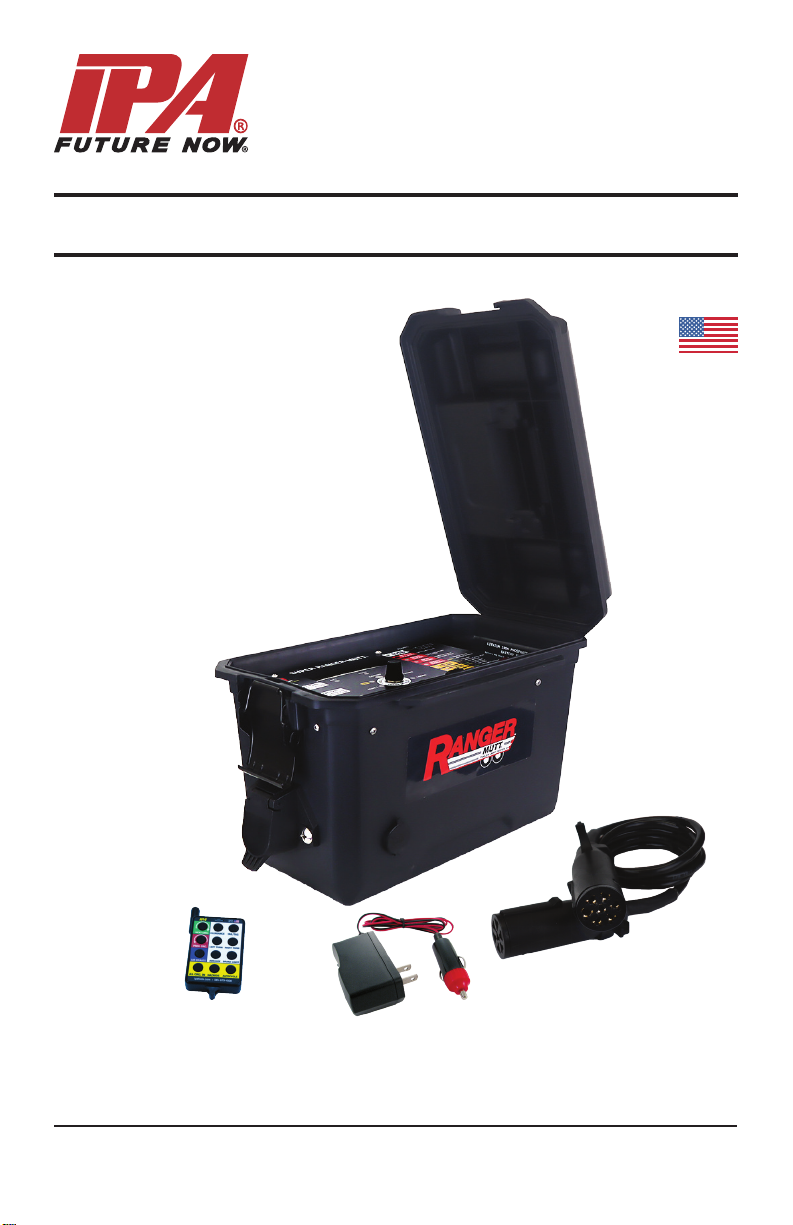

SUPER RANGER MUTT®

Mobile Universal Trailer Tester

LETTER FROM THE PRESIDENT OF IPA®

My name is Ian Vinci and I would like to thank you for your interest in our products. In

today’s world, we have all experienced the lack of service and consideration demonstrated

by many companies after you buy their products. They say whatever they can to make

the sale, and then it’s like pulling teeth to get any service response out of them. I know

this myself rsthand and because of this, I want to be sure that your experience with IPA®

meets your expectations and that IPA®never disappoints you with our service or customer

response.

To prove my commitment to you, if for any reason, you are not happy with one of our

products, or more importantly, with the response from our customer service department,

or any member of the IPA®team, I invite you to contact me directly via my email,

[email protected] or call me at 888-786-7899. Your satisfaction is more important to

me than the sale itself. We will not be in business for long if we don’t make you completely

happy with our products and service. I want IPA®to be different and be known for its quality

and service.

With that said, please take a look at our product line. You will see innovative rst time

products that were created to help you do your job faster and better than before.

I would also like to invite you to critique our products. If you can think of a better way

to make them or changes that will make them work better, please contact me directly

and I will be sure to look into it. If you have an innovation and would like some

feedback, give me a call.

From all of us at IPA®, we thank you for taking the time to review our product line and wish

you and your family the very best of everything.

Ian Vinci

President

IPA®

www.ipatools.com

Toll Free: 888-786-7899

Phone: 845-679-4500

Fax: 845-679-4600

TABLE OF CONTENTS

PART 1: INTRODUCTION

1.1 Testing Functions

1.2 Registering Your Tester’s Warranty

PART 2: SAFETY INSTRUCTIONS

2.1 Important Information

2.2 Lithium Battery Safety/Hazard Information

2.3 General Charger Use

PART 3: WHAT’S INCLUDED

3.1 Included Parts and Accessories

PART 4: INITIAL SET-UP

4.1 Specications

4.2 Battery/Power Supply Requirements

4.3 Shipping

4.4 Auto Shutdown Feature

PART 5: GENERAL CONTROLS AND OPERATIONS

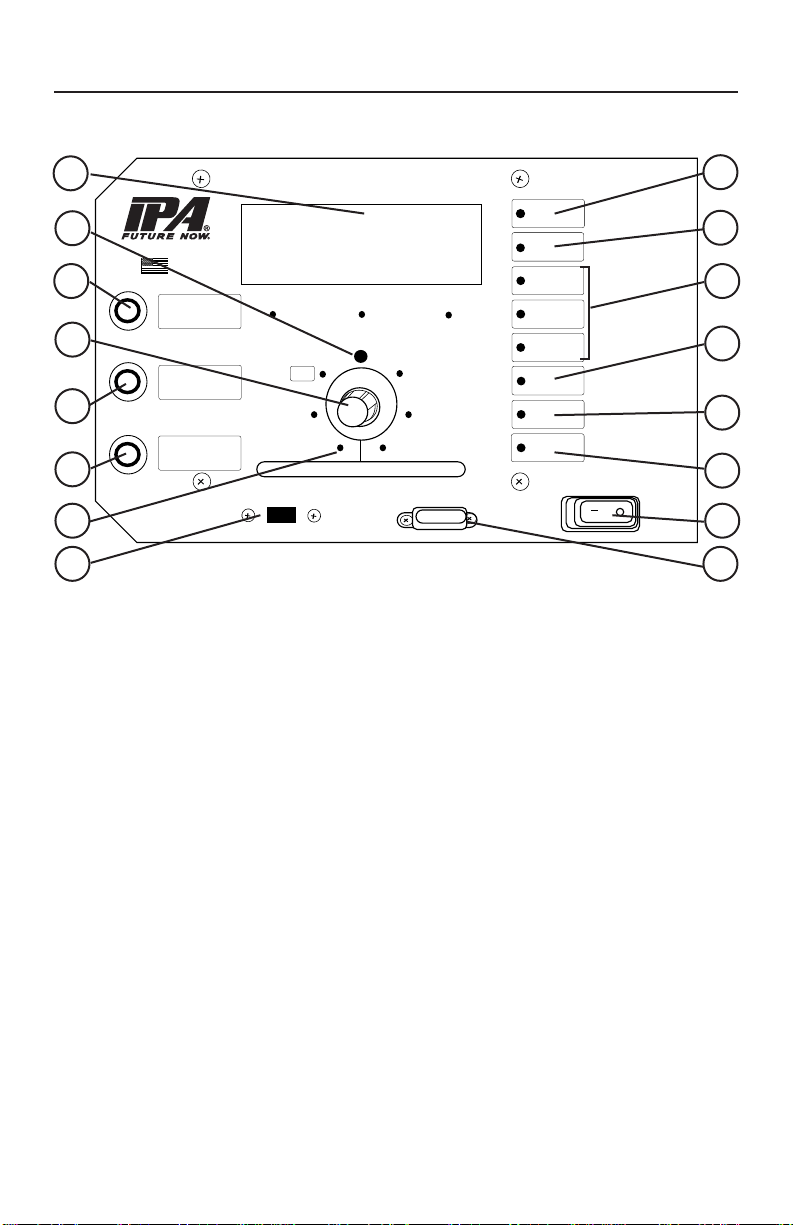

5.1 Control Panel

5.2 Using the 12-Button Remote Control

PART 6: ELECTRICAL/LIGHTING TESTING

6.1 Pretest Checklist

6.2 Selecting a Circuit

Auto-Cycle Mode

6.3 Ground Integrity Test

6.4 Fault Indication

Open Circuit

Crossed Circuits

Short/Overloaded Circuit

6.5 Activating Hazard Lights

6.6 All Circuits On Mode

PART 7: ABS DIAGNOSTICS

7.1 Accessing ABS Codes

7.2 Manual Controls

Accessing Active Faults

Accessing Stored Faults

Clear All Codes

7.3 Failure Mode Identier (FMI) Assignments

7.4 SAE J1587 MID 137 SID List

PART 8: MAINTENANCE

8.1 Maintenance and Storage

8.2 Instructions for In- and Out-of-Warranty Repairs

PART 9: TROUBLESHOOTING

9.1 FAQ

9.2 Common System Checks

9.3 Common Troubleshooting Solutions

PART 10: TYPICAL TRAILER WIRING

PART 11: OPTIONAL ACCESSORIES AND RELATED PRODUCTS

PART 1: INTRODUCTION

The Super Ranger MUTT® with ABS is an advanced diagnostic, remote controlled

trailer tester. It includes an internal lithium battery, is microprocessor controlled, and

features state-of-the-art current sensing, computer controlled circuit protection, live

circuit monitoring, as well as digital voltage and amperage draw readout.

The Super Ranger MUTT®will detect poor grounds, open circuits, crossed circuits,

short circuits, and also features Pulsar®which aides in troubleshooting intermittent

and dead shorts. Models equipped with ABS diagnostics can be utilized to read

and clear codes and display troubleshooting information on a trailer via the 7-way

connector. Readings are displayed on the face panel.

This manual covers the Super Ranger MUTT® Series technology. Please consult your

specic model for your exact list of included options. This product is backed by a 1-

year warranty with 24-hour repair or replace service. Should you run into any issues,

please contact IPA®directly at 888-786-7899 or email [email protected].

1.1 Testing Functions

• ABS Testing:

- Read and clear codes

- Displays diagnostic troubleshooting information

- Accesses ECU data: manufacturer, make, model, etc.

- Automatically detects corroded ABS wires and faulty ECU's with patent-

pending technology

• Electrical Testing (12 Volt Operation):

- Automatic cross, open, overload, short and ground fault detection

- Highly accurate digital ammeter with 5mA resolution

- Chase down short circuits with Pulsar®mode

- Ground failure detection: differentiates between wire and chassis ground

1.2 Registering Your Tester’s Warranty

There are two options for registering your tester for warranty:

• Complete the included warranty card and mail it to:

Innovative Products of America

234 Tinker Street

Woodstock, NY 12498

• Complete the online warranty registration at https://www.ipatools.com/warranty

PART 2: SAFETY INSTRUCTIONS

2.1 Important Information

Itisimportanttoread,understandandfollowallsafetymessagesandinstructions

printedinthismanualandontheequipmentbeforeoperating.Ifsafetyinformation

is not heeded, serious injury or death of the operator or bystanders may occur.

Danger

Indicates a hazardous situation, if not avoided, will result in death or serious injury. The

possible hazards are shown in the adjoining symbols or explained in the text.

Warning

Indicates a hazardous situation, if not avoided, could result in death or serious injury.

The possible hazards are shown in the adjoining symbols or explained in the text.

Caution

Indicates a hazardous situation, if not avoided, may result in minor or major injury. The

possible hazards are shown in the adjoining symbols or explained in the text.

The following safety alert symbols are used in this manual.

Symbol 1: Potential burn hazard. Sparks from electrical shorts can ignite ammable

liquids such as fuel or oil. Heat from electrical overloads can cause re hazards.

Symbol 2: Potential electrical hazard. Batteries have enough electrical energy

potential to ignite ammable liquids such as fuel or oil. Wire overloads can cause

electrical failures. Shock hazard exists.

Symbol 3: Potential explosive air hazard. Pneumatic pressures used with this

equipment can cause explosive failures on damaged equipment.

Symbol 4: Potential eye hazard. Wear OSHA approved safety glasses. Battery acid

and high air pressures create hazardous situations for eyes.

Symbol 5: Potential chemical burn hazard. Wear protective gloves. Battery acid is

corrosive and can cause skin damage.

Symbol 6: Potential electrical hazard. Electrical energy can cause heat and burn hazards.

Symbol 7: Potential re hazard. Use caution with ammable liquids such as fuel and

oil. Electrical shorts can ignite ammable liquids and wiring.

Symbol 8: Important information is stated.

2.2 Lithium Battery Safety/Hazard Information

Risk of Fire, Serious Injury and/or Property Damage

• Do not modify, disassemble or alter the

lithium battery.

• Avoid vibrating, puncturing, tampering, or

contacting with metal.

• Only use the provided lithium battery charger.

• Never leave lithium battery unattended

while charging.

• Disengage charger if lithium battery gets hot, smokes, swells or becomes odorous.

• If lithium battery leaks uid onto your skin or in your eyes, rinse well with water and

seek medical attention immediately. Do not rub uid on skin or in eyes. Battery

uid can cause real harm if left untreated.

• Keep out of reach of children.

• Risk of re is exacerbated if: battery is not recharged shortly after being fully

discharged; battery is damaged; battery is defective; battery is used/stored at

extreme temperatures; battery is reaching end of life cycle.

• Recharge lithium battery within 24 hours of full discharge.

• Do not charge lithium battery at temperatures below 40ºF (4°C).

• Do not expose lithium battery to saltwater or similar uids.

• Do not drop lithium battery. If battery is dropped, inspect for damage. If damage

is found, do not use.

• Discharge lithium battery at temperatures between 4ºF and 140ºF (-20°C and 60°C).

• Store lithium battery at temperates between 40ºF and 80ºF (4°C and 27°C).

• A frequently used lithium battery may be stored at 100% charge. If used infrequently,

store lithium battery at 40% to 70% charge.

2.3 General Charger Use

Risk of Electric Shock and Fire

• Before connecting charger to unit, make sure Power

switch is set to OFF.

• Do not remove or bypass the grounding pin.

• Do not operate charger with damaged cord or plug.

Replace cord or plug immediately if damage occurs.

• Position power cord and charger cables away from

the hood, doors and hot or moving engine parts

where they could be damaged.

• Unplug power cord by grasping and pulling on the plug, rather than the cord when

disconnecting charger from outlet.

• Charger power cord uses equipment-grounding conductor and a grounding

plug. Plug only into a 120V AC outlet that is correctly installed and grounded in

accordance with all ordinances and local codes.

• Unplug power cord from outlet before cleaning or maintaining tester and charger.

Turning off controls does not reduce the risk of electric shock.

• Do not operate charger after a sharp impact, drop or any other damage. Do not

disassemble charger.

• Use only recommended attachments.

• Do not charge a frozen battery.

• Do not overcharge a battery.

• Electric shock or re can cause injury.

Risk of Entanglement

• Keep yourself, clothing and battery charger leads clear of moving parts such as

fan blades, pulleys, hood and doors.

• Moving parts can cause injury.

Risk of Burns

• Batteries can produce short circuit current high enough to weld jewelry such as

rings, bracelets and watches. You must remove them before working near batteries.

• Short circuits can cause injury.

DO NOT

Plug Directly Into

AC Wall Outlet

PART 3: WHAT’S INCLUDED

Use the Provided Reference Numbers When

Ordering Products and Parts Above

Toll Free: 888-786-7899

3.1 Included Parts and Accessories:

12-BUTTON REMOTE CONTROL

#MUT-RM12

PREV.

CIRC

NEXTCIRC.

KES

ALLCIRC. ONHAZARDS AUTOCYLE

ABS/AUX

EFT

URN

CLEARAN

IL/TAG

HT T

BRAKELIGHT

Rubber Gasket

Lid Lock

Control Knob

Enclosure

Chassis Ground Input

7-Way Round Socket

Storage

Compartment

Power Switch

LCD Screen

Home Button

Shortcut Button

500mA BATTERY CHARGER

#CHR0001

8-ft. 7-Way Round Pin

Diagnostic Cable

#7900K-1-8-AS2

Mute Button

Fuse

PART 4: INITIAL SET-UP

4.1 Specications

Connection Type: 7-Way Round Pin

Power Input: 12V DC

Battery: Lithium Iron Phosphate (LiFePO4)

Ammeter: 5mA—21A

Max Output Current: 10A Continuous

Peek Inrush: 16A @ 30 Seconds

Controls: Remote or Manual

Microprocessor: 2020 High-Speed

Display: Dual-Line, 32 Character, All Environment

Digital LCD Screen

Faceplate: Water-Resistant and Sealed

Buttons: Illuminated Pushbutton Switches

Storage: 6.75" L x 3" W x 7.5" D

Materials: Plastic Case with Steel Control Panel

and Battery Compartment

Weight: 11.3 lbs

Dimensions: 17" L x 9" W x 11" H

4.2 Battery/Power Supply Requirements

The Super Ranger MUTT®is shipped with an internal

Lithium Iron Battery LiFePO4. It should only be charged

with the supplied battery charger, which is specially

designed to charge lithium batteries. The use of another

type of battery charger will void the product warranty.

4.3 Shipping

Lithium batteries should never be air shipped fully charged. They must be discharged

to less than 20% capacity. The voltage of the battery should read 12.9V or less prior

to shipping the battery.

4.4 Auto Shutdown Feature

If left inactive for a period of 20 minutes, the Super Ranger MUTT®will enter a Sleep

mode and power down.

• A sound is emitted every 20 seconds during Sleep mode.

• Activation of the control knob will cancel Sleep mode.

DC POWER

12 Volt DC Only

PART 5: GENERAL CONTROLS AND OPERATIONS

5.1 Control Panel

A. LCD Screen

Shows voltage, amperage, ABS readings, circuit settings and system menus.

B. Ground Integrity Indicator

Solid green LED indicates good ground. Blinking green LED indicates a bad/poor

ground. Ground integrity is automatically veried when power is turned on.

C. Back/Home Button

Toggles display between reading voltage/current/amperage/ABS diagnostics and

the last viewed menu or function screen.

D. Control Knob

Used to select trailer circuits or to navigate system menus.

E. Shortcut Button

Activates custom shortcut. Shortcuts can be set by holding button for three seconds.

F. Mute Button

Mute all alerts.

G. Circuit Indicators

The small green LEDs illuminate or blink in testing phase.

H. USB Port

Used to update rmware. NOT for charging.

I. Voltage Indicator

Green LED indicates fully charged battery. Amber LED indicates battery will need to

be charged soon. Red LED indicates battery needs to be charged immediately.

VOLTAGE

INDICATOR

REVERSE

POLARITY

CROSS

CIRCUIT

OPEN

CIRCUIT

SHORT/

OVERLOAD

ABS ECU

POWER

ABS SIGNAL

QUALITY

ABS FAULT

STATUS

ALERTS

AUX 2

AUX 1

CLEARANCE

L/SIGNAL

R/SIGNALTAIL/TAG

BRAKE L.

ABS

GROUND

Green:..... Fully charged battery

Amber:.... Charge battery soon

Red:........ Charge battery

Switch battery leads

Two or more circuits

are crossed

Insufﬁcient load

or bad return ground

Red:....... Short to ground

Amber:... Overload condition

Green:..... Detected

Amber:..... Abnormal power draw

Red:......... Not detected

Green:..... Good signal

Amber:..... Poor signal

Red:......... No signal

Green:..... No fault(s) detected

Amber:..... Stored faul(s) detected

Red:......... Active fault(s) detected

MUTE:

Disable all sound

and audible alerts

BACK/HOME:

Press once for previous

screens; Twice for home

FUSE

SHORTCUT:

Press to activate; Hold

for 3 seconds to change

Patents Pending

FIRMWARE UPDATE PORT

NOT FOR CHARGING

FUSE

POWER

OFF ON

SUPER RANGER MUTT®

www.ipatools.com •845-679-4500

STATUS

MADE

IN USA

TURN KNOB TO SELECT CIRCUIT OR NAVIGATE MENU

H P

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels iPA Équipement de test

iPA

iPA Alpha MUTT 5700 Manuel utilisateur

iPA

iPA SMART MUTT 9004M Manuel utilisateur

iPA

iPA Alpha MUTT with ABS Manuel utilisateur

iPA

iPA ALPHA MUTT Manuel utilisateur

iPA

iPA NATO MUTT M2000 Manuel utilisateur

iPA

iPA 8010 Manuel utilisateur

iPA

iPA SMART MUTT X Manuel utilisateur

iPA

iPA LIGHT RANGER MUTT 9101 Manuel utilisateur

iPA

iPA SMART MUTT 9004A Manuel utilisateur

iPA

iPA Alpha MUTT 5700 Manuel utilisateur

iPA

iPA 9102 Manuel utilisateur

iPA

iPA SMART MUTT 9004A Manuel utilisateur

iPA

iPA SMART MUTT 9004M Manuel utilisateur

iPA

iPA HEAVY RANGER MUTT 9102 Manuel utilisateur

iPA

iPA 9101 Manuel utilisateur

Manuels Équipement de test populaires d'autres marques

SMART

SMART KANAAD SBT XTREME 3G Series Manuel utilisateur

Agilent Technologies

Agilent Technologies BERT Serial Manuel utilisateur

Agilent Technologies

Agilent Technologies N3280A Manuel utilisateur

Vernier

Vernier Go Direct Voltage Manuel utilisateur

Lifeloc

Lifeloc R.A.D.A.R. Manuel utilisateur

Fluke

Fluke T5-600 Instructions d'utilisation et d'installation

Mercury

Mercury TSL01 Manuel utilisateur

MAHA

MAHA MBT Series Manuel utilisateur

Fuji Electric

Fuji Electric P-61 Manuel utilisateur

ETC

ETC SealerAtor Manuel utilisateur

Skyfine

Skyfine ETHYWAY V2 Manuel utilisateur

Appion

Appion G5 Twin Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuel utilisateur

BW Technologies

BW Technologies MicroDock II Manuel utilisateur

Sun Nuclear

Sun Nuclear 1027 Manuel utilisateur

Biomark

Biomark HPR LITE READER Manuel utilisateur

Hioki

Hioki 3169-20 Manuel utilisateur

Ashcroft

Ashcroft ATE-100 Manuel utilisateur

iPA SUPER RANGER MUTT Manuel utilisateur

Manuels Équipement de test populaires d'autres marques
