For unpaved beds and greens

1. Before using the solar panel for the ﬁrst time, it has to

be charged for about two full days of sunshine, each

lasting 10 hours. The initial charging process should be

made indoors, this guarantees the protection class IP65.

2. Stick ground spike of the luminaires and of the

solar panel L in the ground. A maximum of 4 luminaires

(lix spike solar join, reed solar join, piek mini solar join)

can be connected to the solar panel L via the port.

It is not possible to connect a 2nd solar panel L.

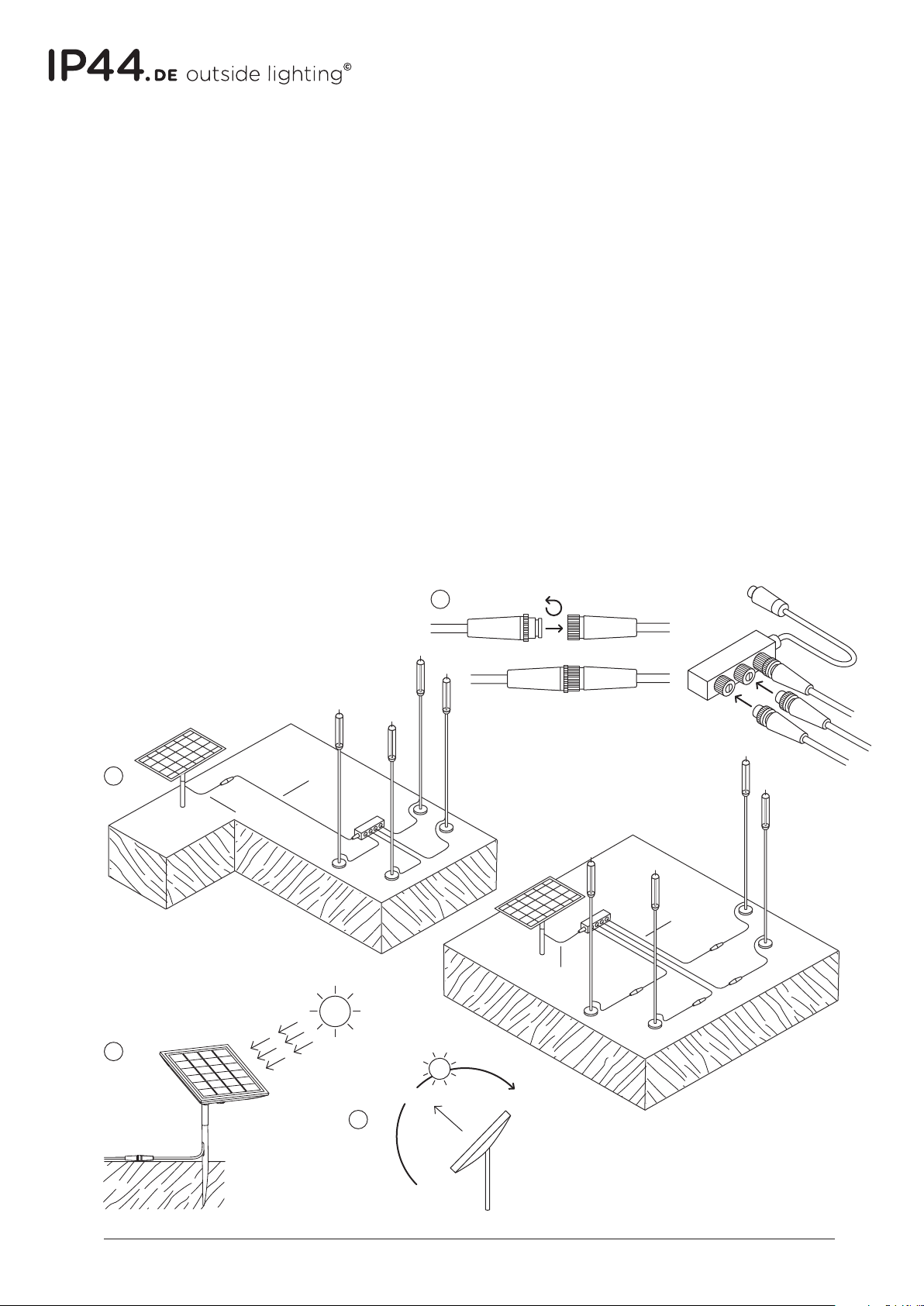

3. Provide the connection between luminaires + junction

(port 2, port 3, port 4) + solar unit, resp. extension

cable aboveground and not underground. The distance

between solar panel L and luminaires should not exceed

10 metres (picture 1 + 2).

reed solar join

instructions for use

SOUTH

EAST

WEST

4. Place the solar panel in a position exposed to direct

sunlight (south orientation) and illuminate the solar panel

constantly by direct sunlight (picture 3 + 4).

In autumn/winter months the function may be limited, as

the position of the sun is not as high depending on the

region and potential prolonged shading. Make sure that

the solar panel is free of foliage, leaves, branches, dirt and

deposits to achieve an optimal charging result.

At dusk the luminaires will light up, it will then switch o

automatically after approx. 5 hours of operation. With a

fully charged battery the luminaires can be used approx.

15 hours.

welcome@IP44.de . www.IP44.de 00 04/23

light technology:

LED / 2700K

system performance: 4 W/64 lm (1x reed solar join) -

1 W/16 lm (4x reed solar join)

solar panel: lithium-ion battery 4x 2600 mAh

technical information:

supply cable luminaire + solar panel: H05RN8-F 2x0,75 mm2

protection class IP65

safety class 3

Luminaire is suitable for mounting on normal

inﬂammable ﬁxing surfaces.

conformity mark

maintenance:

This product contains built-in LED lamps and a battery.

These can be replaced by IP44.DE in case of a failure. In

this case, please get in touch with your retailer.

care:

Regularly clean components from dirt and deposits. Do not

use a high pressure cleaner for cleaning. Please note care

instructions at www.IP44.de.

safety:

We point out that the electric connection of light ﬁxtures has

to be done by a certiﬁed installer. We assume no accoun-

tability for damages which are a result of non-appropriate

mounting or application of the components. Modiﬁcations on

the product will result in loss of warranty.

assembly instruction:

The components may not come into contact with highly

acidic or alkaline soils, or with other aggressive substances,

chemicals or fertilizers.

FAQs:

You will ﬁnd answers to frequently asked questions about the

product on our website www.IP44.de.
