CW500+W300AP user guide
1. The topological graph
There are two ways we can use this CW500, one is
straight-through connection method, and another is bypass
connection type. The bypass connection is recommended. Here is the
topological graph.
2. How to login to the management page of CW500
Connect your computer to the CW500, then config a static IP for
you local area network card, like this. If your computer’s OS is win
7.please follow the steps bellow.
Click Control panelNetwork and InternetNetwork and
sharing centerChange adapter settingsLocal area network
connection (Right click) PropertiesInternet protocol
version 4(TCP/IP V4)
Then open a web browser, login to the management page, you can
choose the language.ipnput “admin”both for the username and
password.
3. How to change the login IP for CW500
Q:Why do we change the login IP for CW500?
A：We do this for convenience. some times in a network there are a lot
of devices,such as manageable switches, we need setup multi
equipments by connect computer to one interface on core device, and
change other devices’network segment into the same.
Click NetworkInterface Settings, change the IP
address,Gateway, Primary DNS Server and AP DHCP server.

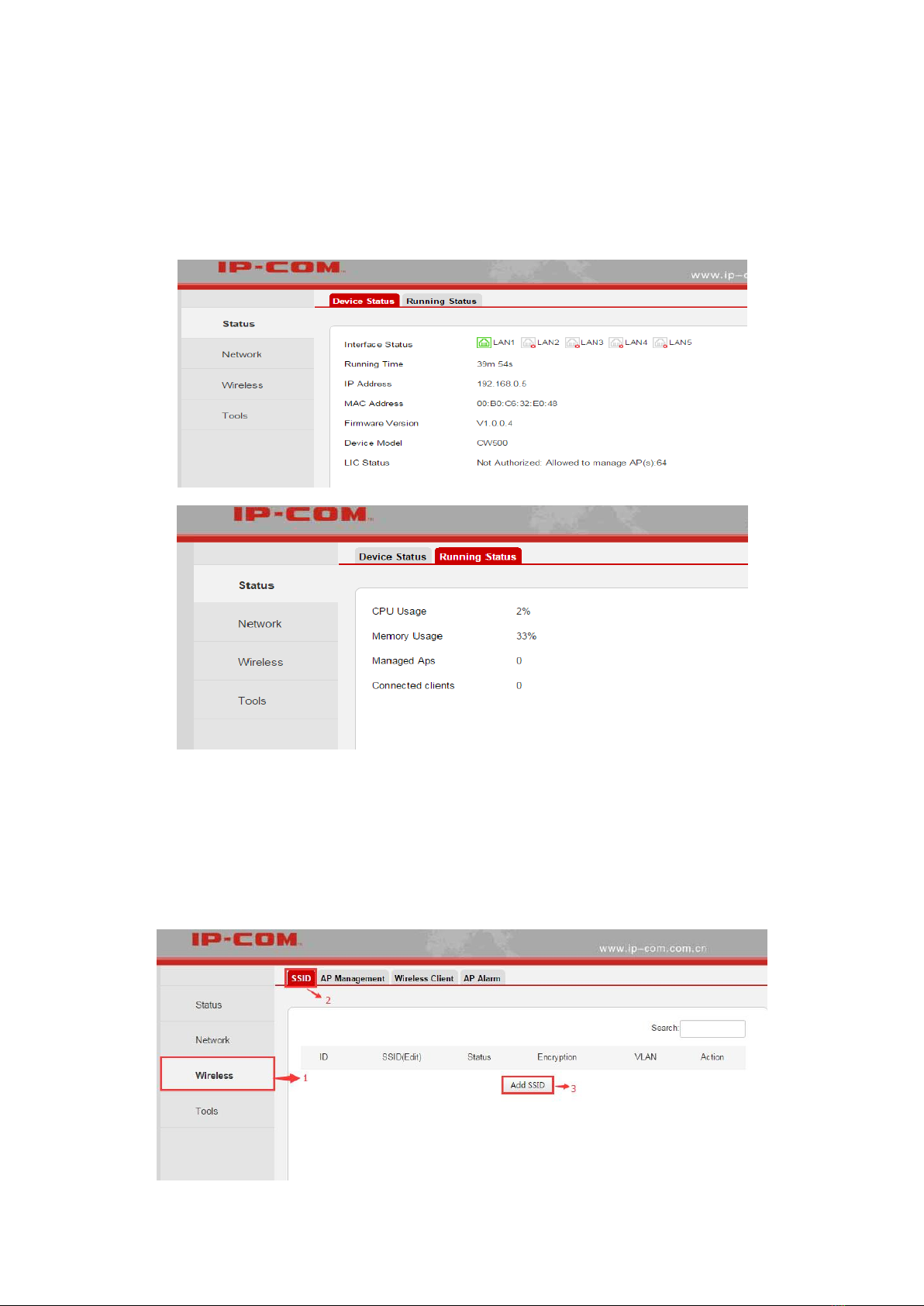

4. How to check the device info
Click status, you will see device status and running status. In this
window you can check the IP address, firmware version, managed Aps
and connected clients.
5. How to set SSID you want for your wireless signal
Click WirelessSSIDAdd SSID,
It will pop up a window, input your SSID, Encryption type and key. If
you have divided VLAN in you switch, please check Enable, and input
VLAN ID,this part will be discuessed in later chapter.
After that you will see your SSID in the main page
How to set W300AP
Wirelss>>AP Management
W300AP can provide 4 SSIDs ,you can use 4 SSIDs with a same name, or you can use them
different ,in this document we use four different SSIDs .The CW500 can modify AP in batch .but in
this document we just use one AP ,so we just click the name(unknow as default).see as
bellow .change the AP description ,for example where or who use this AP.
Then config you SSID
Config the radio parameter, like Bandwidth control ,Access limit ,power config ,channel.
Timing reboot(this function will keep the AP in a good working condition)
After those steps ,you have successfully configured this AP ,in the following picture ,you can see
that clearly.
