ION TOTAL PA ULTIMATE Manuel utilisateur

User Guide

English

Français

TOTAL PA

ULTIMATE

Tap or click

for technical

support.

ionaudio.com/support

ION Audio Total PA™ Ultimate User Guide 3

Thank you for purchasing the Total PA™ Ultimate. At ION, your entertainment is as important

to us as it is to you. That’s why we design our products with one thing in mind—to make your

life more fun and more convenient.

Box Contents

Total PA™ Ultimate

Power Cable (5 ft. / 150 cm)

(2) Microphones with Cable (15 ft. / 450 cm)

Mic Holder Clip

Speaker Stand

Quickstart Guide

Support

For the latest information about this product (documentation, technical speciﬁcations, system

requirements, compatibility information, etc.) and product registration, visit

ionaudio.com

For additional product support, visit

ionaudio.com/support

INTRODUCTION

ION Audio Total PA™ Ultimate User Guide 4

Quick Start

1. Make sure all items listed in the Box Contents are included in the box. Look in the box under

the foam sheet for the power cable and microphones.

2. Study the Connection Diagram.

3. Make sure all input devices (such as microphones, CD players, or digital media players) are

turned o with their volume settings set to “zero.”

4. Connect all devices as shown in the Connection Diagram.

5. Switch everything on in the following order:

a. Audio input devices (e.g. microphones, instruments, CD players)

b. Total PA™ Ultimate

6. When you are ﬁnished using Total PA™ Ultimate, switch everything o in the following order:

a. Total PA™ Ultimate

b. Audio input devices

ION Audio Total PA™ Ultimate User Guide 5

Speaker Stand Installation

1. Fully extend the speaker stand tripod legs on a ﬂat, stable surface.

2. Raise the mounting pole up to the appropriate height needed and tighten the side

adjustment knob.

3. Insert the pin into the bottom pin-hole so the mounting pole stays at your set height.

4. On the Total PA™ Ultimate, adjust the bottom knob counter-clockwise so the screw is not

blocking the opening.

5. Line up the Total PA™ Ultimate mounting hole with the speaker stand pole and place on

the pole.

6. Tighten the mounting knob clockwise on Total PA™ Ultimate to secure it to the pole.

SETUP

235

ION Audio Total PA™ Ultimate User Guide 6

Connection Diagram

Items not listed under the Box Contents are sold separately.

Tablet

USB drive (128 GB

limit and only MP3

ﬁles supported)

Smartphone

(charging)

Power

Microphones

ION Audio Total PA™ Ultimate User Guide 7

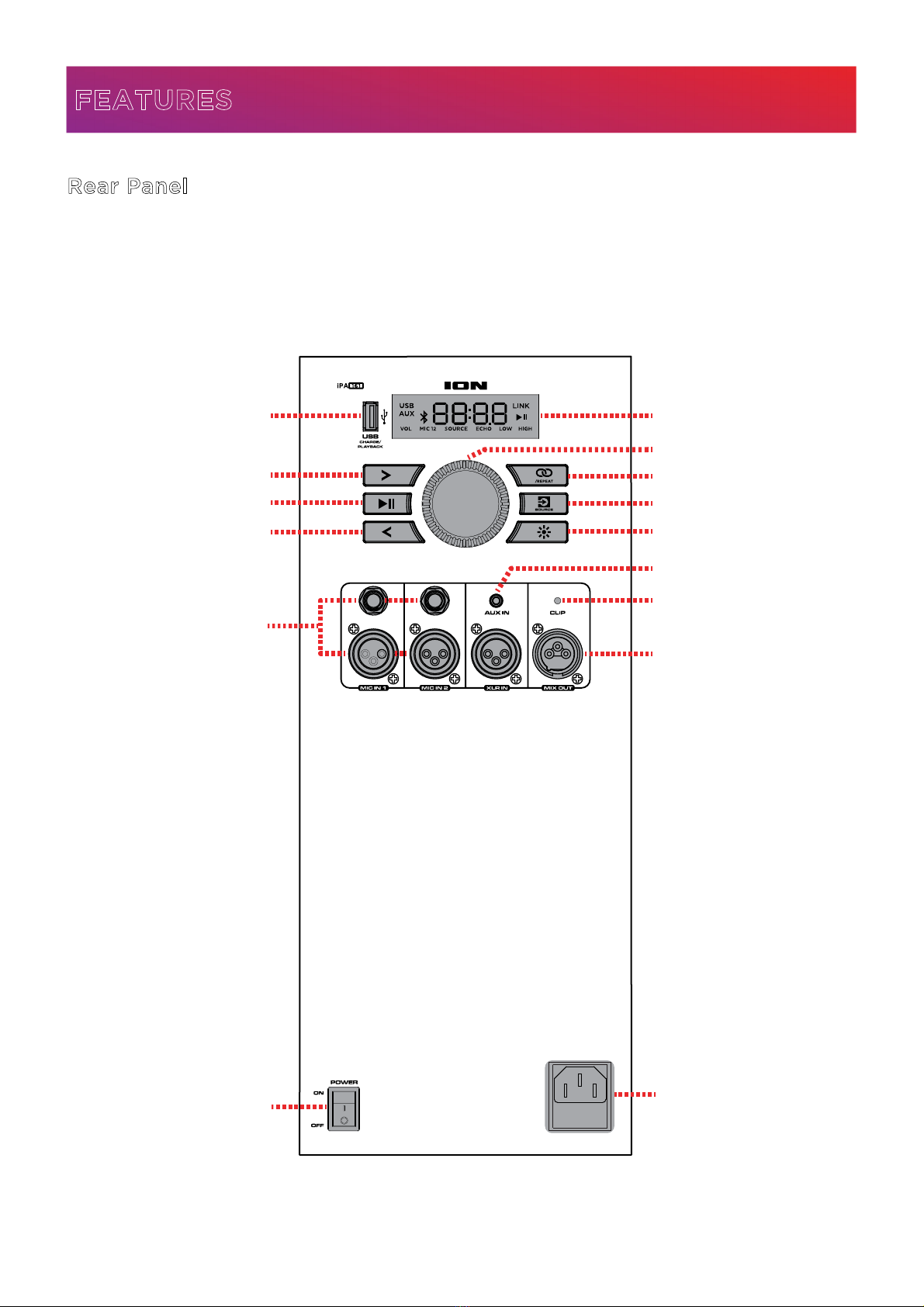

Rear Panel

Click a control below to jump to that section.

FEATURES

9 1

ION Audio Total PA™ Ultimate User Guide 8

1. Display

This screen shows information relevant to Total PA™ Ultimate’s current operation.

Note: The Display comes with a plastic protector on it. Remove this for optimal viewing.

2. Control Knob

Turn this knob to adjust the Main Volume (overall output) of the loudspeaker. Push this

knob to select and make adjustments to the Mic 1 Volume, the Mic 2 Volume, Source

Volume (USB, Bluetooth signal, and aux input), Echo Effect, Low EQ, and High EQ. The

volume of Total PA™Ultimate does not affect your Bluetooth device volume. For the best

sound quality, set your input source volume to 100% and use the Source and Main Volume

control of the speaker to adjust the volume. See the section Using the Control Knob for

more details.

3. Next Track

When USB or Bluetooth is selected as the audio source, press this button to go to the next

track in the playlist.

4. Previous Track

When USB or Bluetooth is selected as the audio source, press this button to go to the

previous track in the playlist. Press the button again within one second to skip to the

previous track.

5. Play/Pause

When USB is selected as the audio source, press this button to play/pause the currently

selected track. Double press this button to stop playback and return to the beginning of

the track list. Press and hold for 5 seconds to turn voice prompts on or off.

When Bluetooth is selected as the audio source, press this button to play/pause the

currently selected track.

6. Stereo-Link™ / Repeat

Press and hold this button to start stereo linking to another Total PA™ Ultimate.

In USB mode, press this button to repeat a single track, folder, or all tracks. See the section

Linking Two Speakers for more details.

7. Source Button

Press this button to select the audio source to use: USB, AUX, or Bluetooth. The default

source when powering on Total PA™ Ultimate is Bluetooth. The USB source is only selectable

if a USB drive is plugged into Total PA™ Ultimate; otherwise, the Source button will toggle

between Bluetooth and Aux.

ION Audio Total PA™ Ultimate User Guide 9

8. Lights Button

Press this button to select how the lights on the front panel function. See the section Light

Mode for more details.

Note: For the best lighting eect, you may need to adjust the volume of your device and/or

the Source volume.

9.USB Charge/Playback Port

You can use this port for charging a USB device, such as a tablet or smartphone. To charge

a device that is streaming music via Bluetooth, pause the music ﬁrst and then wait for it to

reconnect after the USB cable is inserted.

Connect your USB ﬂash drive here to play music. Press the Stereo-Link™ / Repeat button

to cycle through the ﬁve repeat/shue options. See the section USB Mode for more

details.

Note: Your USB drive cannot be more than 128 GB and it must contain playable MP3 ﬁles

in order for its data to appear properly in the Display. When you connect a USB drive with

MP3 ﬁles, Total PA™ Ultimate will order the ﬁles alphabetically by folder on the root

directory and then by track name in the folder.

10. Mic Inputs (1/4” / 6.35 mm & XLR)

Connect a microphone or mic-level source to these inputs.

11. Aux Inputs (1/8” & XLR)

Connect a CD player, MP3 player, or other audio source to these line-level inputs.

12. Mix Out (XLR)

Connect this output to a speaker, mixer, or recorder.

13. Clip LED

The Clip LED will ﬂash red if the signal from the input jacks or Media Panel audio source is

clipping (distortion from an overly loud signal). If this happens, decrease the setting of the

Main Volume or the volume for the Aux/Mic Input (if a loud device is plugged into either).

14. Power Switch

Flip this switch to toggle the speaker’s power on or o.

15. Power Cable Input (IEC)

Insert the included power cable here to power the unit.

ION Audio Total PA™ Ultimate User Guide 10

Using the Control Knob

The Control Knob defaults to controlling the Main Volume for all channels. Press the Control

Knob to toggle through dierent functions. Rotate the Control Knob to change the selected

setting:

Press Control Rotate

1x MIC 1 Adjust mic volume

2x MIC 2 Adjust mic volume

3x SOURCE Adjust source (AUX, Bluetooth, or USB) volume

ohcecimtsujdAOHCEx4

QEwoltsujdAWOLx5

QEhgihtsujdAHGIHx6

7x VOL Adjust main volume

If there is no activity on the Control Knob for 5 seconds, the function will go back to Main

Volume.

To factory reset the speaker to default settings, hold down the Control Knob for 5 seconds.

The speaker will power cycle and the reset will be successful.

OPERATION

1- PRESS TO SELECT

ION Audio Total PA™ Ultimate User Guide 11

Pairing a Bluetooth Device

1. Power on the Total PA™ Ultimate by ﬂipping the power switch on/o.

2. When the unit is ﬁrst turned on, it will automatically enter Bluetooth pairing mode. If

necessary, press the Source button to select Bluetooth mode. If voice prompts are enabled,

you will hear “Bluetooth Pairing.”

3. Navigate to your device’s Bluetooth setup screen, ﬁnd Total PA Ultimate, and connect. Do

not connect to iPA161_BLE; this is reserved exclusively for connecting to the ION Sound

Control™ app. When connected, the Bluetooth icon on the display will ﬂash and you will

hear “Bluetooth Connected”.

Note: If you experience trouble in connecting, select “Forget this Device” on your Bluetooth

device and try to connect again.

4. To disconnect, turn o Bluetooth from your device’s Bluetooth settings.

1 - PRESS 2

TOTAL PATM ULTIMATE
