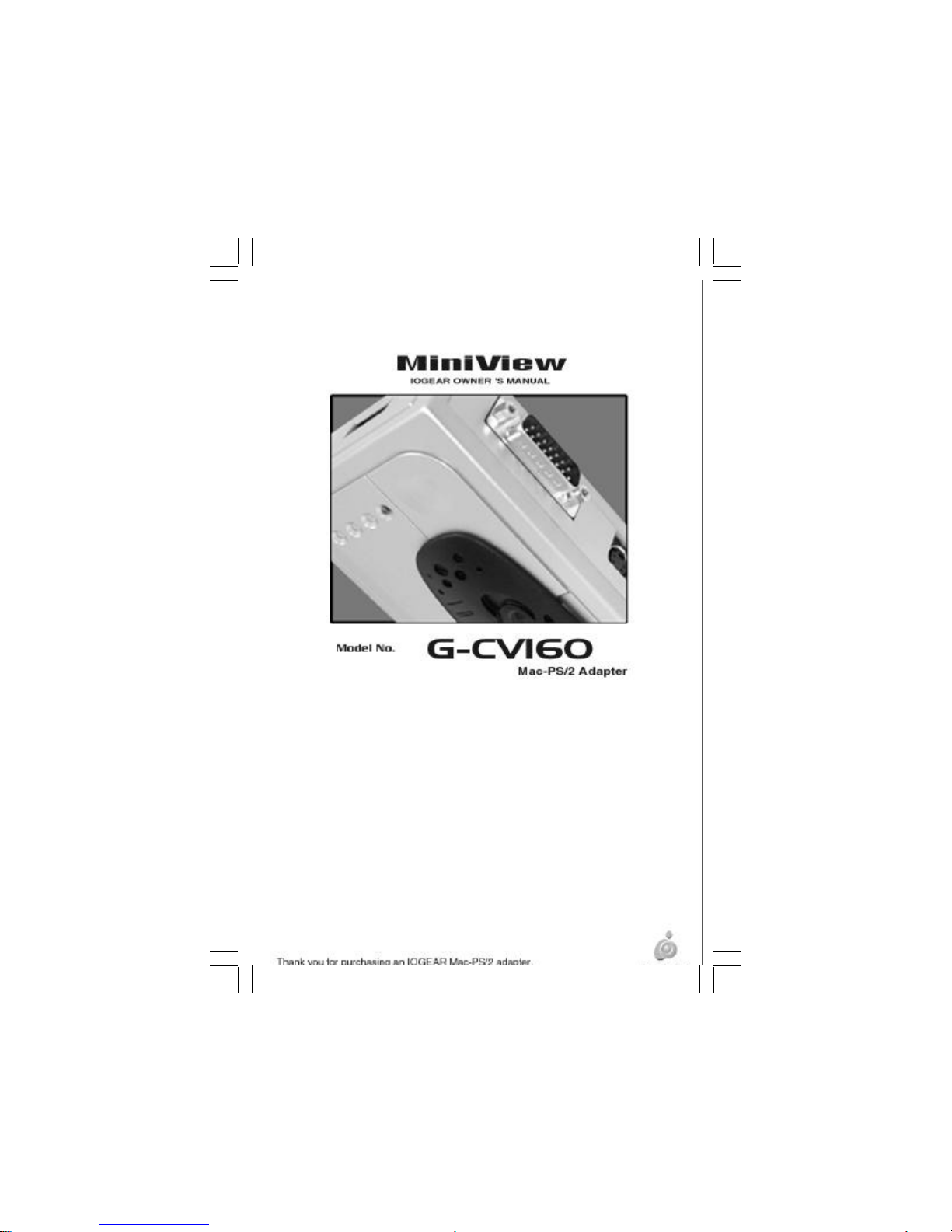

IOGear MiniView G-CV160 Manuel utilisateur



IOGEAR

16560 Aston Street

Irvine, CA 92606

Phone: (949) 250-1260

Toll Free: (888) 999-2836

Fax: (949) 250-1262

www.iogear.com

[email protected]

Microsoft and Windows 98 are registered trademarks of

Microsoft Corporation.

IBM is a registered trademark of International Business

Machines, Inc.

Macintosh, G3/G4 and iMac are registered trademarks of

Apple Computer, Inc.

ATEN is a registered trademark of ATEN Technology,

Inc.

IOGEAR is a registered trademark of ATEN Technology,

Inc.

ATEN Technology makes no warranty of any kind with

regards to the information presented in this document.

All information furnished here is for informational

purposes only and is subject to change without notice.

ATEN Technology assumes no responsibility for any

inaccuracies or errors that may appear in this document.

This IOGEAR package contains:

G-CV160 Mac –PS/2 Adapter

ADB Patch Cable

Mac Video Patch Cable

User Manual & Setup Guide

Product Registration / Warranty Card

Please check to make sure that all components are

included and nothing is damaged. If you discover a

problem, please contact your dealer. Before

connecting your MiniViewTM, read the manual

thoroughly and follow the installation and operation

procedures carefully in order to prevent any

damage to the unit and/or any devices it connects

to.

Package ContentsPackage Contents

ContentsContents

Introduction ……...…………...……... 0101

Features / Sys. Requirements …… 0202

Installation ……………………..……… 0303

KVM Setup …………………………………..

Non-KVM Setup ………...………….………. 0404

Connection Diagrams …………………….... 0505

Dip Switches ….………………………… 0606

Video

Keyboard & Mouse 0707

Mac Key Assignments …………….… 0808

Specifications …………………….….… 0909

Radio Interference / Warranty ...… 1010

Contacting IOGEAR ..…………………. 1111

Thank you for purchasing IOGEAR’s MiniViewTM

Mac Adapter, a Macintosh-PS/2 converter that

allows seamless integration of a Macintosh

computer into your existing KVM configuration.

Our Mac Adapter is fully compatible with older

Macintosh systems, the new iMac, G3 and G4.

Full Macintosh keyboard functionality is supported

on any PS/2 keyboard, while a second ADB port

allows your existing ADB devices to be used with

the Mac. Although this unit is fully compatible with

our PS/2 KVM switches, it can also be used as a

stand-alone Mac-PS/2 converter. We hope you

enjoy using your new Macintosh Adapter –yet

another first-rate connectivity solution from

IOGEAR.

IntroductionIntroduction

Features

 ConvertsfromADBandDB-15to PS/2 and HDB-15

 AllowsaMacintoshsystemtobeincorporatedinto

yourKVM setup.

 SecondaryADBportprovides support for additional

Macintoshaccessories.

 FullMacfunctionalitysupportedonaPS/2keyboard

 Nosoftwarerequired.

 PatentedVSEtechnologysupportsultrahighquality

videoatresolutionsupto1920x1440.

 Savetime,spaceandmoney.

3 Year Limited Warranty.

System Requirements

1) Macintosh computer with:

ADB connectors for the mouse & keyboard

DB-15 connectors for the video (standard Mac

Video)

2) A PS/2 mouse

3) A PS/2 or AT keyboard

4) A VGA, SVGA or MultiSync monitor

FeaturesFeatures / System Requirements/ System Requirements

InstallationInstallation

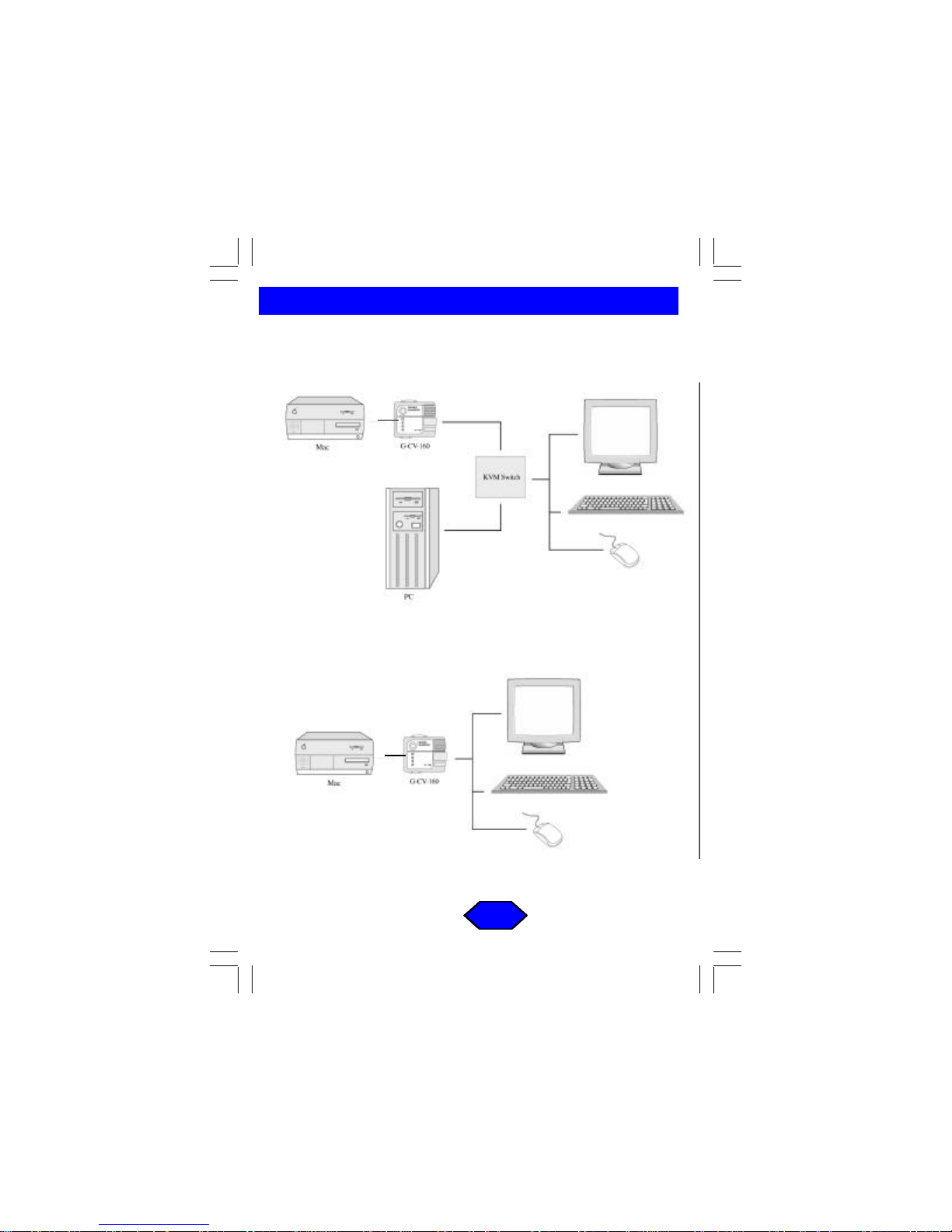

Installation in a KVM setup:

Before installing your G-CV160, please make sure

your Macintosh is powered OFF.

1) Connect the PC keyboard and mouse ports

on the G-CV160 to one of the PC ports on

your KVM switch. Be sure the keyboard port

on the KVM switch is connected to the key-

board port on the G-CV160, and the same is

true for the mouse ports.

2) If you have an older Macintosh with DB-15

(Mac video) connectors, connect the PC

video port on the G-CV160 to the correspond-

ing video port on your KVM switch. If you're

connecting the G-CV160 to a new G3, G4 or

other Macintosh with HDB-15 video connec-

tors, you can bypass the video portion of the

G-CV160 and connect the video port on your

KVM switch directly to the Mac.

3) Connect the Mac ports on the G-CV160 to

your Macintosh computer.

4) If you have any extra ADB devices (beside

the typical mouse and keyboard), connect

them to the 2nd ADB port on the side of the

G-CV160.

Before installing your G-CV160, please make sure your

Macintosh is powered OFF.

Installation without a KVM switch:

1. Connect your PS/2 keyboard and mouse to

the PC ports on the G-CV160.

2. If you have an older Macintosh with DB-15

(Mac video) connectors, connect your

monitor to the PC video port on the G-

CV160. If you’re connecting the G-CV160

to a new G3, G4 or other Macintosh with

HDB-15 video connectors, you can bypass

the video portion of the G-CV160 and

connect the monitor switch directly to your

Mac.

3. Connect the Mac ports on the G-CV160 to

your Macintosh computer.

4. If you have any extra ADB devices (besides

the typical mouse and keyboard),

connect them to the 2nd ADB port on the

side of the G-CV160.

InstallationInstallation
