iOCEAN OC-GYJ8022 Manuel utilisateur
OC-GYJ8022
8.0kg
2
Warning
CAUTION!
Read the instruction manual before
using this product!
1. WARNING: Regularly clean the lint
trap.
2. Do not place anything in front of the vent hole;
3. keep it clear of obstructions .
4. Only dry fabrics that have been cleaned in water.
5. Keep children away from the appliance during operation.
6. Do not hang anything on the appliance door.
7. Do not look into the vent when the dryer is running .
WARNING!
To avoid a fire hazard, do not dry flammable articles, or items containing foam, rubber or material on which you have
used a cleaning solvent or which contains flammable liquids or solids (such as petrol, kerosene, vegetable or cooking oils,
waxes, etc.).
1.This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
3
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
Children of less than 3 years should be kept away unless continuously supervised.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
3 . This appliance is not intended for use by persons ( including children ) with reduced physical , sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety
Children should be supervised to ensure that they do not play with the appliance.
4. the tumble dryer is not to be used if industrial chemicals have been used for cleaning.
5. the lint trap has to be cleaned frequently.
6. lint must not to be allowed to accumulate around the tumble dryer.
7.adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances
burning other fuels, including open fires
- Do not dry unwashed items in the tumble dryer .
- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot
removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount
ofdetergent before being dried in the tumble dryer.
- Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and
clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
- Fabric softeners , or similar products , should be used as specified by the fabric softener instructions .
- Remove all objects from pockets such as lighters and matches
9.WARNING:Never stop a tumble dryer before the end of the drying cycle unless all items are quickly
removed and spread out so that the heat is dissipated.
WARNING: The appliance must not be supplied through an external switching device, such as a timer, or
connected to a circuit that is regularly switched on and off by a utility.
10.
- for appliances with ventilation openings in the base, that a carpet must not obstruct the openings;
- that exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances
burning gas or other fuels
- that the appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on
the opposite side to that of the tumble dryer, in such a way that a full opening of the tumble dryer door is
restricted.
11
-Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble
dryer. The items become warm, causing an oxidation reaction in the. oil . Oxidation creates heat . If the
heat cannot escape , the items can become hot enough to catch fire. Piling, stacking or storing oil-affected
items can prevent heat from escaping and so create a fire hazard.
- If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
contaminated by hair care products be placed in a tumble dryer they should first be
washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.
4
To ensure the dryer correct and safe use, please read this manual carefully before installation
and use for the first time. In order to avoid unnecessary errors and accidents, every user
should be fully familiar with the operation and safety of the machine. Please keep this manual
properly and attach it to it when handling or reselling, so that each user can use the machine
correctly and safely.
The company will not be responsible for any failure and loss caused by non-compliance with
the installation instructions.
Danger! Electricity!
It is very dangerous not to use it or disassemble and assemble it by yourself.
Unless there is a person who knows the safety knowledge for supervision and guidance, who
is not familiar with the operation or lacks the operation knowledge and experience (including
children).
Be sure to remove hard objects such as keys, pins, coins, hairpins, and sand.
In order to prevent fire caused by excessive drying, please do not use this machine to dry the
following items: mattresses, quilts, etc. (highly sensitive items).
The following items, such as foam, waterproof clothes or down clothes, cotton cushion, pillow,
etc., cannot be dried in the dryer.
After finishing using, the power must be disconnected before cleaning and maintenance.
Under no circumstances can you repair the machine by yourself to avoid damage and
accidents. If you have any questions, please contact the local after-sales service.
5
Danger! Explosion!
After the clothes are mixed with acetone, gasoline, detergent, turpentine, wax or dewaxing
agent, detergent should be added into hot water to wash and dehydrate before being put into
the dryer for drying.
Explosion hazard: clothes containing flammable substances (such as gasoline, alcohol,
desiccant, etc.) should not be dried in the barrel, because these substances may cause
explosion.
Danger! Fire!
Don't put the clothes with oil into the dryer.
Make sure you don't leave things like matches or lighters in your clothes and put them into
the dryer.
Do not stop the machine during drying unless the clothes can be quickly taken out of the
machine to dissipate heat and prevent fire.
INSTALLATION
Please take extra care when moving the machine. Check whether the machine is damaged
when unpacking.
If you have any questions, please do not use it and contact the local after-sales service
center.
The circuit installation of the machine must be completed by qualified electricians or electrical
6
professionals.
Make sure that the rated current of the machine power supply is greater than 10A.
Do not share the plug with other high-power appliances. Be sure not to put the machine on
the power cord.
If the machine is placed on a blanket or floor, adjust the soles of the feet to allow air to
circulate at the bottom.
After the dryer is installed, check that the machine is pressing on the power cords or
ventilation ducts.
G round
≥10A
This machine is only suitable for home use.
The machine is only suitable for clothes that can be dried by the machine. Please check the
label of clothing.
Please don't leave the drying clothes in the dryer for a long time.
Dry clothes should not exceed the rated capacity of the machine.
Before drying clothes, you need to use the washing machine to dehydrate. Do not put the
dripping clothes into the dryer.
Clothes exposed to volatile petroleum products should not be dried with this machine.
If the wiring, panel or the bottom of the machine is damaged and easy to contact the internal
components, do not use the machine.
CHILD SAFETY!
Children or people with physical or mental disabilities cannot use the machine without
supervision.
Children in need of supervision cannot play with this machine.
Prevent children or pets from crawling into the dryer barrel.
Packaging materials (such as polystyrene, plastic film, etc.) are dangerous for children to
suffocate. Do not let children touch these items.
7
INSTALLATION
1. DRYER INSTALLATION
Dryer should be installed in a well ventilated place, not in the open air or wet place.
When the back is against the wall, it is not allowed to be close to the curtain, or there are
objects floating with the wind. It is required that the distance from the wall is not less than 10
cm, so as to facilitate the installation of exhaust pipe.
Do not install in sealed rooms. (Such as bathroom, washroom, etc.)
At least 1.5 meters in front of the dryer is required. Keep clear of obstacles and keep
ventilation.
Do not install dryers where gasoline or flammable materials are stored.
DRYER HORIZONTAL ADJUSTMENT
When the dryer is installed on the ground, place the dryer on a flat surface. If one of the four
feet is uneven, you can adjust the sole of the foot. If the dryer is not placed horizontally (the
gradient of the ground is more than 2 degrees), the machine may run unsteadily or stop
halfway.
8
AIR OUTLET PIPE INSTALLATION
Align one end of the threaded nozzle with the air outlet on the back of the dryer, insert it, and
then screw it clockwise. Move the other end of the exhaust pipe to one side (2), or extend
from the window or wall opening to the outside. Install correctly, as shown in (3).
Air vent
2
3
ACCESSORIES
1
User manual
2
Air duct
9
COMPONENTS
The company reserves the right to change the product design. The product you purchased
may be improved and not completely consistent with the manual, but the performance and
use method will not be changed.
The front air outlet, rear air outlet, shoe rack, inverted rack and inverted bracket are selected
according to different models. Some models may not have them.
Roof b oard
Cont rol panel
Door
T ub
F ilt er
Box
4 pc s Adjus t ing
f oot B ac k air v ent
B ac k boar d
Temp erature
c ont r oll er
Power l ine
10

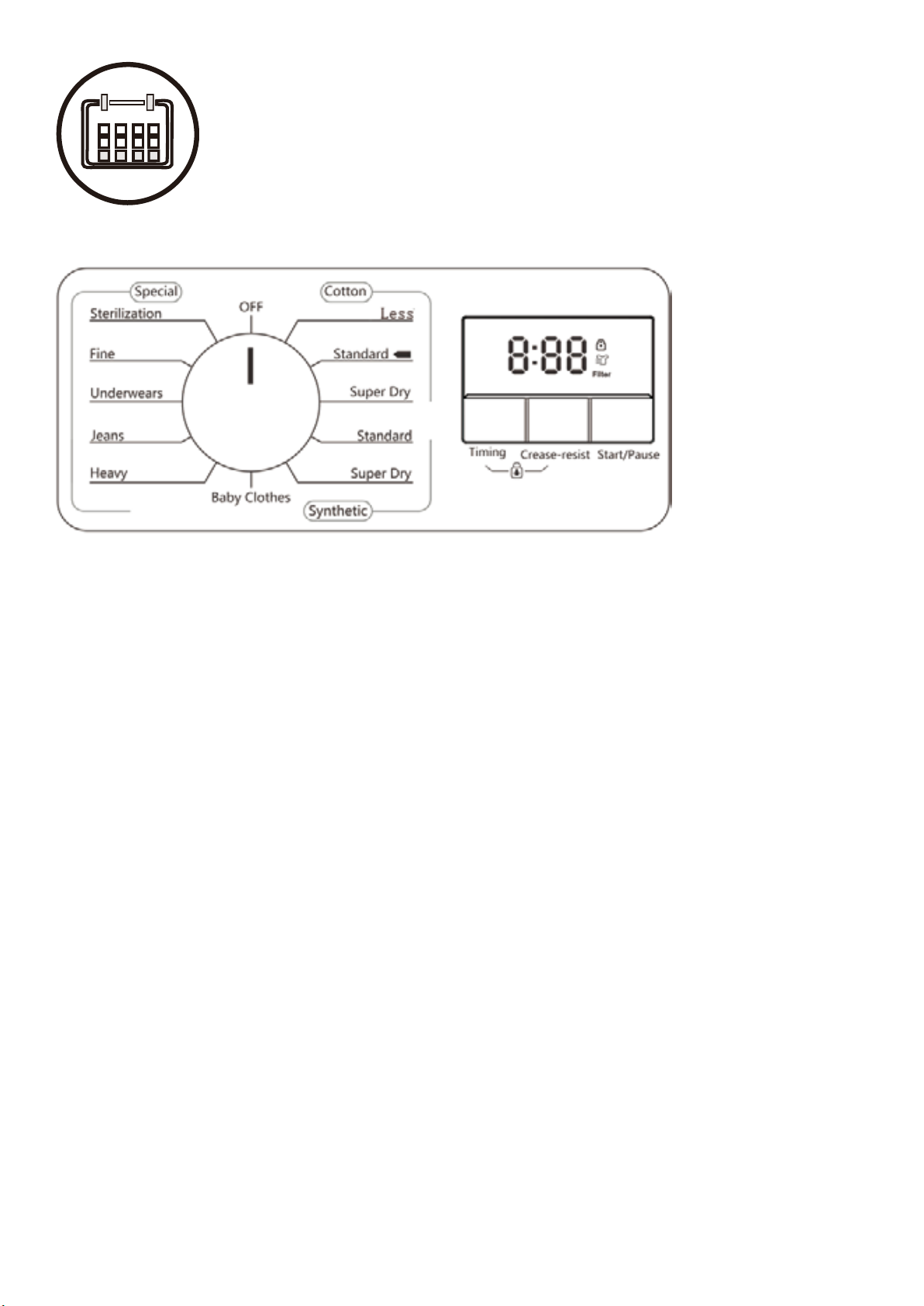

CONTROL PANEL
ON/OFF: turn on the machine and tap to turn off machine.
STENILIZATION: for a small amount of clothing disinfection.
FINE: for meticulous clothing.
UNDERWEAR: for underwear.
JEANS: for jeans.
Heavy: Large items of clothing do not include quilts or similar items.
BABY CLOTHES: for baby clothes.
SYNTHETIC: for chemical synthetic fabrics.
COTTON: for cotton-ramie fabrics.
LESS: A small amount of clothes
Standard: Clothes are suitable for wearing.
Super Dry:over dry.
START/PAUSE: Start the machine and pause the machine.
TIMING: 30, 50, 70, 90 minutes of regular drying.
CREASE-RESIST: After the automatic drying, the dry clothes can no .emitnituonekatebt
The anti-wrinkling light is on when selecting.
FILTER: After each use, the indicator light of the filter screen lights up, and clean the fil ret
screen. The warning light will be off next time.
CHILD LOCK: Child lock.
