DMX LED Arrow Laser Effect Manual

Our DMX LED arrow laser effect light offers many wonderful effects which are very magic and dynamic. It is

designed for professional places, such as stages, disco, night clubs etc.

please read the manual before operation.

A. SPECIFICATION

Size: 32.5*25*11cm

Weight: 3.0kgs

Power in:110V/240V 50HZ/60HZ

Power consumption: 40W

LEDs: 3W*5 (R: 1; G: 1; B: 1;W: 1; Y: 1)

LED display for easier operation

Selectable built-in programs, Auto running, DMX mode , slave mode, sound active

Two sound active modes optional.

LEDs running speed, motors running speed and motors retention time adjustable.

B. 1, PRODUCT PICTURE

C. OPERATION:

After power on, Press “MODE”button to activate the main menu: Built-in programs, Auto run, DMX mode, Slave

mode, Sound active mode.

“SETUP”is to set the relative specification for current mode.

“UP”is to add the value of current specification.

“DOWN”is to decrease the value of current specification.

Built-in programs-- running one of 14 built-in programs

Auto run—running built-in programs one after another in continuous loop.

DMX mode--controlled by DMX controller

Slave mode—the projectors in this mode will be synchronously run with the projectors in master mode

Sound active mode-- running by sound active

1. built-in programs

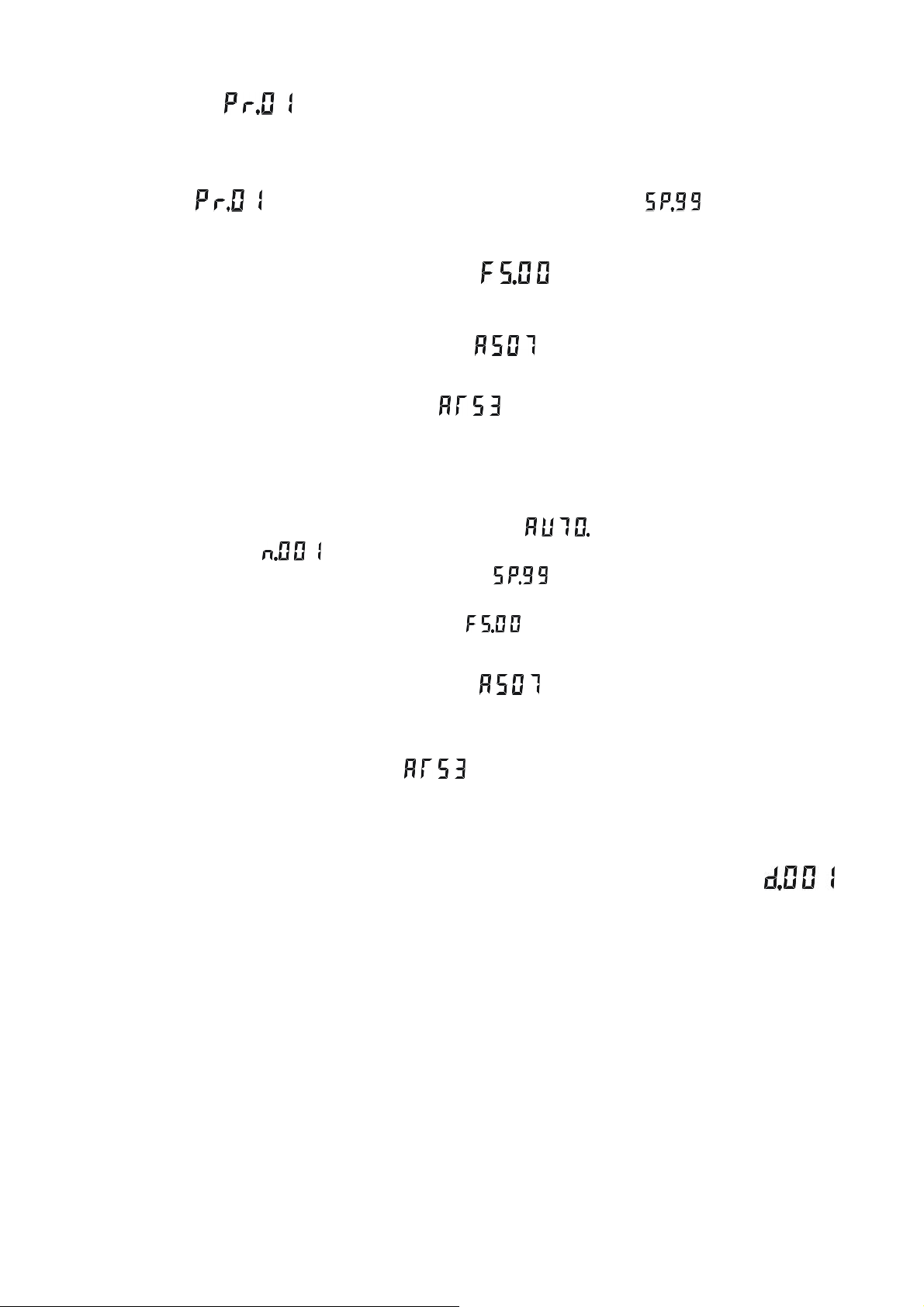

With this LED light you can select 14 different Programs. Press“SETUP”and “UP” “DOWN”buttons to

select the programs ( ) and select the desired program value。

For example,

When it shows , press “SETUP”button for the first time, it will show , you can set the LEDs

running speed of the program by“UP”and“DOWN”.

Press “SETUP”button for the second time, it will show , then you can set the flash frequency for it by

“UP”and“DOWN”.

Press “SETUP”button for the third time, it will show , then you can set the motors running speed by

“UP”and“DOWN”.

Press “SETUP”for the fourth time, it will show , then you can set retention time for the motor after

running one step by “UP”and“DOWN”.

2. Auto run mode

You can press “MODE”button to select auto run mode, it shows , then you can press “SETUP”button

for the first time, it shows , then you can set the running loops by “UP”and“DOWN”.

Press “SETUP”button for the second time, it will show , you can set the LEDs running speed of the

programs by “UP”and“DOWN”.

Press “SETUP”button for the third time, it will show , then you can set the flash frequency for LEDs by

“UP”and“DOWN”.

Press “SETUP”button for the fourth time, it will show , then you can set the motors running speed by

“UP”and“DOWN”.

Press “SETUP”for the fifth time, it will show , then you can set retention time for the motor after running

one step by “UP”and“DOWN”.

3. DMX mode

You can control the devices individually via your DMX controller. Press “MODE”button, when it is , it

is in DMX mode, this means DMX address is 001, you can set the DMX address by “UP”and“DOWN”buttons.

DMX value as follows:

DMX mode 1: d-P1

CH1 CH2 CH3 CH4 CH5

NO. DMX value LEDs

Programs

LEDs running

speed

LEDs flash

frequency

Motor running

speed

Motor

retention

time

10 OFF NO USE NO USE

SPEED 0--255 TIME 0--255

21--15 PROGRAM01

SPEED 0--255 FLASH

0--255

316--31 PROGRAM02

4 32--47 PROGRAM03

5 48--63 PROGRAM04

6 64--79 PROGRAM05

7 80--95 PROGRAM06

896--111 PROGRAM07

9112--127 PROGRAM08

10 128--143 PROGRAM09

11 144--159 PROGRAM10

12 160--175 PROGRAM11

13 176--191 PROGRAM12

14 192--207 PROGRAM13

15 208--223 PROGRAM14

25 224--255 Sound Mode Sensitivity

0--255

DMX mode 2 : d-P2

CH1 CH2 CH3 CH4

NO. DMX Value LEDs

Programs

LED Flash

frequency

Motor

running

speed

Motor

retention

time

10 OFF NO USE

SPEED

0--255 TIME 0--255

21--20 R

FLASH 0--255

321--41 G

4 42--62 B

5 63--83 W

684--104 Y

7105--125 RG

8 126--146 GB

9147--167 BY

10 168--188 YW

11 189--209 RGB

12 210--230 RGBW

13 231--251 RGBYW

14 252--255 Sound Mode Sensitivity

0--255

3. Slave mode

press “MODE”button to select to run the slave mode.

5. Sound mode

press “MODE” button to select to be run, press “SETUP”button，it shows (activated one

time, running one step), if soft music, this mode is better. or (activated one time, running for 5 seconds),

press“UP”or “DOWN”buttons for one second until it switches to another sound mode, if rock music, this mode

is better.

Adjust the sensitivity by pressing “UP” “DOWN”buttons.

Sensitivity: SX00-SX31
