Involight LED STROB500 Manuel utilisateur

INVOLIGHT LED STROB500

USER MANUAL

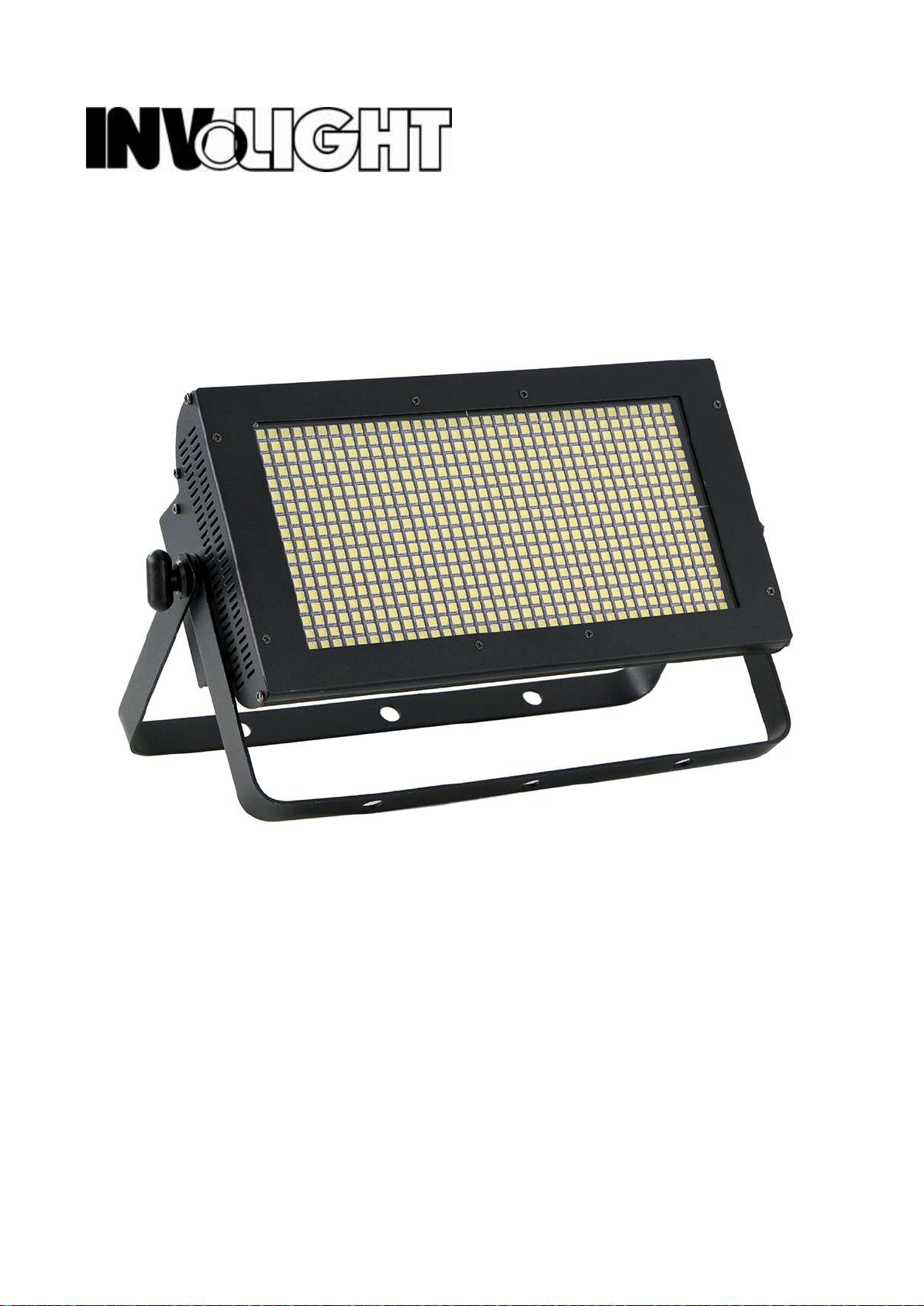

LED strobe panel, 448*SMD5050

User Manual

Our LED strobe panel offers many possibilities to achieve the effects which you want. It is suitable for DJs, bands,

nightclubs and other performers who want LED stage light. Please read the manual before operation.

A. SPECIFICATION

1. Voltage:AC 100V/260V, 50Hz/60Hz

2. Power consumption: 105W (Max)

3. LED: 448* SMD5050 white LED

4. Color temperature: 6900K

5. Operation mode: LED display

6. Weight: 3.6KGS

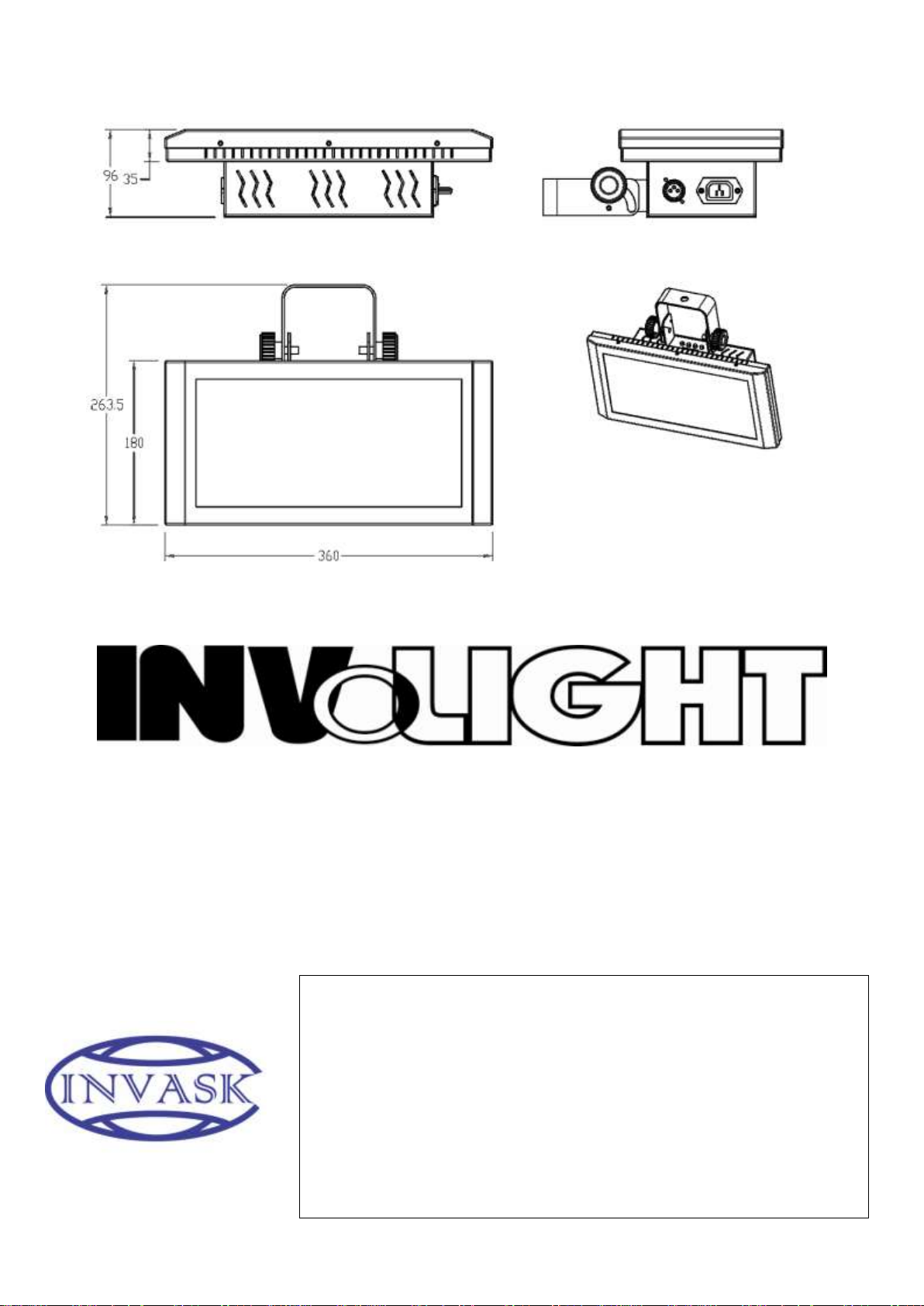

7. Size: 36*26.35*9.6 CM

B. OPERATION

There are five modes to choose:

Built-in programs

Dimming mode

Sound active

DMX mode

Slave mode

The button function instruction

1) Press the button lightly: the time of press the button and loosen less than 0.7 second

2) Long press the button: press the button more than 0.7 second

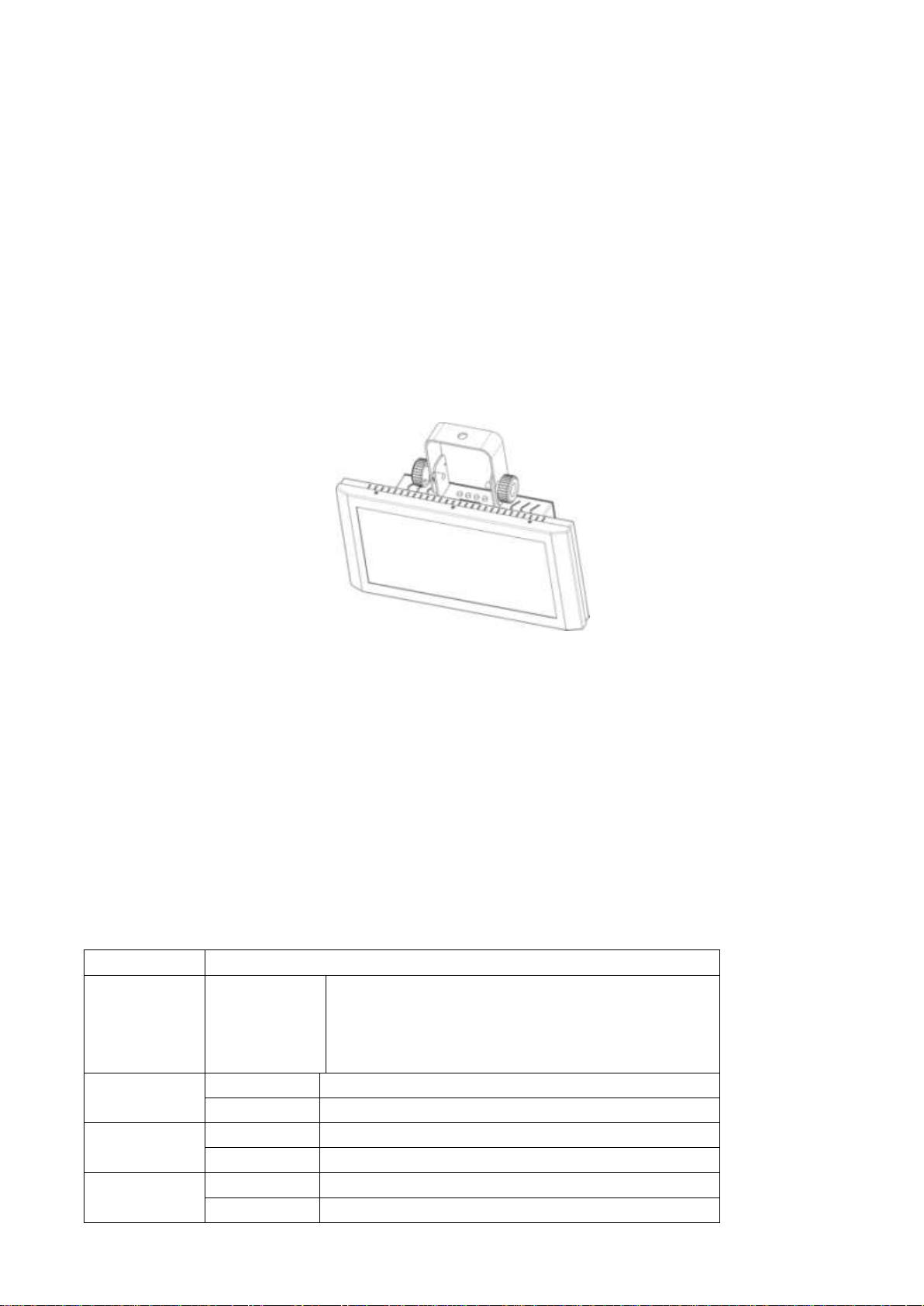

Sheet 1 Button function instruction

BUTTON

FUNCTION

MODE

Press lightly

LED mode switch inbuilt-in programs, dimming mode,

sound active, DMX mode, slave mode

/enter to setting menu, lightly press to back to the

superior menu( set corresponding LED mode)

SETUP

Press lightly

Enter the setting menu in this mode

Long press

Enter the system menu options

Press lightly

Setting option add 1 / switch ON

Long press

Setting options continuous add 1

DOWN

Press lightly

Setting options reduce 1 / switch OFF

Long press

Setting options continuous reduce 1

1. Built-in Programs Mode

Press the “MODE”, enter built-in programs mode menu, press the “UP” or “DOWN”, select the built-in programs

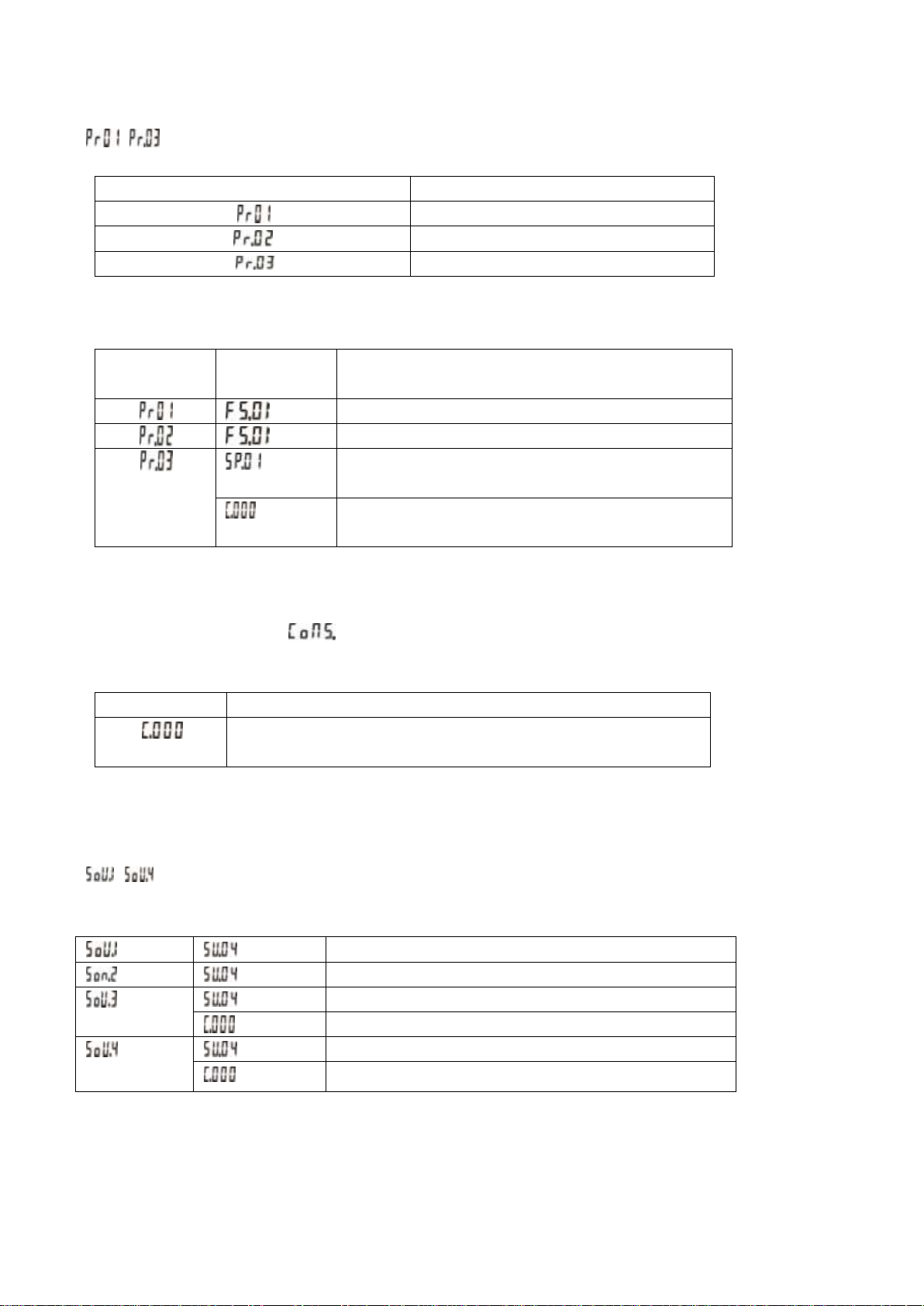

~ . Sheet 2 Built-in programs description

Built-in programs

Description

Strobe programs 1

Strobe programs 2

Auto running effect

Lightly press the “SETUP” to set the built-in program.

Sheet 3 Built-in programs settings

Built-in

programs

Setting options

description

Through UP or DOWN set the frequency(1—15Hz )

Through UP or DOWN set the auto running speed

(1—15 )

Through UP or DOWN set the brightness of the LED

(0-255 )

2. Dimming Mode

Press the “MODE”, the LED display will show as below, enter to LED dimming mode

Lightly press the “SETUP”, to set the lamp brightness.

Sheet 4 dimming mode settings

Settings options

Operation

LED dimming, through UP or DOWN adjust the brightness value

( 0—255 )

3. Sound-Active Mode

1) There are four sound programs: sound programs 1, sound programs 2, sound programs 3, and sound programs 4.

2) Press the “MODE” select the sound programs, through “UP”or “DOWN”select the built-in sound programs

3) Lightly press the “SETUP”, enter to sound programs settings, as below sheet.

Sheet 5 Sound active programs

Press UP or DOWN set the sound active sensitivity(0—31 )

Press UP or DOWN set the LED brightness (0—255)

Press UP or DOWN set the sound active sensitivity(0—31 )

Press UP or DOWN set the LED brightness (0—255)

4. DMX Mode

Press the “MODE”, the LED display will show as below, enter to LED DMX mode main interface.

Lightly press the “SETUP”, enter into DMX address, DMX working mode setting.

Sheet 6 DMX mode settings

Setting options

Operation instruction

DMX address setting (1 -512), through UP or DOWN set the address

Through UP or DOWN select CH1, CH4, CH6, CH7 mode

Working mode 1:

Sheet 7 The DMX mode function sheet of CH3

CHANNELS VALUE FUNCTION

1 0-255

White(whole 0-100%

Working mode 2:

Sheet 8 The DMX mode function sheet of CH6

CHANNELS VALUE FUNCTION

1 0-255

part1(bottom right

2 0-255

part2(bottom left

3 0-255

part3(upper right

4 0-255

part4(upper left

Working mode 3:

CHANNELS VALUE FUNCTION

1 0-255

Part1(bottom right

2 0-255

Part2(bottom right

3 0-255

part3(upper right

4 0-255

part4(upper left

5 0-255 master dimming

0-9 no use

10-255 strobe, the greater the value,the higher the frequency

Working mode 4:

Sheet 9 The DMX mode function sheet of CH7

CHANNELS

VALUE FUNCTION

10-255

Part 1(bottom right

20-255

Part 2(bottom left

30-255

Part 3(upper right

40-255

Part 4(upper left

50-255 Master dimming

0-39 No use

40-59 Built-in programs 1

60-79 Built-in programs2

80-99 Built-in programs3

100-159 No use

160-179 Sound active 1

180-199 Sound active 2

200-219 Sound active 3

220-255 Sound active 4

70-255 Built-in programs: strobe or speed; sound active:sound active sensitivity

5. Master/slave Mode

Press the “MODE”, the LED display will show as below, enter LED slave mode.

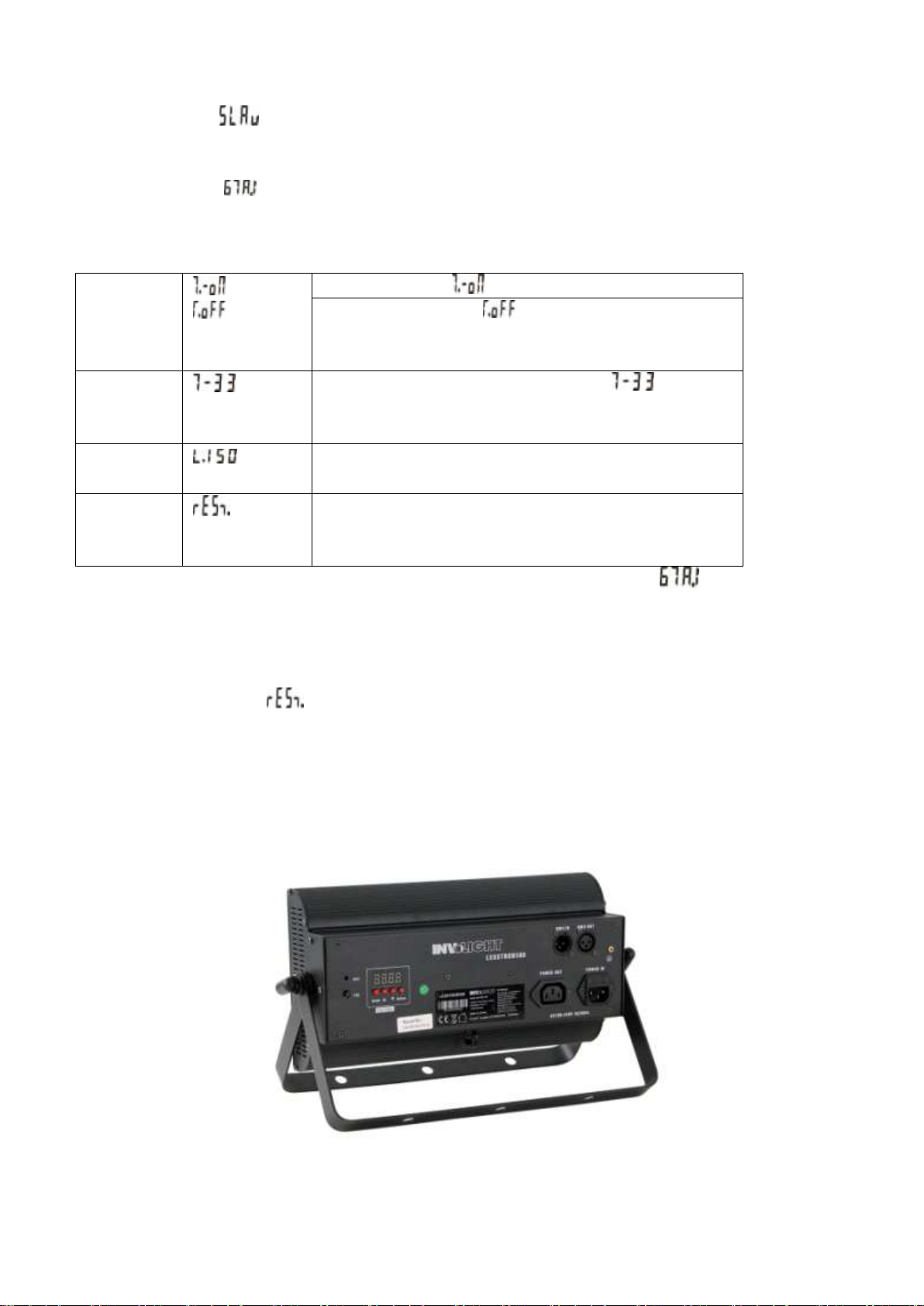

C. System Options

In any state, long press the “SETUP”, enter the main interface of the system options:

Lightly press the “SETUP”, select the temperature protection switch options, PCB temperature inquires, LED

biggest gray, restore factory settings.

Setting details as below sheet:

Temperature

control

switch

options

Press UP, will show , open temperature control.

Press DOWN, will show , closed temperature.

PCB

temperature

options

Press DOWN or UP update temperature ,the current

temperature is 33℃

LED biggest

gray value

Press DOWN or UP update the LED newest brightness

(0—255).

Restore

factory

setting

Press UP to restore factory settings

On system options, lightly press the “MODE”, return to the system main interface , press the “MODE”

again, return before LED mode menu.

D. Restore Factory Settings

There are two kinds of methods to restore factory settings.

1) In menu system options , press the “UP” to restore factory settings.

2) When in power failure situation, press the “MODE” and “SETUP”, power on to restore factory settings.
