Contents

Congratulations ��2

Cautions��2

Product Features��3

Quick Start Guide ��4

General Operating Instructions��5

Front Panel Controls��6

Remote Control Battery Installation��8

Headphone Battery Installation��9

Battery Cautions and Warnings��9

Remote Control Operation ��10

System Menu ��14

System Setup Sub-Menus ��15

DVD Playback Settings and Adjustments ��24

DISC Basics��29

DVD Region Codes��30

AV Inputs, AV Outputs, HDMI/MHL and USB Port Information��31

MVGP1 Game Module Package (Optional) Operation��33

Troubleshooting ��35

Specications ��37

Compliance Information��38

TABLE OF CONTENTS

may not be reproduced without the express written permission of VOXX Electronics Corp�

SL7D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

CONGRATULATIONS

Thank you for purchasing the SL7D Rear Seat

Video Headrest System� Before operating

this system, read this manual thoroughly and

retain it for future reference�

The SL7D is a versatile Rear Seat Video

Headrest System which allows users to

watch the same DVD/Video Source on both

monitors simultaneously or individual DVD/

Video Sources on either monitor�

Each SL7D has a 7” LCD monitor with a built-

in DVD player that allows the user to select

from several sources (DVD/USB, HDMI/MHL,

M2 (M1), A/V-IN, and GAME* Source)� The

monitor has a built-in wireless infrared audio

transmitter�

The SL7D Rear Seat Video Headrest System

has easy to use menus that are accessed

using the remote control or the front panel

buttons�

The two full function wireless remote

controls operate either monitor by selecting

the Monitor Select “M1” or “M2” buttons�

• The M1 monitor will only respond to the

remote control when the“M1” button is

pressed�

• The M2 monitor will only respond to the

remote control when the“M2” button is

pressed�

The supplied two-channel wireless Infrared

(IR) headphones have an A-B switch

(CH A-M1 and CH B-M2)�

CAUTIONS

Important Notice

An LCD Panel and/or Video Monitor may be

installed in a motor vehicle and visible to the

driver if the LCD Panel or Video Monitor is

used for vehicle information, system control,

rear or side observation or navigation� If

the LCD Panel or Video Monitor is used for

television reception, video or DVD play, the

LCD Panel or Video Monitor must be installed

so that these features will only function

when the vehicle is in “park” or when the

vehicle’s parking brake is applied�

An LCD Panel or Video Monitor used for

television reception, video or DVD play that

operates when the vehicle is in gear or when

the parking brake is not applied must be

installed to the rear of the driver’s seat where

it will not be visible, directly or indirectly, by

the operator of the motor vehicle�

Safety Precaution

For safety reasons, when changing a video

disc it is recommended that the vehicle not

be in motion, and that you do not allow

children to unfasten safety belts to change a

disc or make any adjustments to the system�

System adjustments can be accomplished

using the remote control, while safety belts

remain fastened� Enjoy your entertainment

system, but remember that the safety of all

passengers remains the number one priority�

Always run the vehicle’s engine while using

the SL7D Rear Seat Video Headrest System�

Using this system without running the

engine can result in battery drainage�

Patented, refer to www�voxxintl�com/company/patents

* GAME Package MVGP1 (Optional)

SL7D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Features of the SL7D Rear Seat Video

Headrest System are as follows:

1� Two factory matched headrests, each with

a 7-inch Color LED backlit LCD screen (800

x 480), 16:9 aspect ratio and built-in DVD

player�

2� HDMI®/MHL® input on the front panel

for media streaming devices such as

Roku Streaming Stick and Chromecast

(Not Included)� This input will also allow

connection of a smartphone (with the

proper adapter) for playing digital content

from your phone to the LCD screen�

3� USB 2�0 input on the front for phone/

tablet charging or for playing digital

content from a USB Flash drive�

NOTE:Referto theHDMI/MHL information

on pages 31 and 32 for tablet/phone

charging capability and supported digital

audio and video le formats.

4� Built-in wireless IR (Infrared) transmitter

for use with the supplied dual-channel

headphones�

5� Two Wireless Infrared (IR) Headphones

equipped with volume control and A/B

switch to select between “M1” and “M2”�

NOTE: The wireless IR headphones must

be used within a line of sight from the

transmitter as infrared transmission, like

visible light, travels only in an unrestricted

line of sight.

PRODUCT FEATURES

6� Remote IR sensors for the wireless remote

controls�

7� Two wireless remote controls: Each user

has their own remote control� To control

the M1 monitor, press the M1 button

on the remote control, to control the

M2 monitor, press the M2 button on the

remote control�

8� Front panel controls: Basic system

operations can be performed using these

controls (Power, Play/Pause, Source Select,

Home, Stop, Eject, Up, Down, Left (Fast

Reverse), Right (Fast Forward), Enter�

9� 100 channel Wireless FM modulator for

listening to audio from the M1 monitor

on the vehicle radio� The modulator is

controlled from the M1 monitor�

11�OSD (On Screen Display) for monitor

status and monitor control�

10�MVGP1 Game Pack (Optional): The

Game Pack consists of fty four 32-

bit games (six dual player games) and

includes 2 Game Controllers (P1 & P2),

see pages 33 and 34 for more information�

When the Game Pack is installed, either

monitor can be designated as “Player 1”�

Selection is based on a “rst come,

rst serve” basis� The second monitor

will automatically become “Player 2”,

see page 34 for more information�

SL7D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

6� If audio playback through the

vehicle radio is preferred, use the FM

transmitter ON/OFF button on the

remote control� Set the vehicle radio to

the channel selected on the M1 monitor�

If interference with a local radio station

occurs, set the FM modulator to one

of the other 100 radio frequencies�

NOTE: The FM modulator function

is only available on monitor M1.

NOTE: To operate the M1 screen, press

M1 on the remote control. To operate

the M2 screen, press M2.

7� To turn OFF either the M1 or M2

monitor, press and hold the Power ON/

OFF button for 5 seconds or turn the

vehicle OFF�

1� Press the POWER ( ) button on each

monitor� The control keys will light up

blue�

2� Insert a DVD, CD, or MP3 disc into the

disc slot located on top of the M1 or M2

monitor (disc label toward user)� Push

down gently on the disc until the player

pulls the disc in (Do not force the disc)�

3� Tilt the monitor to a comfortable

viewing position�

4� The wireless IR headphones have an

”A-B” switch used to receive select the

audio from either the “M1” or “M2”

monitor� When sitting in front of the

M1 screen, use the CH A setting� When

sitting in front of the M2 screen, use the

CH B setting� Turn the volume down

to its lowest setting before putting the

headphones on�

5� When the DVD menu appears, select

the menu item using the UP or DOWN

buttons and press Enter or Play button�

QUICK START GUIDE

SL7D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

For best disc operation, it is important that

you read this section completely�

DVD Region Coding

The SL7D and the DVD disc are coded by

region� These region codes must match in

order for the DVD to play� If the codes do

not match, the DVD will not play� The SL7D

code is set to region 1� Playback of a DVD

disc from any other region will not work in

the SL7D�

Type of Discs the SL7D Will Play

• DVD-Video: DVD containing video

content�

• CD-DA: CD containing musical or sound

content only�

• CD-Video: CD containing video only�

• CD-R/RW: A disc that containing audio les

(for example, a CD-R with downloaded

MP3 les), MPEG, or JPEG les�

NOTE: The following discs will NOT play in

the SL7D: Optical disc- CD-1, CD-ROM, and

DVD-ROM Mini disc- CDG (audio only, not

graphics), Blu-ray.

Loading and Playing Discs

Before loading a disc, make sure that it is

compatible with the player�

• Press the POWER ( ) button to turn the

system ON�

• Load the disc (label facing the user)

into the disc slot� The disc will load

automatically and begin to play�

NOTE: Some discs may start at the root menu

where Play must be selected to start movie.

Notes on Discs

• Do not touch the disc surface� Handle the

disc by the edge�

• It is important that discs are clean prior to

use�

• If disc is not clean, use a commercially

available cleaning cloth to gently wipe

the disc from the center out� (Figure 1)

NOTE: Do not use solvents such as

benzene, thinner, cleaners, or antistatic

spray intended for analog discs.

• Keep discs protected in their cases or

disc magazines when not in use� Do not

subject discs to heat/high temperature�

Avoid leaving discs in a parked vehicle or

on a dashboard/rear tray�

• Do not use discs that have after-market

paper or plastic labels/stickers attached�

The following malfunctions may result

from using such discs:

• Inability to eject a disc (due to a

label or sticker peeling o and

jamming the eject mechanism)�

• Inability to read audio data correctly

(i�e�, playback skipping, or no

playback) due to heat shrinking of a

sticker or label causing a disc to warp�

• Use only standard, round discs� If you

insert irregular, non-round, shaped discs

they may jam in the DVD player or not play

properly�

Figure 1

GENERAL OPERATING INSTRUCTIONS

SL7D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Figure 2

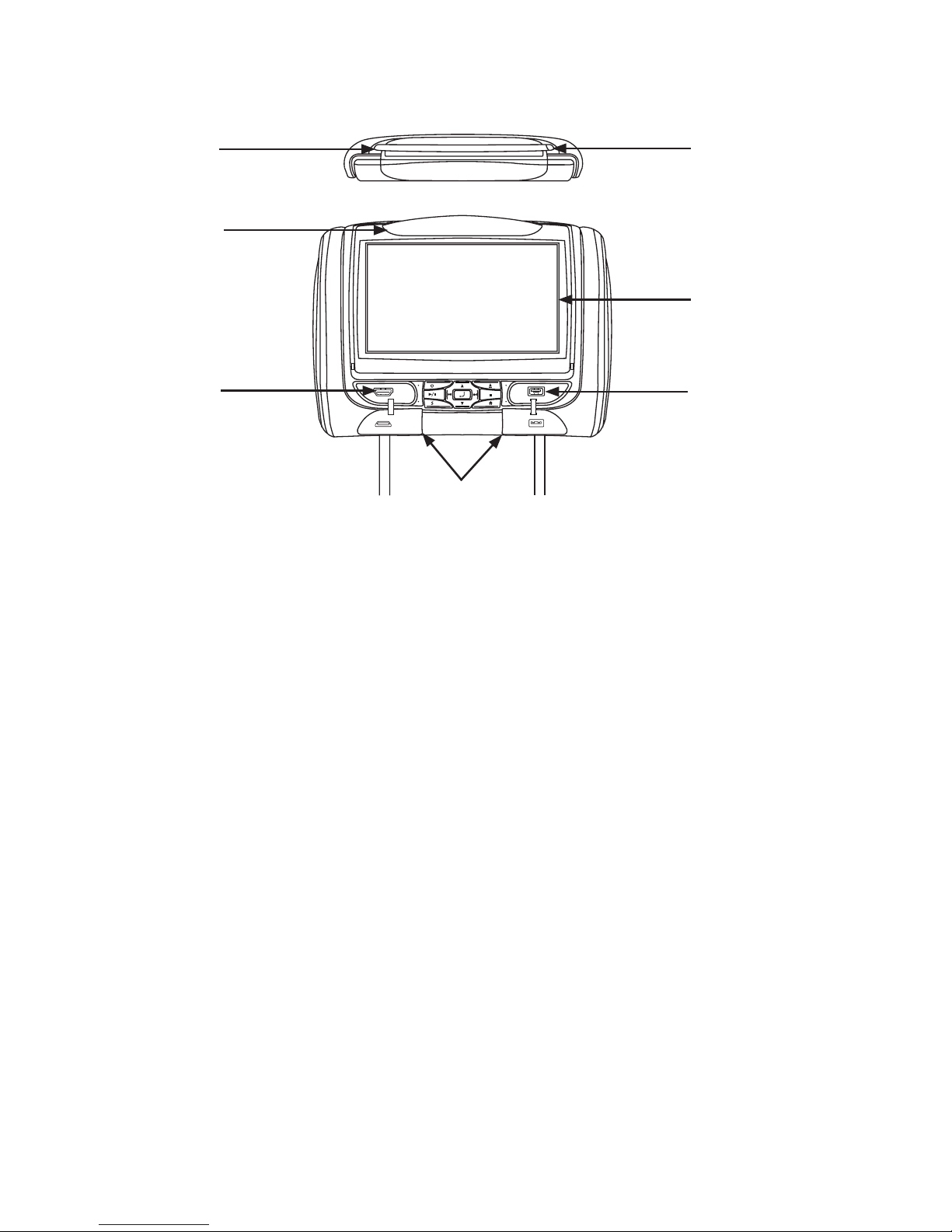

FRONT PANEL CONTROLS

1. Disc Insertion Slot

2. IR TRANSMITTER and IR SENSOR

IR Transmitter: Broadcasts audio

signal to the wireless IR headphones�

IR Sensor: Receives signals from the

remote control�

3. HDMI/MHL INPUT

This input is used for connecting

devices with HDMI/MHL outputs�

NOTE: Requires a HDMI/MHL enabled

device and/or a special HDMI/MHL

adapter. Contact your HDMI/MHL device

supplier for adapter�

4. Protective Covers

Used to protect and cover the HDMI jack

and USB port when not in use�

5. USB PORT

This port is used to connect a USB device

for playback of content� To view content,

select “USB” as the video source and

insert the USB device� The USB device

will start automatically�

6. 7-inch TFT LCD Display Screen.

7. Disc Slot LED.

WARNINGS

• Do not use any solvents or abrasive

cleaning materials when cleaning the

screen� Use only a lightly dampened lint

free cloth to wipe the screen if it is dirty�

• Lock the front panel in the fully closed

position when not in use� Do not put

pressure on the screen, caution children

to avoid touching, scratching or pulling

down on the screen�

SL7D

SL7D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Figure 3

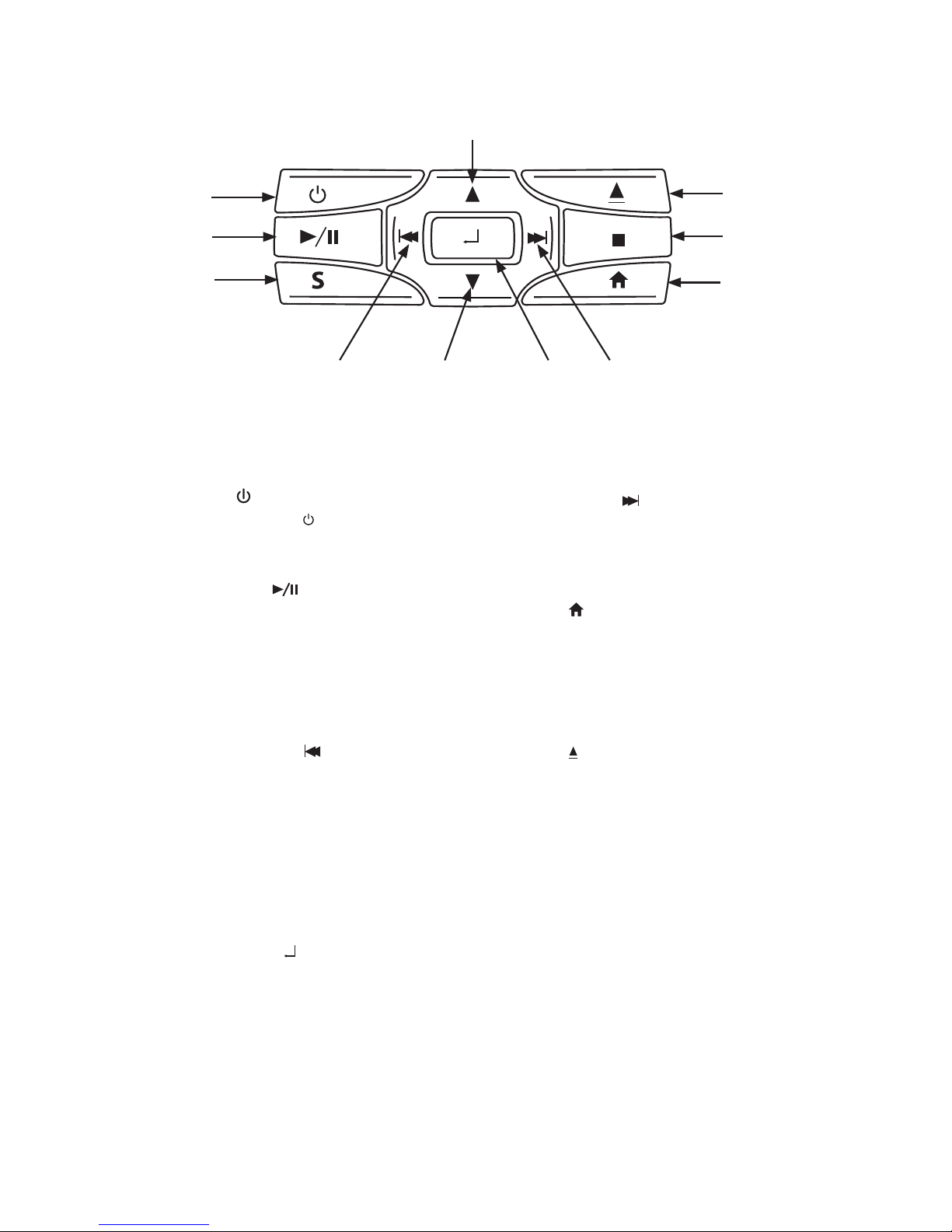

FRONT PANEL CONTROLS

1. POWER ( ) Button

Press the POWER ( ) button to turn the

SL7D ON and OFF (press and hold for 5

seconds to turn OFF)�

2. PLAY/PAUSE ( ) Button

Press this button to begin playback of

the disc or USB device inserted�

3. SOURCE (S) Button

Press this button to select the

DVD/USB, HDMI/MHL, M1/M2, A/V IN, or

GAME (optional)�

4. PREVIOUS / LEFT ( )Button

Press this button to skip to the previous

chapter or track during playback of a

disc and can also be used to navigate

the DVD menu�

5. DOWN  q Button

This button is used to navigate selections

on the screen and can also be used to

navigate the DVD menu�

6. MENU/SELECT( ) Button

Press to display and select options in the

System Menu�

7. NEXT / RIGHT ( ) Button

This button is used to skip to the next

chapter or track during playback of a

disc and can also be used to navigate

the DVD menu�

8. Home ( ) Button

This button is used to access the system

menu�

9. STOP ( n) Button

Press this button to stop playback of the

disc or USB in use�

10. EJECT ( )Button

Press this button to stop the playback of

the disc or USB in use�

11. UP ( p) Button

This button is used to navigate selections

on the screen and can also be used to

navigate the DVD menu�

SL7D

56 7

SL7D REAR SEAT VIDEO HEADREST SYSTEM Owner’s Manual

Figure 5 Figure 6

(1) (2)

CR2025

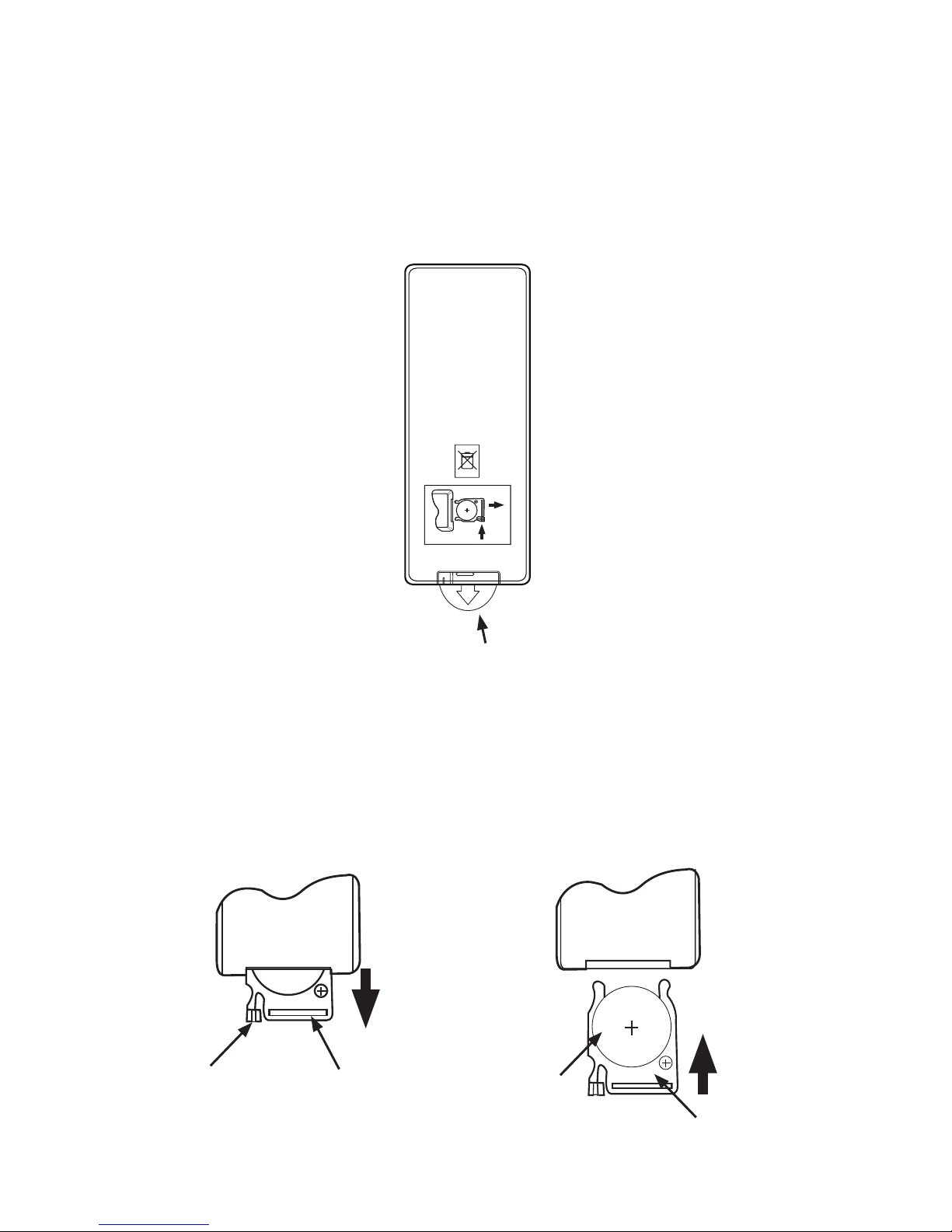

REMOTE CONTROL BATTERY INSTALLATION

Installation of the Remote Control Battery

Figure 4

The remote controls come with a battery already installed along with a Pull Tab to prevent

battery discharge� Remove the Pull Tab before using the remote control for the rst time�

(Figure 4)

NOTE: The remote control will only operate the SL7D Rear Seat Video Headrest System. It is not

a universal remote control and will not control other equipment.

Remote control

Back View

PUSH

OPEN

CR2025

Protective Pull Tab (Clear Plastic)

1� While holding the remote control, insert thumbnail into the battery door side notch (1) and

index ngernail into battery door upper notch (2) and slide battery holder open� (Figure 5)

2� Install one CR2025 battery (1) into the battery holder (2)� (Figure 6)

NOTE: Make sure that the proper polarity (+ or -) is observed.

3� Slide the battery holder (2) back into the remote control until it locks in place� (Figure 6)

(1)

(2)

Table des matières

Autres manuels Invision Système vidéo embarqué

Invision

Invision REVOLUTION LT Manuel utilisateur

Manuels Système vidéo embarqué populaires d'autres marques

Stinger

Stinger HEIGH10 RB10RAM13B Manuel utilisateur

Eonon

Eonon E1057 Manuel utilisateur

Milion

Milion D2223 Manuel utilisateur

Metra Electronics

Metra Electronics 99-8153 Manuel utilisateur

Voxx Electronics

Voxx Electronics HR8MA1 Manuel utilisateur

Axxera

Axxera AV604Bi Manuel utilisateur

Clarion

Clarion NX706E Manuel utilisateur

Pyle view

Pyle view PLDN74BTi Manuel utilisateur

Clarion

Clarion NX602 Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-5850N Manuel utilisateur

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guide de l'utilisateur

Lanzar

Lanzar SVDVD5 Manuel utilisateur

Kia

Kia MTXM100YPPE Manuel utilisateur

Eonon

Eonon E1060 Manuel utilisateur

Macrom

Macrom M-AN900 Manuel utilisateur

Hyundai

Hyundai BAPE-L3000N Manuel utilisateur

r.LiNK

r.LiNK RL2-UCON8-SM Manuel utilisateur

Blaupunkt

Blaupunkt DVP 01C Manuel utilisateur
