SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 1of 10
2017
SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 2of 10
Contents Page
IP20 drive disassembly procedure....................................................................................................3
Cover removal procedure ...................................................................................................................3
Fan disconnection................................................................................................................................6
Fan removal/assembly........................................................................................................................ 7
Heatsink removal..................................................................................................................................7
Output terminal connector removal...................................................................................................9
Filter PCB removal...............................................................................................................................9
2017
SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 3of 10

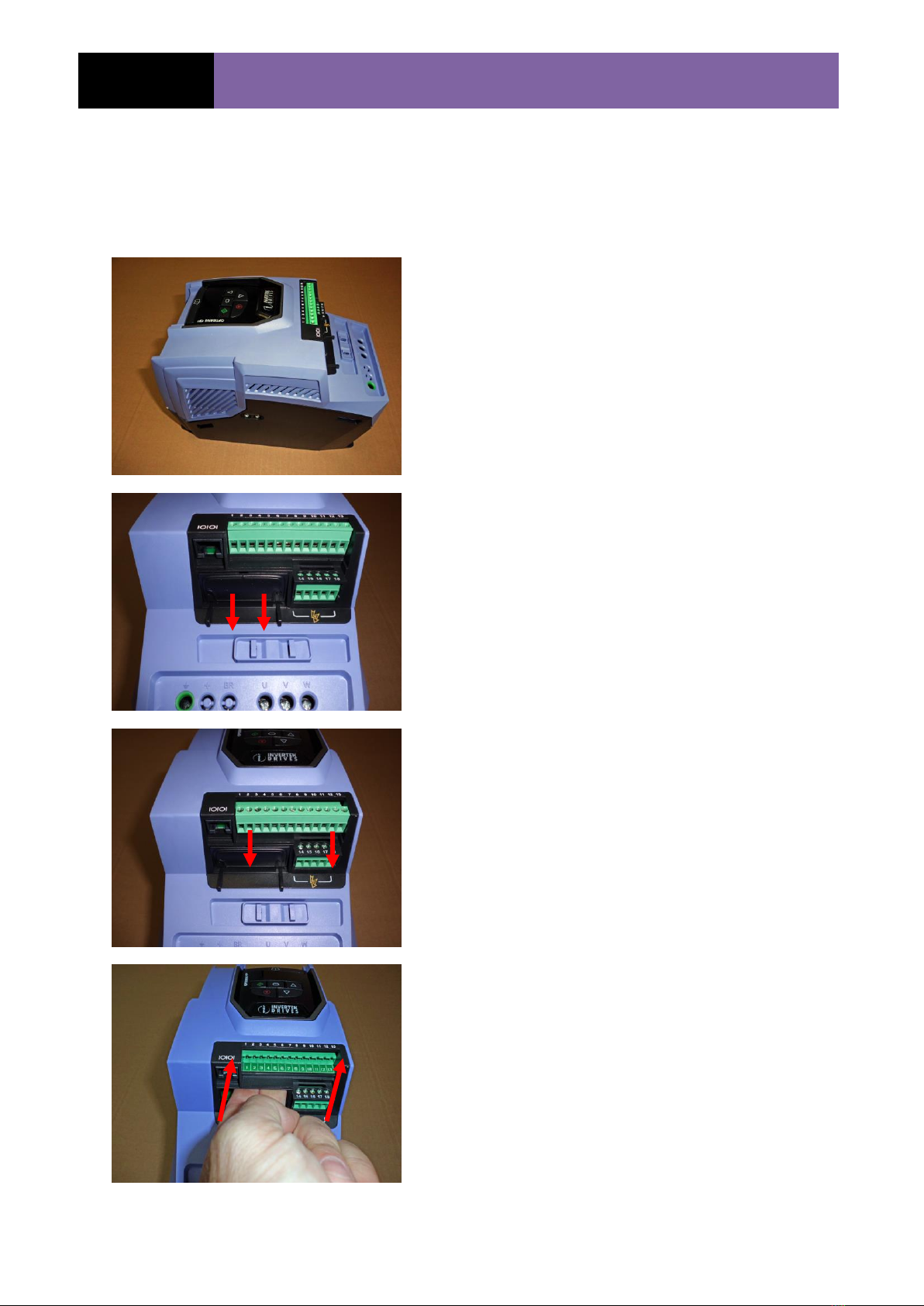

IP20 drive disassembly procedure
Cover removal procedure
Remove pluggable terminal
connector by pulling the
connector away from the drive in
the direction highlighted
Remove option cover plate if
fitted by pulling the cover away
from the drive in the direction
highlighted
Place the drive on a surface that
will prevent damage to the
plastics
Place your fingers into the option
port ensure you touch the plastics
only, lift the plastic away from the
drive in the direction highlighted
Caution do not touch the pins
on the option connector within
the drive as they are fragile
2017
SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 4of 10

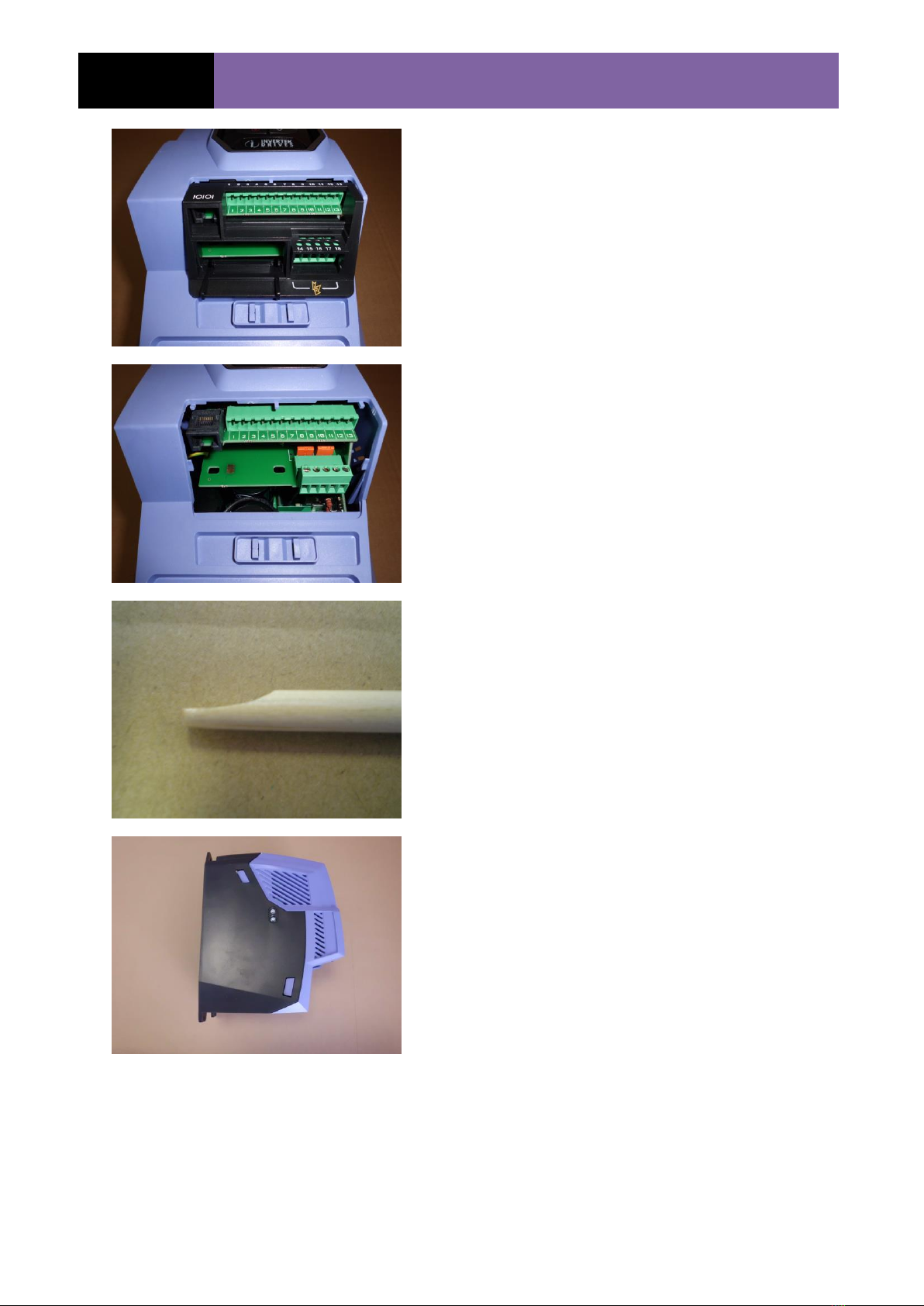

The example opposite shows the
plastic cover after it has been
clicked out of position
With the cover removed, access
can now be made through the
terminal section of the drive
The end of a wooded brush will
be used to remove the plastics
cut to a wedge shape. Wood is
used to prevent damage to the
plastics.
Place the drive on it’s side
2017
SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 5of 10

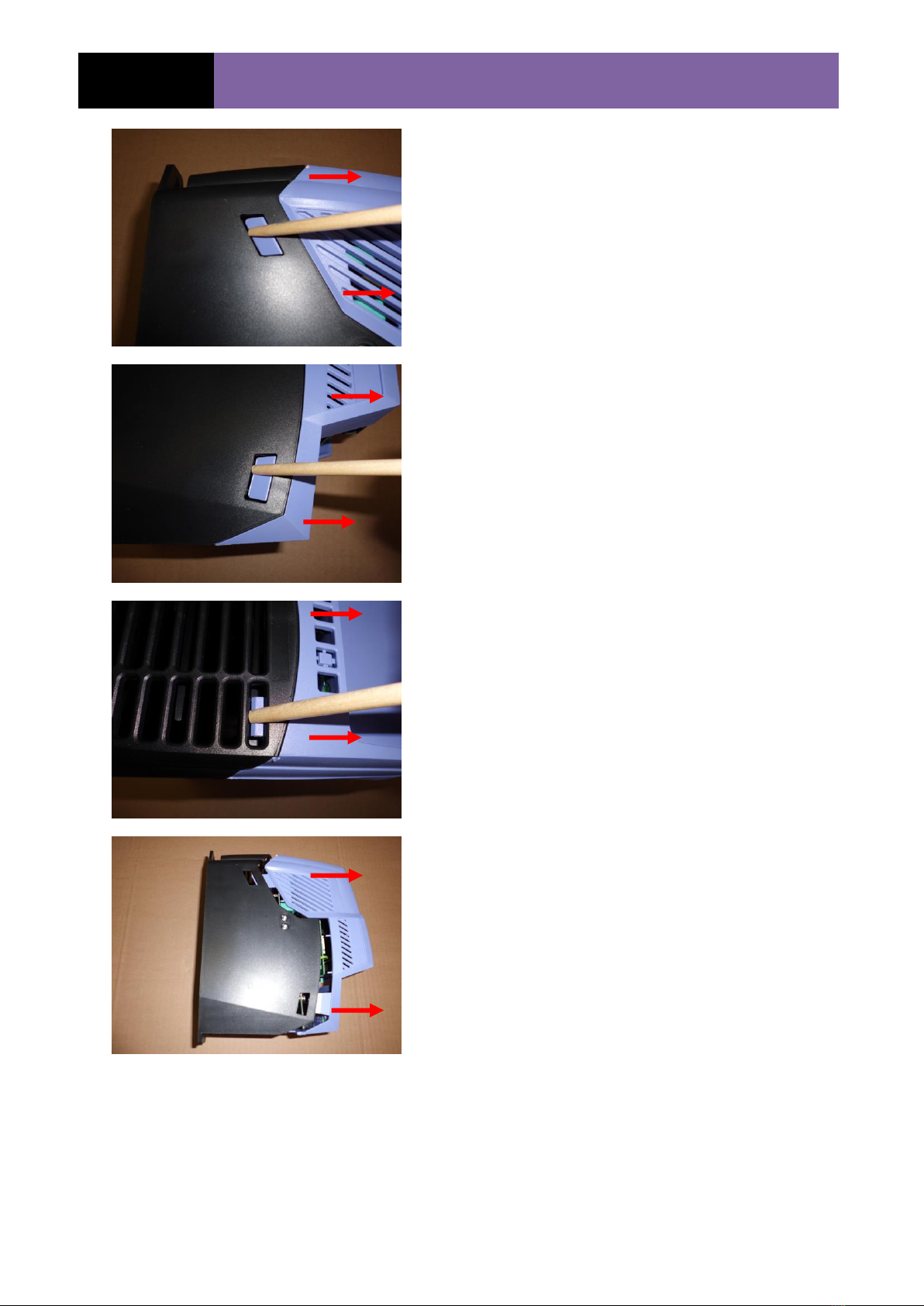

Using the wooden wedge, push
the plastic tab in while pulling the
cover away in the direction
indicated
Once both taps are clear turn the
drive over and repeat the
procedure for the two top and
bottom tabs
With a four plastic catches
released the cover can simply be
removed
Using the wooden wedge, push
the plastic tab in while pulling the
cover away in the direction
indicated
2017
SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 6of 10

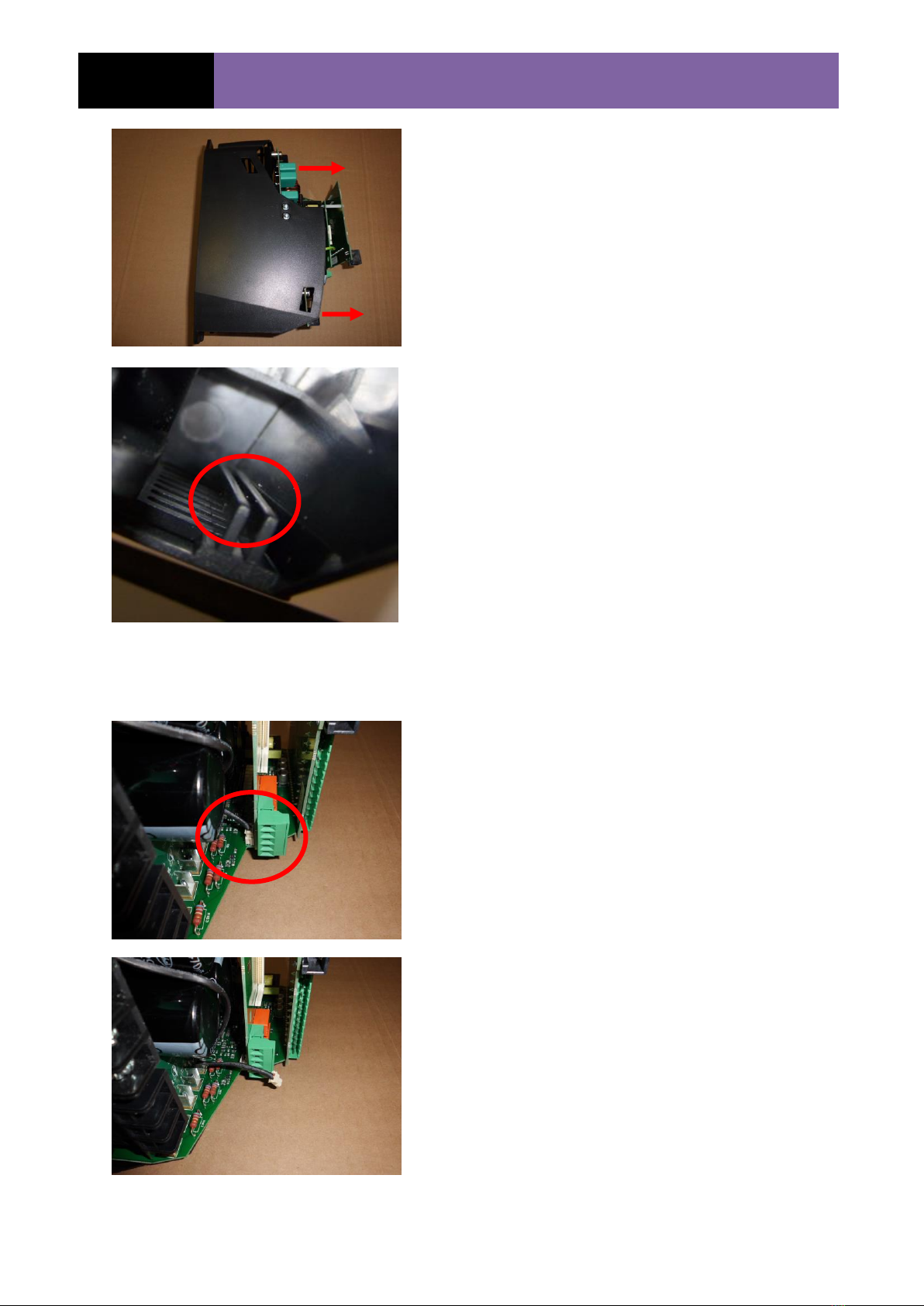

Fan disconnection
Start to remove the drive in the
direction indicated but only a
small amount to allow access to
the fan lead on the right hand
side of the drive
Disconnect fan using long nose
pliers
Ensure antistatic precautions are
taken
PCB can now be removed from
the plastic base
During reassembly of the drive,
ensure PCB fits into the plastics
positioning groves only
2017
SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 7of 10

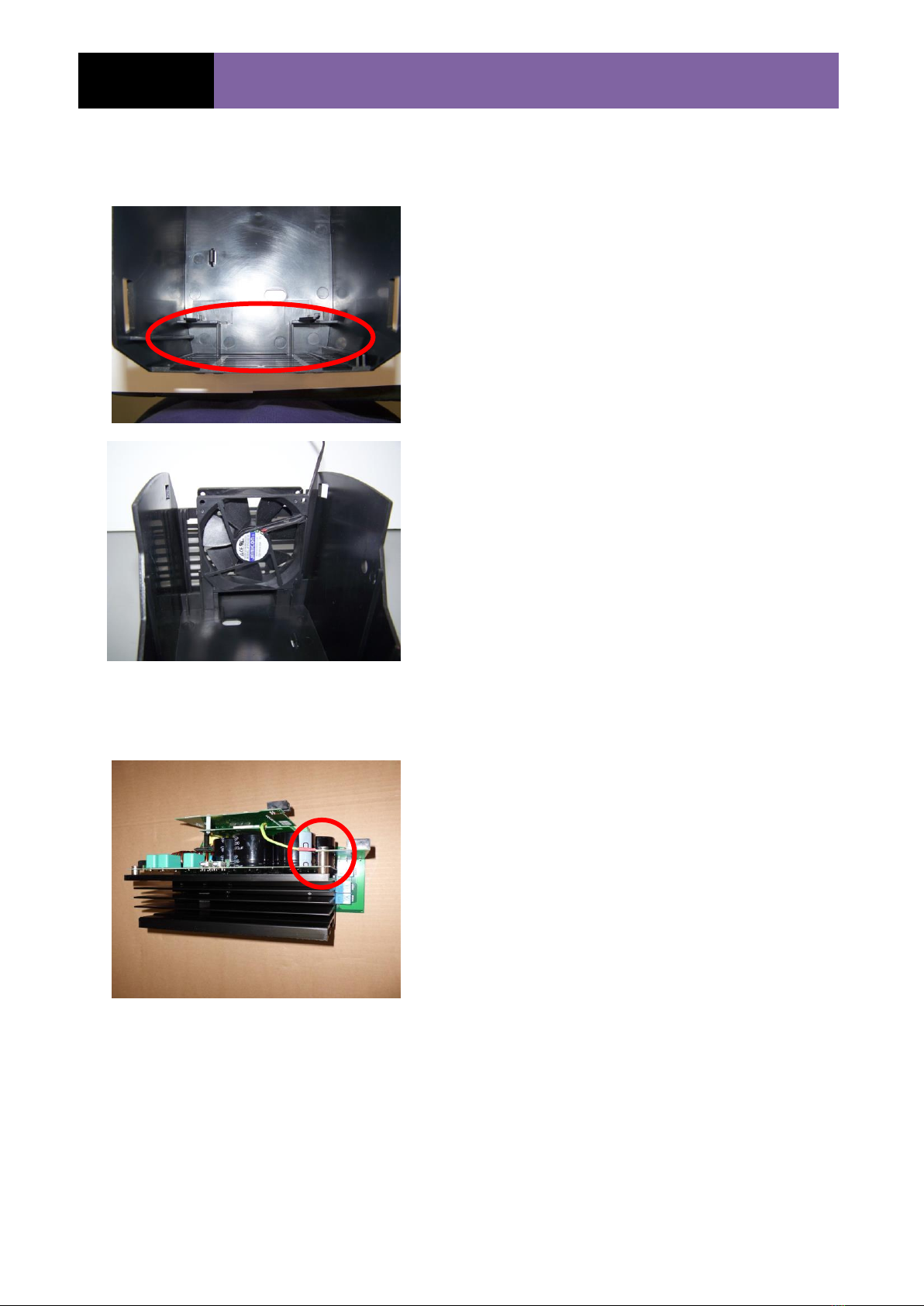

Fan removal/assembly
Heatsink removal
Remove Earth screw using a T20
torx screwdriver
(Torque setting 1Nm)
The fan sits in the groves
highlighted opposite
The fan label must always face
inwards to ensure correct airflow
through the drive
2017
SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 8of 10

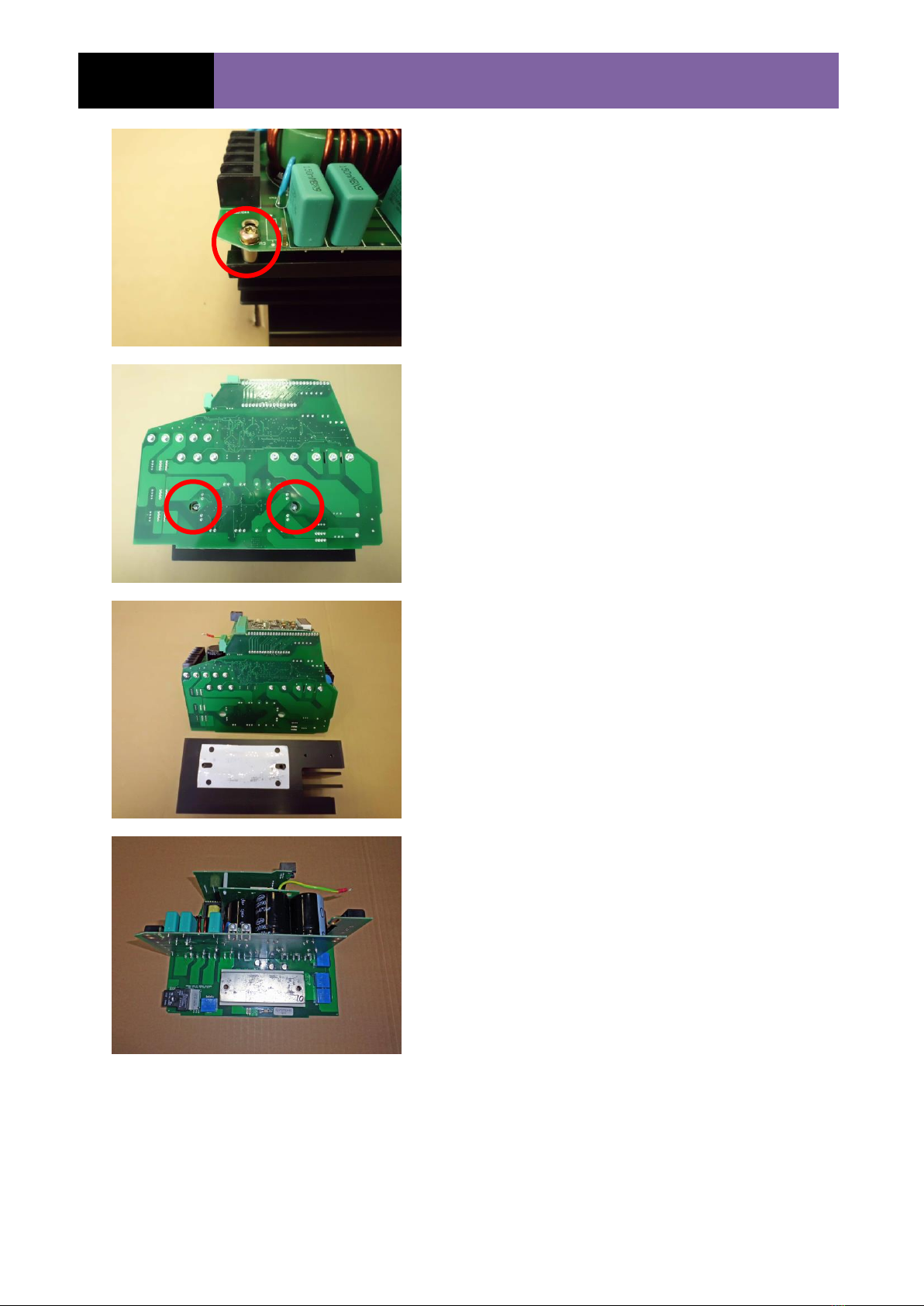

Remove 2 x heatsink screws
using a T25 torx screwdriver
(Torque setting 1Nm)
Placed disassembled drive on a
antistatic surface
The white thermistrate on
heatsink is fragile so placed it in a
location away from potential
mechanical damage
Remove Earth screw using a T20
torx screwdriver
(Torque setting 1Nm)
2017
SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 9of 10
Output terminal connector removal
Filter PCB removal
The output terminal connector
can removed by removing the
five screws highlighted using a
T15 torx screwdriver
(Torque setting 1Nm)
The output terminal connector
removed
The filter PCB can be removed
by removing the eight screws
highlighted using a T15 torx
screwdriver
(Torque setting 1Nm)
2017
SERVICE MANUAL ODP-2/HVAC FRAME SIZE 3
Page 10 of 10

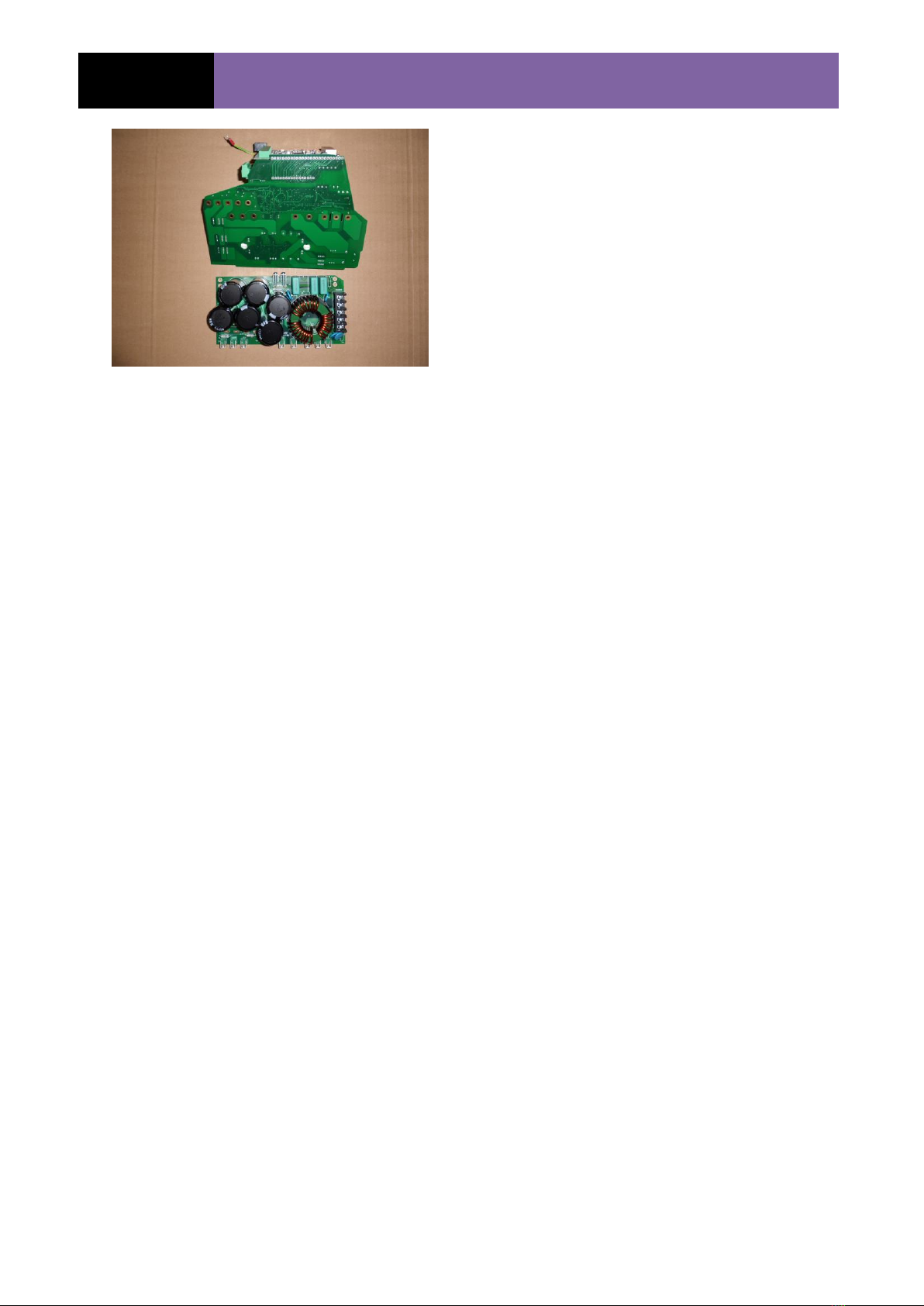

The filter PCB removed
