MicroFogger 3 Lite - User Manual (V1.10 Dec21)

Initial Preparation –IMPORTANT Please Read!

Turn MF3 “ON” using the rocker switch BEFORE attaching the charging cable,

Put the included USB charging cable into a USB charger socket outlet and Then connect

USB charging cable to the MF3.

Only use a wall socket/mains supplied type of USB charger to ensure the unit charges fully

and also to prevent unintentional activation during charging.

Allow the MicroFogger to fully charge before beginning to use it. This can take up to 6 hours.

See page 3 for colours of LED lights during charging etc

•NOTE: The MF3 Lite will only accept charge if it has been turned on as described above.

•Carefully unscrew the black fluid tank (see image bottom right) by turning anti-clockwise

•Double check that a coil is installed (it usually is)

•Using the 50ml bottle of fog liquid, unscrew bottle cap. Using the pipette-style tip,

carefully pour fog liquid into the gap between the inner and outer walls of the reservoir.

DON’T pour into the central part (coloured RED in image). Don’t squeeze the bottle too

hard –or you’ll overfill and spill the liquid!

•Keep filling the fluid tank until the liquid is at the

same level as the top of the interior metal wall.

•At this stage –with fingers –check the coil (small

silver cylinder) is firmly screwed into place (good

finger tight!)

•Holding the reservoir tank upright, invert the MF3 body on to

it and screw the body on to the tank (again, good finger tight).

Turn the MF3 back to the upright position.

•Now make a cup of tea/coffee as you should let the MF3 Lite

rest upright for a minimum of 30 mins (this ensures that the

liquid properly seeps into the new heating coil). The coil may

be damaged if you don’t wait the 30 mins.

BALNAFETTACH HOUSE, PH26 3LW (01479) 872 518 [email protected]

Quick Start - Operation

•With the ON/OFF rocker switch is set to ‘On’ - pressing the main (large black) button

produces smoke.

Remember - the MicroFogger 3 is designed to be an impulse device.

Using it continuously will make the heating coil wear out faster.

It is recommended that you use bursts of no longer than 10 seconds with 10 seconds rest

between bursts.

On-Board Controls & Operational Notes

There is a rocker switch, a main push button and 2 lights (LEDs) on the MF3.

Large Round Button

•Hold down to start smoke production and release to stop.

Rocker/Toggle Switch

•Move to the I (“ON”) position to turn the MF3 on for charging or for operation.

•Move to the 0 (“OFF”) position to completely turn the device off (and especially for

storage). In the “OFF” position there will be little or no battery drain.

•NOTE: For safety reasons and to preserve the coil, there is a 10 second limit on

continuous use. The MF3 will stop producing smoke at this point and the top LED may

show orange/red

•The power button needs to be pressed again to resume smoke however it is

recommended that you wait at least 10 seconds between each burst to allow the fog

fluid to be re-absorbed. Failing to do this will cause excessive coil wear.

•The MF3 can be used in any orientation provided that the tank is reasonably full. It is

recommended however that you keep the MF3 upright (with the nozzle pointing

vertically upwards) as much as possible. This allows the coil to absorb the liquid better,

even when the tank is near-empty.

•The MF3 must always be used vertically when the tank is low on fluid as other

orientations would produce a similar effect to running without fluid in the tank.

BALNAFETTACH HOUSE, PH26 3LW (01479) 872 518 [email protected]

•If the MF3 is to be used vertically in a static position and smoke output is required in a

downward direction, it is recommended that the optional “Hose Attachment Accessory”

is purchased for that purpose.

The Remote Control

•(if ordered) The MF3_Remote models come with an external plug-in ‘Dongle’ and an

operation key fob.

•If present - remove the plastic battery protection strip on the key fob. The remote

control will send commands to any nearby MF3s when a remote button is pressed.

•There is no limit on the number of MicroFoggers that you can simultaneously control

provided that they are all within range.

•

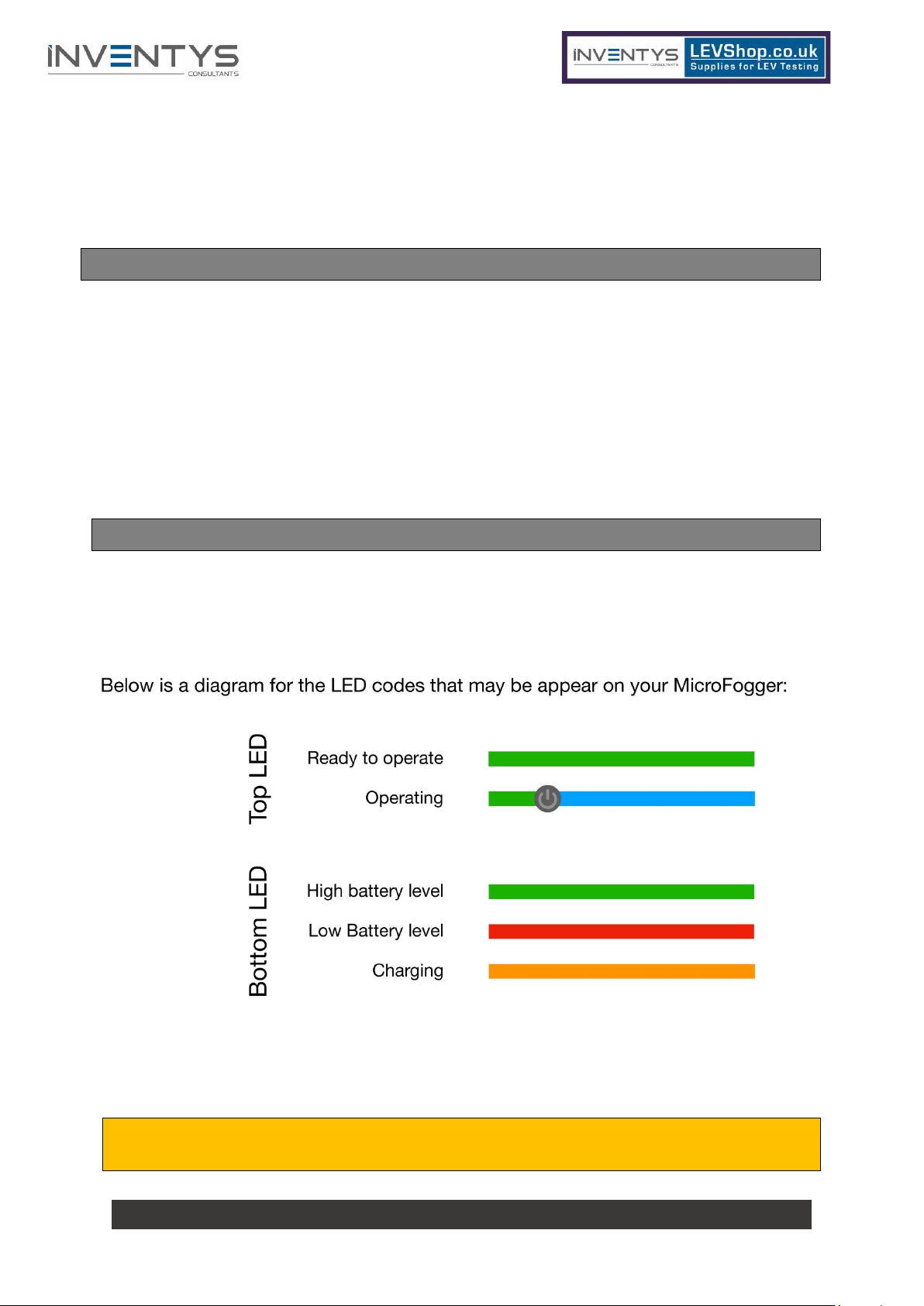

Indicator Lights/LEDs

With the MF3 positioned upright –there are two LEDs; Upper and Lower

NOTE: When the MF3 is OFF using the Toggle Switch –the both LEDs will also be turned off

When the MicroFogger 3 Lite is fully charged, the orange charging indicator will turn off (but

this may take up to 6 hours to complete).

However, the battery will be charged to most of its capacity within 2 hours so it is not

necessary to “top it off” by leaving it on charge for the full duration.

BALNAFETTACH HOUSE, PH26 3LW (01479) 872 518 [email protected]

Storage and Maintenance

•After each use, we recommend ejecting any excess fog liquid that may have re-

condensed within the barrel of the MicroFogger.

•This can be done by simply “flicking” the MicroFogger while holding it to eject any

excess liquid from the barrel. Make sure to flick it into a sink to avoid getting drops on

your floor.

•Alternatively, you can tap the MicroFogger’s barrel on a surface while keeping it

upside-down to encourage the liquid to drip out.

•Failure to eject excess liquid after use may result in liquid damage in the long term.

•To store the MF3, fully charge it and then turn it off using the Rocker Switch.

•Place it in a cool, dry place that is away from direct sunlight and any potentially

flammable materials.

•Unscrew the fluid tank and heating coil. Give both a quick rinse in clean cold water to

remove any fog fluid. Dry with a paper towel.

•Leave the heating coil unscrewed (ie off the MF3) during storage

•A burning smell coming from the MF3 indicates that the heating coil should be

replaced.

To change the coil:-

1. Unscrew the MF3 from the fluid tank while keeping the MF3 body pointed downwards

(to prevent spillage).

2. Gently wipe away any smoke liquid that remains on the now-exposed metal

components on the body of the MicroFogger with paper towel

3. Unscrew the heating coil (the small metal cylinder) by rotating it in an anti-clockwise

direction. Usually this can be done by finger pressure alone however if the coil is

excessively tight, gentle use of pliers may be needed.

4. If you notice any liquid in the airflow channel under the heating coil, wipe away as

much of it as possible using a paper towel.

5. Remove a spare heating coil from its blister packaging and screw it into the slot. Make

sure it is (finger) tight - a loose heating coil can cause the MF3 to leak or display a

heating coil error.

BALNAFETTACH HOUSE, PH26 3LW (01479) 872 518 [email protected]

6. Re-fill the fluid tank and as with the first-time initial setup do allow the liquid to

absorb for at least 30 minutes before using the MF3.

NOTE: If during operation the MF3 does not produce any smoke but you hear a ‘bubbling’

sound –STOP immediately as there is excessive fog liquid inside the heating coil.

Try “flicking” the MF3 away from you to expel the liquid from the barrel. DO THIS OVER

A SINK! . Then try gently tapping the MF3 barrel on a flat surface to expel the liquid.

If this does not work –you will need to change the heating coil.

Troubleshooting

No smoke is emitted even though the fan spins and the top LED is blue when you press the

main button

Ensure the heating coil is fully tightened. If the problem persists, carefully insert a fine

screwdriver or other rod-like object into the barrel of the MicroFogger (the hole from which

smoke is emitted) while the unit Rocker Switch is turned off.

Briefly apply light pressure to the screwdriver, this will ensure that proper electrical contact

is restored. Remove the screwdriver and try again.

Should this error persist, replace the coil with a new one.

Fluid Tank Leaking

Ensure both the heating coil and the tank are fully screwed home (finger tight). If problem

persists –ensure all white gaskets on the heating coil and the tank are properly and securely

in place (and undamaged).

MicroFogger Won’t Turn ON

Plug it in to charge (with the Rocker/Toggle Switch ‘ON’) and wait at least 4 hours until the

MicroFogger recharges.

MicroFogger Won’t Charge

If the MF3 is in a critically low battery state, the flashing LED may not come on for the first

30 minutes of charging. If LED lights and codes do not display after this time, please try

using another charger and micro-USB cable to diagnose whether it is an issue with the MF3

or not.

BALNAFETTACH HOUSE, PH26 3LW (01479) 872 518 [email protected]

MicroFogger keeps charging forever (Lower LED Orange)

Some USB ports may not charge the MF3 to 100% of its capacity but rather to a nearly

charged state of around 90%. To fully charge the MF3, try plugging it into another USB port.

This is a non-critical error.

MicroFogger turns on when the USB cable is plugged into it but the other end of the cable

is not in a charger!

This can occur with some cables where the MF3 recognises the USB cable configuration

being used as a trigger input (a feature that allows the MF3 to be triggered though a fixed

cable rather than by radio remote). Disconnect the cable from the MF3 and plug it into a

charging port before reconnecting to the body of the MF3.

MicroFogger produces a burning smell even with a new heating coil

There may be a very slight burning smell present in the first few second of operation with a

new coil. This is normal. If the smell persists or becomes more noticeable, stop using the

MF3 and allow it to rest for at least another 30 minutes before switching on again.

Ensure that the fluid tank is fully filled. In cold environments, the fog liquid becomes more

viscous (thickens) and will take longer to be absorbed into the heating coil.

In these situations, place the MicroFogger in a warm area before using it.

Safety Considerations

The MicroFogger 3 (MF3) is powered by a high-performance Lithium-ion battery. This type

of battery presents a potential fire risk if handled improperly. The following safety

guidelines aim to prevent any issues from arising:

•Never leave the MF3 charging while unattended

•Never charge an MF3 using a computer or a battery bank

•Keep the MF3 away from any flammable materials

•Do not expose the MF3 to temperatures over 400C

•Never attempt to disassemble the MF3 or undertake unauthorised modifications

•Don’t expose to direct sunlight for extended periods of time

•Always ensure the MF3’s heating coil compartment is clear of debris

•If the MF3 sustains a significant impact through a drop or other mishap, immediately

cease operation (unplug it if it is charging) and place it in a safe area

outdoors and wait for at least 10 minutes.

•If the lower half of the MF3 heats up to a temperature of over 400C, immediately

cease operation (unplug it if it is charging) and place it in a safe area outdoors and

wait for at least 10 minutes. Do not use again until the MF3 has cooled down to

normal operational temperatures.

•Never attempt to power the MF3 using a home-made charging cable.

BALNAFETTACH HOUSE, PH26 3LW (01479) 872 518 [email protected]

•Always store the MF3 with the heating coil unscrewed and “Rocker/Toggle Switch” in

the “OFF” position

During operation, the MF3 heats a mixture of Propylene Glycol and Glycerine in an

internal metal coil in order to produce the smoke effect. These chemicals are often used as

food additives, and both are generally recognised as safe to handle. To prevent any heat-

related issues please follow these sensible guidelines:

•Never touch the fluid tank during operation as it runs hot and can cause burns

•Always allow the fluid tank to cool down before changing coils or refilling liquid

•Never aim the MF3 directly at people or animals that are within 1m of range as

occasionally small droplets of fog fluid can be projected from the nozzle

•Never look directly into the MF3’s nozzle while it is running

Finally, a few more sensible guidelines that should be respected:

•Never allow anyone under the age of 18 to use the MicroFogger 2

•If the smoke starts smelling burnt, immediately cease operation and replace the

heating coil with a new one.

•Never leave the MF3 in a car that is exposed to direct sunlight as during hot

weather this is likely to cause the plastic case to degrade and potentially soften.

This could result in gaps forming around the edges of the top cover.

Potential Health Impacts

The MF3 produces smoke by heat applied evaporation of a mix of Propylene Glycol and

Vegetable Glycerine. The liquid is quite ‘sticky’ if it gets on your skin/fingers but this can be

quickly removed by rinsing with clean water.

Although the above chemicals are both generally recognized as safe and are commonly used

in food additives and skin lotions, you must always follow sensible handling and usage

directions:

•Do not consume the fog liquid

•If fog liquid enters the eyes, wash immediately with clean water

•Never use the MF3 near children under the age of 4 or pregnant women

•Never use the MF3 near people with pulmonary or renal heath issues

•Never deliberately inhale the smoke produced

•Do not operate the MF3 if the liquid tank is empty

•Do not “fog up”a room to a visibility of less than 3m

•Never use any fog liquid other than the proprietary liquid provided.

•If anyone in the operational area exhibits symptoms of nausea, light-headedness or

other adverse health-related effects immediately cease operation and remove

affected person(s) to a well-ventilated room with fresh air. Call a doctor if symptoms

persist.

BALNAFETTACH HOUSE, PH26 3LW (01479) 872 518 [email protected]

Vosentech LLC and Inventys Ltd (t/a LEVShop) will not accept any

responsibility for property damage or bodily harm caused by the improper

use of the MicroFogger 3.

It is the user’s responsibility to follow the guidelines set out in this Manual

and to use good judgement - together with knowledge of the risks detailed

above, to safely operate the device. If you are unwilling to accept the risks

associated with using this device, immediately return it for a full refund.

Support@vosentech.com

Package Contents

The following should be included with your standard MF3.

•Dropper bottle with 50ml of fog liquid

•Replacement heating coil in blister pack

•Instruction manual or download link

•USB charging cable

Depending on your specific order details, some or all of the following additional items may

also be included in the box.

•Set of 5 additional replacement coils

•Remote control (dongle and operating key-fob)

•Extra bottle of fog fluid

•Hose attachment (4mm/6mm)

•Rake attachment

•Black plastic IP65 Instrument carry case

•Loc-Line accessories

BALNAFETTACH HOUSE, PH26 3LW (01479) 872 518 [email protected]

ADVANCED - Additional Features

The MF3 supports several additional features to make it easier to incorporate the effects

into your own custom projects.

Please note that although these modifications are officially supported, you may void your

MF3 warranty should you decide to proceed with any of these effects as there is a potential

to damage the internal electronics if they are not followed carefully.

Whilst the following guides will detail each step to make the process as easy as possible, we

still advise that you only attempt these modifications if you believe you have sufficient

technical knowledge. Proceed at your own risk!

Wired Remote Control Operation

The MicroFogger can be triggered via its USB port to permit automated control or to

activate the MF3 over long distances (further than the radio Remote-Control operational

distance).

This can be done by simply connecting the two data pins (pins 3 and 4) of the micro USB

port together. To access these pins, you can strip the end off a data transferring micro USB

cable and then plug it into the MicroFogger.

Typically, when exposed, these wires will be green and white, but the colour can depend on

the exact type of cable used.

For triggering it is normally the white and green wires that are used. You can now solder

these wires to a relay or switch of your choice but take care not to let the red and black

wires touch!

If you only see two wires after stripping the USB cable, that means that it is a power-only

USB cable rather than a data+power one so it won’t work as a signal cannot be sent through

it.

In more advanced projects, you can connect the relay to a micro-controller such as a

Raspberry Pi or an Arduino to allow for precise timing or environment-dependent triggering

when paired with additional sensors.

Please note that the 10 second continuous use cut-off is still in place even when the MF3 is

activated through the USB port.

Warning! Incorrect wiring or accidental contact between any wires other than the data

ones can lead to irreversible damage to the MF3 which will not be covered by the warranty.

BALNAFETTACH HOUSE, PH26 3LW (01479) 872 518 [email protected]

Pin 5 = +ve

Pin 4 = data

Pin 3 = data

Pin 2 = unused

Pin 1 = -ve

Support and FAQs

Can the MicroFogger trigger smoke alarms?

Yes! Ionization and photoelectric smoke alarms may be activated. Traditional heat-

activated smoke alarms and sprinklers will not be affected.

Is it possible to change the smoke colour?

Unfortunately, not. The MF3 produces smoke by heat evaporation of a fog liquid. It can

only be white and adding a dye to the liquid will not change the smoke colour.

The only way to simulate coloured smoke using the MF3 would be to use external lighting

(eg lasers).

Can I breathe in the smoke?

The liquid is a food additive and under normal operations, the fog produced is considered to

be non-toxic. However, we do not recommend breathing in the smoke.

The smoke can only become potentially harmful to inhale if the safety precautions regarding

the replacement of worn-out heating coils are not followed

What is the fog liquid?

The liquid consists of a high purity vegetable glycerine and propylene glycol mixture and is

sometimes used as a food additive. The same liquid is also found in cigarette replacement

vaping units.

Can I use liquids from other smoke machines?

Liquids from other fog machines are usually far less viscous (thinner) than our composition

so if used in the MicroFogger, they are unlikely to produce any smoke.

We can only guarantee the safety and performance of the fog liquid that we sell so if you

decide to experiment with other compositions, this would at your own risk.

Table des matières

Autres manuels Inventys Machine à brouillard

Inventys

Inventys MicroFogger 3 Pro Manuel utilisateur

Manuels Machine à brouillard populaires d'autres marques

Antari

Antari ICE Manuel utilisateur

Boost

Boost BOOST-FOG400LED-BK Manuel utilisateur

Home Accents Holiday

Home Accents Holiday FM1000-ASH Manuel utilisateur

EuroLite

EuroLite ZEITGEIST FOG-1200 Manuel utilisateur

Dyna-Fog

Dyna-Fog CYCLONE ULTRA 2734 Manuel utilisateur

PROEL

PROEL DRAGO HEAVY PLFD150HY Manuel utilisateur

Sparklyn

Sparklyn Y846 Manuel utilisateur

Magicfx

Magicfx CO2 Gun Manuel utilisateur

Ibiza

Ibiza LSM500LAS Manuel utilisateur

Antari

Antari M-5 Manuel utilisateur

Venue Lighting Effects

Venue Lighting Effects ULTRA MINI-FOGGER Manuel utilisateur

High End

High End F-100 Manuel utilisateur

Chauvet

Chauvet ARENA 2100 FLEX Manuel utilisateur

Antari

Antari X FAZER Manuel utilisateur

Beamz

Beamz F1600 Manuel utilisateur

Sagitter

Sagitter SG ARS900C Manuel utilisateur

KISANKRAFT

KISANKRAFT KK-STF-480 Manuel utilisateur

Orion

Orion OT-U250PP Mode d’emploi
